HDL Code Generation

Generate HDL code from MATLAB^® and Simulink^®

To implement a DSP design on FPGAs or ASICs, use HDL Coder™ to generate code from Simulink or MATLAB. The tool generates synthesizable and portable VHDL^® and Verilog^® code, and also generates VHDL and Verilog test benches for quickly simulating, testing, and verifying the generated code.

Supported blocks in DSP System Toolbox™ and DSP HDL Toolbox include filters, math and signal operations, and other algorithms optimized for resource use and performance, such as the FFT (DSP HDL Toolbox), Discrete FIR Filter (DSP HDL Toolbox), and NCO (DSP HDL Toolbox) blocks. DSP HDL Toolbox™ provides blocks and System objects that implement hardware-friendly architectures. The DSP HDL Toolbox blocks and System objects also have high-throughput streaming interfaces that achieve gigasamples-per-second (GSPS), also called super sample rates, hardware control signals, and options to select different hardware implementations of their algorithms.

For an example of how to generate HDL code from a DSP System Toolbox block using HDL Coder, see Multichannel FIR Filter for FPGA. For an introduction to DSP HDL Toolbox, see Implement FFT Algorithm for FPGA (DSP HDL Toolbox).

To debug your designs in Simulink or MATLAB, use the Logic Analyzer waveform viewer.

Simulink Visualization Tool

Logic Analyzer

Visualize, measure, and analyze transitions and states over time

Topics

Find Blocks That Support HDL Code Generation
Filter for blocks that support HDL code generation in the Simulink library browser and in documentation.
High-Throughput HDL Algorithms (DSP HDL Toolbox)
Choose a block that supports frame-based processing for HDL code generation.
HDL Filter Architectures
HDL code generation parameters to control speed and area tradeoffs in filter architectures.
Subsystem Optimizations for Filters
Select resource sharing and pipeline optimization options.
Visualizing Multiple Signals Using Logic Analyzer
Visualize multiple signals of a programmable FIR filter by using a logic analyzer.
Generate HDL Code for Filter System Objects (Filter Design HDL Coder)
Learn about the specifics of HDL code generation from filter System objects.

Related Information

DSP HDL Toolbox

Featured Examples

Multichannel FIR Filter for FPGA

Implement a discrete FIR filter with multiple input data streams for hardware.

Open Script

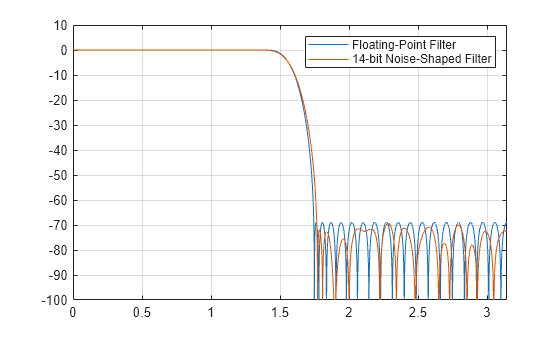

Optimized Fixed-Point FIR Filters
