Discrete FIR Filter

Finite-impulse response filter

Libraries:
DSP HDL Toolbox / Filtering

Description

The Discrete FIR Filter block models finite-impulse response filter architectures optimized for HDL code generation. The block accepts scalar or frame-based input, supports multichannel input, and provides an option for programmable coefficients by using a parallel interface or a memory interface. The block provides a hardware-friendly interface with input and output control signals. To provide a cycle-accurate simulation of the generated HDL code, the block models architectural latency including pipeline registers and resource sharing.

The block provides three filter structures.

The direct form systolic architecture provides a fully parallel implementation that makes efficientinterleav use of Intel^® and AMD^® DSP blocks.
The direct form transposed architecture is a fully parallel implementation and is suitable for FPGA and ASIC applications.
The partly serial systolic architecture provides a configurable serial implementation that makes efficient use of FPGA DSP blocks.

For a filter implementation that matches multipliers, pipeline registers, and pre-adders to the DSP configuration of your FPGA vendor, specify your target device when you generate HDL code.

All single-channel filter structures remove multipliers for zero-valued coefficients, such as in half-band filters and Hilbert transforms. The block also provides an option to implement +/- 1 and power of 2 coefficients without a multiplier, and an option to implement all coefficients with CSD or factored-CSD logic. When you use scalar or multichannel input data, the filter shares multipliers for symmetric and antisymmetric coefficients. Frame-based filters do not implement symmetry optimization. Multichannel filters do not remove multipliers for zero-valued coefficients. Multichannel filters share resources between channels, even if the filter coefficients are different across the channels.

The latency between valid input data and the corresponding valid output data depends on the filter structure, serialization options, number of coefficients, and whether the coefficient values provide optimization opportunities. For details of structure and latency, see FIR Filter Architectures for FPGAs and ASICs.

Note

You can also generate HDL code for this hardware-optimized algorithm, without creating a Simulink^® model, by using the DSP HDL IP Designer app. The app provides the same interface and configuration options as the Simulink block.

Examples

Gigasamples-per-Second Correlator and Peak Detector

Implement a high-throughput correlator and peak detector suitable for LiDAR and mm-wave RADAR applications on FPGA.

Open Script

Fully Parallel Systolic FIR Filter Implementation

Implement a 25-tap lowpass FIR filter.

Open Model

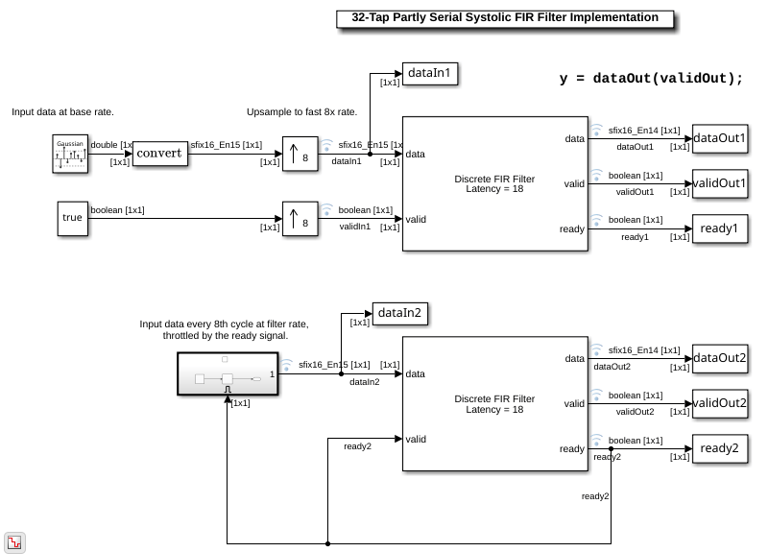

Partly Serial Systolic FIR Filter Implementation

Implement a 32-tap lowpass FIR filter that shares multiplier resources within the filter.

Open Model

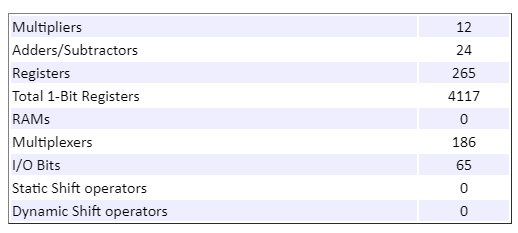

Optimize Programmable FIR Filter Resources

Implement a programmable FIR filter that optimizes multiplier resources for patterns in coefficients.

Open Script

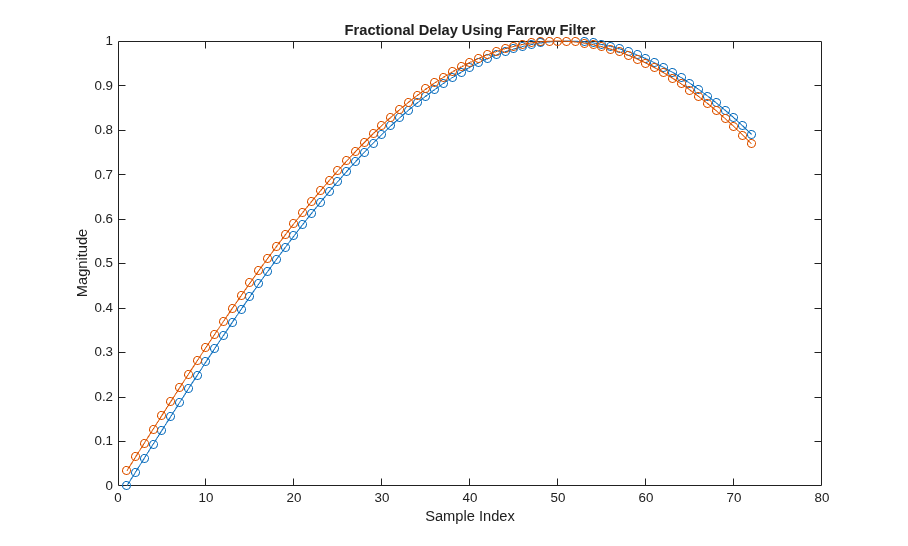

Fractional Delay Filters

Implement fractional delay filters for hardware, including a variable fractional delay filter that uses a Farrow algorithm.

Open Script

Ports

Input

expand all

data — Input data
scalar | column vector | row vector

Input data, specified as a scalar, column vector, or row vector of real or complex values. Use a column vector to increase throughput by processing samples in parallel.

You can use a row vector, [c1 c2 c3], to represent input samples for multiple channels on a single cycle, or you can provide scalar multichannel data with the channels interleaved: c1 data sample on cycle 1, c2 data sample on cycle 2, c3 data sample on cycle 3. The channels can have independent filter coefficients. (since R2023a)

Waveform of row vector and scalar multichannel data signals.

In R2023a and R2023b: you can use multichannel row-vector input only if there are at least as many invalid cycles between inputs as there are channels. When the input is a multichannel vector, the Filter structure must be set to Partly serial systolic, and Number of cycles must be equal to or greater than the number of channels. This time allows the block to implement a partly-serial architecture that shares resources between the channels.

Frame-based (column vector) input is not supported with multichannel coefficients. To implement a high-throughput multichannel filter, you can use a For Each block to implement a high throughput filter for each channel. This implementation cannot share resources between the channels.

The size of the row or column vector must be less than or equal to 64 elements. To implement a multichannel filter with more than 64 channels, you must use interleaved scalar input.

When the input data type is an integer type or a fixed-point type, the block uses fixed-point arithmetic for internal calculations and provides parameters on the Data Types tab to customize the data types. When the input data type is a floating-point type, the block uses that input floating-point type for internal calculations and the output data type.

The software supports double and single data types for simulation, but not for HDL code generation.

valid — Indicates valid input data
scalar

Control signal that indicates if the input data is valid. When valid is 1 (true), the block captures the values from the input data port. When valid is 0 (false), the block ignores the values from the input data port.

Data Types: Boolean

coeff — Filter coefficients (Parallel interface)
real or complex row vector

Filter coefficients, specified as a row vector of real or complex values. You can change the input coefficients at any time. When you use scalar input data, the size of the coefficient vector depends on the size and symmetry of the sample coefficients specified in the Coefficients prototype parameter. The prototype specifies a sample coefficient vector that is representative of the symmetry and zero-valued locations of the expected input coefficients. The block uses the prototype to optimize the filter by sharing multipliers for symmetric or antisymmetric coefficients, and by removing multipliers for zero-valued coefficients. Therefore, provide only the nonduplicate coefficients at the port. For example, if you set the Coefficients prototype parameter to a symmetric 14-tap filter, the block expects a vector of 7 values on the coeff input port. You must still provide zeros in the input coeff vector for the nonduplicate zero-valued coefficients.

When you use frame-based input data, the block does not optimize the filter for coefficient symmetry. The block still uses the Coefficients prototype to remove multipliers for zero-valued coefficients. At the coeff input port, specify a vector that is the same size as the prototype.

If the input data is a fixed-point type, the coeff values must also be of a fixed point type. If the input data is a floating-point data type, the coeff values must be of the same data type.

The software supports double and single data types for simulation, but not for HDL code generation.

Dependencies

To enable this port, set Coefficients source to Input port (Parallel interface).

coeff — Filter coefficients (Memory interface)
real or complex scalar

Since R2023a

Filter coefficients, specified as a real or complex scalar value to write to internal memory. To load a single coefficient value to internal memory, specify a coeff value with a corresponding address on the caddr port and an enable signal on the cwren port. You can change the input coefficients at any time.

Waveform that shows writing a set of coefficients to the filter by using the memory interface

While you write new coefficients into memory, the block ignores any input data, but still returns dataOut with validOut until it clears the filter pipeline. The block resumes accepting input the cycle after cdone is set to 1 (true).

Waveform that shows the filter stops processing input data while receiving new coefficients on the memory interface

The coefficient memory has the same number of addresses as the size of the Coefficients prototype parameter. The prototype specifies a sample coefficient vector that is representative of the symmetry and zero-valued locations of the expected input coefficients. When you use scalar input data, the block uses the prototype to optimize the filter by sharing multipliers for symmetric or antisymmetric coefficients, and by removing multipliers for zero-valued coefficients. You must write the entire set of coefficients to memory, including symmetric or zero-value coefficients. For example, if you set the Coefficients prototype parameter to a symmetric 14-tap filter, you must write 14 values to the memory interface.

When you use frame-based input data, the block does not optimize the filter for coefficient symmetry. The block still uses the Coefficients prototype parameter to remove multipliers for zero-valued coefficients. The coefficient memory has the same number of locations as the size of the prototype.

The software supports double and single data types for simulation, but not for HDL code generation.

Dependencies

To enable this port, set Coefficients source to Input port (Memory interface).

caddr — Filter coefficient address (Memory interface)
scalar

Since R2023a

Specify the filter coefficient address as a scalar integer value represented as an unsigned fixed-point type with zero fractional bits. The block derives the size of this integer value, and the size of the internal memory, from the number of unique coefficients in the Coefficients prototype parameter value.

Dependencies

To enable this port, set Coefficients source to Input port (Memory interface).

Data Types: fixdt(0,N,0)

cwren — Filter coefficients write enable (Memory interface)
scalar

Since R2023a

Set this input to 1 (true) to write the value on the coeff port into the caddr location in internal memory.

Dependencies

To enable this port, set Coefficients source to Input port (Memory interface).

Data Types: Boolean

cdone — Filter coefficient write complete (Memory interface)
scalar

Since R2023a

Set this input to 1 (true) to indicate that the current port values write the final coefficient value to memory.

Dependencies

To enable this port, set Coefficients source to Input port (Memory interface).

Data Types: Boolean

reset — Clears internal states
scalar

Control signal that clears internal states. When reset is 1 (true), the block stops the current calculation and clears internal states. When reset is 0 (false) and the input valid is 1 (true), the block captures data for processing.

For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.

Dependencies

To enable this port, on the Control Ports tab, select Enable reset input port.

Data Types: Boolean

Output

expand all

data — Filtered output data
scalar | column vector | row vector

Filtered output data, returned as a scalar, column vector, or row vector of real or complex values. The dimensions of the output match the dimensions of the input. When the input data type is a floating-point type, the output data inherits the data type of the input data. When the input data type is an integer type or a fixed-point type, the Output parameter on the Data Types tab controls the output data type.

Data Types: fixed point | single | double
Complex Number Support: Yes

valid — Indicates valid output data
scalar

Control signal that indicates if the data from the output data port is valid. When valid is 1 (true), the block returns valid data from the output data port. When valid is 0 (false), the values from the output data port are not valid.

Data Types: Boolean

ready — Indicates block is ready for new input data
scalar

Control signal that indicates the block is ready for a new input data sample on the next cycle. When ready is 1 (true), you can specify the data and valid inputs for the next time step. When ready is 0 (false), the block ignores any input data in the next time step.

When using the partly serial architecture, the block processes one sample at a time. If your design waits for this block to return ready set to 0 (false) before setting the input valid to 0 (false), then one additional cycle of input data arrives at the port. The block stores this additional data while processing the current data, and does not set ready to 1 (true) until your model processes the additional input data.

Dependencies

To enable this port, set Filter structure to Partly serial systolic.

Data Types: Boolean

Parameters

expand all

Main

Coefficient source — Source of filter coefficients
`Property` (default) | `Input port (Parallel interface)` | `Input port (Memory interface)`

You can enter constant filter coefficients as a parameter, provide time-varying filter coefficients by using an input port, or provide time-varying coefficients by using a memory-style interface.

You cannot use programmable coefficients with multichannel data.

When you select Input port (Parallel interface), the coeff port appears on the block.

When you select Input port (Memory interface), a memory-style interface appears on the block. This interface includes the coeff, caddr, cwren, and cdone ports.

Selecting Input port (Parallel interface) or Input port (Memory interface) enables the Coefficients prototype parameter. Specify a prototype to enable the block to optimize the filter implementation according to the values of the coefficients.

When you use programmable coefficients with frame-based input, the block does not optimize the filter for coefficient symmetry. Also, the output after a change of coefficient values might not match the output in the scalar case exactly. This difference occurs because the subfilter calculations are performed at different times relative to the input coefficient values, compared with the scalar implementation.

Dependencies

Before R2023b: To use Input port (Parallel interface), set the Filter structure parameter to Direct form systolic or Direct form transposed.

Coefficients — Discrete FIR filter coefficients
`[0.5, 0.5]` (default) | row vector | multichannel matrix

Discrete FIR filter coefficients, specified as a row vector of real or complex values. You can specify multichannel coefficients with a K-by-L matrix of real or complex values, where K is the number of channels and L is the filter length. To enable symmetry optimization, the symmetry characteristics of all channels must align. For example, if one channel is even-symmetric, all channels must be even-symmetric.

You can also specify the coefficients as a workspace variable or as a call to a filter design function. When the input data type is a floating-point type, the block casts the coefficients to the same data type as the input. When the input data type is an integer type or a fixed-point type, you can set the data type of the coefficients on the Data Types tab.

Example: firpm(30,[0 0.1 0.2 0.5]*2,[1 1 0 0])

Dependencies

To enable this parameter, set Coefficients source to Property.

Coefficients prototype — Prototype filter coefficients
`[]` (default) | real or complex vector

Prototype filter coefficients, specified as a vector of real or complex values. The prototype specifies a sample coefficient vector that is representative of the symmetry and zero-valued locations of the expected input coefficients. If all input coefficient vectors have the same symmetry and zero-valued coefficient locations, set Coefficients prototype to one of those vectors. The block uses the prototype to optimize the filter by sharing multipliers for symmetric or antisymmetric coefficients, and by removing multipliers for zero-valued coefficients.

Coefficient Source Input Size If No Prototype

Coefficient Source	Input Size	If No Prototype
`Input port (Parallel interface)`	When you use scalar input data, coefficient optimizations affect the expected size of the vector on the coeff port. Provide only the nonduplicate coefficients at the port. For example, if you set the Coefficients prototype parameter to a symmetric 14-tap filter, the block shares one multiplier between each pair of duplicate coefficients, so the block expects a vector of 7 values on the coeff port. You must still provide zeros in the input coeff vector for the nonduplicate zero-valued coefficients. When you use frame-based input data, specify a coeff vector that is the same size as the prototype.	If your coefficients are unknown or not expected to share symmetry or zero-valued locations, you can set Coefficients prototype to `[]`.
`Input port (Memory interface)`	Write the same number of coefficient values as the size of the prototype.	Coefficients prototype cannot be empty. The block uses the prototype to determine the size of the coefficient memory. If your coefficients are unknown or not expected to share symmetry or zero-valued locations, set Coefficients prototype to a vector with the same length as your expected coefficients, which does not contain symmetry or zero values, for example `[1:1:NumCoeffs]`.

Input port (Parallel
                                                  interface)

When you use scalar input data, coefficient optimizations affect the expected size of the vector on the coeff port. Provide only the nonduplicate coefficients at the port. For example, if you set the Coefficients prototype parameter to a symmetric 14-tap filter, the block shares one multiplier between each pair of duplicate coefficients, so the block expects a vector of 7 values on the coeff port. You must still provide zeros in the input coeff vector for the nonduplicate zero-valued coefficients.

When you use frame-based input data, specify a coeff vector that is the same size as the prototype.

If your coefficients are unknown or not expected to share symmetry or zero-valued locations, you can set Coefficients prototype to [].

Input port (Memory
                                                  interface)

Write the same number of coefficient values as the size of the prototype.

Coefficients prototype cannot be empty. The block uses the prototype to determine the size of the coefficient memory. If your coefficients are unknown or not expected to share symmetry or zero-valued locations, set Coefficients prototype to a vector with the same length as your expected coefficients, which does not contain symmetry or zero values, for example [1:1:NumCoeffs].

Dependencies

To enable this parameter, set Coefficients source to Input port (Parallel interface) or Input port (Memory interface).

Filter structure — HDL filter architecture
`Direct form systolic` (default) | `Direct form transposed` | `Partly serial systolic`

Specify the HDL filter architecture as one of these structures:

Direct form systolic — This architecture provides a fully parallel filter implementation that makes efficient use of Intel and AMD DSP blocks. For architecture details, see Fully Parallel Systolic Architecture. When you specify multichannel coefficients with this architecture (with interleaved input samples), the block interleaves the channel coefficients over a single parallel filter.
Direct form transposed — This architecture is a fully parallel implementation that is suitable for FPGA and ASIC applications. For architecture details, see Fully Parallel Transposed Architecture. When you specify multichannel coefficients with this architecture (with interleaved input samples), the block interleaves the channel coefficients over a single parallel filter.
Partly serial systolic — This architecture provides a serial filter implementation and options for tradeoffs between throughput and resource utilization. The architecture makes efficient use of Intel and AMD DSP blocks. The block implements a serial L-coefficient filter with M multipliers and requires input samples that are at least N cycles apart, such that L = N×M. You can specify either M or N. For this implementation, the block provides the output ready port which indicates when the block is ready for new input data. For architecture details, see Partly Serial Systolic Architecture (1 < N < L) and Fully Serial Systolic Architecture (N ≥ L). You cannot use frame-based input with the partly serial architecture.
When you specify multichannel coefficients with a serial architecture, you must specify the serialization factor as the number of cycles between valid input samples.
For multichannel input that is scalar and interleaved over the channels, the block implements these serial architectures:
- When N < L: Partly serial filter with L/N multipliers.
- When N >= L: Fully serial filter.
For multichannel input that is a 1-by-K vector, where K is the number of channels, the block implements these serial architectures:
- When N = 1: Filter bank of fully parallel filters.
- When 1 < N < K: Filter bank of partly serial filters. (since R2024a)
- When N = K: Fully parallel filter with channel coefficients interleaved.
- When K < N < L×K: Partly serial filter with L×K/N multipliers.
- When N >= L×K: Fully serial filter.

If any filter is symmetric, the architecture shares multipliers for matching coefficients, so effectively L becomes L/2. To enable the symmetry optimization for multichannel filters, the symmetry characteristics of all channels must align.

All single-channel implementations remove multipliers for zero-valued coefficients. Multichannel filters do not optimize for zero-valued coefficients. When you use scalar or multichannel input data, the filter shares multipliers for symmetric and antisymmetric coefficients. Frame-based filters do not implement symmetry optimization. Multichannel filters share resources between channels, even if the filter coefficients are different across the channels.

Specify serialization factor as — Rule to define serial implementation
`Minimum number of cycles between valid input samples` (default) | `Maximum number of multipliers`

You can specify the rule that the block uses to serialize the filter as either:

Minimum number of cycles between valid input samples — Specify a requirement for input data timing using the Number of cycles parameter.
Maximum number of multipliers — Specify a requirement for resource usage using the Number of multipliers parameter. This option is not supported when you have multichannel coefficients.

For a filter with L coefficients, the block implements a serial filter with not more than M multipliers and requires input samples that are at least N cycles apart, such that L = N×M. The block might remove multipliers when it applies coefficient optimizations, so the actual M or N value of the filter implementation might be lower than the specified value.

If the filter is symmetric, the architecture shares multipliers for matching coefficients, so effectively L = L/2.

When you use complex input data and/or complex coefficients with a single-channel partly serial architecture, the block implements complex interleaving to share the multipliers over inactive input cycles. For complex input and complex coefficients, the block needs at least L×3 cycles to implement the filter with a single multiplier. For complex input with real coefficients or complex coefficients with real input, the block needs at least L×2 cycles to implement the filter with a single multiplier. (since R2023b)

Dependencies

To enable this parameter, set the Filter structure parameter to Partly serial systolic.

Number of cycles — Serialization requirement for input timing
`2` (default) | positive integer

Serialization requirement for input timing, specified as a positive integer. This parameter represents N, the minimum number of cycles between valid input samples. In this case, the block calculates M = L/N. To implement a fully serial architecture, set Number of cycles to a value greater than the filter length, L, or to Inf. To implement a fully serial architecture for a multichannel filter with 1-by-K vector input, set Number of cycles to a value greater than L×K, where K is the number of channels.

To implement a fully serial architecture for a single channel filter with complex input and complex coefficients, set Number of cycles greater than L×3. If you have complex input with real coefficients or complex coefficients with real input, set Number of cycles greater than L×2.

If the filter is symmetric, the architecture shares multipliers for matching coefficients, so effectively L = L/2. To enable the symmetry optimization for multichannel filters, the symmetry characteristics of all channels must align.

The block might remove multipliers when it applies coefficient optimizations, so the actual M and N values of the filter can be lower than the value you specified.

Dependencies

To enable this parameter, set Filter structure to Partly serial systolic and set Specify serialization factor as to Minimum number of cycles between valid input samples.

Number of multipliers — Serialization requirement for resource usage
`2` (default) | positive integer

Serialization requirement for resource usage, specified as a positive integer. This parameter represents M, the maximum number of multipliers in the filter implementation. In this case, the block calculates N = L/M. If the input data is complex, the block allocates floor(M/2) multipliers for the real part of the filter and floor(M/2) multipliers for the imaginary part of the filter. To implement a fully serial architecture, set Number of multipliers to 1.

If the filter is symmetric, the architecture shares multipliers for matching coefficients, so effectively L = L/2.

The block might remove multipliers when it applies coefficient optimizations, so the actual M and N values of the filter might be lower than the specified value.

Dependencies

To enable this parameter, set the Filter structure to Partly serial systolic, and set Specify serialization factor as to Maximum number of multipliers.

You cannot use this parameter when you specify multichannel coefficients. Use the Number of cycles parameter instead.

Data Types

Rounding mode — Rounding mode for type-casting the output
`Floor` (default) | `Ceiling` | `Convergent` | `Nearest` | `Round` | `Zero`

Rounding mode for type-casting the output to the data type specified by the Output parameter. When the input data type is floating point, the block ignores this parameter. For more details, see Rounding Modes.

Saturate on integer overflow — Overflow handling for type-casting the output
`off` (default) | `on`

Overflow handling for type-casting the output to the data type specified by the Output parameter. When the input data type is floating point, the block ignores this parameter. For more details, see Overflow Handling.

Coefficients — Data type of discrete FIR filter coefficients
`Inherit: Same word length as input` (default) | `<data type expression>`

When the input is a fixed-point or integer type, the block casts the filter coefficients using the rule or data type in this parameter. The quantization rounds to the nearest representable value and saturates on overflow. When the input data type is a floating-point type, the block ignores this parameter and all internal arithmetic uses the same data type as the input.

The recommended setting for this parameter is Inherit: Same word length as input.

The block returns a warning or error if:

The coefficients data type does not have enough fractional length to represent the coefficients accurately.
The coefficients data type is unsigned and the coefficients include negative values.

Dependencies

To enable this parameter, set Coefficients source to Property.

Output — Data type of filter output
`Inherit: Inherit via internal rule` (default) | `Inherit: Same word length as input` | `<data type expression>`

When the input is a fixed-point or integer type, the block casts the output of the filter using the rule or data type in this parameter. The quantization uses the settings of the Rounding mode and Overflow mode parameters. When the input data type is floating point, the block ignores this parameter and returns output in the same data type as the input.

The block increases the word length for full precision inside each filter tap and casts the final output to the specified type. The maximum final internal data type (WF) depends on the input data type (WI), the coefficient data type (WC), and the number of coefficients (L), and is given by

WF = WI + WC + ceil(log2(L)).

When you specify a fixed set of coefficients, the actual full-precision internal word length is usually smaller than WF, because the coefficient values limit the potential growth.

When you use programmable coefficients, the block cannot calculate the dynamic range, and the internal data type is always WF.

Control Ports

Enable reset input port — Option to enable reset input port
`off` (default) | `on`

Select this check box to enable the reset input port. The reset signal implements a local synchronous reset of the data path registers.

For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.

Use HDL global reset — Option to connect data path registers to generated HDL global reset signal
`off` (default) | `on`

Select this check box to connect the generated HDL global reset signal to the data path registers. This parameter does not change the appearance of the block or modify simulation behavior in Simulink. When you clear this check box, the generated HDL global reset clears only the control path registers. The generated HDL global reset can be synchronous or asynchronous depending on the HDL Code Generation > Global Settings > Reset type parameter in the model Configuration Parameters.

For more reset considerations, see the Reset Signal section on the Hardware Control Signals page.

Implementation

Coefficient multiplication — Coefficient multiplier implementation in hardware
`Multiplier` (default) | `CSD/Factored-CSD`

Since R2023b

By default, the block implements coefficient multipliers using a hardware multiplier. Select CSD/Factored-CSD to replace coefficient multipliers with a CSD or factored-CSD implementation. A CSD or factored-CSD implementation uses shift and add operations rather than multipliers. When you select CSD, coefficients of +/- 1 and power of 2 are also implemented with shift logic.

The latency of the block does not change with multiplier implementation. Each multiplier has the same number of pipeline stages around it in either implementation

Dependencies

To enable this parameter, set the Filter structure parameter to Direct form transposed. Using CSD multipliers with systolic architecture is not supported because it can prevent efficient use of FPGA DSP blocks.

CSD implementations are not supported for multichannel or programmable filters.

Use multiplier for +/- 1 and power of 2 coefficients — Special-value coefficient multiplier implementation in hardware
`on` (default) | `off`

Since R2023b

By default, the block implements special-value coefficient multipliers using a hardware multiplier. Clear this check box to replace special-value coefficient multipliers with a shift implementation.

Dependencies

To enable this parameter, set Filter structure to Direct form transposed, and set Coefficient multiplication to Multiplier, or set Filter structure to Direct form systolic.

CSD implementations are not supported for multichannel or programmable filters.

Algorithms

expand all

The filter architectures for the Discrete FIR Filter block are shared with other filter blocks and described in detail on the FIR Filter Architectures for FPGAs and ASICs page.

This flow chart shows the Discrete FIR Filter block architecture for multichannel coefficients, that is, when you set the Coefficients parameter to an K-by-L matrix.

If the filter is symmetric, the architecture shares multipliers for matching coefficients, so effectively L = L/2. To enable the symmetry optimization, the symmetry characteristics of all channels must align. For example, if one channel is even-symmetric, all channels must be even-symmetric.

The sections below show the hardware resources and synthesized clock speed for the Discrete FIR Filter block configured with each filter architecture.

Performance — Fully Parallel Systolic

This table shows post-synthesis resource utilization for the HDL code generated for a symmetric 26-tap FIR filter with 16-bit scalar input and 16-bit coefficients. The synthesis targets a AMD ZC-706 (XC7Z045ffg900-2) FPGA. The Global HDL reset type parameter is Synchronous and Minimize clock enables is selected. The reset port is not enabled, so only control path registers are connected to the generated global HDL reset.

Resource	Uses
LUT	36
Slice Reg	487
Slice	45
AMD LogiCORE DSP48	13

After place and route, the maximum clock frequency of the design is 630 MHz.

Performance — Fully Parallel Transposed

Resource	Uses
LUT	32
Slice Reg	108
AMD LogiCORE DSP48	26

After place and route, the maximum clock frequency of the design is 541 MHz.

Performance — Partly Serial Systolic (1 < `N` < L)

This table shows post-synthesis resource utilization for the HDL code generated from the Partly Serial Systolic FIR Filter Implementation example. The implementation is for a 32-tap FIR filter with 16-bit scalar input, 16-bit coefficients, and a serialization factor of 8 cycles between valid input samples. The synthesis targets a AMD Virtex-6 (XC6VLX240T-1FF1156) FPGA. The Global HDL reset type parameter is Synchronous and Minimize clock enables is selected.

Resource	Uses
LUT	181
FFS	428
AMD LogiCORE DSP48	2

After place and route, the maximum clock frequency of the design is 561 MHz.

Performance — Fully Serial Systolic (N ≥ L)

This table shows post-synthesis resource utilization for the HDL code generated from the 32-tap filter in the Partly Serial Systolic FIR Filter Implementation example, with the Number of cycles parameter set to Inf. This configuration implements a fully serial filter. The synthesis targets a AMD Virtex-6 (XC6VLX240T-1FF1156) FPGA. The Global HDL reset type parameter is Synchronous and Minimize clock enables is selected.

Resource	Uses
LUT	122
Slice Reg	225
AMD LogiCORE DSP48	1

After place and route, the maximum clock frequency of the design is 590 MHz.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

This block supports C/C++ code generation for Simulink accelerator and rapid accelerator modes and for DPI component generation.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

You can set block parameters to make tradeoffs between throughput and resource utilization.

For highest throughput, choose a fully parallel systolic or transposed architecture. The generated code accepts input data and provides filtered output data on every cycle.
For reduced area, choose partly serial systolic architecture. Then specify a rule that the block uses to serialize the filter based on either input timing or resource usage. To specify a serial filter using an input timing rule, set Specify serialization factor as to Minimum number of cycles between valid input samples, and set Number of cycles to a value greater than or equal to 2. In this case, the filter accepts only input samples that are at least Number of cycles cycles apart. To specify a serial filter using a resource rule, set Specify serialization factor as to Maximum number of multipliers, and set Number of multipliers to a value less than the number of filter coefficients. In this case, the filter accepts input samples that are at least NumCoeffs/NumMults apart.

HDL Block Properties

ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays within your design. Distributed pipelining does not redistribute these registers. The default is `0`. For more details, see ConstrainedOutputPipeline (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see InputPipeline (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default is `0`. For more details, see OutputPipeline (HDL Coder).

Restrictions

The Discrete FIR Filter block does not support resource sharing optimization through HDL Coder settings. Instead, set the Filter structure parameter to Partly serial systolic, and configure a serialization factor based on either input timing or resource usage.

Version History

Introduced in R2017a

expand all

R2024a: Use multichannel vector input with fully parallel filters

Starting in R2024a, the block supports multichannel vector input for Direct form systolic and Direct form transposed filter structures. The block also now supports multichannel vector input for Partly serial systolic filters with Number of cycles less than the number of channels.

R2023b: Multichannel optimization for symmetric filters

When you use multichannel input data, the block shares multipliers between odd- or even-symmetric filter coefficients. To enable the symmetry optimization, the symmetry characteristics of all channels must align. For example, if one channel is even-symmetric, all channels must be even-symmetric.

R2023b: Partly serial FIR filter optimization for complex multipliers

For complex input and complex coefficients, the block needs at least NumCycles = 3*FilterLength to implement the filter with a single multiplier. For complex input with real coefficients or complex coefficients with real input, the block needs at least NumCycles = 2*FilterLength to implement the filter with a single multiplier. The effective filter length is FilterLength/2 if the filter is symmetrical.

R2023b: Programmable coefficients with serial architecture

The block supports using the parallel coefficients input port with the Partly serial systolic architecture.

R2023b: Canonical signed digit implementation

The block provides an option to replace coefficient multipliers with a CSD or factored-CSD implementation when you use the Direct form transposed architecture. A CSD or factored-CSD implementation uses shift and add operations rather than multipliers. When you use Direct form systolic or Direct form transposed, you can optionally replace multipliers with a shift implementation for coefficients that have values equal to 1, -1, or a power of 2.

CSD implementations are not supported for multichannel or programmable filters.

R2023a: Load coefficients using memory-style interface

This block offers an optional memory-style interface to load coefficients. To use this interface, set the Coefficient source parameter to Input port (Memory interface). You can use this interface with any filter architecture.

R2023a: Multichannel support

Specify coefficients as a K-by-L matrix, where K is the number of channels and L is the filter length. You can supply input data as a K-by-1 row-vector or as scalar input with the channels interleaved in time. The filter shares resources between channels, even if the filter coefficients are different across the channels. If the input data channels have enough cycles between valid input samples, the block can implement the multichannel filter as a single fully serial FIR filter. When the input is a multichannel vector, the Filter structure must be set to Partly serial systolic, and Number of cycles must be equal to or greater than the number of channels.

R2022a: Moved to DSP HDL Toolbox from DSP System Toolbox

Before R2022a, this block was named Discrete FIR Filter HDL Optimized and was included in the DSP System Toolbox™ DSP System Toolbox HDL Support library.

R2022a: High-throughput interface

This block supports high-throughput data. You can apply input data as an N-by-1 vector, where N can be up to 64 values. You cannot use frame-based input with the partly serial architecture.

R2022a: Input coefficients must be a row vector

When you use programmable coefficients with this block, you must supply the coefficients as a row vector (1-by-N matrix). Before R2022a, the block accepted a one-dimensional array (for example, ones(5)), a column vector (M-by-1 matrix), or a row vector of coefficients.

R2022a: RAM-based partly serial architecture

This block uses a RAM-based partly serial architecture, which uses fewer resources than the former register-based architecture. Uninitialized RAM locations can result in X values at the start of your HDL simulation. You can avoid X values by having your test initialize the RAM or by enabling the Initialize all RAM blocks option in the model configuration parameters. This parameter sets the RAM locations to 0 for simulation and is ignored by synthesis tools. Another option to avoid transient effects from uninitialized RAM locations is to hold reset for L/M cycles, where L is the number of coefficients and M is the number of multipliers in the filter implementation. This operation sets the RAM locations to zeros.

R2019b: Complex coefficients

The block supports complex-valued coefficients. If both coefficients and input data are complex, the block implements each filter tap with three multipliers. If either data or coefficients are complex but not both, the block uses two multipliers for each filter tap. You can use complex coefficients with all architectures and with programmable coefficients.

R2019a: Programmable coefficients

The block provides the option to specify coefficients using an input port when you select the Direct form systolic architecture. You cannot use programmable coefficients with transposed or partly serial systolic architectures.

R2019a: Optimize symmetric coefficients

The block provides optimization of symmetric and antisymmetric coefficients. This optimization reduces the number of multipliers and makes efficient use of FPGA DSP resources.

In R2018b, the block performed these optimizations only for fully parallel architectures.

R2019a: Optional reset port

The block provides an optional reset port for any architecture, including a serial systolic architecture with resource sharing. The reset port provides a local synchronous reset of the data path registers.

In R2018b, the block supported the reset port only for fully parallel architectures.

R2019a: Changes to serial filter parameters

Before R2019a, you specified the serial implementation by setting a requirement for input timing. Starting in R2019a, you can specify the serialization requirement based on either input timing or resource usage.

For a filter with L coefficients, the block implements a serial filter with not more than M multipliers and requires input samples that are at least N cycles apart, such that L = N×M.

Serial Filter Requirement	Configuration Before R2019a	Configuration in R2019a
Specify a serialization rule based on input timing, that is, N cycles.	Set Filter structure to `Direct form systolic`. Select Share DSP resources. Set Sharing factor to N.	Set the Filter structure to `Partly serial systolic`. Set Specify serialization factor as to `Minimum number of cycles between valid input samples`. Set Number of cycles to N.
Specify a serialization rule based on resource usage, that is, M multipliers.	Serialization by resource usage is not supported before R2019a. However, you can calculate N based on your multiplier requirement. Set Filter structure to `Direct form systolic`. Select Share DSP resources. Set Sharing factor to `ceil(NumCoeffs/M)`.	Set the Filter structure to `Partly serial systolic`. Set Specify serialization factor as to `Maximum number of multipliers`. Set Number of multipliers to M.

R2018b: Transposed architecture

The block provides an option to select a direct form transposed architecture.

R2018b: Changes to parallel filter architecture

The validIn port is mandatory. The Enable valid input port parameter is no longer available.
The ready port is enabled when you select Share DSP resources and disabled when you clear Share DSP resources. The Enable ready output port parameter is no longer available.
When you select Direct form systolic without Share DSP resources enabled, the block implements an improved fully parallel architecture compared to previous releases. This architecture might have different latency than in previous versions. Use the validOut signal to align with parallel delay paths. When using this architecture, the default global HDL reset now clears only the control path registers. Previous releases connected the global HDL reset to the data path registers and the control path registers. This change improves hardware performance and lowers the resources used. To implement the same fully parallel architecture as previous releases, select Share DSP resources and set Sharing factor to 1.
When you select Direct form systolic, select Share DSP resources, and use any Sharing factor, the implemented filter has the same latency and uses the same hardware resources as in previous releases. The reset behavior for this architecture is also the same as in previous releases.

Discrete FIR Filter

Description

Examples

Gigasamples-per-Second Correlator and Peak Detector

Fully Parallel Systolic FIR Filter Implementation

Partly Serial Systolic FIR Filter Implementation

Optimize Programmable FIR Filter Resources

Fractional Delay Filters

Ports

Input

data — Input data scalar | column vector | row vector

valid — Indicates valid input data scalar

coeff — Filter coefficients (Parallel interface) real or complex row vector

Dependencies

coeff — Filter coefficients (Memory interface) real or complex scalar

Dependencies

caddr — Filter coefficient address (Memory interface) scalar

Dependencies

cwren — Filter coefficients write enable (Memory interface) scalar

Dependencies

cdone — Filter coefficient write complete (Memory interface) scalar

Dependencies

reset — Clears internal states scalar

Dependencies

Output

data — Filtered output data scalar | column vector | row vector

valid — Indicates valid output data scalar

ready — Indicates block is ready for new input data scalar

Dependencies

Parameters

Main

Coefficient source — Source of filter coefficients Property (default) | Input port (Parallel interface) | Input port (Memory interface)

Dependencies

Coefficients — Discrete FIR filter coefficients [0.5, 0.5] (default) | row vector | multichannel matrix

Dependencies

Coefficients prototype — Prototype filter coefficients [] (default) | real or complex vector

Dependencies

Filter structure — HDL filter architecture Direct form systolic (default) | Direct form transposed | Partly serial systolic

Specify serialization factor as — Rule to define serial implementation Minimum number of cycles between valid input samples (default) | Maximum number of multipliers

Dependencies

Number of cycles — Serialization requirement for input timing 2 (default) | positive integer

Dependencies

Number of multipliers — Serialization requirement for resource usage 2 (default) | positive integer

Dependencies

Data Types

Rounding mode — Rounding mode for type-casting the output Floor (default) | Ceiling | Convergent | Nearest | Round | Zero

Saturate on integer overflow — Overflow handling for type-casting the output off (default) | on

Coefficients — Data type of discrete FIR filter coefficients Inherit: Same word length as input (default) | <data type expression>

Dependencies

Output — Data type of filter output Inherit: Inherit via internal rule (default) | Inherit: Same word length as input | <data type expression>

Control Ports

Enable reset input port — Option to enable reset input port off (default) | on

Use HDL global reset — Option to connect data path registers to generated HDL global reset signal off (default) | on

Implementation

Coefficient multiplication — Coefficient multiplier implementation in hardware Multiplier (default) | CSD/Factored-CSD

Dependencies

Use multiplier for +/- 1 and power of 2 coefficients — Special-value coefficient multiplier implementation in hardware on (default) | off

Dependencies

Algorithms

Performance — Fully Parallel Systolic

Performance — Fully Parallel Transposed

Performance — Partly Serial Systolic (1 < N < L)

Performance — Fully Serial Systolic (N ≥ L)

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using Simulink® Coder™.

HDL Code Generation Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

Version History

R2024a: Use multichannel vector input with fully parallel filters

R2023b: Multichannel optimization for symmetric filters

R2023b: Partly serial FIR filter optimization for complex multipliers

R2023b: Programmable coefficients with serial architecture

R2023b: Canonical signed digit implementation

R2023a: Load coefficients using memory-style interface

R2023a: Multichannel support

R2022a: Moved to DSP HDL Toolbox from DSP System Toolbox

R2022a: High-throughput interface

R2022a: Input coefficients must be a row vector

R2022a: RAM-based partly serial architecture

R2019b: Complex coefficients

R2019a: Programmable coefficients

data — Input data
scalar | column vector | row vector

valid — Indicates valid input data
scalar

coeff — Filter coefficients (Parallel interface)
real or complex row vector

coeff — Filter coefficients (Memory interface)
real or complex scalar

caddr — Filter coefficient address (Memory interface)
scalar

cwren — Filter coefficients write enable (Memory interface)
scalar

cdone — Filter coefficient write complete (Memory interface)
scalar

reset — Clears internal states
scalar

data — Filtered output data
scalar | column vector | row vector

valid — Indicates valid output data
scalar

ready — Indicates block is ready for new input data
scalar

Coefficient source — Source of filter coefficients
`Property` (default) | `Input port (Parallel interface)` | `Input port (Memory interface)`

Coefficients — Discrete FIR filter coefficients
`[0.5, 0.5]` (default) | row vector | multichannel matrix

Coefficients prototype — Prototype filter coefficients
`[]` (default) | real or complex vector

Filter structure — HDL filter architecture
`Direct form systolic` (default) | `Direct form transposed` | `Partly serial systolic`

Specify serialization factor as — Rule to define serial implementation
`Minimum number of cycles between valid input samples` (default) | `Maximum number of multipliers`

Number of cycles — Serialization requirement for input timing
`2` (default) | positive integer

Number of multipliers — Serialization requirement for resource usage
`2` (default) | positive integer

Rounding mode — Rounding mode for type-casting the output
`Floor` (default) | `Ceiling` | `Convergent` | `Nearest` | `Round` | `Zero`

Saturate on integer overflow — Overflow handling for type-casting the output
`off` (default) | `on`

Coefficients — Data type of discrete FIR filter coefficients
`Inherit: Same word length as input` (default) | `<data type expression>`

Output — Data type of filter output
`Inherit: Inherit via internal rule` (default) | `Inherit: Same word length as input` | `<data type expression>`

Enable reset input port — Option to enable reset input port
`off` (default) | `on`

Use HDL global reset — Option to connect data path registers to generated HDL global reset signal
`off` (default) | `on`

Coefficient multiplication — Coefficient multiplier implementation in hardware
`Multiplier` (default) | `CSD/Factored-CSD`

Use multiplier for +/- 1 and power of 2 coefficients — Special-value coefficient multiplier implementation in hardware
`on` (default) | `off`

Performance — Partly Serial Systolic (1 < `N` < L)

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
