simulate

Monte Carlo simulation of vector autoregression (VAR) model

collapse all in page

Syntax

Y = simulate(Mdl,numobs)
Y = simulate(Mdl,numobs,Name,Value)
[Y,E] = simulate(___)

Description

example

Y = simulate(Mdl,numobs) returns a random numobs-period path of multivariate response series (Y) from simulating the fully specified VAR(p) model Mdl.

example

Y = simulate(Mdl,numobs,Name,Value) uses additional options specified by one or more name-value arguments. For example, you can specify simulation of multiple paths, exogenous predictor data, or inclusion of future responses for conditional simulation.

example

[Y,E] = simulate(___) returns the model innovations E using any of the input arguments in the previous syntaxes.

Examples

collapse all

Open Live Script

Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate data. Then, simulate responses from the estimated model.

Load the Data_USEconModel data set.

load Data_USEconModel

Plot the two series on separate plots.

figure;
plot(DataTable.Time,DataTable.CPIAUCSL);
title('Consumer Price Index');
ylabel('Index');
xlabel('Date');

Figure contains an axes object. The axes object with title Consumer Price Index contains an object of type line.

figure;
plot(DataTable.Time,DataTable.UNRATE);
title('Unemployment Rate');
ylabel('Percent');
xlabel('Date');

Figure contains an axes object. The axes object with title Unemployment Rate contains an object of type line.

Stabilize the CPI by converting it to a series of growth rates. Synchronize the two series by removing the first observation from the unemployment rate series. Create a new data set containing the transformed variables, and do not include any rows containing at least one missing observation.

rcpi = price2ret(DataTable.CPIAUCSL);
unrate = DataTable.UNRATE(2:end);
dates = DataTable.Time(2:end);
idx = all(~ismissing([rcpi unrate]),2);
Data = array2timetable([rcpi(idx) unrate(idx)],...
    'RowTimes',DataTable.Time(idx),'VariableNames',{'rcpi','unrate'});

Create a default VAR(4) model using the shorthand syntax.

Mdl = varm(2,4);

Estimate the model using the entire data set.

EstMdl = estimate(Mdl,Data.Variables);

EstMdl is a fully specified, estimated varm model object.

Simulate a response series path from the estimated model with length equal to the path in the data.

rng(1); % For reproducibility
numobs = size(Data,1);
Y = simulate(EstMdl,numobs);

Y is a 245-by-2 matrix of simulated responses. The first and second columns contain the simulated CPI growth rate and unemployment rate, respectively.

Plot the simulated and true responses.

figure;
plot(Data.Time,Y(:,1));
hold on;
plot(Data.Time,Data.rcpi)
title('CPI Growth Rate');
ylabel('Growth rate');
xlabel('Date');
legend('Simulation','True')

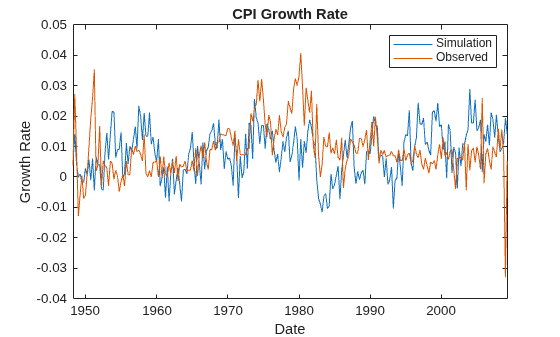

Figure contains an axes object. The axes object with title CPI Growth Rate contains 2 objects of type line. These objects represent Simulation, True.

figure;
plot(Data.Time,Y(:,2));
hold on;
plot(Data.Time,Data.unrate)
ylabel('Percent');
xlabel('Date');
title('Unemployment Rate');
legend('Simulation','True')

Figure contains an axes object. The axes object with title Unemployment Rate contains 2 objects of type line. These objects represent Simulation, True.

Open Live Script

Illustrate the relationship between simulate and filter by estimating a 4-dimensional VAR(2) model of the four response series in Johansen's Danish data set. Simulate a single path of responses using the fitted model and the historical data as initial values, and then filter a random set of Gaussian disturbances through the estimated model using the same presample responses.

Load Johansen's Danish economic data.

load Data_JDanish

For details on the variables, enter Description.

Create a default 4-D VAR(2) model.

Mdl = varm(4,2);

Estimate the VAR(2) model using the entire data set.

EstMdl = estimate(Mdl,Data);

When reproducing the results of simulate and filter, it is important to take these actions.

  • Set the same random number seed using rng.

  • Specify the same presample response data using the 'Y0' name-value pair argument.

Set the default random seed. Simulate 100 observations by passing the estimated model to simulate. Specify the entire data set as the presample.

rng default
YSim = simulate(EstMdl,100,'Y0',Data);

YSim is a 100-by-4 matrix of simulated responses. Columns correspond to the columns of the variables in Data.

Set the default random seed. Simulate 4 series of 100 observations from the standard Gaussian distribution.

rng default
Z = randn(100,4);

Filter the Gaussian values through the estimated model. Specify the entire data set as the presample.

YFilter = filter(EstMdl,Z,'Y0',Data);

YFilter is a 100-by-4 matrix of simulated responses. Columns correspond to the columns of the variables in the data Data. Before filtering the disturbances, filter scales Z by the lower triangular Cholesky factor of the model covariance in EstMdl.Covariance.

Compare the resulting responses between filter and simulate.

(YSim - YFilter)'*(YSim - YFilter)
ans = 4×4

     0     0     0     0
     0     0     0     0
     0     0     0     0
     0     0     0     0

The results are identical.

Open Live Script

Estimate a VAR(4) model of the consumer price index (CPI), the unemployment rate, and the gross domestic product (GDP). Include a linear regression component containing the current and the last 4 quarters of government consumption expenditures and investment. Simulate multiple paths from the estimated model.

Load the Data_USEconModel data set. Compute the real GDP.

load Data_USEconModel
DataTable.RGDP = DataTable.GDP./DataTable.GDPDEF*100;

Plot all variables on separate plots.

figure;
subplot(2,2,1)
plot(DataTable.Time,DataTable.CPIAUCSL);
ylabel('Index');
title('Consumer Price Index');
subplot(2,2,2)
plot(DataTable.Time,DataTable.UNRATE);
ylabel('Percent');
title('Unemployment Rate');
subplot(2,2,3)
plot(DataTable.Time,DataTable.RGDP);
ylabel('Output');
title('Real Gross Domestic Product');
subplot(2,2,4)
plot(DataTable.Time,DataTable.GCE);
ylabel('Billions of $');
title('Government Expenditures');

Figure contains 4 axes objects. Axes object 1 with title Consumer Price Index contains an object of type line. Axes object 2 with title Unemployment Rate contains an object of type line. Axes object 3 with title Real Gross Domestic Product contains an object of type line. Axes object 4 with title Government Expenditures contains an object of type line.

Stabilize the CPI, GDP, and GCE by converting each to a series of growth rates. Synchronize the unemployment rate series with the others by removing its first observation. Create a new data set containing the transformed variables.

inputVariables = {'CPIAUCSL' 'RGDP' 'GCE'};
Data = varfun(@price2ret,DataTable,'InputVariables',inputVariables);
Data.Properties.VariableNames = inputVariables;
Data.UNRATE = DataTable.UNRATE(2:end);
dates = DataTable.Time(2:end);

Expand the GCE rate series to a matrix that includes its current value and up through four lagged values. Remove GCE and observations containing any missing values from Data.

rgcelag4 = lagmatrix(Data.GCE,0:4);
idx = all(~ismissing([Data table(rgcelag4)]),2);
Data = Data(idx,:);
Data.GCE = [];

Create a default VAR(4) model using the shorthand syntax.

Mdl = varm(3,4);
Mdl.SeriesNames = ["rcpi" "unrate" "rgdpg"];

Estimate the model using the entire sample. Specify the GCE matrix as data for the regression component.

EstMdl = estimate(Mdl,Data.Variables,'X',rgcelag4);

Simulate 1000 paths from the estimated model. Specify that the length of the paths is the same as the length of the data without any missing values. Supply the predictor data. Return the innovations (scaled disturbances).

numpaths = 1000;
numobs = size(Data,1);
rng(1); % For reproducibility
[Y,E] = simulate(EstMdl,numobs,'X',rgcelag4,'NumPaths',numpaths);

Y is a 244-by-3-by-1000 matrix of simulated responses. E is a matrix whose dimensions correspond to the dimensions of Y, but represents the simulated, scaled disturbances. The columns correspond to the CPI growth rate, unemployment rate, and GDP growth rate, respectively. simulate applies the same predictor data to all paths.

For each time point, compute the mean vector of the simulated responses among all paths.

MeanSim = mean(Y,3);

MeanSim is a 244-by-3 matrix containing the average of the simulated responses at each time point.

Plot the simulated responses, their averages, and the data.

figure;
for j = 1:Mdl.NumSeries
    subplot(2,2,j)
    plot(Data.Time,squeeze(Y(:,j,:)),'Color',[0.8,0.8,0.8])
    title(Mdl.SeriesNames{j});
    hold on
    h1 = plot(Data.Time,Data{:,j});
    h2 = plot(Data.Time,MeanSim(:,j));
    hold off
end

hl = legend([h1 h2],'Data','Mean');
hl.Position = [0.6 0.25 hl.Position(3:4)];

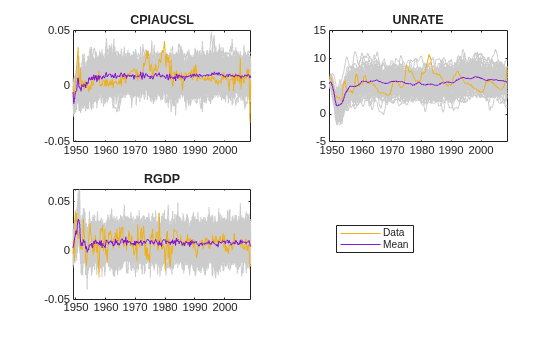

Figure contains 3 axes objects. Axes object 1 with title rcpi contains 1002 objects of type line. Axes object 2 with title unrate contains 1002 objects of type line. Axes object 3 with title rgdpg contains 1002 objects of type line. These objects represent Data, Mean.

Input Arguments

collapse all

VAR model, specified as a varm model object created by varm or estimate. Mdl must be fully specified.

Number of random observations to generate per output path, specified as a positive integer. The output arguments Y and E have numobs rows.

Data Types: double

Name-Value Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'Y0',Y0,'X',X uses the matrix Y0 as presample responses and the matrix X as predictor data in the regression component.

Number of sample paths to generate, specified as the comma-separated pair consisting of 'NumPaths' and a positive integer. The output arguments Y and E have NumPaths pages.

Example: 'NumPaths',1000

Data Types: double

Presample responses providing initial values for the model, specified as the comma-separated pair consisting of 'Y0' and a numpreobs-by-numseries numeric matrix or a numpreobs-by-numseries-by-numprepaths numeric array.

numpreobs is the number of presample observations. numseries is the number of response series (Mdl.NumSeries). numprepaths is the number of presample response paths.

Rows correspond to presample observations, and the last row contains the latest presample observation. Y0 must have at least Mdl.P rows. If you supply more rows than necessary, simulate uses the latest Mdl.P observations only.

Columns must correspond to the response series names in Mdl.SeriesNames.

Pages correspond to separate, independent paths.

  • If Y0 is a matrix, then simulate applies it to simulate each sample path (page). Therefore, all paths in the output argument Y derive from common initial conditions.

  • Otherwise, simulate applies Y0(:,:,j) to initialize simulating path j. Y0 must have at least numpaths pages (see NumPaths), and simulate uses only the first numpaths pages.

By default, simulate sets any necessary presample observations.

  • For stationary VAR processes without regression components, simulate sets presample observations to the unconditional mean μ=Φ−1(L)c.

  • For nonstationary processes or models that contain a regression component, simulate sets presample observations to zero.

Data Types: double

Predictor data for the regression component in the model, specified as the comma-separated pair consisting of 'X' and a numeric matrix containing numpreds columns.

numpreds is the number of predictor variables (size(Mdl.Beta,2)).

Rows correspond to observations, and the last row contains the latest observation. X must have at least numobs rows. If you supply more rows than necessary, simulate uses only the latest numobs observations. simulate does not use the regression component in the presample period.

Columns correspond to individual predictor variables. All predictor variables are present in the regression component of each response equation.

simulate applies X to each path (page); that is, X represents one path of observed predictors.

By default, simulate excludes the regression component, regardless of its presence in Mdl.

Data Types: double

Future multivariate response series for conditional simulation, specified as the comma-separated pair consisting of 'YF' and a numeric matrix or array containing numseries columns.

Rows correspond to observations in the simulation horizon, and the first row is the earliest observation. Specifically, row j in sample path k (YF(j,:,k)) contains the responses j periods into the future. YF must have at least numobs rows to cover the simulation horizon. If you supply more rows than necessary, simulate uses only the first numobs rows.

Columns must correspond to the response variable names in Mdl.SeriesNames.

Pages correspond to sample paths. Specifically, path k (YF(:,:,k)) captures the state, or knowledge, of the response series as they evolve from the presample past (Y0) into the future.

  • If YF is a matrix, then simulate applies YF to each of the numpaths output paths (see NumPaths).

  • Otherwise, YF must have at least numpaths pages. If you supply more pages than necessary, simulate uses only the first numpaths pages.

Elements of YF can be numeric scalars or missing values (indicated by NaN values). simulate treats numeric scalars as deterministic future responses that are known in advance, for example, set by policy. simulate simulates responses for corresponding NaN values conditional on the known values.

By default, YF is an array composed of NaN values indicating a complete lack of knowledge of the future state of all simulated responses. Therefore, simulate obtains the output responses Y from a conventional, unconditional Monte Carlo simulation.

For more details, see Algorithms.

Example: Consider simulating one path of a VAR model composed of four response series three periods into the future. Suppose that you have prior knowledge about some of the future values of the responses, and you want to simulate the unknown responses conditional on your knowledge. Specify YF as a matrix containing the values that you know, and use NaN for values you do not know but want to simulate. For example, 'YF',[NaN 2 5 NaN; NaN NaN 0.1 NaN; NaN NaN NaN NaN] specifies that you have no knowledge of the future values of the first and fourth response series; you know the value for period 1 in the second response series, but no other value; and you know the values for periods 1 and 2 in the third response series, but not the value for period 3.

Data Types: double

Note

NaN values in Y0 and X indicate missing values. simulate removes missing values from the data by list-wise deletion. If Y0 is a 3-D array, then simulate performs these steps.

  1. Horizontally concatenate pages to form a numpreobs-by-numpaths*numseries matrix.

  2. Remove any row that contains at least one NaN from the concatenated data.

In the case of missing observations, the results obtained from multiple paths of Y0 can differ from the results obtained from each path individually.

For conditional simulation (see YF), if X contains any missing values in the latest numobs observations, then simulate throws an error.

Output Arguments

collapse all

Simulated multivariate response series, returned as a numobs-by-numseries numeric matrix or a numobs-by-numseries-by-numpaths numeric array. Y represents the continuation of the presample responses in Y0.

If you specify future responses for conditional simulation using the YF name-value pair argument, then the known values in YF appear in the same positions in Y. However, Y contains simulated values for the missing observations in YF.

Simulated multivariate model innovations series, returned as a numobs-by-numseries numeric matrix or a numobs-by-numseries-by-numpaths numeric array.

If you specify future responses for conditional simulation (see the YF name-value pair argument), then simulate infers the innovations from the known values in YF and places the inferred innovations in the corresponding positions in E. For the missing observations in YF, simulate draws from the Gaussian distribution conditional on any known values, and places the draws in the corresponding positions in E.

Algorithms

  • simulate performs conditional simulation using this process for all pages k = 1,...,numpaths and for each time t = 1,...,numobs.

    1. simulate infers (or inverse filters) the innovations E(t,:,k) from the known future responses YF(t,:,k). For E(t,:,k), simulate mimics the pattern of NaN values that appears in YF(t,:,k).

    2. For the missing elements of E(t,:,k), simulate performs these steps.

      1. Draw Z1, the random, standard Gaussian distribution disturbances conditional on the known elements of E(t,:,k).

      2. Scale Z1 by the lower triangular Cholesky factor of the conditional covariance matrix. That is, Z2 = L*Z1, where L = chol(C,'lower') and C is the covariance of the conditional Gaussian distribution.

      3. Impute Z2 in place of the corresponding missing values in E(t,:,k).

    3. For the missing values in YF(t,:,k), simulate filters the corresponding random innovations through the model Mdl.

  • simulate uses this process to determine the time origin t0 of models that include linear time trends.

    • If you do not specify Y0, then t0 = 0.

    • Otherwise, simulate sets t0 to size(Y0,1) – Mdl.P. Therefore, the times in the trend component are t = t0 + 1, t0 + 2,..., t0 + numobs. This convention is consistent with the default behavior of model estimation in which estimate removes the first Mdl.P responses, reducing the effective sample size. Although simulate explicitly uses the first Mdl.P presample responses in Y0 to initialize the model, the total number of observations in Y0 (excluding any missing values) determines t0.

References

[1] Hamilton, James D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.

[2] Johansen, S. Likelihood-Based Inference in Cointegrated Vector Autoregressive Models. Oxford: Oxford University Press, 1995.

[3] Juselius, K. The Cointegrated VAR Model. Oxford: Oxford University Press, 2006.

[4] Lütkepohl, H. New Introduction to Multiple Time Series Analysis. Berlin: Springer, 2005.

See Also

Objects

Functions

Topics

Introduced in R2017a
