randomCropWindow3d

Create randomized cuboidal cropping window

collapse all in page

Syntax

win = randomCropWindow3d(inputSize,targetSize)

Description

win = randomCropWindow3d(inputSize,targetSize) determines the window to crop from a 3-D input image of size inputSize such that the size of the cropped image is targetSize. The coordinates of the window are selected from a random position in the input image.

example

Examples

collapse all

Open Live Script

Read a 3-D MRI volume. Use the squeeze function to remove any singleton dimensions.

load mri;
D = squeeze(D);

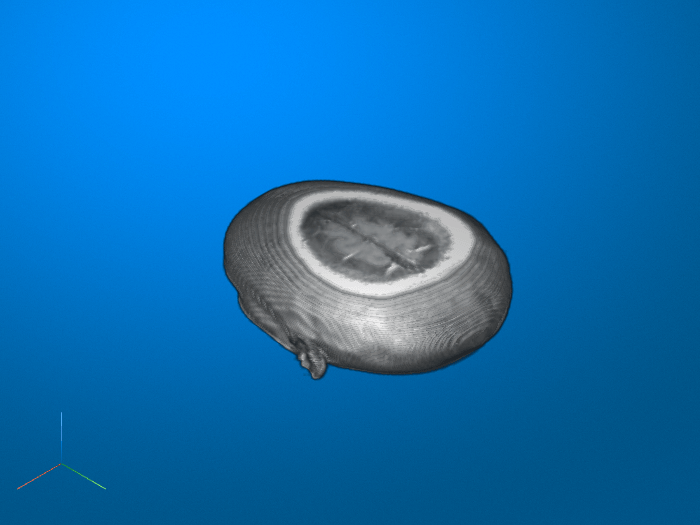

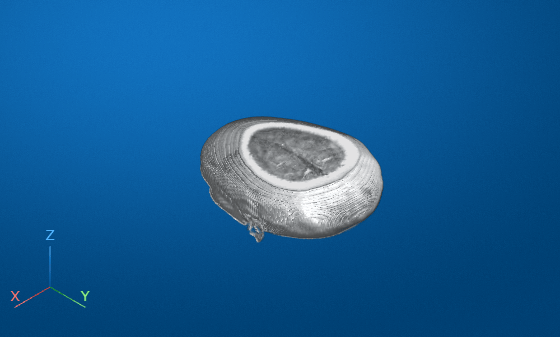

Display the volume.

volshow(D);

Specify the target size of the cropping window.

targetSize = [64 64 10];

Create a random crop window that crops the input volume from a randomly-selected position.

win = randomCropWindow3d(size(D),targetSize);

Crop the volume using the random crop window.

Dcrop = imcrop3(D,win);

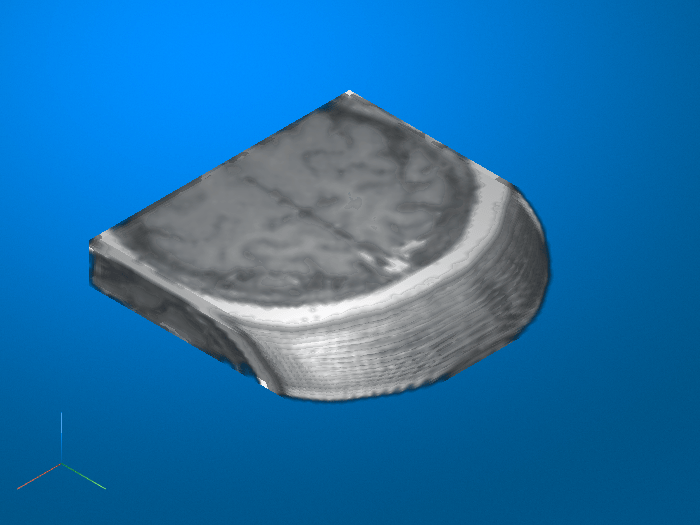

Display the cropped volume.

volshow(Dcrop);

Input Arguments

collapse all

Input image size, specified as one of the following.

Type of Input ImageFormat of inputSize
3-D grayscale or binary image3-element vector of positive integers of the form [height width depth]
3-D RGB or multispectral image4-element vector of positive integers of the form [height width depth channels]

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Target image size, specified as one of the following.

Type of Target ImageFormat of targetSize
3-D grayscale or binary image3-element vector of positive integers of the form [height width depth]
3-D RGB or multispectral image4-element vector of positive integers of the form [height width depth channels]

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

collapse all

Cropping window, returned as a Cuboid object.

Version History

Introduced in R2019b
