etree

Create a 7-by-7 tridiagonal matrix of zeros and ones.

A = diag(ones(1,7)) + diag(ones(1,6),1) + diag(ones(1,6),-1)

A = 7×7

     1     1     0     0     0     0     0
     1     1     1     0     0     0     0
     0     1     1     1     0     0     0
     0     0     1     1     1     0     0
     0     0     0     1     1     1     0
     0     0     0     0     1     1     1
     0     0     0     0     0     1     1

Calculate an elimination tree of A. Each element p(i) of the elimination tree represents the parent of node i. p(7) is 0 because node 7 is the root of the tree.

p = etree(A)

p = 1×7

     2     3     4     5     6     7     0

Create a 6-by-6 block diagonal matrix of zeros and ones.

a = ones(3);
b = zeros(3);
B = [a b; b a]

B = 6×6

     1     1     1     0     0     0
     1     1     1     0     0     0
     1     1     1     0     0     0
     0     0     0     1     1     1
     0     0     0     1     1     1
     0     0     0     1     1     1

Calculate an elimination tree of B. etree returns a forest with two elimination trees, indicated by the root nodes at indices 3 and 6.

r = etree(B)

r = 1×6

     2     3     0     5     6     0

Calculate two different elimination trees of the bucky sparse matrix. The "lo" elimination tree uses the lower triangle of A, while the "col" elimination tree uses the matrix A'*A.

A = bucky;
p1 = etree(A,"lo");
p2 = etree(A,"col");

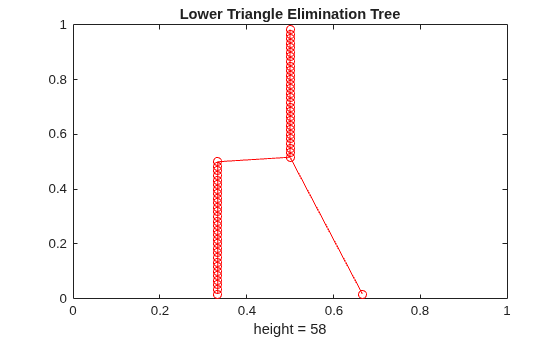

Plot the elimination trees using treeplot.

treeplot(p1)

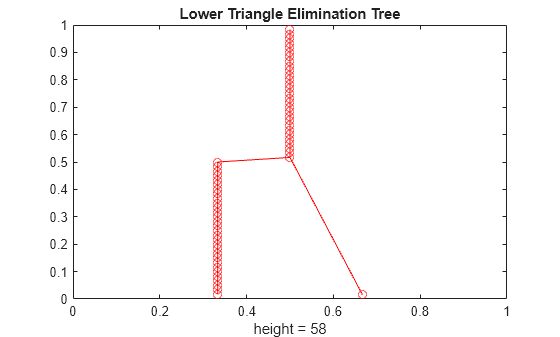

title("Lower Triangle Elimination Tree")

treeplot(p2)

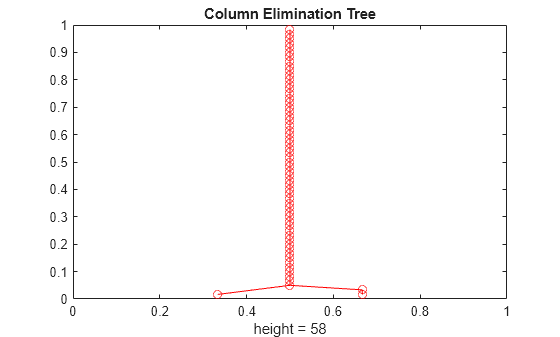

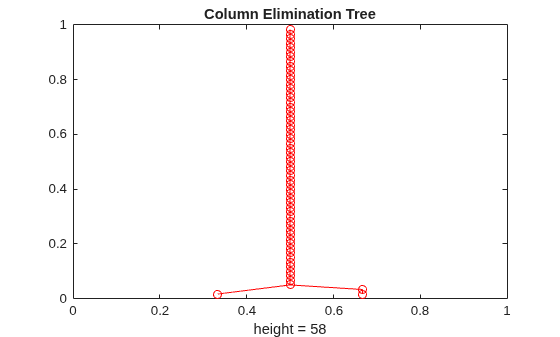

title("Column Elimination Tree")

Calculate elimination trees of two permutations of the bucky sparse matrix. Use symrcm to create the symmetric reverse Cuthill-McKee ordering, and use symamd to create the symmetric approximate minimum degree ordering.

A = bucky;
r = symrcm(A);
p1 = etree(A(r,r));
m = symamd(A);
p2 = etree(A(m,m));

Plot the elimination trees using treeplot. The reverse Cuthill-McKee elimination tree is a line of nodes, while the minimum degree elimination tree has multiple disjoint branches.

treeplot(p1)

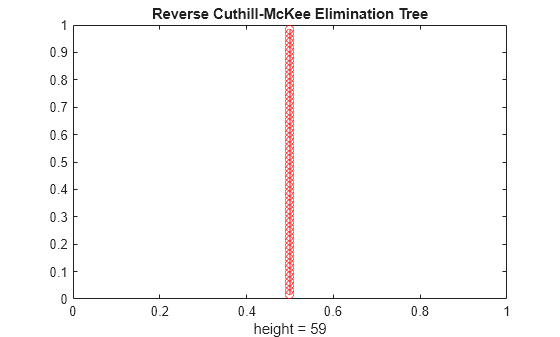

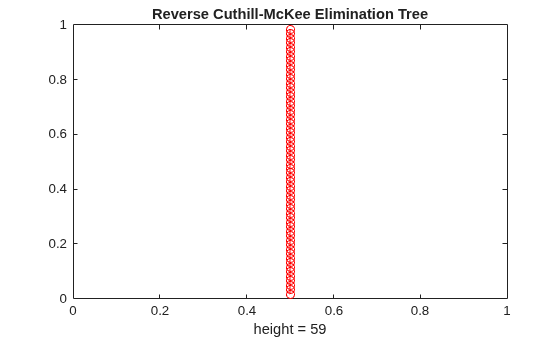

title("Reverse Cuthill-McKee Elimination Tree")

treeplot(p2)

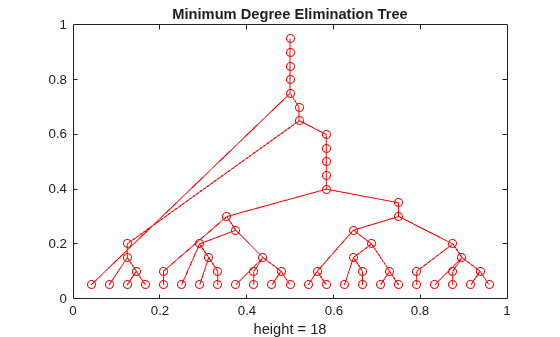

title("Minimum Degree Elimination Tree")

Plot the sparsity patterns using spy. The elimination tree of a matrix depends on its sparsity pattern, so the different sparsity patterns result in different elimination trees.

spy(A(r,r))

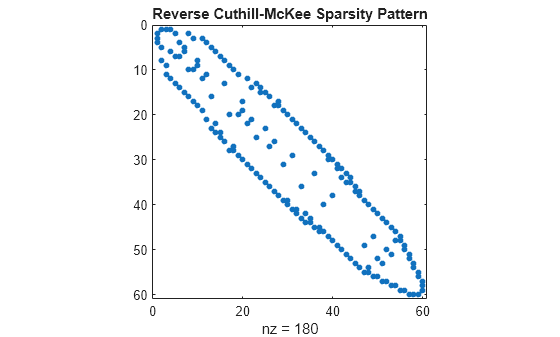

title("Reverse Cuthill-McKee Sparsity Pattern")

spy(A(m,m))

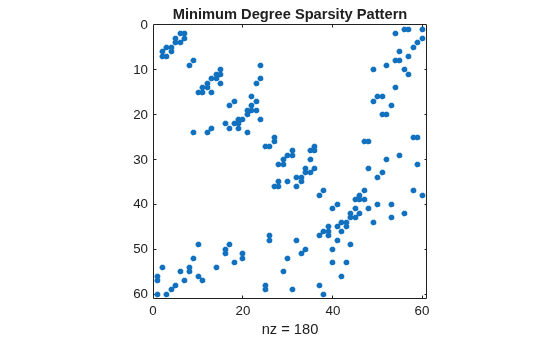

title("Minimum Degree Sparsity Pattern")
