read

Read data in datastore

Syntax

data = read(ds)

[data,info]
= read(ds)

Description

data = read(ds) returns data from a datastore. Subsequent calls to the read function continue reading from the endpoint of the previous call.

example

[data,info] = read(ds) also returns information about the extracted data in info, including metadata.

Examples

collapse all

Read Data in TabularTextDatastore

Open Live Script

Create a datastore from the sample file, airlinesmall_subset.csv, which contains tabular data.

ds = tabularTextDatastore("airlinesmall_subset.csv","TreatAsMissing","NA","MissingValue",0);

Modify the SelectedVariableNames property to specify the variables of interest.

ds.SelectedVariableNames = ["DepTime","ArrTime","ActualElapsedTime"];

While there is data available to be read from the datastore, read one block of data at a time and analyze the data. In this example, sum the actual elapsed time.

sumElapsedTime = 0;
while hasdata(ds)
    T = read(ds);
    sumElapsedTime = sumElapsedTime + sum(T.ActualElapsedTime);
end

View the sum of the actual elapsed time.

sumElapsedTime

sumElapsedTime =
154759

Read Data in KeyValueDatastore

Open Live Script

Create a datastore from the sample file, mapredout.mat, which is the output file of the mapreduce function.

ds = datastore('mapredout.mat');

Read a subset of data in the datastore.

T = read(ds)

T=1×2 table
     Key        Value
    ______    _________

    {'AA'}    {[14930]}

Change the number of key-value pairs to read at a time, by changing the ReadSize property of the datastore.

ds.ReadSize = 5;

Read the next five key-value pairs in the datastore.

T = read(ds)

T=5×2 table
     Key        Value
    ______    _________

    {'AS'}    {[ 2910]}
    {'CO'}    {[ 8138]}
    {'DL'}    {[16578]}
    {'EA'}    {[  920]}
    {'HP'}    {[ 3660]}

Read Data in CombinedDatastore

Open Live Script

Create a datastore that maintains parity between the pair of images of the underlying datastores. For instance, create two separate image datastores, and then create a combined datastore that reads corresponding images from the two image datastores.

Create an image datastore imds1 representing a collection of three images.

imds1 = imageDatastore({'peppers.png','street1.jpg','street2.jpg'});

Create a second datastore imds2 containing a mask of the bright regions of the three images. To create this datastore, first transform the images of imds1 to grayscale. Then convert each image to a binary mask by performing thresholding. In this example, the thresholding operation maps pixels with a value above the threshold (250) to white and all other pixels to black.

imds2 = transform(imds1,@(x) im2gray(x)>250);

Create a combined datastore from imds1 and imds2.

imdsCombined = combine(imds1,imds2);

Read the first subset of data from the combined datastore. The output is a 1-by-2 cell array. The two columns represent the first subset of data read from the two underlying datastores imds1 and imds2, respectively.

dataOut = read(imdsCombined)

dataOut=1×2 cell array
    {384x512x3 uint8}    {384x512 logical}

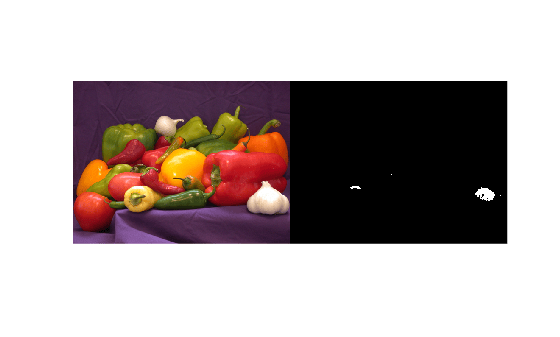

Display the read data from the combined datastore as a pair of tiled images.

tile = imtile(dataOut);
imshow(tile)

Figure contains an axes object. The hidden axes object contains an object of type image.

Read from the combined datastore again. This call to the read function continues reading from the endpoint of the previous call.

dataOut = read(imdsCombined)

dataOut=1×2 cell array
    {480x640x3 uint8}    {480x640 logical}

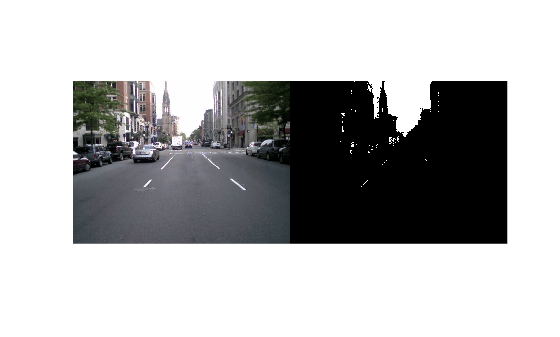

Display the read data.

tile = imtile(dataOut);
imshow(tile)

Figure contains an axes object. The hidden axes object contains an object of type image.

Input Arguments

collapse all

`ds` — Input datastore
datastore

Input datastore. You can use these datastores as input to the read method.

MATLAB^® datastores — Datastores created using MATLAB datastore functions. For example, create a datastore for a collection of images using ImageDatastore. For a complete list of datastores, see Select Datastore for File Format or Application.
Combined and transformed datastores — Datastores created using the combine and transform functions.
Custom datastores — Datastores created using the custom datastore framework. See Develop Custom Datastore.

Output Arguments

collapse all

`data` — Output data
table | timetable | array

Output data, returned as a table, timetable, or array depending on the type of the input ds. The data output can be empty if the amount of data read in a particular call to the read function in combination with the import configuration returns no values.

Type of Datastore	Data type of `data`	Description
`TabularTextDatastore`, `SpreadsheetDatastore`, and `ParquetDatastore`	Table or timetable	The `SelectedVariableNames` property determines the table variables. The `OutputType` property determines if the output is a table or timetable.
`ImageDatastore`	Integer array	The dimensions of the integer array depend on the type of image: For grayscale images, `data` is m-by-n. For truecolor images, `data` is m-by-n-by-3. For CMYK Tiff images, `data` is m-by-n-by-4. If the `ReadSize` property is greater than 1, then `data` is a cell array of image data corresponding to each image. The `read` function supports all image types supported by the `imread` function. For more information on the supported image types, see `imread`.
`KeyValueDatastore`	Table	The table variable names are `Key` and `Value`.
`FileDatastore`	Varies	The output is the same as the output returned by the custom read function, specified by the `'ReadFcn'` value.
`TransformedDatastore`	Varies	The output is the same as the output of the transformation function `@fcn` specified in the `transform` method used to create the `TransformedDatastore`.
`CombinedDatastore`	Varies	Contains the horizontal concatenation of the output of read from the corresponding underlying datastores.
`SequentialDatastore`	Varies	Contains the output of sequential read from the current underlying datastore.

`info` — Information about read data
structure array | cell array

Information about read data, returned as a structure array or a cell array of structure arrays.

For MATLAB datastores and TransformedDatastore, info is a structure array that has fields with information about the datastore.
For CombinedDatastore, info is a cell array of structure arrays. Each element of the cell array contains a structure with the relevant fields of the corresponding underlying datastore.
For SequentialDatastore, the data type and format of info are the same as the current underlying datastore.

Information in the structure array depends on the type of the input datastore. The structure array can contain the following fields.

Field Name	Datastore Types	Description
`Filename`	`ImageDatastore`,`SpreadsheetDatastore`, `TabularTextDatastore`, `FileDatastore`, `KeyValueDatastore`, and `TallDatastore`	`Filename` is a fully resolved path containing the path string, name of the file, and file extension. For `ImageDatastore` objects whose `ReadSize` property is greater than 1, `Filename` is a cell array of file names corresponding to each image.
`FileSize`		Total file size, in bytes. For `ImageDatastore` objects whose `ReadSize` property is greater than 1, `FileSize` is a vector of file sizes corresponding to each image. For MAT-files, the value of `FileSize` depends on the type of the datastore. `KeyValueDatastore` and `TallDatastore` — The `FileSize` field contains the total number of key-value pairs in the file. `FileDatastore` — The `FileSize` field contains the total file size in bytes.
`FileType`	`KeyValueDatastore` only	The type of file from which data is read, either `'mat'` for MAT-files or `'seq'` for sequence files.
`Label`	`ImageDatastore` only	Image label name. If the `ReadSize` property is greater than 1, then `Label` is a vector of label names corresponding to each image. If the `Labels` property is empty, then `Label` is an empty cell array.
`NumCharactersRead`	`TabularTextDatastore` only	Number of characters read.
`NumDataRows`	`SpreadsheetDatastore` only	Vector containing number of rows read from each sheet.
`Offset`	`KeyValueDatastore` and `TabularTextDatastore` only	Starting position of the read operation, in bytes. For MAT-files, `Offset` is the index of the first key and value read.
`SheetNames`	`SpreadsheetDatastore` only	Names of sheets read.
`SheetNumbers`	`SpreadsheetDatastore` only	Numbering associated with sheets read.

Extended Capabilities

Thread-Based Environment
Run code in the background using MATLAB® `backgroundPool` or accelerate code with Parallel Computing Toolbox™ `ThreadPool`.

Usage notes and limitations:

In a thread-based environment, you can use read only with the following datastores:
- ImageDatastore objects
- CombinedDatastore, SequentialDatastore, or TransformedDatastore objects you create from ImageDatastore objects by using combine or transform
You can use read with other datastores if you have Parallel Computing Toolbox™. To do so, run the function using a process-backed parallel pool instead of using backgroundPool or ThreadPool (use either ProcessPool or ClusterPool).
read does not support the following image formats in a thread-based environment:
- Hierarchical Data Format (HDF)
- SVS
- TIFF

For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced in R2014b
