pattern

lettersPattern is a typical character-matching pattern that matches letter characters. Create a pattern that matches one or more letter characters.

txt = ["This" "is a" "1x6" "string" "array" "."];
pat = lettersPattern;

Use contains to determine if characters matched by pat are present in each string. The output logical array shows that the first five of the strings in txt contain letters, but the sixth string does not.

contains(txt,pat)

ans = 1x6 logical array

   1   1   1   1   1   0

Determine if text starts with the specified pattern. The output logical array shows that four of the strings in txt start with letters, but two strings do not.

startsWith(txt,pat)

ans = 1x6 logical array

   1   1   0   1   1   0

Determine if the string fully matches the specified pattern. The output logical array shows which of the strings in txt contain nothing but letters.

matches(txt,pat)

ans = 1x6 logical array

   1   0   0   1   1   0

Count the number of times a pattern matched. The output numerical array shows how many times lettersPattern matched in each element of txt. Note that lettersPattern matches one or more letters so a group of concurrent letters is a single match.

count(txt,pat)

ans = 1×6

     1     2     1     1     1     0

digitsPattern is a typical character-matching pattern that matches digit characters. Create a pattern that matches digit characters.

txt = ["1 fish" "2 fish" "[1,0,0] fish" "[0,0,1] fish"];
pat = digitsPattern;

Use replace to edit pieces of text that match the pattern.

replace(txt,pat,"#")

ans = 1x4 string
    "# fish"    "# fish"    "[#,#,#] fish"    "[#,#,#] fish"

Create a new piece of text by inserting an "!" character after matched letters.

insertAfter(txt,pat,"!")

ans = 1x4 string
    "1! fish"    "2! fish"    "[1!,0!,0!] fish"    "[0!,0!,1!] fish"

Patterns can be created using the OR operator, |, with text. Erase text matched by the specified pattern.

txt = erase(txt,"," | "]" | "[")

txt = 1x4 string
    "1 fish"    "2 fish"    "100 fish"    "001 fish"

Extract pat from the new text.

extract(txt,pat)

ans = 1x4 string
    "1"    "2"    "100"    "001"

Use patterns to count the occurrences of individual characters in a piece of text.

txt = "She sells sea shells by the sea shore.";

Create pat as a pattern object that matches individual letters using alphanumericsPattern. Extract the pattern.

pat = alphanumericsPattern(1);
letters = extract(txt,pat);

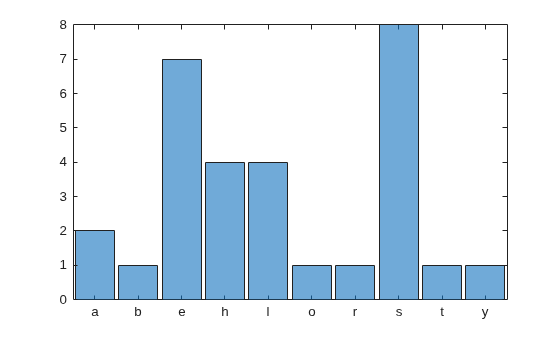

Display a histogram of the number of occurrences of each letter.

letters = lower(letters);
letters = categorical(letters);
histogram(letters)

Use maskedPattern to display a variable in place of a complicated pattern expression.

Build a pattern that matches simple arithmetic expressions composed of numbers and arithmetic operators.

mathSymbols = asManyOfPattern(digitsPattern | characterListPattern("+-*/="),1)

mathSymbols = pattern
  Matching:

    asManyOfPattern(digitsPattern | characterListPattern("+-*/="),1)

Build a pattern that matches arithmetic expressions with whitespaces between characters using mathSymbols.

longExpressionPat = asManyOfPattern(mathSymbols + whitespacePattern) + mathSymbols

longExpressionPat = pattern
  Matching:

    asManyOfPattern(asManyOfPattern(digitsPattern | characterListPattern("+-*/="),1) + whitespacePattern) + asManyOfPattern(digitsPattern | characterListPattern("+-*/="),1)

The displayed pattern expression is long and difficult to read. Use maskedPattern to display the variable name, mathSymbols, in place of the pattern expression.

mathSymbols = maskedPattern(mathSymbols);
shortExpressionPat = asManyOfPattern(mathSymbols + whitespacePattern) + mathSymbols

shortExpressionPat = pattern
  Matching:

    asManyOfPattern(mathSymbols + whitespacePattern) + mathSymbols

  Use details to show more information

Create a string containing some arithmetic expressions, and then extract the pattern from the text.

txt = "What is the answer to 1 + 1? Oh, I know! 1 + 1 = 2!";
arithmetic = extract(txt,shortExpressionPat)

arithmetic = 2x1 string
    "1 + 1"
    "1 + 1 = 2"

Create a pattern from two named patterns. Naming patterns adds context to the display of the pattern.

Build two patterns: one that matches words that begin and end with the letter D, and one that matches words that begin and end with the letter R.

dWordsPat = letterBoundary + caseInsensitivePattern("d" + lettersPattern + "d") + letterBoundary;
rWordsPat = letterBoundary + caseInsensitivePattern("r" + lettersPattern + "r") + letterBoundary;

Build a pattern using the named patterns that finds a word that starts and ends with D followed by a word that starts and ends with R.

dAndRWordsPat = dWordsPat + whitespacePattern + rWordsPat

dAndRWordsPat = pattern
  Matching:

    letterBoundary + caseInsensitivePattern("d" + lettersPattern + "d") + letterBoundary + whitespacePattern + letterBoundary + caseInsensitivePattern("r" + lettersPattern + "r") + letterBoundary

This pattern is hard to read and does not convey much information about its purpose. Use namedPattern to designate the patterns as named patterns that display specified names and descriptions in place of the pattern expressions.

dWordsPat = namedPattern(dWordsPat,"dWords", "Words that start and end with D");
rWordsPat = namedPattern(rWordsPat,"rWords", "Words that start and end with R");
dAndRWordsPat = dWordsPat + whitespacePattern + rWordsPat

dAndRWordsPat = pattern
  Matching:

    dWords + whitespacePattern + rWords

  Using named patterns:

    dWords: Words that start and end with D
    rWords: Words that start and end with R

  Use details to show more information

Create a string and extract the text that matches the pattern.

txt = "Dad, look at the divided river!";
words = extract(txt,dAndRWordsPat)

words =
"divided river"

Build an easy to read pattern to match email addresses.

Email addresses follow the structure username@domain.TLD, where username and domain are made up of identifiers separated by periods. Build a pattern that matches identifiers composed of any combination of alphanumeric characters and "_" characters. Use maskedPattern to name this pattern identifier.

identifier = asManyOfPattern(alphanumericsPattern(1) | "_", 1);
identifier = maskedPattern(identifier);

Build patterns to match domains and subdomains comprised of identifiers. Create a pattern that matches TLDs from a specified list.

subdomain = asManyOfPattern(identifier + ".") + identifier;
domainName = namedPattern(identifier,"domainName");
tld = "com" | "org" | "gov" | "net" | "edu";

Build a pattern for matching the local part of an email, which matches one or more identifiers separated by periods. Build a pattern for matching the domain, TLD, and any potential subdomains by combining the previously defined patterns. Use namedPattern to assign each of these patterns to a named pattern.

username = asManyOfPattern(identifier + ".") + identifier;
domain = optionalPattern(namedPattern(subdomain) + ".") + ...
            domainName + "." + ...
            namedPattern(tld);

Combine all of the patterns into a single pattern expression. Use namedPattern to assign username, domain, and emailPattern to named patterns.

emailAddress = namedPattern(username) + "@" + namedPattern(domain);
emailPattern = namedPattern(emailAddress)

emailPattern = pattern
  Matching emailAddress:

    username + "@" + domain

  Using named patterns:

    emailAddress  : username + "@" + domain
      username    : asManyOfPattern(identifier + ".") + identifier
      domain      : optionalPattern(subdomain + ".") + domainName + "." + tld
        subdomain : asManyOfPattern(identifier + ".") + identifier
        domainName: identifier
        tld       : "com" | "org" | "gov" | "net" | "edu"

  Use details to show more information

Create a string that contains an email address, and then extract the pattern from the text.

txt = "You can reach me by email at John.Smith@department.organization.org";
extract(txt,emailPattern)

ans =
"John.Smith@department.organization.org"

Named patterns allow dot-indexing in order to access named subpatterns. Use dot-indexing to assign a specific value to the named pattern domain.

emailPattern.emailAddress.domain = "mathworks.com"

emailPattern = pattern
  Matching emailAddress:

    username + "@" + domain

  Using named patterns:

    emailAddress: username + "@" + domain
      username  : asManyOfPattern(identifier + ".") + identifier
      domain    : "mathworks.com"

  Use details to show more information
