exportOccupancyMap3D

Export 3-D occupancy map as octree or binary tree file

Since R2020a

Description

example

exportOccupancyMap3D(map3D,filename) exports the 3-D occupancy map, map3D, into either an octree file (.ot) that contains all the occupancy data, or a binary tree file (.bt) that contains only the maximum-likelihood information at the specified location, filename

Examples

collapse all

Create an occupancyMap3D object.

map3D = occupancyMap3D;

Create a ground plane and set occupancy values to 0.

[xGround,yGround,zGround] = meshgrid(0:100,0:100,0);
xyzGround = [xGround(:) yGround(:) zGround(:)];
occval = 0;
setOccupancy(map3D,xyzGround,occval)

Create obstacles in specific world locations of the map.

[xBuilding1,yBuilding1,zBuilding1] = meshgrid(20:30,50:60,0:30);
[xBuilding2,yBuilding2,zBuilding2] = meshgrid(50:60,10:30,0:40);
[xBuilding3,yBuilding3,zBuilding3] = meshgrid(40:60,50:60,0:50);
[xBuilding4,yBuilding4,zBuilding4] = meshgrid(70:80,35:45,0:60);

xyzBuildings = [xBuilding1(:) yBuilding1(:) zBuilding1(:);...
                xBuilding2(:) yBuilding2(:) zBuilding2(:);...
                xBuilding3(:) yBuilding3(:) zBuilding3(:);...
                xBuilding4(:) yBuilding4(:) zBuilding4(:)];

Update the obstacles with new probability values and display the map.

obs = 0.65;
updateOccupancy(map3D,xyzBuildings,obs)

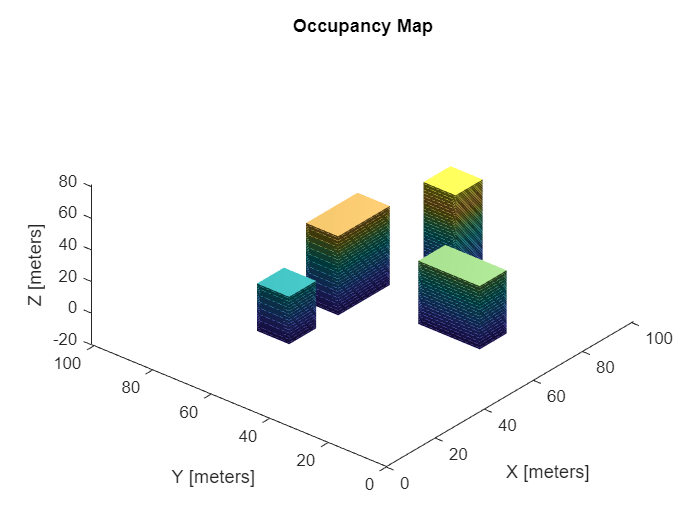

show(map3D)

Check if the map file named citymap.ot already exist in the current directory and delete it before creating the map file.

if exist("citymap.ot",'file')
    delete("citymap.ot")
end

Export the map as an octree file.

filePath = fullfile(pwd,"citymap.ot");
exportOccupancyMap3D(map3D,filePath)

Input Arguments

collapse all

3-D occupancy map, specified as a occupancyMap3D object.

Absolute or relative path to octree file (.ot) or binary tree file (.bt), specified as a string scalar or character vector.

Example: "path/to/file/map.ot"

Data Types: char | string

Version History

Introduced in R2020a
