nmeaParser

Parse data from standard and manufacturer-specific NMEA sentences sent from marine electronic devices

Since R2020b

Description

The nmeaParser System object™ parses data from any NMEA (National Marine Electronics Association) sentences. The sentences that need parsing of data can be any standard sentences compliant with the NMEA 0183^® specifications (which are sent from a GNSS (Global Navigation Satellite System) receiver), or other manufacturer-specific sentences approved by the NMEA (which are sent from other marine electronic devices).

The nmeaParser System object provides:

Built-in support to parse data sent from GNSS receivers and identified by these nine NMEA message types: RMC, GGA, GSA, VTG, GLL, GST, ZDA, GSV, and HDT
Additional configuration using the CustomSentence name-value pair to parse NMEA data from multiple device categories, including manufacturer-specific sentences from different hardware manufacturers

To parse data from NMEA sentences:

Create the nmeaParser object and set its properties.
Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

The nmeaParser System object outputs an array of structures corresponding to the values extracted from the specified NMEA sentences.

Creation

Syntax

pnmea = nmeaParser

pnmea = nmeaParser("MessageIDs", 'msgID')

pnmea = nmeaParser("CustomSentence", {['CustomMessageId1','parserFunctionName1'],['CustomMessageId2','parserFunctionName2']})

pnmea = nmeaParser("MessageIDs", {'msgID1','msgID2'},"CustomSentence", {['CustomMessageId1','parserFunctionName1'],['CustomMessageId2','parserFunctionName2']})

Description

pnmea = nmeaParser returns a nmeaParser System object, pnmea, with default properties, that extracts data from these standard NMEA messages: RMC, GGA, and GSA. The order of structure arrays in the extracted output data is also: RMC, GGA, and GSA.

pnmea = nmeaParser("MessageIDs", 'msgID') returns a nmeaParser System object, pnmea, that extracts data from one of the nine standard NMEA messages with built-in support, specified using the Message IDs. Specify msgID as "RMC", "GGA", "GSA", "GSV", "VTG", "GLL", "GST", "ZDA", and "HDT", or a combination of these IDs (for example: ["VTG","GLL","HDT"]). The order in which you specify the Message IDs determines the order of the structure arrays in the extracted output data. The default value is ["RMC","GGA","GSA"].

example

pnmea = nmeaParser("CustomSentence", {['CustomMessageId1','parserFunctionName1'],['CustomMessageId2','parserFunctionName2']}) sets properties using the CustomSentence name-value pair and returns a nmeaParser System object, pnmea, that extracts data from any custom NMEA message (either standard NMEA message or manufacturer-specific NMEA message), specified using the message IDs.

The CustomSentence name-value pair accepts a nested cell array where each element is a pair of message ID name (either standard NMEA message ID name or manufacturer-specific message ID) and the corresponding user-defined parser function, which is created by including the extractNMEASentence function in a function file. The order in which you specify the message IDs determines the order of the structure arrays in the extracted output data.

example

pnmea = nmeaParser("MessageIDs", {'msgID1','msgID2'},"CustomSentence", {['CustomMessageId1','parserFunctionName1'],['CustomMessageId2','parserFunctionName2']}) returns a nmeaParser System object, pnmea, that extracts data from two of the nine standard NMEA messages with built-in support and also from custom NMEA messages that you specified using the CustomSentence name-value pair.

example

Input Arguments

expand all

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: pnmea = nmeaParser("CustomSentence", {['CustomMessageId1','parserFunctionName1'],['CustomMessageId2','parserFunctionName2']});

`CustomSentence` — Specify message ID of any sentence and the name of its parser function
cell array of character vectors

Specify the message ID of any NMEA sentence from which you want to extract data and the name of the parser function. You can specify multiple message IDs and parser functions as a cell array of character vectors. The parser function is defined in a function file, which can optionally include the extractNMEASentence function.

Note

The function file for the parser function must be present in the current directory or on MATLAB path.

CustomSentence accepts function name or function handle. For example, both these formats are valid:

pnmea = nmeaParser('CustomSentence', {['standardnmeaMessageId1','parserFunctionName1']}

parserFunctionHandle=@parserFunctionName1
pnmea = nmeaParser('CustomSentence', {['standardnmeaMessageId1',parserFunctionHandle]}

Note

Using CustomSentence name-value pair to parse data instead of the built-in parser function results in override of the default fields when data is parsed. For example, nmeaParser('CustomSentence',{["RMC","parserRMC"]}) overrides the default format of parsed data as RMC is one of the nine sentences with built-in support for parsing data.

Data Types: char | string

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`MessageIDs` — Message IDs of nine standard NMEA sentences with built-in support to extract data
`["RMC","GGA","GSA"]` (default) | `RMC` | `GGA` | `GSA` | `GSV` | `VTG` | `GLL` | `GST` | `ZDA` | `HDT`

Message IDs of nine NMEA sentences with built-in support, which are compliant with the NMEA 0183 Standard, from which you want to extract data. You can specify multiple message IDs as an array of strings to extract data from NMEA sentences.

Data Types: char | string

Usage

Syntax

[rmcData,ggaData,gsaData,vtgData,gllData,gstData,gsvData,zdaData,hdtData] = pnmea(rawData)

[customNmeaData1,customNmeaData2] = pnmea(rawData)

Description

[rmcData,ggaData,gsaData,vtgData,gllData,gstData,gsvData,zdaData,hdtData] = pnmea(rawData) parses data from nine standard NMEA sentences with built-in support, and returns an array of structures, where each structure corresponds to a single Message ID. The sequence that you specify for the output arguments must be the same sequence that you specified for the Message IDs when creating the nmeaParser System object.

example

[customNmeaData1,customNmeaData2] = pnmea(rawData) parses data from two custom NMEA sentences (either standard NMEA sentence or manufacturer-specific NMEA sentence), and returns an array of structures, where each structure corresponds to a single Message ID. The sequence that you specify for the output arguments must be the same sequence that you specified in the CustomSentence name-value pair when creating the nmeaParser System object.

example

Input Arguments

expand all

`rawData` — NMEA data as obtained from a marine electronic device
string array

NMEA data, which is compliant with NMEA standard, as obtained from a marine electronic device.

Data Types: string | char

Output Arguments

expand all

`rmcData` — Data extracted from RMC sentence
structure

Data extracted from an RMC sentence. The output structure contains the information parsed from an RMC sentence along with the parsing status. If multiple RMC sentences are found in the input data, then an array of structures is returned. For more details, see RMC Sentences.

`ggaData` — Data extracted from GGA sentence
structure

Data extracted from a GGA sentence. The output structure contains the information parsed from a GGA sentence along with the parsing status. If multiple GGA sentences are found in the input data, then an array of structures is returned. For more details, see GGA Sentences.

`gsaData` — Data extracted from GSA sentence
structure

Data extracted from a GSA sentence. The output structure contains the information parsed from a GSA sentence along with the parsing status. If multiple GSA sentences are found in the input data, then an array of structures is returned. For more details, see GSA Sentences.

`vtgData` — Data extracted from VTG sentence
structure

Data extracted from a VTG sentence. The output structure contains the information parsed from a VTG sentence along with the parsing status. If multiple VTG sentences are found in the input data, then an array of structures is returned. For more details, see VTG Sentences.

`gllData` — Data extracted from GLL sentence
structure

Data extracted from a GLL sentence. The output structure contains the information parsed from a GLL sentence along with the parsing status. If multiple GLL sentences are found in the input data, then an array of structures is returned. For more details, see GLL Sentences.

`gstData` — Data extracted from GST sentence
structure

Data extracted from a GST sentence. The output structure contains the information parsed from a GST sentence along with the parsing status. If multiple GST sentences are found in the input data, then an array of structures is returned. For more details, see GST Sentences.

`gsvData` — Data extracted from GSV sentence
structure

Data extracted from a GSV sentence. The output structure contains the information parsed from a GSV sentence along with the parsing status. The complete satellite information is available in multiple gsvData structures. Each gsvData structure can have a maximum of four satellite information. For more details, see GSV Sentences.

`zdaData` — Data extracted from ZDA sentence
structure

Data extracted from a ZDA sentence. The output structure contains the information parsed from a ZDA sentence along with the parsing status. If multiple ZDA sentences are found in the input data, then an array of structures is returned. For more details, see ZDA Sentences.

`hdtData` — Data extracted from HDT sentence
structure

Data extracted from an HDT sentence. The output structure contains the information parsed from an HDT sentence along with the parsing status. If multiple HDT sentences are found in the input data, then an array of structures is returned. For more details, see HDT Sentences.

`customNmeaData1` — Data extracted from any standard or manufacturer-specific NMEA sentence
structure

Data extracted from any standard or manufacturer-specific NMEA sentence. The output structure contains the information parsed from the custom sentence along with the parsing status. If multiple sentences of the same NMEA message type are found in the input data, then an array of structures is returned.

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

Examples

collapse all

Extract Data from NMEA Sentences Using MessageID Property

Open Live Script

Extract data from any of the nine standard NMEA sentences as part of the built-in support using the MessageID property. The NMEA data is obtained from a GNSS receiver.

Extract Data from RMC Sentence

Create an nmeaParser System Object by specifying the Message ID as "RMC".

pnmea = nmeaParser("MessageID","RMC");

Provide the RMC sentence obtained from the GNSS receiver as the input and extract data.

unparsedRMCLine='$GNRMC,143909.00,A,5107.0020216,N,11402.3294835,W,0.036,348.3,210307,0.0,E,A*31';
rmcData = pnmea(unparsedRMCLine)

rmcData = struct with fields:
             TalkerID: "GN"
            MessageID: "RMC"
            FixStatus: 'A'
             Latitude: 51.1167
            Longitude: -114.0388
          GroundSpeed: 0.0185
      TrueCourseAngle: 348.3000
          UTCDateTime: 21-Mar-2007 14:39:09.000
    MagneticVariation: 0
        ModeIndicator: 'A'
     NavigationStatus: "NA"
               Status: 0

Extract Data from Multiple NMEA Message Types

Provide GGA, GSA, and RMC sentences as the input.

unparsedGGALine = ['$GPGGA,111357.771,5231.364,N,01324.240,E,1,12,1.0,0.0,M,0.0,M,,*69'];
unparsedGSALine = ['$GPGSA,A,3,01,02,03,04,05,06,07,08,09,10,11,12,1.0,1.0,1.0*30'];
unparsedRMCLine = ['$GPRMC,111357.771,A,5231.364,N,01324.240,E,10903,221.5,020620,000.0,W*44'];

Create a string array to include the three sentences

rawNMEAData = [unparsedGGALine ,newline,  unparsedGSALine ,newline,  unparsedRMCLine]

rawNMEAData =
    '$GPGGA,111357.771,5231.364,N,01324.240,E,1,12,1.0,0.0,M,0.0,M,,*69
     $GPGSA,A,3,01,02,03,04,05,06,07,08,09,10,11,12,1.0,1.0,1.0*30
     $GPRMC,111357.771,A,5231.364,N,01324.240,E,10903,221.5,020620,000.0,W*44'

However, consider that you need to extract data only from GGA and GSA sentences. So create the nmeaParser System Object 'pnmea', and specify the 'GGA' and 'GSA' Message IDs as a string array.

pnmea=nmeaParser("MessageIDs",["GGA","GSA"]);

Specify the output arguments for all the three sentences to extract the data as structures.

[ggaData,gsaData] =  pnmea(rawNMEAData)

ggaData = struct with fields:
                          TalkerID: "GP"
                         MessageID: "GGA"
                           UTCTime: 11:13:57.771
                          Latitude: 52.5227
                         Longitude: 13.4040
                  QualityIndicator: 1
                NumSatellitesInUse: 12
                              HDOP: 1
                          Altitude: 0
                   GeoidSeparation: 0
             AgeOfDifferentialData: NaN
    DifferentialReferenceStationID: NaN
                            Status: 0

gsaData = struct with fields:
              TalkerID: "GP"
             MessageID: "GSA"
                  Mode: "A"
               FixType: 3
    SatellitesIDNumber: [1 2 3 4 5 6 7 8 9 10 11 12]
                  PDOP: 1
                  VDOP: 1
                  HDOP: 1
              SystemID: NaN
                Status: 0

The above output shows that only GGA and GSA sentences are extracted based on the Message IDs specified as input.

Provide another GGA sentence as an additional input, and extract data. In this case, you need not modify the System object as the Message ID has not changed.

unparsedGGALine1='$GNGGA,001043.00,4404.14036,N,12118.85961,W,1,12,0.98,1113.0,M,-21.3,M,,*47'

unparsedGGALine1 =
'$GNGGA,001043.00,4404.14036,N,12118.85961,W,1,12,0.98,1113.0,M,-21.3,M,,*47'

rawNMEAData = [unparsedGGALine ,newline,  unparsedGSALine ,newline,  unparsedGGALine1]

rawNMEAData =
    '$GPGGA,111357.771,5231.364,N,01324.240,E,1,12,1.0,0.0,M,0.0,M,,*69
     $GPGSA,A,3,01,02,03,04,05,06,07,08,09,10,11,12,1.0,1.0,1.0*30
     $GNGGA,001043.00,4404.14036,N,12118.85961,W,1,12,0.98,1113.0,M,-21.3,M,,*47'

[ggaData,gsaData] =  pnmea(rawNMEAData)

ggaData=2×1 struct array with fields:
    TalkerID
    MessageID
    UTCTime
    Latitude
    Longitude
    QualityIndicator
    NumSatellitesInUse
    HDOP
    Altitude
    GeoidSeparation
    AgeOfDifferentialData
    DifferentialReferenceStationID
    Status

gsaData = struct with fields:
              TalkerID: "GP"
             MessageID: "GSA"
                  Mode: "A"
               FixType: 3
    SatellitesIDNumber: [1 2 3 4 5 6 7 8 9 10 11 12]
                  PDOP: 1
                  VDOP: 1
                  HDOP: 1
              SystemID: NaN
                Status: 0

A status of 0 indicates that the data was parsed successfully.

Extract Data from GSV Sentence

Create an nmeaParser System Object by specifying the Message ID as "GSV".

pnmea = nmeaParser("MessageID","GSV");

Provide the GSV sentence obtained from the GNSS receiver as the input and extract data.

unparsedGSVLine='$GPGSV,3,3,10,32,69,205,41,46,47,215,39*79';
gsvData = pnmea(unparsedGSVLine)

gsvData = struct with fields:
            TalkerID: "GP"
           MessageID: "GSV"
        NumSentences: 3
      SentenceNumber: 3
    SatellitesInView: 10
         SatelliteID: [32 46]
           Elevation: [69 47]
             Azimuth: [205 215]
                 SNR: [41 39]
            SignalID: NaN
              Status: 0

Extract Data from Multiple GSV Sentences

Provide multiple GSV sentences as the input.

unparsedGSVLine1 = '$GPGSV,3,1,10,01,,,31,03,28,325,40,10,,,33,12,20,047,30*70';
unparsedGSVLine2 = '$GPGSV,3,2,10,14,88,028,42,22,39,299,48,25,,,25,31,79,289,46*49';
unparsedGSVLine3 = '$GPGSV,3,3,10,32,69,205,41,46,47,215,39*79';

Create a string array to include the three sentences.

CRLF = [char(13),newline];
unparsedGSVLines = [unparsedGSVLine1,CRLF, unparsedGSVLine2, CRLF, unparsedGSVLine3];

Create the nmeaParser System Object 'pnmea', specify the 'GSV' Message ID, and extract data.

pnmea = nmeaParser("MessageIDs","GSV");
gsvData = pnmea(unparsedGSVLines)

gsvData=3×1 struct array with fields:
    TalkerID
    MessageID
    NumSentences
    SentenceNumber
    SatellitesInView
    SatelliteID
    Elevation
    Azimuth
    SNR
    SignalID
    Status

Read Data from NMEA Log

Read data from a sample NMEA log, so that the data can be parsed using the nmeaParser System Object.

The sample log file is nmeaLog.nmea, which is included in this example.

f = fopen('nmeaLog.nmea');
unParsedNMEAdata = fread(f);
pnmea = nmeaParser("MessageIDs",["RMC","GGA"]);
[rmcStruct, ggaStruct] = pnmea(unParsedNMEAdata)

rmcStruct=9×1 struct array with fields:
    TalkerID
    MessageID
    FixStatus
    Latitude
    Longitude
    GroundSpeed
    TrueCourseAngle
    UTCDateTime
    MagneticVariation
    ModeIndicator
    NavigationStatus
    Status

ggaStruct=9×1 struct array with fields:
    TalkerID
    MessageID
    UTCTime
    Latitude
    Longitude
    QualityIndicator
    NumSatellitesInUse
    HDOP
    Altitude
    GeoidSeparation
    AgeOfDifferentialData
    DifferentialReferenceStationID
    Status

Extract Data Using CustomSentence Name-Value Pair

Open Live Script

You can extract data from any NMEA sentence using the CustomSentence name-value pair. The NMEA data to be parsed is obtained from marine electronic devices.

Identify the Structure of NMEA Sentence and Create the Parser Function

You need to identify the structure of the NMEA sentence, as defined in the specification, and use that information to define the structure of output data to be used in the nmeaParser System object.

For example, let us consider an example sentence with Message ID, SSS.

After identifying the structure, you create a function file that defines the parser function, fsssParser. In the function file, you define the output data as a structure array with its fields matching the sequence as it appears in the specification.

The Navigation Toolbox™ provides an optional pre-configured function, extractNMEASentence, that checks if the sentence is valid and convert the fields in the sentence into string array. You can call extractNMEASentence inside the function file. You can also use any other function instead (which outputs a string array from unparsed data), and then call it inside the function file.

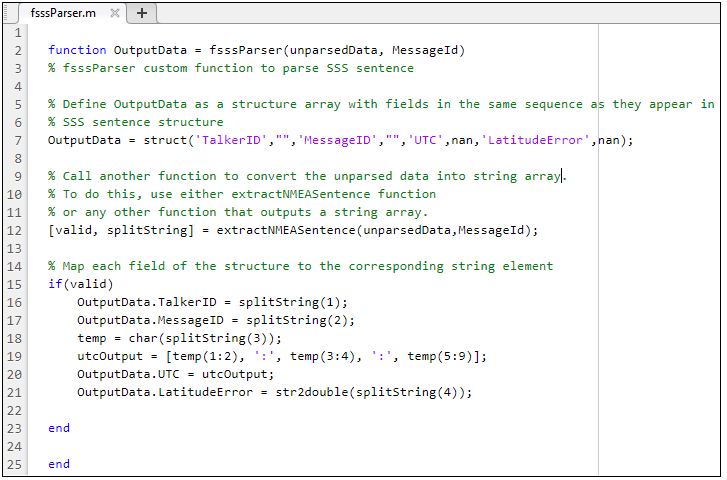

The below image shows the function file with the code, with the assumption that the fields available in SSS sentence are TalkerID, MessageID, UTC, and LatitudeError. Refer the additional comments for details.

In the above sample file, you define the mapping between the fields in the structure array and the elements of string array. For certain fields (for example, UTC time), you may need to define a character array to map the fields.

After you include the MATLAB code as mentioned above, save the function file (fsssParser.m) in the MATLAB path, so that you can call it to obtain parsed data using the CustomSentence name-value pair of nmeaParser System object.

To download another sample function file parserRMB.m that is used this example, click Open Live Script. This is a function file specific to the fields of an RMB sentence (mentioned in NMEA Standard, Version 4.1).

Extract Data from RMB Sentence

Create an nmeaParser System Object by using the CustomSentence name-value pair and specifying the message ID as "RMB" and the function as "parserRMB" (downloaded in the previous step).

pnmea = nmeaParser("CustomSentence",{["RMB","parserRMB"]});

Provide the RMB sentence obtained from the GNSS receiver as the input and extract data.

unparsedRMBLine='$GPRMB,A,4.08,L,EGLL,EGLM,5130.02,N,00046.34,W,004.6,213.9,122.9,A*3D';
rmbData = pnmea(unparsedRMBLine)

rmbData = struct with fields:
                        TalkerID: "GP"
                       MessageID: "RMB"
                      DataStatus: 'A'
                 CrossTrackError: 4.0800
                DirectionToSteer: NaN
                OriginWaypointID: NaN
           DestinationWaypointID: NaN
     DestinationWaypointLatitude: '5130.02 N'
    DestinationWaypointLongitude: '00046.34 W'
              RangeToDestination: 4.6000
            BearingToDestination: 213.9000
      DestinationClosingVelocity: 122.9000
                   ArrivalStatus: 'A'
                   ModeIndicator: "NA"
                          Status: 0

Extract Data from Multiple RMB Sentences

Provide multiple RMB sentences as the input.

unparsedRMBLine1 = ['$GPRMB,A,0.66,L,003,004,4917.24,N,12309.57,W,001.3,052.5,000.5,V*20'];
unparsedRMBLine2 = ['$GPRMB,A,4.08,L,EGLL,EGLM,5130.02,N,00046.34,W,004.6,213.9,122.9,A*3D'];

Create a character array to include the two sentences

rawNMEAData = [unparsedRMBLine1 ,newline,  unparsedRMBLine2]

rawNMEAData =
    '$GPRMB,A,0.66,L,003,004,4917.24,N,12309.57,W,001.3,052.5,000.5,V*20
     $GPRMB,A,4.08,L,EGLL,EGLM,5130.02,N,00046.34,W,004.6,213.9,122.9,A*3D'

Specify the output argument for the RMB sentence to extract the data.

[rmbData] =  pnmea(rawNMEAData)

rmbData=2×1 struct array with fields:
    TalkerID
    MessageID
    DataStatus
    CrossTrackError
    DirectionToSteer
    OriginWaypointID
    DestinationWaypointID
    DestinationWaypointLatitude
    DestinationWaypointLongitude
    RangeToDestination
    BearingToDestination
    DestinationClosingVelocity
    ArrivalStatus
    ModeIndicator
    Status

Extract Data from a Sentence with Built-in Support (RMC) and RMB Sentence

Create an nmeaParser System Object by using the MessageID property (to parse a sentence with built-in support - RMC) and also using the CustomSentence name-value pair (specifying the message ID as "RMB" and the function as "parserRMB" (created in a previous step)).

pnmea = nmeaParser("MessageID","RMC","CustomSentence",{["RMB","parserRMB"]});

Provide RMC and RMB sentences as the input.

unparsedRMCLine1 = ['$GNRMC,143909.00,A,5107.0020216,N,11402.3294835,W,0.036,348.3,210307,0.0,E,A*31'];
unparsedRMBLine2 = ['$GPRMB,A,4.08,L,EGLL,EGLM,5130.02,N,00046.34,W,004.6,213.9,122.9,A*3D'];

Create a string array to include the two sentences

rawNMEAData = [unparsedRMCLine1 ,newline,  unparsedRMBLine2]

rawNMEAData =
    '$GNRMC,143909.00,A,5107.0020216,N,11402.3294835,W,0.036,348.3,210307,0.0,E,A*31
     $GPRMB,A,4.08,L,EGLL,EGLM,5130.02,N,00046.34,W,004.6,213.9,122.9,A*3D'

Specify the output argument for the RMB sentence to extract the data.

[rmcdata,rmbData] =  pnmea(rawNMEAData)

rmcdata = struct with fields:
             TalkerID: "GN"
            MessageID: "RMC"
            FixStatus: 'A'
             Latitude: 51.1167
            Longitude: -114.0388
          GroundSpeed: 0.0185
      TrueCourseAngle: 348.3000
          UTCDateTime: 21-Mar-2007 14:39:09.000
    MagneticVariation: 0
        ModeIndicator: 'A'
     NavigationStatus: "NA"
               Status: 0

rmbData = struct with fields:
                        TalkerID: "GP"
                       MessageID: "RMB"
                      DataStatus: 'A'
                 CrossTrackError: 4.0800
                DirectionToSteer: NaN
                OriginWaypointID: NaN
           DestinationWaypointID: NaN
     DestinationWaypointLatitude: '5130.02 N'
    DestinationWaypointLongitude: '00046.34 W'
              RangeToDestination: 4.6000
            BearingToDestination: 213.9000
      DestinationClosingVelocity: 122.9000
                   ArrivalStatus: 'A'
                   ModeIndicator: "NA"
                          Status: 0

Extract Data from a Manufacturer-specific Sentence Using CustomSentence Name-Value Pair

Identify Structure of Manufacturer-specific Sentence and Create Function File with Parser Function
The structure of NMEA sentence to be parsed is available in the specification of the device from the manufacturer. You need to identify the structure and use the information to define the structure of output data to be used in the nmeaParser System object.
For example, the structure of the NMEA sentence from a hardware manufacturer may look like this:
$PMMCZ,hhmmss.ss,Latitude,N,Longitude,E,NavSatellite,DR*hh<CR><LF>
Here, P denotes that the sentence is manufacturer-specific, MMC is the manufacturer mnemonic code, and Z is the sentence type. Each field thereafter indicates a specific data (position, velocity, time, and so on). Some manufacturers use two characters for the sentence type, followed by the data fields.
After identifying the structure, create the parser function, parserMMCZ, using the optional extractNMEASentence function, as shown below (you can also use other functions to extract the unparsed data to strings, instead of extractNMEASentence).
```
function OutputData = parserMMCZ(unparsedData, MessageID)

  OutputData = struct("MessageID",MessageID,...
  "UTC","NA",...
  "Latitude",NaN,...
  "Longitude",NaN,...
  "NavigationSatellites",NaN,...
  "Status",uint8(1));

  [isValid, splitString] = extractNMEASentence(unparsedData, MessageID);

if(isValid)
    OutputData.MessageID = splitString(1);
    temp = char(splitString(2));
    utcOutput = [temp(1:2), ':', temp(3:4), ':', temp(5:6)];
    OutputData.UTC = utcOutput;
    OutputData.Latitude = str2double(splitString{3});
    OutputData.Longitude = str2double(splitString{5});
    OutputData.NavigationSatellites = str2double(splitString{7});
    OutputData.Status = uint8(0);
  end
end
```
Save parserMMCZ.m in the MATLAB path.

Extract Data from Manufacturer-specific Sentence

Create an nmeaParser System Object by using the CustomSentence name-value pair and specifying the message ID as "MMCZ" and the function as "parserMMCZ" (created in the previous step).

pnmea = nmeaParser("CustomSentence",{["MMCZ","parserMMCZ"]});

Provide an MMC sentence obtained from the device as the input and extract data:

unparsedMMCLine='$PMMCZ,225444,4917.24,N,00046.34,E,3,DR*7C';
mmcData = pnmea(unparsedMMCLine)

mmcData =

  struct with fields:

               MessageID: "MMCZ"
                     UTC: '22:54:44'
                Latitude: 4.9172e+03
               Longitude: 46.3400
    NavigationSatellites: 3
                  Status: 0

More About

expand all

Status Field

The status field displayed along with the extracted values in each output structure can be used to determine the parsing status:

Status: 0 — Sentence is valid (checksum validation is successful and the extracted data is as per the requested Message ID)
Status: 1 — Checksum of the sentence to be parsed is invalid
Status: 2 — The requested sentence is not found in the input data

Note

If a value is not available in the input sentence, the corresponding output value is displayed as “NA” for string values and "NaN" for numeric values.

RMC Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `RMC` Data type: `string`
FixStatus	Possible values: `A` – Data is valid `V` – Navigation receiver warning Data type: `string`
Latitude	Latitude in degrees. North is considered positive. Data type: `double`
Longitude	Longitude in degrees. East is considered positive. Data type: `double`
GroundSpeed	Speed over ground in meters per second (m/s) Data type: `double`
TrueCourseAngle	Course over ground in degrees. Data type: `double`
UTCDateTime	UTC date and time Data type: `datetime`
MagneticVariation	Magnetic variation value. Direction W is considered as negative Data type: `double`
ModeIndicator	Possible values: `N` – No fix `E` – Estimated/Dead reckoning fix `A` – Autonomous GNSS fix `D` – Differential GNSS fix `F` – RTK float `M` – Manual input mode `P` – Precision mode Data type: `string`
NavigationStatus	Possible values: `S` – Safe `C` – Caution `U` = Unsafe `V` = Navigational Status not valid Data type: `string`

GGA Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `GGA` Data type: `string`
UTCTime	UTC Time (`hhmmss.ss`) Data type: `datetime`
Latitude	Latitude in degrees. North is considered positive. Data type: `double`
Longitude	Longitude in degrees. East is considered positive. Data type: `double`
QualityIndicator	Possible values: `0` – No fix `1` – Fix Valid `2` – Differential GPS, SPS mode fix `4` – RTK fix `5` – RTK float `6` – Estimated/Dead reckoning fix `7` – Manual input mode `8` – Simulator mode Data type: `uint8`
NumSatellitesInUse	Number of satellites used. This could be different from number of satellites in view. Data type: `uint8`
HDOP	Horizontal dilution of precision Data type: `double`
Altitude	Altitude above mean sea level in meters Data type: `double`
GeoidSeparation	Difference between ellipsoid and mean sea level in meters Data type: `double`
AgeOfDifferentialData	Age of differential corrections Data type: `double`
DifferentialReferenceStationID	ID of station providing differential corrections Data type: `uint16`

GSA Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `GSA` Data type: `string`
Mode	Possible values: `M` – Manually set to operate in 2-D or 3-D mode `A` – Automatic switching between 2-D or 3-D mode Data type: `string`
FixType	Possible values: `1` – No fix `2` – 2-D fix `3` – 3-D fix Data type: `uint8`
SatellitesIDNumber	Satellite numbers (array of 12 bytes). Empty fields will be displayed as `Nan`. Data type: `uint8`
PDOP	Position dilution of precision Data type: `double`
VDOP	Vertical dilution of precision Data type: `double`
HDOP	Horizontal Dilution of Precision Data type: `double`
SystemID	NMEA defined GNSS System ID Data type: `uint8`

GSV Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `GSV` Data type: `string`
NumSentences	Total number of sentences. The complete satellite information is available in multiple GSV sentences. This field indicates the total number of `gsvData` structures containing the complete information per update. Data type: `double`
SentenceNumber	Sentence number of the currently parsed GSV line Data type: `double`
SatellitesInView	Total number of satellites in view Data type: `double`
SatelliteID	Satellite ID numbers specified as a row vector of size 1-by-N, where N is the number of satellite information available in one sentence. The maximum allowed valued of N is 4. Data type: `double`
Elevation	Elevation in degrees, specified as a row vector of size 1-by-N, where N is the number of satellite information available in one sentence. The maximum allowed valued of N is 4. The maximum value of Elevation is 90 degrees. Data type: `double`
Azimuth	Azimuth in degrees, specified as a row vector of size 1-by-N, where N is the number of satellite information available in one sentence. The maximum allowed valued of N is 4. The range of Azimuth value is [0-359] degrees. Data type: `double`
SNR	Signal-to-noise ratio in dB-Hz, specified as a row vector of size 1-by-N, where N is the number of satellite information available in one sentence. The maximum allowed valued of N is 4. The range of SNR value is [0,99] dB. Data type: `double`
SignalID	Signal ID corresponding to the SatelliteID. This value is displayed only if the sentences conform to NMEA 0183 Standard, Version 4.1. Otherwise, the value displayed is `NaN`. Data type: `double`

The possible values of SignalID and the corresponding Signal Channel are listed in this table.

System	TalkerID displayed in the parsed data	SatelliteID	SignalID	Signal Channel
GPS	GP	1 – 32 (for GPS) 33 – 64 (for SBAS)	0	All signals
			1	L1 C/A
			2	L1 P (Y)
			3	L1 M
			4	L2 P (Y)
			5	L2C-M
			6	L2C-L
			7	L5-I
			8	L5-Q
GLONASS	GL	33 – 64 (for SBAS) 65 – 99 (for GLONASS)	0	All signals
			1	G1 C/A
			2	G1 P
			3	G2 C/A
			4	GLONASS (M) G2 P
GALILEO	GA	1 – 36 (for Galileo satellites) 37 – 64 (for Galileo SBAS)	0	All signals
			1	E5a
			2	E5b
			3	E5a and E5b
			4	E6-A
			5	E6-BC
			6	L1-A
			7	L1-BC

ZDA Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `ZDA` Data type: `string`
UTCTime	UTC Time Data type: `datetime`
UTCDay	UTC Day Data type: `uint8`
UTCMonth	UTC Month Data type: `uint8`
UTCYear	UTC Year Data type: `uint8`
LocalZoneHours	Local zone hours ranging from `00` to `+/-13` Data type: `int8`
LocalZoneMinutes	Local zone minutes ranging from `00` to `59` Data type: `uint8`

GLL Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `GLL` Data type: `string`
Latitude	Latitude in degrees. North is considered positive. Data type: `double`
Longitude	Longitude in degrees. East is considered positive. Data type: `double`
UTCTime	UTC Time Data type: `datetime`
DataValidity	Data validity status: `A` – Data valid `V` – Data invalid Data type: `string`
PositioningMode	Possible values: `N` – Data not Valid `E` – Estimated/Dead reckoning mode `A` – Autonomous mode `D` – Differential mode `S` – Simulator Mode `M` – Manual input mode Data type: `string`

VTG Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `VTG` Data type: `string`
TrueCourseAngle	Course over ground (true) in degrees Data type: `double`
MagneticCourseAngle	Course over ground (magnetic) in degrees Data type: `double`
GroundSpeed	Speed over ground in meters per second (m/s) Data type: `double`
ModeIndicator	Possible values: `N` – No fix `E` – Estimated/Dead reckoning mode `A` – Autonomous mode `D` – Differential mode `M` – Manual input mode `N` – Data not valid `P` – Precise `S` – Simulator mode Data type: `string`

GST Sentences

Name of field displayed in the output structure after parsing is complete	Description
TalkerID	Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is `GP` Data type: `string`
MessageID	Type of NMEA message – `GST` Data type: `string`
UTCTime	UTC Time Data type: `datetime`
RMSStdDeviationOfRanges	RMS value of the standard deviation of the ranges in meters. Data type: `double`
StdDeviationSemiMajorAxis	Standard deviation of semi-major axis in meters Data type: `double`
StdDeviationSemiMinorAxis	Standard deviation of semi-minor axis in meters Data type: `double`
OrientationSemiMajorAxis	Orientation of semi-major axis, in degrees Data type: `double`
StdDeviationLatitudeError	Standard deviation of latitude error, in meters Data type: `double`
StdDeviationLongitudeError	Standard deviation of longitude error in meters Data type: `double`
StdDeviationAltitudeError	Standard deviation of altitude error in meters Data type: `double`

HDT Sentences

Name of field displayed in the output structure after parsing is complete Description

TalkerID

Identify the type of device that transmits data. For example, for a GPS receiver, the TalkerID is GP

Data type: string

MessageID

Type of NMEA message – HDT

Data type: string

TrueHeadingAngle

Heading in degrees with respect to true north

Data type: double

Version History

Introduced in R2020b

nmeaParser

Description

Creation

Syntax

Description

Input Arguments

CustomSentence — Specify message ID of any sentence and the name of its parser function cell array of character vectors

Properties

MessageIDs — Message IDs of nine standard NMEA sentences with built-in support to extract data ["RMC","GGA","GSA"] (default) | RMC | GGA | GSA | GSV | VTG | GLL | GST | ZDA | HDT

Usage

Syntax

Description

Input Arguments

rawData — NMEA data as obtained from a marine electronic device string array

Output Arguments

rmcData — Data extracted from RMC sentence structure

ggaData — Data extracted from GGA sentence structure

gsaData — Data extracted from GSA sentence structure

vtgData — Data extracted from VTG sentence structure

gllData — Data extracted from GLL sentence structure

gstData — Data extracted from GST sentence structure

gsvData — Data extracted from GSV sentence structure

zdaData — Data extracted from ZDA sentence structure

hdtData — Data extracted from HDT sentence structure

customNmeaData1 — Data extracted from any standard or manufacturer-specific NMEA sentence structure

Object Functions

Examples

Extract Data from NMEA Sentences Using MessageID Property

Extract Data Using CustomSentence Name-Value Pair

Extract Data from a Manufacturer-specific Sentence Using CustomSentence Name-Value Pair

More About

Status Field

RMC Sentences

GGA Sentences

GSA Sentences

GSV Sentences

ZDA Sentences

GLL Sentences

VTG Sentences

GST Sentences

HDT Sentences

Version History

See Also

Topics

`CustomSentence` — Specify message ID of any sentence and the name of its parser function
cell array of character vectors

`MessageIDs` — Message IDs of nine standard NMEA sentences with built-in support to extract data
`["RMC","GGA","GSA"]` (default) | `RMC` | `GGA` | `GSA` | `GSV` | `VTG` | `GLL` | `GST` | `ZDA` | `HDT`

`rawData` — NMEA data as obtained from a marine electronic device
string array

`rmcData` — Data extracted from RMC sentence
structure

`ggaData` — Data extracted from GGA sentence
structure

`gsaData` — Data extracted from GSA sentence
structure

`vtgData` — Data extracted from VTG sentence
structure

`gllData` — Data extracted from GLL sentence
structure

`gstData` — Data extracted from GST sentence
structure

`gsvData` — Data extracted from GSV sentence
structure

`zdaData` — Data extracted from ZDA sentence
structure

`hdtData` — Data extracted from HDT sentence
structure

`customNmeaData1` — Data extracted from any standard or manufacturer-specific NMEA sentence
structure
