validatorOccupancyMap3D

State validator based on 3-D grid map

Since R2020b

expand all in page

    Description

    The validatorOccupancyMap3D object validates states and discretized motions based on occupancy values in a 3-D occupancy map. The object interprets obstacle-free map locations as valid states. The object interprets occupied and unknown map locations as invalid states.

    Creation

    Syntax

    validator = validatorOccupancyMap3D
    validator = validatorOccupancyMap3D(stateSpace)
    validator = validatorOccupancyMap3D(stateSpace,Name,Value)

    Description

    validator = validatorOccupancyMap3D creates a 3-D occupancy map validator associated with an SE(3) state space with default settings.

    validator = validatorOccupancyMap3D(stateSpace) creates a validator in the specified state space. The stateSpace input sets the value of the StateSpace property.

    example

    validator = validatorOccupancyMap3D(stateSpace,Name,Value) sets Properties using one or more name-value pairs. Unspecified properties have default values. Enclose each property name in quotes.

    For example, validatorOccupancyMap3D('ValidationDistance',0.1) creates a 3-D occupancy map validator with a sampling interval of 0.1.

    Properties

    expand all

    This property is read-only.

    State space for validating states, specified as a subclass of nav.StateSpace. These are the predefined state space objects:

    Example: validatorOccupancyMap3D(stateSpaceSE3)

    Map used for validating states, specified as an occupancyMap3D object.

    Example: validator.Map = occupancyMap3D(10)

    Interval for sampling between states and checking state validity, specified as a positive numeric scalar.

    Example: validator.ValidationDistance = 0.1

    Data Types: double

    State variable mapping for xyz-coordinates in the state vector, specified as a three-element vector of form [xIdx yIdx zIdx].

    Data Types: double

    Object Functions

    copyCreate deep copy of state validator object
    isMotionValidCheck if path between states is valid
    isStateValidCheck if state is valid

    Examples

    collapse all

    Open Live Script

    Create a 3-D occupancy map and associated state validator. Plan, validate, and visualize a path through the occupancy map.

    Load and Assign Map to State Validator

    Load a 3-D occupancy map of a city block into the workspace. Specify a threshold for which cells to consider as obstacle-free.

    mapData = load('dMapCityBlock.mat');
omap = mapData.omap;
omap.FreeThreshold = 0.5;

    Inflate the occupancy map to add a buffer zone for safe operation around the obstacles.

    inflate(omap,1)

    Create an SE(3) state space object with bounds for state variables.

    ss = stateSpaceSE3([-20 220;
    -20 220;
    -10 100;
    inf inf;
    inf inf;
    inf inf;
    inf inf]);

    Create a 3-D occupancy map state validator using the created state space.

    sv = validatorOccupancyMap3D(ss);

    Assign the occupancy map to the state validator object. Specify the sampling distance interval.

    sv.Map = omap;
sv.ValidationDistance = 0.1;

    Plan and Visualize Path

    Create a path planner with increased maximum connection distance. Reduce the maximum number of iterations.

    planner = plannerRRT(ss,sv);
planner.MaxConnectionDistance = 50;
planner.MaxIterations = 1000;

    Create a user-defined evaluation function for determining whether the path reaches the goal. Specify the probability of choosing the goal state during sampling.

    planner.GoalReachedFcn = @(~,x,y)(norm(x(1:3)-y(1:3))<5);
planner.GoalBias = 0.1;

    Set the start and goal states.

    start = [40 180 25 0.7 0.2 0 0.1];
goal = [150 33 35 0.3 0 0.1 0.6];

    Plan a path using the specified start, goal, and planner.

    [pthObj,solnInfo] = plan(planner,start,goal);

    Check that the points of the path are valid states.

    isValid = isStateValid(sv,pthObj.States)
    isValid = 7x1 logical array

   1
   1
   1
   1
   1
   1
   1

    Check that the motion between each sequential path state is valid.

    isPathValid = zeros(size(pthObj.States,1)-1,1,'logical');
for i = 1:size(pthObj.States,1)-1
    [isPathValid(i),~] = isMotionValid(sv,pthObj.States(i,:),...
        pthObj.States(i+1,:));
end
isPathValid
    isPathValid = 6x1 logical array

   1
   1
   1
   1
   1
   1

    Visualize the results.

    show(omap)
hold on
scatter3(start(1,1),start(1,2),start(1,3),'g','filled') % draw start state
scatter3(goal(1,1),goal(1,2),goal(1,3),'r','filled')    % draw goal state
plot3(pthObj.States(:,1),pthObj.States(:,2),pthObj.States(:,3),...
    'r-','LineWidth',2) % draw path

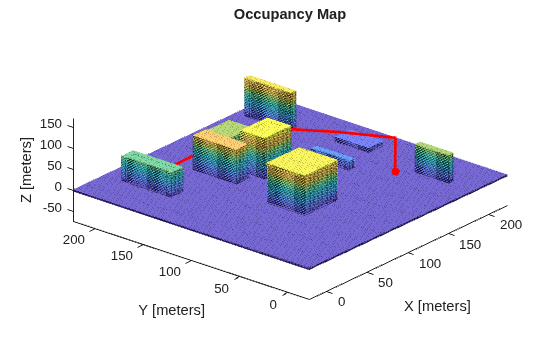

    Figure contains an axes object. The axes object with title Occupancy Map, xlabel X [meters], ylabel Y [meters] contains 4 objects of type patch, scatter, line.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2020b
