SeaSurface
Description
SeaSurface
defines a sea surface object belonging to a radarScenario
. The
object describes the size, surface reflectivity, motion, and wind speed of the surface. You
can use the SeaSurface
object to determine sea heights in a scenario and
surface reflectivity, test for occlusion along the line-of-sight between two points in the
scenario and give surface height at a point.
Creation
Create SeaSurface
objects using the seaSurface
object
function of the radarScenario
object.
Properties
SpectralModel
— Sea surface omnidirectional motion spectrum
seaSpectrum
object
Sea surface omnidirectional motion spectrum, specified as a seaSpectrum
object. This object models surface heights over time.
Dependencies
To enable this property, set the radarScenario
property
IsEarthCentered
to false
.
Boundary
— Bounding rectangle of surface
[-Inf Inf; -Inf Inf]
(default) | 2-by-2 matrix of real values
Bounding rectangle of the surface, specified as a 2-by-2 matrix of real values. The bounding rectangle is defined by two two-dimensional points in either Cartesian or geodetic scenario coordinates. When the IsEarthCentered
property of the radarScenario
object is specified as:
false
— Scenario coordinates are Cartesian. Specify the bounding rectangle [MinX
,MaxX
,MinY
MaxY
], as Cartesian coordinates in the reference frame of the scenario, whereMinX
<MaxX
, andMinY
<MaxY
.true
— Scenario coordinates are geodetic. Specify the bounding rectangle as [StartLat
,EndLat
,StartLon
EndLon
] whereStartLat
andEndLat
are the minimum and maximum latitudes of the geodetic frames.StartLat
andEndLat
must lie in the interval [–90,90] whereStartLat
<EndLat
.Specify
StartLon
andEndLon
as the minimum and maximum longitudes of the geodetic frame.StartLon
andEndLon
must lie in the interval [–180,180]. IfEndLon
<StartLon
, the object wrapsEndLon
toStartLon
+360°
. Units are in degrees.
Data Types: double
RadarReflectivity
— Radar reflectivity object of surface
surfaceReflectivitySea
object (default) | surfaceReflectivityCustom
object
Radar reflectivity object of surface, specified as a surfaceReflectivitySea
or surfaceReflectivityCustom
for the normalized radar cross section (NRCS) of
the surface. The default object is a surfaceReflectivitySea
object with default properties.
ReflectivityMap
— Map of reflectivity type indices over the surface
1 (default) | scalar | real-valued matrix
This property contains a grid of reflectivity type values corresponding to vertices of the
surface height data. If any terrain or a spectral model is present,
ReflectivityMap
must be a matrix of the same size as the domain
of that data. Otherwise it must be scalar. Each element is an index into the third
dimension of the Reflectivity
property of the surfaceReflectivityCustom
object.
Dependencies
To enable this property, set the RadarReflectivity
property to a surfaceReflectivityCustom
object.
Data Types: double
ReflectionCoefficient
— Surface reflection coefficient model or value
seawater model (default) | SurfaceReflectionCoefficient
object | finite scalar
Surface reflection coefficient for use in multipath calculations, specified either as
a SurfaceReflectionCoefficient
object that defines the reflectivity
model or as scalar with a value between -1 and 1. The default value is a SurfaceReflectionCoefficient
object containing the earthSurfacePermittivity
function model of the relative permittivity and
conductivity for sea water that has a smooth surface (no waves). Note, by default, the
reflectionCoefficient
object function is called internally on the
SurfaceReflectionCoefficient
object to calculate the cumulative reflection
coefficient value during multipath modeling if the EnableMultipath
property is set to true
in SurfaceManager
.
Complex Number Support: Yes
ReferenceHeight
— Surface reference height
0 (default) | scalar
Reference height of surface height data, specified as a scalar. Surface heights are relative to the reference height. Units are in meters.
Data Types: double
WindSpeed
— Wind speed
10 (default) | nonnegative scalar
Wind speed over sea surface, specified as a nonnegative scalar. Wind speed is defined at a height of 10 meters from the water surface. Wind speed is used as a parameter for the associated spectral model. Units are m/s.
Data Types: double
WindDirection
— Wind direction
0 (default) | scalar
Wind direction over the sea surface, specified as a scalar in the range 0° to 180°.
A standard right-handed Cartesian coordinate system is used. When the
IsEarthCentered
property of radarScenario
is
true
, wind direction is a positive angle defined counterclockwise
from the positive x-axis. Otherwise, wind direction is defined as
clockwise from the North direction. This property is used to determine surface
reflectivity and is used as a parameter for the associated spectral model. Units are in
degrees.
Data Types: double
Fetch
— Wave fetch
Inf
(default) | positive scalar
Fetch, specified as a positive scalar. Fetch is the distance over a sea surface in which the wind blows in a single direction without obstruction. The fetch is used as a parameter for the associated spectral model. Units are in meters.
Data Types: double
Object Functions
height | Height of point on surface |
occlusion | Test for occlusion of point by a surface |
plotReflectivityMap | Plots reflectivity map |
Examples
Find Height of Sea Surface
Create a square sea surface area using the seaSurface
object. Assume a moderate sea state with a wind speed of about 10 m/s, a fetch of 250 km and a length of 1.0 km. Add an Elfouhaily spectrum to the sea surface. Use the height function to determine the heights of 2 points on the map.
Create a radar scenario.
scene = radarScenario(IsEarthCentered = false);
rng('default')
Add a sea surface to the scene with an Elfouhaily spectrum.
spec = seaSpectrum(Resolution = 20);
srf = seaSurface(scene,Boundary = [-500 500; -500 500], ...
WindSpeed = 10,Fetch = 250000,SpectralModel = spec);
Find the height at two points.
P1 = [0;0]; P2 = [30;-70]; H = height(srf,[P1 P2])
H = 1×2
-0.9394 -0.2682
Display the sea surface properties in the surface manager.
mgr = scene.SurfaceManager
mgr = SurfaceManager with properties: EnableMultipath: 0 UseOcclusion: 1 Surfaces: [1x1 radar.scenario.SeaSurface]
mgr.Surfaces
ans = SeaSurface with properties: WindSpeed: 10 WindDirection: 0 Fetch: 250000 SpectralModel: [1x1 seaSpectrum] RadarReflectivity: [1x1 surfaceReflectivitySea] ReflectionCoefficient: [1x1 radar.scenario.SurfaceReflectionCoefficient] ReflectivityMap: 1 ReferenceHeight: 0 Boundary: [2x2 double]
Test for Occlusion Between Two Points on Sea Surface
Create a square sea surface assuming a moderate sea state with a wind speed of about 12 knots (6.17 m/s), a fetch of 120 nmi (222.24 km), and a length of 1.024 km. Add an Elfouhaily spectrum to the sea surface. Use the occlusion
object function to determine if the path from point 1 to point 2 is occluded.
Start by creating a radar scenario;
scene = radarScenario;
Add a sea surface with an Elfouhaily spectrum.
rng('default'); spec = seaSpectrum('Resolution',16);
Create the sea surface.
bnds = [0 1024; 0 1024]; srf = seaSurface(scene,'Boundary',bnds, ... 'WindSpeed',6.17,'Fetch',222.24e3, ... 'SpectralModel',spec);
Set two points for testing occlusion.
p1 = [1016; 368; -0.082]; p2 = [10; 100; 0.13];
Determine if the path from p1 to p2 is occluded
tf1 = occlusion(srf,p1,p2)
tf1 = logical
1
Create Surface from Sea Spectrum

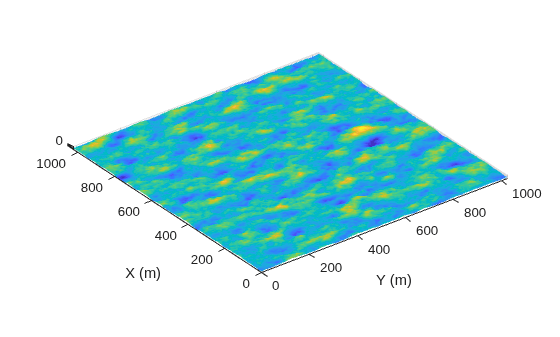

Create a 1024-by-1024 m square sea surface. Assume an NRL reflectivity model for a high sea state 6 with a wind speed of about 20 m/s and a fetch of 250 km. Set UseOcclusion
in the SurfaceManager
to false
.
Create a radar scenario.
scene = radarScenario;
Model the reflectivity using the NRL model.
refl = surfaceReflectivitySea(Model = 'NRL',SeaState = 6, ... Polarization = 'V')
refl = surfaceReflectivitySea with properties: EnablePolarization: 0 Model: 'NRL' SeaState: 6 Polarization: 'V' Speckle: 'None'
rng(2033) spec = seaSpectrum(Resolution = 2); bnds = [0 1024; 0 1024]; srf = seaSurface(scene,Boundary = bnds, ... WindSpeed = 20,Fetch = 250e3, ... SpectralModel = spec); mgr = scene.SurfaceManager; mgr.UseOcclusion = false
mgr = SurfaceManager with properties: EnableMultipath: 0 UseOcclusion: 0 Surfaces: [1x1 radar.scenario.SeaSurface]
x = linspace(srf.Boundary(1,1),srf.Boundary(1,2),1000); y = linspace(srf.Boundary(2,1),srf.Boundary(2,2),1000); [X,Y] = meshgrid(x,y); X1 = X(:)'; Y1 = Y(:)'; hts = height(srf,[Y1;X1]); hts = reshape(hts,length(x),length(y)); surf(x,y,hts) axis equal shading interp ylabel('X (m)') xlabel('Y (m)') zlabel('Height (m)')
Version History
Introduced in R2022a
