height
Description
returns the height hgt
= height(surface
,pt
)hgt
of the point pt
on the
surface
. This syntax applies when the surface is a LandSurface
,
SeaSurface
, or
CustomSurface
object.
returns the height hgt
= height(surface
,pt
,t
)hgt
of the point pt
on the
surface
at the time t
. This syntax only applies
when the surface
is a SeaSurface
object.
Examples
Find Height of Sea Surface
Create a square sea surface area using the seaSurface
object. Assume a moderate sea state with a wind speed of about 10 m/s, a fetch of 250 km and a length of 1.0 km. Add an Elfouhaily spectrum to the sea surface. Use the height function to determine the heights of 2 points on the map.
Create a radar scenario.
scene = radarScenario(IsEarthCentered = false);
rng('default')
Add a sea surface to the scene with an Elfouhaily spectrum.
spec = seaSpectrum(Resolution = 20);
srf = seaSurface(scene,Boundary = [-500 500; -500 500], ...
WindSpeed = 10,Fetch = 250000,SpectralModel = spec);
Find the height at two points.
P1 = [0;0]; P2 = [30;-70]; H = height(srf,[P1 P2])
H = 1×2
-0.9394 -0.2682
Display the sea surface properties in the surface manager.
mgr = scene.SurfaceManager
mgr = SurfaceManager with properties: EnableMultipath: 0 UseOcclusion: 1 Surfaces: [1x1 radar.scenario.SeaSurface]
mgr.Surfaces
ans = SeaSurface with properties: WindSpeed: 10 WindDirection: 0 Fetch: 250000 SpectralModel: [1x1 seaSpectrum] RadarReflectivity: [1x1 surfaceReflectivitySea] ReflectionCoefficient: [1x1 radar.scenario.SurfaceReflectionCoefficient] ReflectivityMap: 1 ReferenceHeight: 0 Boundary: [2x2 double]
Find Height of Land Surface

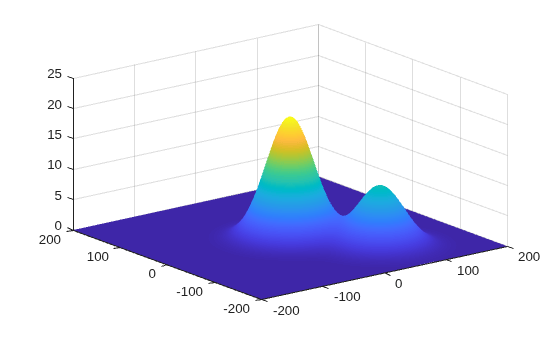

Create a radar scenario. Add a 400-by-400 m area to the scenario with two simulated hills. Find the height of two points.
scene = radarScenario('IsEarthCentered',false); bnds = [-200 200; -200, 200]; x = -200:200; y = -200:200; [X,Y] = meshgrid(x,y); htmap = 20*exp(-X.^2/2000 - Y.^2/2000) + 10*exp(-(X-70).^2/2000 - (Y+100).^2/2000); surf(X,Y,htmap) shading interp
Find the height of the surface at two points.
P1 = [0.0; 0.0]; % Point 1 P2 = [28.0; -40.0]; % Point 2 srf = landSurface(scene,'Terrain',htmap,'Boundary',bnds)
srf = LandSurface with properties: RadarReflectivity: [1x1 surfaceReflectivityLand] ReflectionCoefficient: [1x1 radar.scenario.SurfaceReflectionCoefficient] ReflectivityMap: 1 ReferenceHeight: 0 Boundary: [2x2 double] Terrain: [401x401 double]
H = height(srf,[P1 P2])
H = 1×2
20.0058 6.7565
Use the surface manager find the surfaces in the scenario.
mgr = scene.SurfaceManager
mgr = SurfaceManager with properties: EnableMultipath: 0 UseOcclusion: 1 Surfaces: [1x1 radar.scenario.LandSurface]
mgr.Surfaces
ans = LandSurface with properties: RadarReflectivity: [1x1 surfaceReflectivityLand] ReflectionCoefficient: [1x1 radar.scenario.SurfaceReflectionCoefficient] ReflectivityMap: 1 ReferenceHeight: 0 Boundary: [2x2 double] Terrain: [401x401 double]
Input Arguments
surface
— Land, sea, or custom surface
LandSurface
object | SeaSurface
object | CustomSurface
object
Surface, specified as a LandSurface
,
SeaSurface
, or
CustomSurface
object.
pt
— Point on surface
2-by-N matrix of real values | 3-by-N matrix of real values
Points on surface, specified as 2-by-N matrix of real values or a 3-by-N matrix of real values, where N is the number of points.
The coordinate system of the point depends on the value of the
IsEarthCentered
property of the radar scenario object::
false
— Each column of the 2-by-N matrix represents the x- and y-coordinates of points in meters. Each column of the 3-by-N matrix represents the x-, y-, and z-coordinates in meters. Note that the z-coordinate is irrelevant for surface height querying.true
— Each column of the 2-by-N matrix is the latitude in degrees and longitude in degrees, in the geodetic frame. Each column of the 3-by-N matrix is the latitude in degrees, longitude in degrees, and altitude in degrees, in geodetic coordinates. Note that the latitude is irrelevant for surface height querying.
t
— Simulation time
scalar
Simulation time, specified as a scalar.
Dependencies
To enable this argument, select surface
as a SeaSurface
object.
Data Types: double
Output Arguments
hgt
— Height of surface point
scalar | N-element vector of real values
Height of point, returned as a scalar or an N-element vector of real values, where N is the number of queried positions. Units are in meters.
Version History
Introduced in R2022a
See Also
LandSurface
| SeaSurface
| CustomSurface
| occlusion
| SurfaceManager
