camroll

Set or get roll angle of camera for Satellite Scenario Viewer

Since R2021a

collapse all in page

Syntax

camroll(viewer,roll)
outRoll = camroll(viewer,___)

Description

camroll(viewer,roll) sets the roll angle of the camera for the Satellite Scenario Viewer. Setting the roll angle rotates the camera around its x-axis.

Camera with double-headed arrow around lens

example

outRoll = camroll(viewer,___) returns the roll angle of the camera. If the second input is roll, then the function sets the output equal to the input roll.

Examples

collapse all

Open Live Script

Create a satellite scenario object.

sc = satelliteScenario;

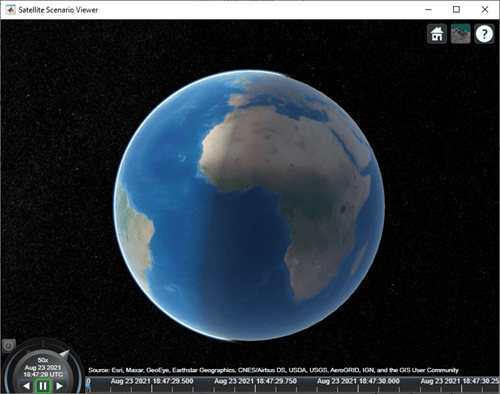

Launch the Satellite Scenario Viewer.

v = satelliteScenarioViewer(sc);

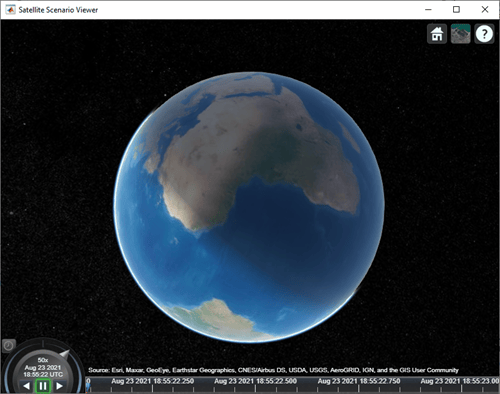

Set the roll angle of the camera in the Satellite Scenario Viewer to 60 degrees.

roll = 60;      % degrees
camroll(v,roll);

Input Arguments

collapse all

Satellite Scenario Viewer, specified as a scalar satelliteScenarioViewer object.1

Roll angle of the camera in degrees, specified as a scalar in the range [–360, 360].

Output Arguments

collapse all

Camera roll angle in degrees, returned as a numeric scalar.

Tips

  • When the pitch angle is near –90 (the default value) or 90 degrees, the camera loses one rotational degree of freedom. As a result, when you change the roll angle, the heading angle might change instead. This phenomenon is called gimbal lock. To avoid the effects of gimbal lock, call the camheading function instead of the camroll function.

Version History

Introduced in R2021a
