showAll

Show all graphics in viewer

Since R2021a

collapse all in page

Syntax

showAll(viewer)

Description

showAll(viewer) shows all graphics in the specified satellite scenario viewer.

example

Examples

collapse all

Open Live Script

Create a satellite scenario object.

sc = satelliteScenario;

Specify not to automatically show scenario entities in an open Satellite Scenario Viewer.

sc.AutoShow = false;

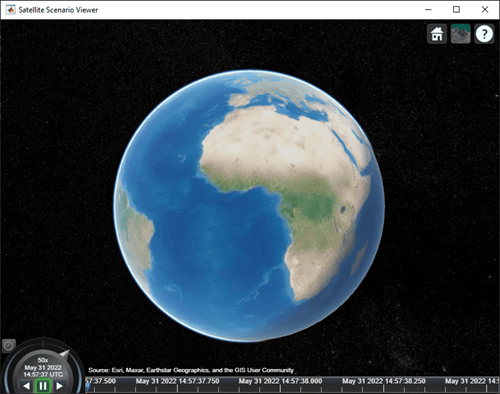

Launch the Satellite Scenario Viewer.

v = satelliteScenarioViewer(sc);

Add a constellation of satellites to the scenario.

tleFile = "leoSatelliteConstellation.tle";
sat = satellite(sc,tleFile);

Add a ground station to the scenario.

gs = groundStation(sc);

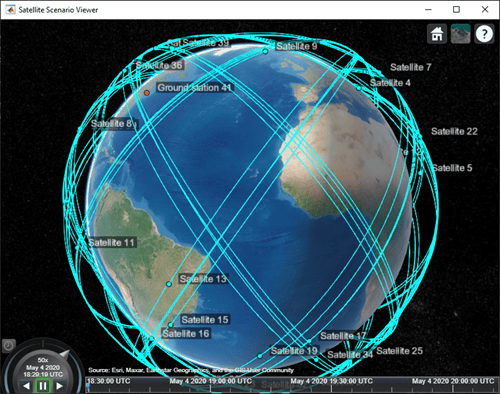

Visualize the satellite scenario objects using the Satellite Scenario Viewer.

showAll(v);

Input Arguments

collapse all

Satellite Scenario Viewer, specified as a scalar satelliteScenarioViewer object.1

Version History

Introduced in R2021a
