extractsigroi
Description
Examples
Extract Signal Regions of Interest
Consider a two-column matrix representing possible regions of interest of a 45-sample random signal. Extract the signal samples corresponding to the regions of interest.
x = randn(45,1); roilims = [5 10; 15 25; 30 35]; sigroi = extractsigroi(x,roilims);

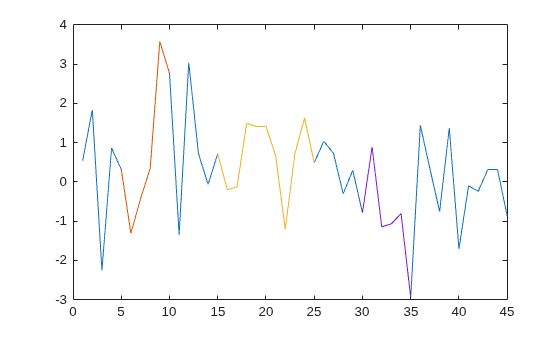

Plot the signal and highlight the regions of interest.
plot(x) hold on for kj = 1:length(sigroi) plot(roilims(kj,1):roilims(kj,2),sigroi{kj}) end hold off
Extract Regions of Interest from Data Set

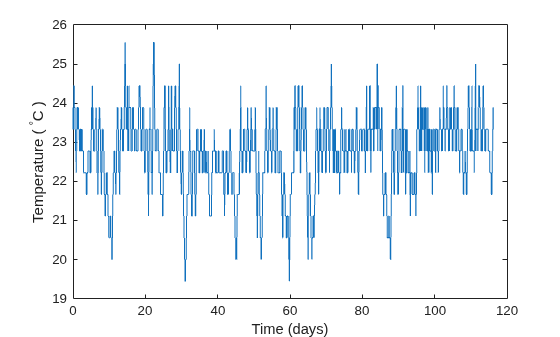

Consider a set of temperature data collected by a thermometer inside an office building for about four months. The device takes a reading every half hour. The sample rate is thus 48 measurements/day. Convert the temperature to degrees Celsius and plot the data.
load officetemp tempC = (temp-32)*5/9; fs = 48; t = (0:length(tempC) - 1)/fs; plot(t,tempC) xlabel('Time (days)') ylabel('Temperature ( {}^\circC )')
Create region-of-interest limits that separate the temperature data into 29-day periods.
roilims = [1 29; 30 58; 59 87; 88 116];
Extract the regions of interest. Compute the mean temperature of each period and display the values.
sigroi = extractsigroi(tempC,roilims*fs); cellfun(@mean,sigroi)'
ans = 1×4
22.8819 22.3073 22.7633 23.0066
Extract and Concatenate Signal Regions of Interest
Consider a two-column matrix representing possible regions of interest of a 45-sample random signal. Extract the signal samples corresponding to the regions of interest. Concatenate the samples into a single vector.
x = randn(45,1); roilims = [5 10; 15 25; 30 35]; sigroi = extractsigroi(x,roilims,true);

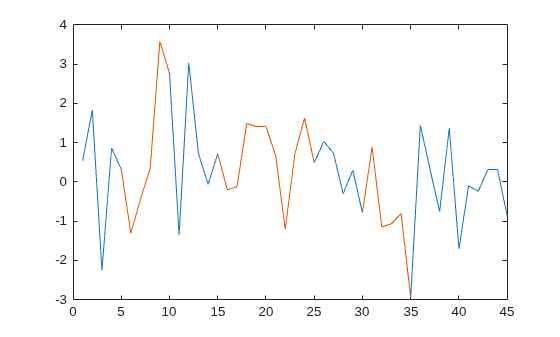

Plot the signal and highlight the regions of interest.
plot(x) y = NaN(size(x)); for kj = 1:size(roilims,1) roi = roilims(kj,1):roilims(kj,2); y(roi) = sigroi(1:length(roi)); sigroi(1:length(roi)) = []; end hold on plot(y) hold off
Extract and Concatenate Regions of Interest From Data Set
Consider a set of temperature data collected by a thermometer inside an office building for four months. The device takes a reading every half hour. The sample rate is thus 48 measurements/day. Convert the temperature to degrees Celsius.
load officetemp
tempC = (temp-32)*5/9;
fs = 48;
Create region-of-interest (ROI) limits that correspond to five random two-week periods separated by at least 24 hours. Use the temperature readings from these days for an audit.
r = 5; w = 14*fs; s = 1*fs; hq = histcounts(randi(r+1,1,length(tempC)-r*w-(r-1)*s),(1:r+2)-1/2); t = (1 + (0:r-1)*(w+s) + cumsum(hq(1:r)))'; roilims = [t t+w-1];
Extract the regions of interest. Compute the mean temperature of each audited region of interest and display the values.
sigroi = extractsigroi(tempC,roilims); cellfun(@mean,sigroi)'
ans = 1×5
22.8075 22.2586 22.4256 22.9018 23.1457
Extract the regions of interest again, but now concatenate the samples into a single vector. Compute the mean temperature across the audited regions.
sigroic = extractsigroi(tempC,roilims,true); avgTFc = mean(sigroic)
avgTFc = 22.7078
Convert the ROI limits to a binary sequence and create a mask. Express time in weeks.
m = sigroi2binmask(roilims,length(tempC)); msk = signalMask(m,'SampleRate',fs*7,'Categories',"Audit");

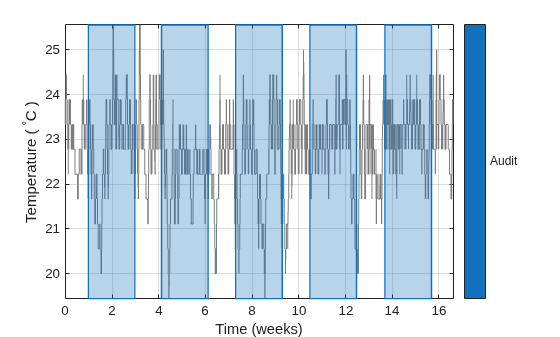

Plot the data and visualize the regions of interest with rectangular patches.
plotsigroi(msk,tempC,true) xlabel('Time (weeks)') ylabel('Temperature ( {}^\circC )')
Input Arguments
x
— Input signal
vector
Input signal, specified as a vector.
Example: chirp(0:1/1e3:1,25,1,50)
specifies a chirp sampled at 1
kHz.
Data Types: single
| double
Complex Number Support: Yes
roilims
— Region-of-interest limits
two-column matrix of positive integers
Region-of-interest limits, specified as a two-column matrix of positive integers. The
ith row of roilims
contains nondecreasing
indices corresponding to the beginning and end samples of the ith
region of interest of a signal.
Example: [5 8; 12 20; 18 25]
specifies a two-column region-of-interest
matrix with three regions.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
concat
— Option to concatenate extracted signal regions
false
(default) | true
Option to concatenate extracted signal regions, specified as a logical value.
Data Types: logical
Output Arguments
sigroi
— Signal regions of interest
cell array | vector
Signal regions of interest, returned as a cell array or a vector.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
If supplied, concat
must be a constant.
Version History
Introduced in R2020b
