getTFMap

Get short-time Fourier transform for time-frequency labeling

Since R2026a

collapse all in page

    Syntax

    s = getTFMap(opts,x)
    s = getTFMap(opts,x,Fs)
    [s,f,t] = getTFMap(___)

    Description

    s = getTFMap(opts,x) gets the short-time Fourier transform (STFT) of the signal x using spectrogram options opts.

    s = getTFMap(opts,x,Fs) also specifies the sample rate Fs of the input signal.

    [s,f,t] = getTFMap(___) also returns the frequencies and times associated with the STFT of x for any of the previous syntaxes.

    example

    Examples

    collapse all

    Open Live Script

    Generate a signal that consists of a voltage-controlled oscillator and four Gaussian atoms. The signal is sampled at 14 kHz for 2 seconds. Plot the spectrogram of the signal.

    Fs = 14000;
t = (0:1/Fs:2)';
gaussFun = @(A,x,mu,f) exp(-(x-mu).^2/(2*0.01^2)).*sin(2*pi*f.*x)*A';
atoms = gaussFun([1 1 1 1]/10,t,[0.2 0.5 1 1.75],1e3*[2 6 2 5]);
vcoIn = vco(chirp(t+.1,0,t(end),3).*exp(-2*(t-1).^2),[0.1 0.4]*Fs,Fs);
vcoOut = vcoIn + 0.1*atoms;

    Create a set of spectrogram options for time-frequency labeling. Control the spectrogram resolution by leakage. Specify a leakage β=0.2 and an overlap of 99%.

    beta = 0.2;
opts = labelSpectrogramOptions("leakage", ...
    Leakage=40*(1-beta),Overlap=99);

    Get the STFT map to be used in time-frequency labeling.

    [s,w,n] = getTFMap(opts,vcoOut);

    Plot the STFT along normalized frequencies and samples.

    function tfImage(s,f,t,xlbl,ylbl)
    imagesc(t,f,s)
    axis xy
    xlabel(xlbl)
    ylabel(ylbl)
    colorbar
    clim([-150 0])
end

wn = w/pi;
tfImage(s,wn,n,"Samples","Normalized Frequency (\times\pi rad/sample)")

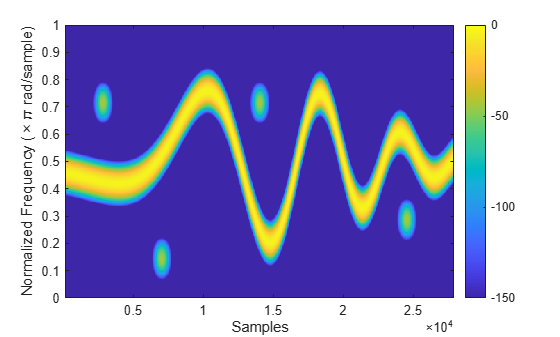

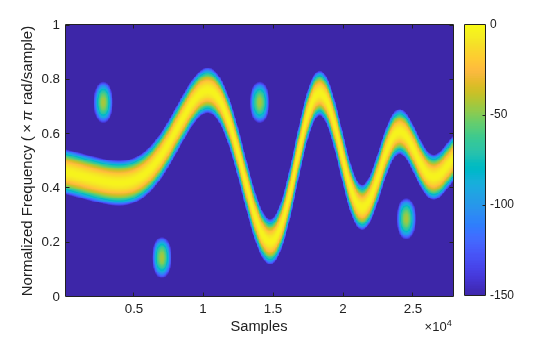

    Figure contains an axes object. The axes object with xlabel Samples, ylabel Normalized Frequency ( times pi rad/sample) contains an object of type image.

    Get the STFT map to be used in time-frequency labeling. Plot the STFT along cyclical frequencies and midpoint-segment times.

    [s,f,t] = getTFMap(opts,vcoOut,Fs);

fn = f/1e3;
tfImage(s,fn,t,"Time (s)","Frequency (kHz)")

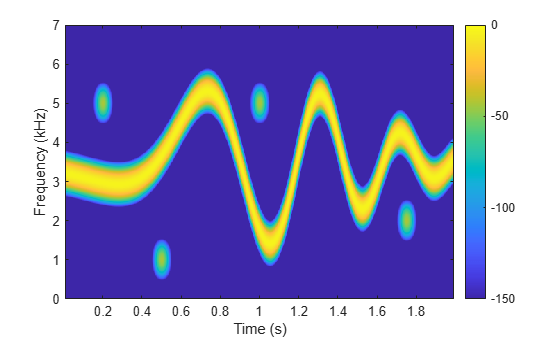

    Figure contains an axes object. The axes object with xlabel Time (s), ylabel Frequency (kHz) contains an object of type image.

    Input Arguments

    collapse all

    Spectrogram options, specified as a labelSpectrogramOptions object.

    Example: opts = labelSpectrogramOptions("windowlength",Window="chebyshev") specifies a labelSpectrogramOptions object that stores spectrogram options for time-frequency labeling.

    Input signal, specified as a vector or MATLAB® timetable with uniformly sampled times and one variable comprising a column vector.

    Example: x = chirp(0:1e-3:1,0,0.5,100,"quadratic") specifies a quadratic swept-frequency signal.

    Example: x = timetable(seconds(0:1e-3:1)',chirp(0:1e-3:1,0,0.5,100,"quadratic")') specifies a timetable containing a quadratic swept-frequency signal.

    Data Types: single | double
    Complex Number Support: Yes

    Sample rate, specified as a positive scalar.

    • If you specify Fs, then getTFMap assumes that the input signal x has a sample rate of Fs Hz.

    • If you do not specify Fs or set it to empty [], then getTFMap uses a normalized sample rate.

    Do not specify Fs if you specify x as a timetable. The getTFMap function infers the sample rate from the time values specified in x.

    Output Arguments

    collapse all

    Size of STFT of input signal, returned as a matrix. Time increases across the columns of s and frequency increases down the rows.

    Frequencies associated with STFT output, returned as a vector.

    • If you specify Fs, then f contains cyclical frequencies in Hz.

    • If you do not specify Fs, then f contains normalized frequencies in radians/sample.

    The frequencies that the getTFMap function returns in f depends on the resolution type of the spectrogram (opts.ResolutionType), on whether x is real-valued or complex-valued, and on whether you specify the sample rate, Fs.

    opts.ResolutionTypex

    Frequency Range for f

    Fs Unspecified

    Fs Specified

    "leakage"Real-valued[0,π] rad/sample[0,Fs/2] Hz
    Complex-valued[–π,π] rad/sample[–Fs/2,Fs/2] Hz
    "rbw" or
    "windowlength"    		Real-valued[0,π] rad/sample[0,Fs/2] Hz
    Complex-valued(–π,π] rad/sample(–Fs/2,Fs/2] Hz

    Times associated with STFT output, returned as a vector.

    • If you specify Fs, then t contains time instants in seconds.

    • If you do not specify Fs, then t contains sample indices in sample numbers.

    The values in t correspond to the midpoint of each segment.
