poctave

Generate octave spectrum

collapse all in page

Syntax

p = poctave(x,fs)

p = poctave(xt)

p = poctave(pxx,fs,f)

p = poctave(___,type)

p = poctave(___,Name,Value)

[p,cf] = poctave(___)

[p,cf,t] = poctave(___)

poctave(___)

Description

p = poctave(x,fs) returns the octave spectrum of a signal x sampled at a rate fs. The octave spectrum is the average power over octave bands as defined by the ANSI S1.11 standard [2]. If x is a matrix, then the function estimates the octave spectrum independently for each column and returns the result in the corresponding column of p.

example

p = poctave(xt) returns the octave spectrum of a signal stored in the MATLAB^® timetable xt.

p = poctave(pxx,fs,f) performs octave smoothing by converting a power spectral density, pxx, to a 1/b octave power spectrum, where b is the number of subbands in the octave band. The frequencies in f correspond to the PSD estimates in pxx.

example

p = poctave(___,type) specifies the kind of spectral analysis performed by the function. Specify type as 'power' or 'spectrogram'.

example

p = poctave(___,Name,Value) specifies additional options for any of the previous syntaxes using name-value arguments.

example

[p,cf] = poctave(___) also returns the center frequencies of the octave bands over which the octave spectrum is computed.

[p,cf,t] = poctave(___) additionally returns a time vector, t, corresponding to the center times of the segments used to compute the power spectrum estimates when type is 'spectrogram'.

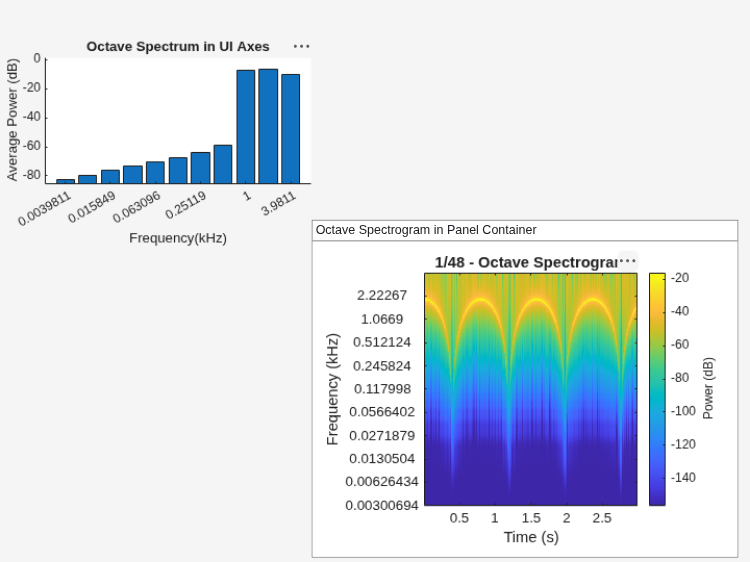

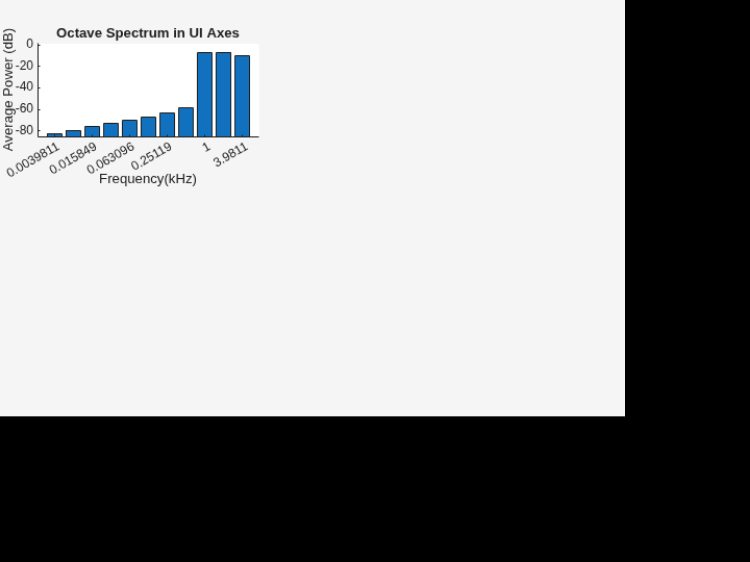

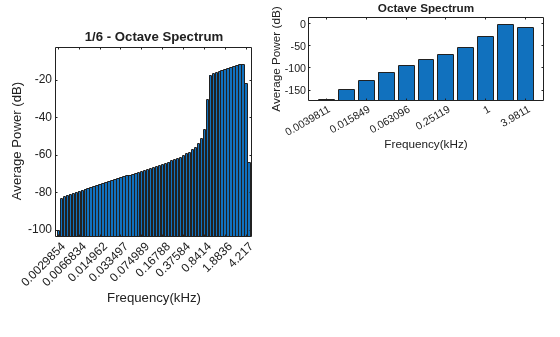

poctave(___) with no output arguments plots the octave spectrum or spectrogram in the current figure. If type is specified as 'spectrogram', then this function is supported only for single-channel input.

Examples

collapse all

Octave Spectra of White and Pink Noise

Open Live Script

Generate $10^{5}$ samples of white Gaussian noise. Create a signal of pseudopink noise by filtering the white noise with a filter whose zeros and poles are all on the positive x-axis. Visualize the zeros and poles.

N = 1e5;
wn = randn(N,1);

z = [0.982231570015379 0.832656605953720 0.107980893771348]';
p = [0.995168968915815 0.943841773712820 0.555945259371364]';

[b,a] = zp2tf(z,p,1);
pn = filter(b,a,wn);

zplane(z,p)

Figure contains an axes object. The axes object with title Pole-Zero Plot, xlabel Real Part, ylabel Imaginary Part contains 3 objects of type line. One or more of the lines displays its values using only markers

Create a two-channel signal consisting of white and pink noise. Compute the octave spectrum. Assume a sample rate of 44.1 kHz. Set the frequency band from 30 Hz to the Nyquist frequency.

sg = [wn pn];

fs = 44100;

poctave(sg,fs,'FrequencyLimits',[30 fs/2])
legend('White noise','Pink noise','Location','SouthEast')

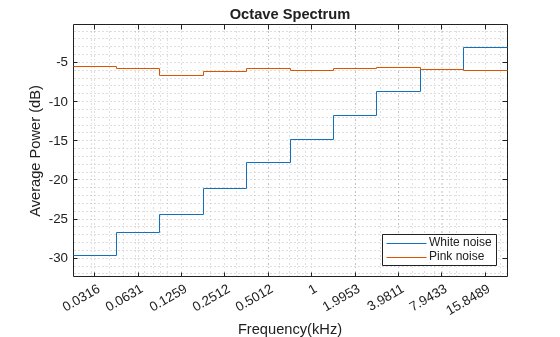

Figure contains an axes object. The axes object with title Octave Spectrum, xlabel Frequency(kHz), ylabel Average Power (dB) contains 2 objects of type stair. These objects represent White noise, Pink noise.

The white noise has an octave spectrum that increases with frequency. The octave spectrum of the pink noise is approximately constant throughout the frequency range. The octave spectrum of a signal illustrates how the human ear perceives the signal.

Octave Smoothing of White and Pink Noise

Open Live Script

Generate $10^{5}$ samples of white Gaussian noise sampled at 44.1 kHz. Create a signal of pink noise by filtering the white noise with a filter whose zeros and poles are all on the positive x-axis.

N = 1e5;
fs = 44.1e3;
wn = randn(N,1);

z = [0.982231570015379 0.832656605953720 0.107980893771348]';
p = [0.995168968915815 0.943841773712820 0.555945259371364]';
[b,a] = zp2tf(z,p,1);

pn = filter(b,a,wn);

Compute the Welch estimate of the power spectral density for both signals. Divide the signals into 2048-sample segments, specify 50% overlap between adjoining segments, window each segment with a Hamming window, and use 4096 DFT points.

[pxx,f] = pwelch([wn pn],hamming(2048),1024,4096,fs);

Display the spectral densities over a frequency band ranging from 200 Hz to the Nyquist frequency. Use a logarithmic scale for the frequency axis.

pwelch([wn pn],hamming(2048),1024,4096,fs)
ax = gca;
ax.XScale = "log";
xlim([200 fs/2]/1000)
legend("White","Pink")

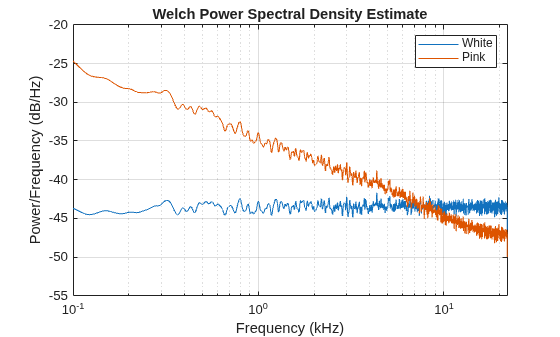

Figure contains an axes object. The axes object with title Welch Power Spectral Density Estimate, xlabel Frequency (kHz), ylabel Power/frequency (dB/Hz) contains 2 objects of type line. These objects represent White, Pink.

Compute and display the octave spectra of the signals. Use the same frequency range as in the previous plot. Specify six bands per octave and compute the spectra using 8th-order filters.

poctave(pxx,fs,f,"psd", ...
    BandsPerOctave=6,FilterOrder=8,FrequencyLimits=[200 fs/2])
legend("White","Pink")

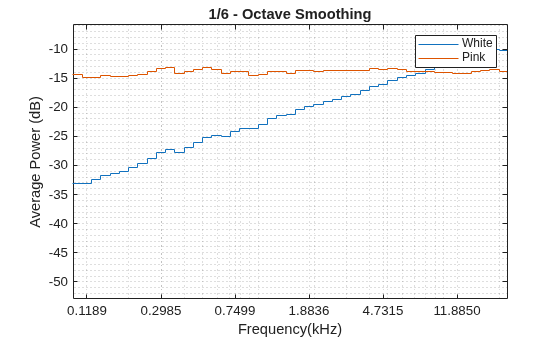

Figure contains an axes object. The axes object with title 1/6 - Octave Smoothing, xlabel Frequency(kHz), ylabel Average Power (dB) contains 2 objects of type stair. These objects represent White, Pink.

Octave Spectrogram of Audio Signal

Open Live Script

Read an audio recording of an electronic toothbrush into MATLAB®. The toothbrush turns on at about 1.75 seconds and stays on for approximately 2 seconds.

[y,fs] = audioread("toothbrush.m4a");

Compute the octave spectrogram of the audio signal. Specify 48 bands per octave and 82% overlap. Restrict the total frequency range from 100 Hz to fs/2 Hz and use C-weighting.

poctave(y,fs,"spectrogram",BandsPerOctave=48, ...
    OverlapPercent=82,FrequencyLimits=[100 fs/2],Weighting="C")

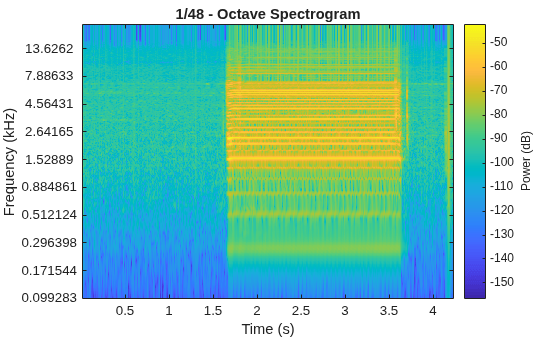

Figure contains an axes object. The axes object with title 1/48 - Octave Spectrogram, xlabel Time (s), ylabel Frequency (kHz) contains an object of type image.

Octave Spectrum Weighting

Open Live Script

Generate $10^{5}$ samples of white Gaussian noise sampled at 44.1 kHz. Create a signal of pink noise by filtering the white noise with a filter whose zeros and poles are all on the positive x-axis.

N = 1e5;
fs = 44.1e3;
wn = randn(N,1);

z = [0.982231570015379 0.832656605953720 0.107980893771348]';
p = [0.995168968915815 0.943841773712820 0.555945259371364]';
[b,a] = zp2tf(z,p,1);

pn = filter(b,a,wn);

Compute the octave spectrum of the signal. Specify three bands per octave and restrict the total frequency range from 200 Hz to 20 kHz. Store the name-value pairs in a cell array for later use. Display the spectrum.

flims = [200 20e3];
bpo = 3;
opts = {'FrequencyLimits',flims,'BandsPerOctave',bpo};

poctave(pn,fs,opts{:});

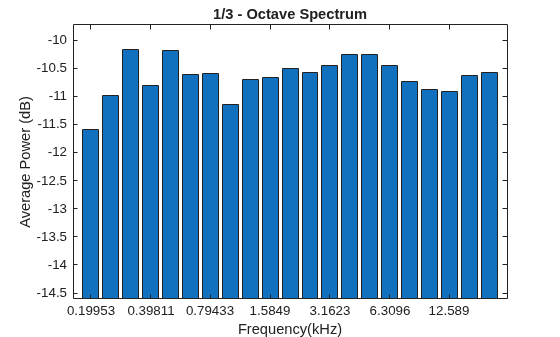

Figure contains an axes object. The axes object with title 1/3 - Octave Spectrum, xlabel Frequency(kHz), ylabel Average Power (dB) contains an object of type bar.

Compute the octave spectrum of the signal with the same settings, but use C-weighting. The C-weighted spectrum falls off at frequencies above 6 kHz.

hold on
poctave(pn,fs,opts{:},'Weighting','C')

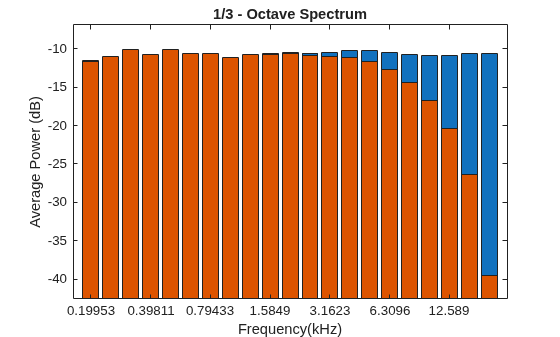

Figure contains an axes object. The axes object with title 1/3 - Octave Spectrum, xlabel Frequency(kHz), ylabel Average Power (dB) contains 2 objects of type bar.

Compute the octave spectrum again, but now use A-weighting. The A-weighted spectrum peaks at about 3 kHz and falls off above 6 kHz and at the lower end of the frequency band.

poctave(pn,fs,opts{:},'Weighting','A')
hold off
legend('Pink noise','C-weighted','A-weighted','Location','SouthWest')

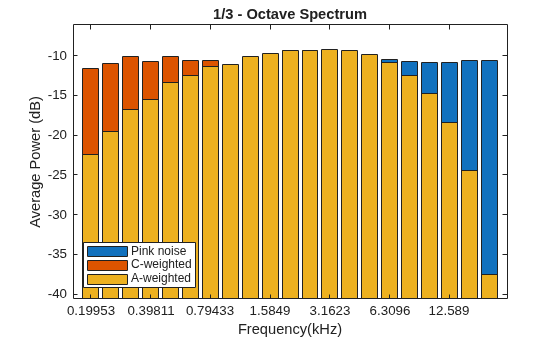

Figure contains an axes object. The axes object with title 1/3 - Octave Spectrum, xlabel Frequency(kHz), ylabel Average Power (dB) contains 3 objects of type bar. These objects represent Pink noise, C-weighted, A-weighted.

Input Arguments

collapse all

`x` — Input signal
vector | matrix

Input signal, specified as a vector or matrix. If x is a vector, then poctave treats it as a single channel. If x is a matrix, then poctave computes the octave spectrum or spectrogram independently for each column and returns the result in the corresponding column of p. If type is set to 'spectrogram', the function concatenates the spectrograms along the third dimension of p.

Example: sin(2*pi*(0:127)/16)+randn(1,128)/100 specifies a noisy sinusoid.

Example: [2 1].*sin(2*pi*(0:127)'./[16 64]) specifies a two-channel sinusoid.

Data Types: single | double

`fs` — Sample rate
positive scalar

Sample rate, specified as a positive scalar expressed in hertz. The sample rate cannot be lower than 7 Hz.

`xt` — Input timetable
timetable

Input timetable. xt must contain increasing, finite, uniformly spaced row times. If xt represents a multichannel signal, then it must have either a single variable containing a matrix or multiple variables consisting of vectors.

If a timetable has missing or duplicate time points, you can fix it using the tips in Clean Timetable with Missing, Duplicate, or Nonuniform Times.

Example: timetable(seconds(0:4)',randn(5,1)) specifies a random process sampled at 1 Hz for 4 seconds.

`pxx` — Power spectral density
vector | matrix

Power spectral density (PSD), specified as a vector or matrix with real nonnegative elements. The power spectral density must be expressed in linear units, not decibels. Use db2pow to convert decibel values to power values. If type is 'spectrogram', then each column in pxx is considered to be the PSD for a particular time window or sample.

Example: [pxx,f] = periodogram(cos(pi./[4;2]*(0:159))'+randn(160,2)) specifies the periodogram PSD estimate of a noisy two-channel sinusoid sampled at 2π Hz and the frequencies at which it is computed.

`f` — PSD frequencies
vector

PSD frequencies, specified as a vector. f must be finite, strictly increasing, and uniformly spaced in the linear scale.

`type` — Type of spectrum to compute
`'power'` (default) | `'spectrogram'`

Type of spectrum to compute, specified as 'power' or 'spectrogram'.

'power' — Compute the octave power spectrum of the input.
'spectrogram' — Compute the octave spectrogram of the input. The function divides the input into segments and returns the short-time octave power spectrum of each segment.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Weighting','A','FilterOrder',8 computes the octave spectrum using A-weighting and 8th-order filters.

`BandsPerOctave` — Number of subbands in octave band
`1` (default) | `3/2` | `2` | `3` | `6` | `12` | `24` | `48` | `96`

Number of subbands in the octave band, specified as 1, 3/2, 2, 3, 6, 12, 24, 48, or 96. This parameter dictates the width of a fractional-octave band. In such a frequency band, the upper edge frequency is the lower edge frequency times 2^1/b, where b is the number of subbands.

Data Types: single | double

`FilterOrder` — Order of bandpass filters
`6` (default) | positive even integer

Order of bandpass filters, specified as a positive even integer.

Data Types: single | double

`FrequencyLimits` — Frequency band
`[max(3,3*fs/48e3) fs/2]` (default) | two-element vector

Frequency band, specified as an increasing two-element vector expressed in hertz. The lower value of the vector must be at least 3 Hz. The upper value of the vector must be smaller than or equal to the Nyquist frequency. If the vector does not contain an octave center, poctave may return a center frequency outside the specified limits. To ensure a stable filter design, the actual minimum achievable frequency limit increases to 3*fs/48e3 if the sample rate exceeds 48 kHz. If this argument is not specified, poctave uses the interval [max(3,3*fs/48e3) fs/2].

Data Types: single | double

`Weighting` — Frequency weighting
`'none'` (default) | `'A'` | `'C'` | vector | matrix | 1-by-2 cell array | `digitalFilter` object

Frequency weighting, specified as one of these:

'none' — poctave does not perform any frequency weighting on the input.
'A' — poctave performs A-weighting on the input. The ANSI S1.42 standard defines the A-weighting curve. The IEC 61672-1 standard defines the minimum and maximum attenuation limits for an A-weighting filter. The ANSI S1.42.2001 standard defines the weighting curve by specifying analog poles and zeros.
'C' — poctave performs C-weighting on the input. The ANSI S1.42 standard defines the C-weighting curve. The IEC 61672-1 standard defines the minimum and maximum attenuation limits for a C-weighting filter. The ANSI S1.42.2001 standard defines the weighting curve by specifying analog poles and zeros.
Vector — poctave treats the input as a vector of coefficients that specify a finite impulse response (FIR) filter.
Matrix — poctave treats the input as a matrix of second-order section coefficients that specify an infinite impulse response (IIR) filter. The matrix must have at least two rows and exactly six columns.
1-by-2 cell array — poctave treats the input as the numerator and denominator coefficients, in that order, that specify the transfer function of an IIR filter.
digitalFilter object — poctave treats the input as a filter that was designed using designfilt.

This argument is supported only when the input is a signal. Octave smoothing does not support frequency weighting.

Example: 'Weighting',fir1(30,0.5) specifies a 30th-order FIR filter with a normalized cutoff frequency of 0.5π rad/sample.

Example: 'Weighting',[2 4 2 6 0 2;3 3 0 6 0 0] specifies a third-order Butterworth filter with a normalized 3-dB frequency of 0.5π rad/sample.

Example: 'Weighting',{[1 3 3 1]/6 [3 0 1]/3} specifies a third-order Butterworth filter with a normalized 3-dB frequency of 0.5π rad/sample.

Example: 'Weighting',designfilt('lowpassiir','FilterOrder',3,'HalfPowerFrequency',0.5) specifies a third-order Butterworth filter with a normalized 3-dB frequency of 0.5π rad/sample.

Data Types: single | double | char | string | cell

`MinThreshold` — Lower bound for nonzero values
`-Inf` (default) | real scalar

Lower bound for nonzero values, specified as a real scalar. The function sets those elements of p such that 10 log₁₀(p) ≤ 'MinThreshold' to zero. Specify 'MinThreshold' in decibels.

Data Types: single | double

`WindowLength` — Length of data segments
nonnegative integer

Length of data segments, specified as a nonnegative integer. 'WindowLength' must be less than or equal to the length of the input signal. If not specified, the length of data segments is calculated based on the size of the input signal. This input is valid only when type is 'spectrogram'.

Data Types: single | double

`OverlapPercent` — Overlap percent between adjoining segments
real scalar in the interval [0, 100)

Overlap percent between adjoining segments, specified as a real scalar in the interval [0, 100). If not specified, 'OverlapPercent' is zero. This input is valid only when type is 'spectrogram'.

Data Types: single | double

Output Arguments

collapse all

`p` — Octave spectrum or spectrogram
vector | matrix | 3-D array

Octave spectrum or spectrogram, returned as a vector, matrix, or 3-D array. The third dimension, if present, corresponds to the input channels.

`cf` — Center frequencies
vector

Center frequencies, returned as a vector. cf contains a list of center frequencies of the octave bands over which poctave estimated the octave spectrum. cf has units of hertz.

`t` — Center times
vector

Center times, returned as a vector. If the input is a PSD, then t represents the sample indices corresponding to the columns of pxx. This argument applies only when type is 'spectrogram'.

Algorithms

collapse all

Octave analysis is used to identify sound or vibration levels across a broad frequency range in a process that resembles how a human ear perceives sound. The signal spectrum is split into octave or fractional-octave bands. The frequency limit of each band is twice the lower frequency limit, thus the bandwidth increases at higher frequencies.

Using Octave Filters

To perform octave analysis, the poctave function creates a filter bank of parallel bandpass filters. Each digital bandpass filter is mapped to an equivalent Butterworth lowpass analog filter [3]. The analog filter is mapped back to a digital bandpass filter using a bandpass version of the bilinear transformation, and the result is returned as a cascade of fourth-order sections.

The ANSI S1.11-2004 standard [2] defines the center frequencies of the octave bands as

$f_{c} = {\begin{array}{l} f_{r} \times G^{(k - 30) / b}, & b is odd \\ f_{r} \times G^{(2 k - 59) / 2 b}, & b is even \end{array}$

where:

f_r is the reference frequency, 1000 Hz.
G is the octave ratio, 10^0.3.
b is the number of bands per octave, which is specified by BandsPerOctave.
k is any integer and represents the band number.

The center frequency definition differs depending on whether b is odd, such as for bandwidths of 1 octave or 1/3 octave, or even, such as for bandwidths of 1/2 octave or 1/6 octave. This ensures that the band edges of the whole octave band remain band edges for all of the fractional bands.

The lower and upper edge frequencies of each octave band are given by

$f_{l} = f_{c} \cdot (G^{- 1 / 2 b})$

$f_{u} = f_{c} \cdot (G^{1 / 2 b})$

For more information on the design and implementation of octave filters, see Digital Filter Design (Audio Toolbox).

Using Octave Smoothing

The poctave function calculates the average power over each octave band by integrating the power spectral density (PSD) of the signal within the band using the rectangle method. The average power of an octave band represents the signal level at the band center frequency.

When a band edge falls within a bin, the function assigns to the band only the fraction of power corresponding to the percentage of the frequency bin that the band occupies. For example, this diagram shows an octave band whose edges fall within two different frequency bins, represented by orange and blue dashed rectangles. The power within the shaded regions is computed for the given octave band.
When a band edge falls at 0 or at the Nyquist frequency, f_Nyquist, the function assigns to the band two times the fraction of power corresponding to the percentage of the frequency bin that the band occupies. This duplication accounts for the half bin power that is present in the range [–w/2, 0] and [f_Nyquist, f_Nyquist + w/2], where w is the bin width. For example, this diagram shows an octave band whose right edge falls at the Nyquist frequency. The power within the shaded region is computed for the given octave band.

References

[1] Smith, Julius Orion, III. "Example: Synthesis of 1/F Noise (Pink Noise)." In Spectral Audio Signal Processing. https://ccrma.stanford.edu/~jos/sasp/.

[2] Specification for Octave-Band and Fractional-Octave-Band Analog and Digital Filters. ANSI Standard S1.11-2004. Melville, NY: Acoustical Society of America, 2004.

[3] Orfanidis, Sophocles J. Introduction to Signal Processing. Englewood Cliffs, NJ: Prentice Hall, 2010.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

If input weighting is specified as a variable-sized matrix during code generation, then it must not reduce to a vector at runtime.

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The poctave function supports GPU array input with these usage notes and limitations:

The poctave function may generate low-frequency octave filters that are unstable and not supported with gpuArray inputs. Use the optional FrequencyLimits name-value argument to increase the lower band frequency or downsample the input signal.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2018a

expand all

R2022b: Use `gpuArray` objects

The poctave function supports gpuArray objects. You must have Parallel Computing Toolbox™ to use this functionality. For more information, see GPU Arrays.

poctave

Syntax

Description

Examples

Octave Spectra of White and Pink Noise

Octave Smoothing of White and Pink Noise

Octave Spectrogram of Audio Signal

Octave Spectrum Weighting

Input Arguments

x — Input signal vector | matrix

fs — Sample rate positive scalar

xt — Input timetable timetable

pxx — Power spectral density vector | matrix

f — PSD frequencies vector

type — Type of spectrum to compute 'power' (default) | 'spectrogram'

Name-Value Arguments

BandsPerOctave — Number of subbands in octave band 1 (default) | 3/2 | 2 | 3 | 6 | 12 | 24 | 48 | 96

FilterOrder — Order of bandpass filters 6 (default) | positive even integer

FrequencyLimits — Frequency band [max(3,3*fs/48e3) fs/2] (default) | two-element vector

Weighting — Frequency weighting 'none' (default) | 'A' | 'C' | vector | matrix | 1-by-2 cell array | digitalFilter object

MinThreshold — Lower bound for nonzero values -Inf (default) | real scalar

WindowLength — Length of data segments nonnegative integer

OverlapPercent — Overlap percent between adjoining segments real scalar in the interval [0, 100)

Output Arguments

p — Octave spectrum or spectrogram vector | matrix | 3-D array

cf — Center frequencies vector

t — Center times vector

Algorithms

Using Octave Filters

Using Octave Smoothing

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using MATLAB® Coder™.

GPU Arrays Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

R2022b: Use gpuArray objects

See Also

`x` — Input signal
vector | matrix

`fs` — Sample rate
positive scalar

`xt` — Input timetable
timetable

`pxx` — Power spectral density
vector | matrix

`f` — PSD frequencies
vector

`type` — Type of spectrum to compute
`'power'` (default) | `'spectrogram'`

`BandsPerOctave` — Number of subbands in octave band
`1` (default) | `3/2` | `2` | `3` | `6` | `12` | `24` | `48` | `96`

`FilterOrder` — Order of bandpass filters
`6` (default) | positive even integer

`FrequencyLimits` — Frequency band
`[max(3,3*fs/48e3) fs/2]` (default) | two-element vector

`Weighting` — Frequency weighting
`'none'` (default) | `'A'` | `'C'` | vector | matrix | 1-by-2 cell array | `digitalFilter` object

`MinThreshold` — Lower bound for nonzero values
`-Inf` (default) | real scalar

`WindowLength` — Length of data segments
nonnegative integer

`OverlapPercent` — Overlap percent between adjoining segments
real scalar in the interval [0, 100)

`p` — Octave spectrum or spectrogram
vector | matrix | 3-D array

`cf` — Center frequencies
vector

`t` — Center times
vector

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

R2022b: Use `gpuArray` objects
