Implement on Hardware

Prototype vision algorithms on Zynq^® SoC devices

After you design and validate a pixel-streaming video processing algorithm in Simulink^®, you can target the design to the FPGA on the Zynq board, and generate embedded ARM^® code that interacts with the FPGA. You can route the video data to the ARM processor, and control AXI-Lite registers connected to the FPGA control logic.

Blocks

Video Capture MIPI	Import live video frames from MIPI CSI-2 card on Zynq-based hardware (Since R2022b)
Video Capture HDMI	Import live video frames from HDMI FMC card on Zynq-based hardware (Since R2023a)
Draw Rectangle	Draw rectangles onto video frame stored in external memory (Since R2023a)
Set ROI	Draw over specified region of video frame stored in external memory (Since R2023a)

Classes

visionzynq Connect to Zynq hardware

Functions

`changeFPGAImage`	Load image from on-board SD card into FPGA
`downloadImage`	Write image to on-board SD card and load into FPGA

Topics

FPGA and ARM Targeting

Create Model Using Simulink Templates
Get started with a model configured for HDMI video processing.
Target FPGA on Zynq Hardware
FPGA targeting workflow using HDL Workflow Advisor.
Generate FPGA User Logic with AXI4-Stream Video Interface
Select an AXI4-Stream Video interface for your generated FPGA user logic.
Target an ARM Processor on Zynq Hardware
Design and deploy algorithms to the ARM processor.
Models Generated from FPGA Targeting
Run Simulink models that interact with the deployed algorithms running on the FPGA.

Related Information

Hardware-Software Co-Design Workflow for SoC Platforms (HDL Coder)

Featured Examples

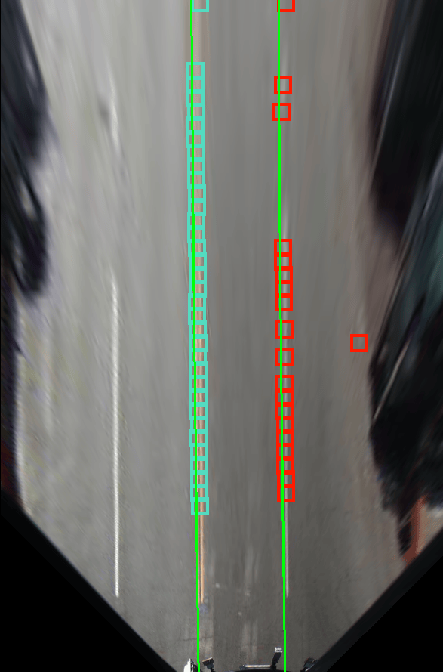

Lane Detection with Zynq-Based Hardware

Target a lane detection algorithm to the Zynq® hardware using the SoC Blockset™ Support Package for AMD® FPGA and SoC Devices. The inverse perspective mapping and lane-marking candidate extraction are targeted to the FPGA, and the ARM processor performs lane-fitting and overlay.

Open Script

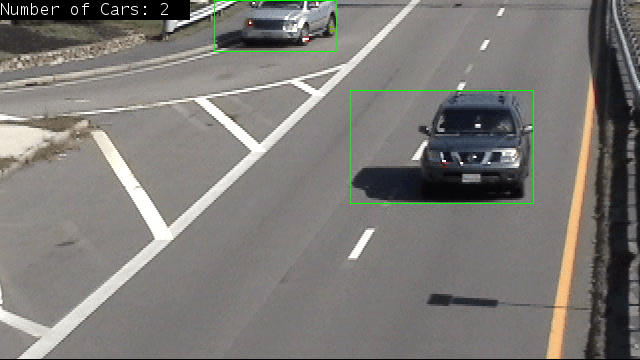

Tracking Cars with Zynq-Based Hardware

Target a car tracking algorithm to the ARM® processor on the Zynq® hardware.

Open Script

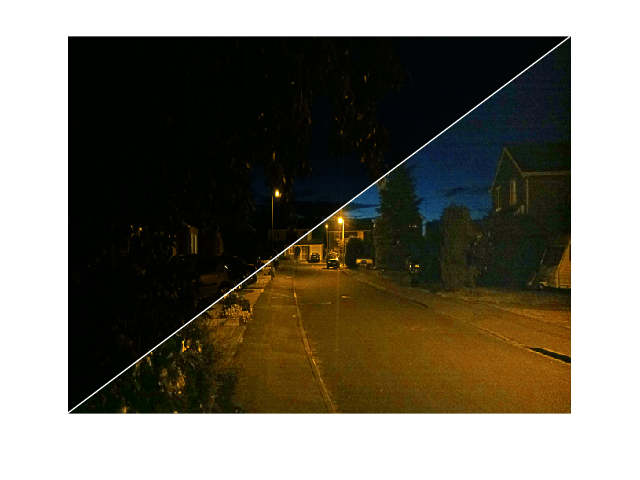

Low Light Enhancement with Zynq-Based Hardware

Target a low light enhancement algorithm to the Zynq® hardware using the SoC Blockset™ Support Package for AMD FPGA and SoC Devices.

Open Script

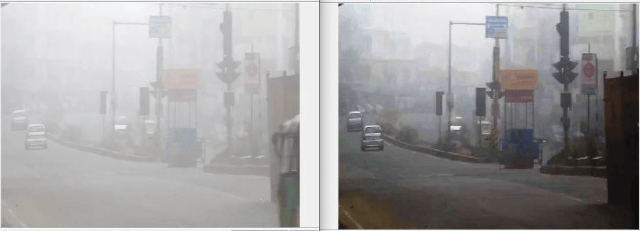

Fog Rectification with Zynq-Based Hardware

Target a fog rectification algorithm to the Zynq® hardware using the SoC Blockset™ Support Package for AMD FPGA and SoC Devices.

Open Script
