edge

Class: ClassificationLinear

Classification edge for linear classification models

expand all in page

Syntax

e = edge(Mdl,X,Y)

e = edge(Mdl,Tbl,ResponseVarName)

e = edge(Mdl,Tbl,Y)

e = edge(___,Name,Value)

Description

e = edge(Mdl,X,Y) returns the classification edges for the binary, linear classification model Mdl using predictor data in X and corresponding class labels in Y. e contains a classification edge for each regularization strength in Mdl.

example

e = edge(Mdl,Tbl,ResponseVarName) returns the classification edges for the trained linear classifier Mdl using the predictor data in Tbl and the class labels in Tbl.ResponseVarName.

e = edge(Mdl,Tbl,Y) returns the classification edges for the classifier Mdl using the predictor data in table Tbl and the class labels in vector Y.

e = edge(___,Name,Value) specifies options using one or more name-value pair arguments in addition to any of the input argument combinations in previous syntaxes. For example, you can specify that columns in the predictor data correspond to observations or supply observation weights.

Note

If the predictor data X or the predictor variables in Tbl contain any missing values, the edge function can return NaN. For more details, see edge can return NaN for predictor data with missing values.

example

Input Arguments

expand all

`Mdl` — Binary, linear classification model
`ClassificationLinear` model object

Binary, linear classification model, specified as a ClassificationLinear model object. You can create a ClassificationLinear model object using fitclinear.

`X` — Predictor data
full matrix | sparse matrix

Predictor data, specified as an n-by-p full or sparse matrix. This orientation of X indicates that rows correspond to individual observations, and columns correspond to individual predictor variables.

Note

If you orient your predictor matrix so that observations correspond to columns and specify 'ObservationsIn','columns', then you might experience a significant reduction in computation time.

The length of Y and the number of observations in X must be equal.

Data Types: single | double

`Y` — Class labels
categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

Class labels, specified as a categorical, character, or string array; logical or numeric vector; or cell array of character vectors.

The data type of Y must be the same as the data type of Mdl.ClassNames. (The software treats string arrays as cell arrays of character vectors.)
The distinct classes in Y must be a subset of Mdl.ClassNames.
If Y is a character array, then each element must correspond to one row of the array.
The length of Y must be equal to the number of observations in X or Tbl.

`Tbl` — Sample data
table

Sample data used to train the model, specified as a table. Each row of Tbl corresponds to one observation, and each column corresponds to one predictor variable. Optionally, Tbl can contain additional columns for the response variable and observation weights. Tbl must contain all the predictors used to train Mdl. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

If Tbl contains the response variable used to train Mdl, then you do not need to specify ResponseVarName or Y.

If you train Mdl using sample data contained in a table, then the input data for edge must also be in a table.

`ResponseVarName` — Response variable name
name of variable in `Tbl`

Response variable name, specified as the name of a variable in Tbl. If Tbl contains the response variable used to train Mdl, then you do not need to specify ResponseVarName.

If you specify ResponseVarName, then you must specify it as a character vector or string scalar. For example, if the response variable is stored as Tbl.Y, then specify ResponseVarName as 'Y'. Otherwise, the software treats all columns of Tbl, including Tbl.Y, as predictors.

The response variable must be a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors. If the response variable is a character array, then each element must correspond to one row of the array.

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

`ObservationsIn` — Predictor data observation dimension
`'rows'` (default) | `'columns'`

Predictor data observation dimension, specified as 'rows' or 'columns'.

Note

If you orient your predictor matrix so that observations correspond to columns and specify 'ObservationsIn','columns', then you might experience a significant reduction in computation time. You cannot specify 'ObservationsIn','columns' for predictor data in a table.

Data Types: char | string

`Weights` — Observation weights
`ones(size(X,1),1)` (default) | numeric vector | name of variable in `Tbl`

Observation weights, specified as the comma-separated pair consisting of 'Weights' and a numeric vector or the name of a variable in Tbl.

If you specify Weights as a numeric vector, then the size of Weights must be equal to the number of observations in X or Tbl.
If you specify Weights as the name of a variable in Tbl, then the name must be a character vector or string scalar. For example, if the weights are stored as Tbl.W, then specify Weights as 'W'. Otherwise, the software treats all columns of Tbl, including Tbl.W, as predictors.

If you supply weights, then for each regularization strength, edge computes the weighted classification edge and normalizes weights to sum up to the value of the prior probability in the respective class.

Data Types: double | single

Output Arguments

expand all

`e` — Classification edges
numeric scalar | numeric row vector

Classification edges, returned as a numeric scalar or row vector.

e is the same size as Mdl.Lambda. e(j) is the classification edge of the linear classification model trained using the regularization strength Mdl.Lambda(j).

Examples

expand all

Estimate Test-Sample Edge

Open Live Script

Load the NLP data set.

load nlpdata

X is a sparse matrix of predictor data, and Y is a categorical vector of class labels. There are more than two classes in the data.

Ystats = Y == 'stats';

Train a binary, linear classification model that can identify whether the word counts in a documentation web page are from the Statistics and Machine Learning Toolbox™ documentation. Specify to holdout 30% of the observations. Optimize the objective function using SpaRSA.

rng(1); % For reproducibility
CVMdl = fitclinear(X,Ystats,'Solver','sparsa','Holdout',0.30);
CMdl = CVMdl.Trained{1};

CVMdl is a ClassificationPartitionedLinear model. It contains the property Trained, which is a 1-by-1 cell array holding a ClassificationLinear model that the software trained using the training set.

Extract the training and test data from the partition definition.

trainIdx = training(CVMdl.Partition);
testIdx = test(CVMdl.Partition);

Estimate the training- and test-sample edges.

eTrain = edge(CMdl,X(trainIdx,:),Ystats(trainIdx))

eTrain =
15.6660

eTest = edge(CMdl,X(testIdx,:),Ystats(testIdx))

eTest =
15.4767

Feature Selection Using Test-Sample Edges

Open Live Script

One way to perform feature selection is to compare test-sample edges from multiple models. Based solely on this criterion, the classifier with the highest edge is the best classifier.

Load the NLP data set.

load nlpdata

X is a sparse matrix of predictor data, and Y is a categorical vector of class labels. There are more than two classes in the data.

The models should identify whether the word counts in a web page are from the Statistics and Machine Learning Toolbox™ documentation. So, identify the labels that correspond to the Statistics and Machine Learning Toolbox™ documentation web pages. For quicker execution time, orient the predictor data so that individual observations correspond to columns.

Ystats = Y == 'stats';
X = X';
rng(1); % For reproducibility

Create a data partition which holds out 30% of the observations for testing.

Partition = cvpartition(Ystats,'Holdout',0.30);
testIdx = test(Partition); % Test-set indices
XTest = X(:,testIdx);
YTest = Ystats(testIdx);

Partition is a cvpartition object that defines the data set partition.

Randomly choose half of the predictor variables.

p = size(X,1); % Number of predictors
idxPart = randsample(p,ceil(0.5*p));

Train two binary, linear classification models: one that uses all of the predictors and one that uses half of the predictors. Optimize the objective function using SpaRSA, and indicate that observations correspond to columns.

CVMdl = fitclinear(X,Ystats,'CVPartition',Partition,'Solver','sparsa',...
    'ObservationsIn','columns');
PCVMdl = fitclinear(X(idxPart,:),Ystats,'CVPartition',Partition,'Solver','sparsa',...
    'ObservationsIn','columns');

CVMdl and PCVMdl are ClassificationPartitionedLinear models.

Extract the trained ClassificationLinear models from the cross-validated models.

CMdl = CVMdl.Trained{1};
PCMdl = PCVMdl.Trained{1};

Estimate the test sample edge for each classifier.

fullEdge = edge(CMdl,XTest,YTest,'ObservationsIn','columns')

fullEdge =
15.4767

partEdge = edge(PCMdl,XTest(idxPart,:),YTest,'ObservationsIn','columns')

partEdge =
13.4458

Based on the test-sample edges, the classifier that uses all of the predictors is the better model.

Find Good Lasso Penalty Using Edge

Open Live Script

To determine a good lasso-penalty strength for a linear classification model that uses a logistic regression learner, compare test-sample edges.

Load the NLP data set. Preprocess the data as in Feature Selection Using Test-Sample Edges.

load nlpdata
Ystats = Y == 'stats';
X = X';

Partition = cvpartition(Ystats,'Holdout',0.30);
testIdx = test(Partition);
XTest = X(:,testIdx);
YTest = Ystats(testIdx);

Create a set of 11 logarithmically-spaced regularization strengths from $1 0^{- 8}$ through $1 0^{1}$ .

Lambda = logspace(-8,1,11);

Train binary, linear classification models that use each of the regularization strengths. Optimize the objective function using SpaRSA. Lower the tolerance on the gradient of the objective function to 1e-8.

rng(10); % For reproducibility
CVMdl = fitclinear(X,Ystats,'ObservationsIn','columns',...
    'CVPartition',Partition,'Learner','logistic','Solver','sparsa',...
    'Regularization','lasso','Lambda',Lambda,'GradientTolerance',1e-8)

CVMdl =
  ClassificationPartitionedLinear
    CrossValidatedModel: 'Linear'
           ResponseName: 'Y'
        NumObservations: 31572
                  KFold: 1
              Partition: [1x1 cvpartition]
             ClassNames: [0 1]
         ScoreTransform: 'none'

Extract the trained linear classification model.

Mdl = CVMdl.Trained{1}

Mdl =
  ClassificationLinear
      ResponseName: 'Y'
        ClassNames: [0 1]
    ScoreTransform: 'logit'
              Beta: [34023x11 double]
              Bias: [-11.3599 -11.3599 -11.3599 -11.3599 -11.3599 -7.2163 -5.1919 -3.7624 -3.1671 -2.9610 -2.9610]
            Lambda: [1.0000e-08 7.9433e-08 6.3096e-07 5.0119e-06 3.9811e-05 3.1623e-04 0.0025 0.0200 0.1585 1.2589 10]
           Learner: 'logistic'

Mdl is a ClassificationLinear model object. Because Lambda is a sequence of regularization strengths, you can think of Mdl as 11 models, one for each regularization strength in Lambda.

Estimate the test-sample edges.

e = edge(Mdl,X(:,testIdx),Ystats(testIdx),'ObservationsIn','columns')

e = 1×11

    0.9986    0.9986    0.9986    0.9986    0.9986    0.9933    0.9765    0.9202    0.8340    0.8128    0.8128

Because there are 11 regularization strengths, e is a 1-by-11 vector of edges.

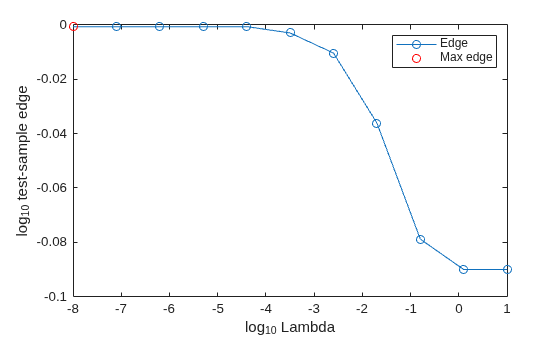

Plot the test-sample edges for each regularization strength. Identify the regularization strength that maximizes the edges over the grid.

figure;
plot(log10(Lambda),log10(e),'-o')
[~, maxEIdx] = max(e);
maxLambda = Lambda(maxEIdx);
hold on
plot(log10(maxLambda),log10(e(maxEIdx)),'ro');
ylabel('log_{10} test-sample edge')
xlabel('log_{10} Lambda')
legend('Edge','Max edge')
hold off

Figure contains an axes object. The axes object with xlabel log indexOf 10 baseline Lambda, ylabel log indexOf 10 baseline blank test-sample edge contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Edge, Max edge.

Several values of Lambda yield similarly high edges. Higher values of lambda lead to predictor variable sparsity, which is a good quality of a classifier.

Choose the regularization strength that occurs just before the edge starts decreasing.

LambdaFinal = Lambda(5);

Train a linear classification model using the entire data set and specify the regularization strength yielding the maximal edge.

MdlFinal = fitclinear(X,Ystats,'ObservationsIn','columns',...
    'Learner','logistic','Solver','sparsa','Regularization','lasso',...
    'Lambda',LambdaFinal);

To estimate labels for new observations, pass MdlFinal and the new data to predict.

More About

expand all

Classification Edge

The classification edge is the weighted mean of the classification margins.

One way to choose among multiple classifiers, for example to perform feature selection, is to choose the classifier that yields the greatest edge.

Classification Margin

The classification margin for binary classification is, for each observation, the difference between the classification score for the true class and the classification score for the false class.

The software defines the classification margin for binary classification as

$m = 2 y f (x) .$

x is an observation. If the true label of x is the positive class, then y is 1, and –1 otherwise. f(x) is the positive-class classification score for the observation x. The classification margin is commonly defined as m = yf(x).

If the margins are on the same scale, then they serve as a classification confidence measure. Among multiple classifiers, those that yield greater margins are better.

Classification Score

For linear classification models, the raw classification score for classifying the observation x, a row vector, into the positive class is defined by

$f_{j} (x) = x β_{j} + b_{j} .$

For the model with regularization strength j, $β_{j}$ is the estimated column vector of coefficients (the model property Beta(:,j)) and $b_{j}$ is the estimated, scalar bias (the model property Bias(j)).

The raw classification score for classifying x into the negative class is –f(x). The software classifies observations into the class that yields the positive score.

If the linear classification model consists of logistic regression learners, then the software applies the 'logit' score transformation to the raw classification scores (see ScoreTransform).

Algorithms

By default, observation weights are prior class probabilities. If you supply weights using Weights, then the software normalizes them to sum to the prior probabilities in the respective classes. The software uses the normalized weights to estimate the weighted edge.

Extended Capabilities

Tall Arrays
Calculate with arrays that have more rows than fit in memory.

The edge function supports tall arrays with the following usage notes and limitations:

edge does not support tall table data.

For more information, see Tall Arrays.

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

This function fully supports GPU arrays. For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2016a

expand all

R2024a: Specify GPU arrays (requires Parallel Computing Toolbox)

edge fully supports GPU arrays.

R2022a: `edge` returns a different value for a model with a nondefault cost matrix

If you specify a nondefault cost matrix when you train the input model object, the edge function returns a different value compared to previous releases.

The edge function uses the prior probabilities stored in the Prior property to normalize the observation weights of the input data. The way the function uses the Prior property value has not changed. However, the property value stored in the input model object has changed for a model with a nondefault cost matrix, so the function can return a different value.

For details about the property value change, see Cost property stores the user-specified cost matrix.

If you want the software to handle the cost matrix, prior probabilities, and observation weights in the same way as in previous releases, adjust the prior probabilities and observation weights for the nondefault cost matrix, as described in Adjust Prior Probabilities and Observation Weights for Misclassification Cost Matrix. Then, when you train a classification model, specify the adjusted prior probabilities and observation weights by using the Prior and Weights name-value arguments, respectively, and use the default cost matrix.

R2022a: `edge` can return NaN for predictor data with missing values

The edge function no longer omits an observation with a NaN score when computing the weighted mean of the classification margins. Therefore, edge can now return NaN when the predictor data X or the predictor variables in Tbl contain any missing values. In most cases, if the test set observations do not contain missing predictors, the edge function does not return NaN.

This change improves the automatic selection of a classification model when you use fitcauto. Before this change, the software might select a model (expected to best classify new data) with few non-NaN predictors.

If edge in your code returns NaN, you can update your code to avoid this result. Remove or replace the missing values by using rmmissing or fillmissing, respectively.

The following table shows the classification models for which the edge object function might return NaN. For more details, see the Compatibility Considerations for each edge function.

Model Type	Full or Compact Model Object	`edge` Object Function
Discriminant analysis classification model	`ClassificationDiscriminant`, `CompactClassificationDiscriminant`	`edge`
Ensemble of learners for classification	`ClassificationEnsemble`, `CompactClassificationEnsemble`	`edge`
Gaussian kernel classification model	`ClassificationKernel`	`edge`
k-nearest neighbor classification model	`ClassificationKNN`	`edge`
Linear classification model	`ClassificationLinear`	`edge`
Neural network classification model	`ClassificationNeuralNetwork`, `CompactClassificationNeuralNetwork`	`edge`
Support vector machine (SVM) classification model	`ClassificationSVM`, `CompactClassificationSVM`	`edge`

edge

Syntax

Description

Input Arguments

Mdl — Binary, linear classification model ClassificationLinear model object

X — Predictor data full matrix | sparse matrix

Y — Class labels categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

Tbl — Sample data table

ResponseVarName — Response variable name name of variable in Tbl

Name-Value Arguments

ObservationsIn — Predictor data observation dimension 'rows' (default) | 'columns'

Weights — Observation weights ones(size(X,1),1) (default) | numeric vector | name of variable in Tbl

Output Arguments

e — Classification edges numeric scalar | numeric row vector

Examples

Estimate Test-Sample Edge

Feature Selection Using Test-Sample Edges

Find Good Lasso Penalty Using Edge

More About

Classification Edge

Classification Margin

Classification Score

Algorithms

Extended Capabilities

Tall Arrays Calculate with arrays that have more rows than fit in memory.

GPU Arrays Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

R2024a: Specify GPU arrays (requires Parallel Computing Toolbox)

R2022a: edge returns a different value for a model with a nondefault cost matrix

R2022a: edge can return NaN for predictor data with missing values

See Also

`Mdl` — Binary, linear classification model
`ClassificationLinear` model object

`X` — Predictor data
full matrix | sparse matrix

`Y` — Class labels
categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

`Tbl` — Sample data
table

`ResponseVarName` — Response variable name
name of variable in `Tbl`

`ObservationsIn` — Predictor data observation dimension
`'rows'` (default) | `'columns'`

`Weights` — Observation weights
`ones(size(X,1),1)` (default) | numeric vector | name of variable in `Tbl`

`e` — Classification edges
numeric scalar | numeric row vector

Tall Arrays
Calculate with arrays that have more rows than fit in memory.

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

R2022a: `edge` returns a different value for a model with a nondefault cost matrix

R2022a: `edge` can return NaN for predictor data with missing values
