fitcnb

Train multiclass naive Bayes model

collapse all in page

Syntax

Mdl = fitcnb(Tbl,ResponseVarName)

Mdl = fitcnb(Tbl,formula)

Mdl = fitcnb(Tbl,Y)

Mdl = fitcnb(X,Y)

Mdl = fitcnb(___,Name,Value)

[Mdl,AggregateOptimizationResults] = fitcnb(___)

Description

Mdl = fitcnb(Tbl,ResponseVarName) returns a multiclass naive Bayes model (Mdl), trained by the predictors in table Tbl and class labels in the variable Tbl.ResponseVarName.

Mdl = fitcnb(Tbl,formula) returns a multiclass naive Bayes model (Mdl), trained by the predictors in table Tbl. formula is an explanatory model of the response and a subset of predictor variables in Tbl used to fit Mdl.

Mdl = fitcnb(Tbl,Y) returns a multiclass naive Bayes model (Mdl), trained by the predictors in the table Tbl and class labels in the array Y.

Mdl = fitcnb(X,Y) returns a multiclass naive Bayes model (Mdl), trained by predictors X and class labels Y.

example

Mdl = fitcnb(___,Name,Value) returns a naive Bayes classifier with additional options specified by one or more Name,Value pair arguments, using any of the previous syntaxes. For example, you can specify a distribution to model the data, prior probabilities for the classes, or the kernel smoothing window bandwidth.

example

[Mdl,AggregateOptimizationResults] = fitcnb(___) also returns AggregateOptimizationResults, which contains hyperparameter optimization results when you specify the OptimizeHyperparameters and HyperparameterOptimizationOptions name-value arguments. You must also specify the ConstraintType and ConstraintBounds options of HyperparameterOptimizationOptions. You can use this syntax to optimize on compact model size instead of cross-validation loss, and to perform a set of multiple optimization problems that have the same options but different constraint bounds.

Note

For a list of supported syntaxes when the input variables are tall arrays, see Tall Arrays.

Examples

collapse all

Train a Naive Bayes Classifier

Open Live Script

Load Fisher's iris data set.

load fisheriris
X = meas(:,3:4);
Y = species;
tabulate(Y)

       Value    Count   Percent
      setosa       50     33.33%
  versicolor       50     33.33%
   virginica       50     33.33%

The software can classify data with more than two classes using naive Bayes methods.

Train a naive Bayes classifier. It is good practice to specify the class order.

Mdl = fitcnb(X,Y,'ClassNames',{'setosa','versicolor','virginica'})

Mdl =
  ClassificationNaiveBayes
              ResponseName: 'Y'
     CategoricalPredictors: []
                ClassNames: {'setosa'  'versicolor'  'virginica'}
            ScoreTransform: 'none'
           NumObservations: 150
         DistributionNames: {'normal'  'normal'}
    DistributionParameters: {3x2 cell}

Mdl is a trained ClassificationNaiveBayes classifier.

By default, the software models the predictor distribution within each class using a Gaussian distribution having some mean and standard deviation. Use dot notation to display the parameters of a particular Gaussian fit, e.g., display the fit for the first feature within setosa.

setosaIndex = strcmp(Mdl.ClassNames,'setosa');
estimates = Mdl.DistributionParameters{setosaIndex,1}

estimates = 2×1

    1.4620
    0.1737

The mean is 1.4620 and the standard deviation is 0.1737.

Plot the Gaussian contours.

figure
gscatter(X(:,1),X(:,2),Y);
h = gca;
cxlim = h.XLim;
cylim = h.YLim;
hold on
Params = cell2mat(Mdl.DistributionParameters);
Mu = Params(2*(1:3)-1,1:2); % Extract the means
Sigma = zeros(2,2,3);
for j = 1:3
    Sigma(:,:,j) = diag(Params(2*j,:)).^2; % Create diagonal covariance matrix
    xlim = Mu(j,1) + 4*[-1 1]*sqrt(Sigma(1,1,j));
    ylim = Mu(j,2) + 4*[-1 1]*sqrt(Sigma(2,2,j));
    f = @(x,y) arrayfun(@(x0,y0) mvnpdf([x0 y0],Mu(j,:),Sigma(:,:,j)),x,y);
    fcontour(f,[xlim ylim]) % Draw contours for the multivariate normal distributions
end
h.XLim = cxlim;
h.YLim = cylim;
title('Naive Bayes Classifier -- Fisher''s Iris Data')
xlabel('Petal Length (cm)')
ylabel('Petal Width (cm)')
legend('setosa','versicolor','virginica')
hold off

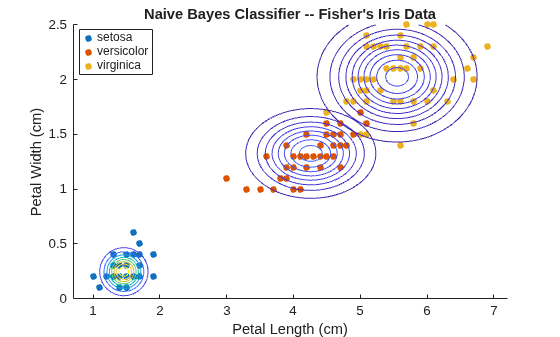

Figure contains an axes object. The axes object with title Naive Bayes Classifier -- Fisher's Iris Data, xlabel Petal Length (cm), ylabel Petal Width (cm) contains 6 objects of type line, functioncontour. One or more of the lines displays its values using only markers These objects represent setosa, versicolor, virginica.

You can change the default distribution using the name-value pair argument 'DistributionNames'. For example, if some predictors are categorical, then you can specify that they are multivariate, multinomial random variables using 'DistributionNames','mvmn'.

Specify Prior Probabilities When Training Naive Bayes Classifiers

Open Live Script

Construct a naive Bayes classifier for Fisher's iris data set. Also, specify prior probabilities during training.

Load Fisher's iris data set.

load fisheriris
X = meas;
Y = species;
classNames = {'setosa','versicolor','virginica'}; % Class order

X is a numeric matrix that contains four measurements for 150 irises. Y is a cell array of character vectors that contains the corresponding iris species.

By default, the prior class probability distribution is the relative frequency distribution of the classes in the data set. In this case the prior probability is 33% for each species. However, suppose you know that in the population 50% of the irises are setosa, 20% are versicolor, and 30% are virginica. You can incorporate this information by specifying this distribution as a prior probability during training.

Train a naive Bayes classifier. Specify the class order and prior class probability distribution.

prior = [0.5 0.2 0.3];
Mdl = fitcnb(X,Y,'ClassNames',classNames,'Prior',prior)

Mdl =
  ClassificationNaiveBayes
              ResponseName: 'Y'
     CategoricalPredictors: []
                ClassNames: {'setosa'  'versicolor'  'virginica'}
            ScoreTransform: 'none'
           NumObservations: 150
         DistributionNames: {'normal'  'normal'  'normal'  'normal'}
    DistributionParameters: {3x4 cell}

Mdl is a trained ClassificationNaiveBayes classifier, and some of its properties appear in the Command Window. The software treats the predictors as independent given a class, and, by default, fits them using normal distributions.

The naive Bayes algorithm does not use the prior class probabilities during training. Therefore, you can specify prior class probabilities after training using dot notation. For example, suppose that you want to see the difference in performance between a model that uses the default prior class probabilities and a model that uses different prior.

Create a new naive Bayes model based on Mdl, and specify that the prior class probability distribution is an empirical class distribution.

defaultPriorMdl = Mdl;
FreqDist = cell2table(tabulate(Y));
defaultPriorMdl.Prior = FreqDist{:,3};

The software normalizes the prior class probabilities to sum to 1.

Estimate the cross-validation error for both models using 10-fold cross-validation.

rng(1); % For reproducibility
defaultCVMdl = crossval(defaultPriorMdl);
defaultLoss = kfoldLoss(defaultCVMdl)

defaultLoss =
0.0533

CVMdl = crossval(Mdl);
Loss = kfoldLoss(CVMdl)

Loss =
0.0340

Mdl performs better than defaultPriorMdl.

Specify Predictor Distributions for Naive Bayes Classifiers

Open Live Script

Load Fisher's iris data set.

load fisheriris
X = meas;
Y = species;

Train a naive Bayes classifier using every predictor. It is good practice to specify the class order.

Mdl1 = fitcnb(X,Y,...
    'ClassNames',{'setosa','versicolor','virginica'})

Mdl1 =
  ClassificationNaiveBayes
              ResponseName: 'Y'
     CategoricalPredictors: []
                ClassNames: {'setosa'  'versicolor'  'virginica'}
            ScoreTransform: 'none'
           NumObservations: 150
         DistributionNames: {'normal'  'normal'  'normal'  'normal'}
    DistributionParameters: {3x4 cell}

Mdl1.DistributionParameters

ans=3×4 cell array
    {2x1 double}    {2x1 double}    {2x1 double}    {2x1 double}
    {2x1 double}    {2x1 double}    {2x1 double}    {2x1 double}
    {2x1 double}    {2x1 double}    {2x1 double}    {2x1 double}

Mdl1.DistributionParameters{1,2}

ans = 2×1

    3.4280
    0.3791

By default, the software models the predictor distribution within each class as a Gaussian with some mean and standard deviation. There are four predictors and three class levels. Each cell in Mdl1.DistributionParameters corresponds to a numeric vector containing the mean and standard deviation of each distribution, e.g., the mean and standard deviation for setosa iris sepal widths are 3.4280 and 0.3791, respectively.

Estimate the confusion matrix for Mdl1.

isLabels1 = resubPredict(Mdl1);
ConfusionMat1 = confusionchart(Y,isLabels1);

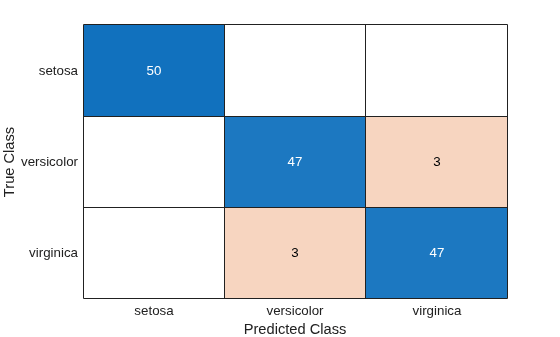

Figure contains an object of type ConfusionMatrixChart.

Element (j, k) of the confusion matrix chart represents the number of observations that the software classifies as k, but are truly in class j according to the data.

Retrain the classifier using the Gaussian distribution for predictors 1 and 2 (the sepal lengths and widths), and the default normal kernel density for predictors 3 and 4 (the petal lengths and widths).

Mdl2 = fitcnb(X,Y,...
    'DistributionNames',{'normal','normal','kernel','kernel'},...
    'ClassNames',{'setosa','versicolor','virginica'});
Mdl2.DistributionParameters{1,2}

ans = 2×1

    3.4280
    0.3791

The software does not train parameters to the kernel density. Rather, the software chooses an optimal width. However, you can specify a width using the 'Width' name-value pair argument.

Estimate the confusion matrix for Mdl2.

isLabels2 = resubPredict(Mdl2);
ConfusionMat2 = confusionchart(Y,isLabels2);

Figure contains an object of type ConfusionMatrixChart.

Based on the confusion matrices, the two classifiers perform similarly in the training sample.

Compare Classifiers Using Cross-Validation

Open Live Script

Load Fisher's iris data set.

load fisheriris
X = meas;
Y = species;
rng(1); % For reproducibility

Train and cross-validate a naive Bayes classifier using the default options and k-fold cross-validation. It is good practice to specify the class order.

CVMdl1 = fitcnb(X,Y,...
    'ClassNames',{'setosa','versicolor','virginica'},...
    'CrossVal','on');

By default, the software models the predictor distribution within each class as a Gaussian with some mean and standard deviation. CVMdl1 is a ClassificationPartitionedModel model.

Create a default naive Bayes binary classifier template, and train an error-correcting, output codes multiclass model.

t = templateNaiveBayes();
CVMdl2 = fitcecoc(X,Y,'CrossVal','on','Learners',t);

CVMdl2 is a ClassificationPartitionedECOC model. You can specify options for the naive Bayes binary learners using the same name-value pair arguments as for fitcnb.

Compare the out-of-sample k-fold classification error (proportion of misclassified observations).

classErr1 = kfoldLoss(CVMdl1,'LossFun','ClassifErr')

classErr1 =
0.0533

classErr2 = kfoldLoss(CVMdl2,'LossFun','ClassifErr')

classErr2 =
0.0467

Mdl2 has a lower generalization error.

Train Naive Bayes Classifiers Using Multinomial Predictors

Open Live Script

Some spam filters classify an incoming email as spam based on how many times a word or punctuation (called tokens) occurs in an email. The predictors are the frequencies of particular words or punctuations in an email. Therefore, the predictors compose multinomial random variables.

This example illustrates classification using naive Bayes and multinomial predictors.

Create Training Data

Suppose you observed 1000 emails and classified them as spam or not spam. Do this by randomly assigning -1 or 1 to y for each email.

n = 1000;                       % Sample size
rng(1);                         % For reproducibility
Y = randsample([-1 1],n,true);  % Random labels

To build the predictor data, suppose that there are five tokens in the vocabulary, and 20 observed tokens per email. Generate predictor data from the five tokens by drawing random, multinomial deviates. The relative frequencies for tokens corresponding to spam emails should differ from emails that are not spam.

tokenProbs = [0.2 0.3 0.1 0.15 0.25;...
    0.4 0.1 0.3 0.05 0.15];             % Token relative frequencies
tokensPerEmail = 20;                    % Fixed for convenience
X = zeros(n,5);
X(Y == 1,:) = mnrnd(tokensPerEmail,tokenProbs(1,:),sum(Y == 1));
X(Y == -1,:) = mnrnd(tokensPerEmail,tokenProbs(2,:),sum(Y == -1));

Train the Classifier

Train a naive Bayes classifier. Specify that the predictors are multinomial.

Mdl = fitcnb(X,Y,'DistributionNames','mn');

Mdl is a trained ClassificationNaiveBayes classifier.

Assess the in-sample performance of Mdl by estimating the misclassification error.

isGenRate = resubLoss(Mdl,'LossFun','ClassifErr')

isGenRate =
0.0200

The in-sample misclassification rate is 2%.

Create New Data

Randomly generate deviates that represent a new batch of emails.

newN = 500;
newY = randsample([-1 1],newN,true);
newX = zeros(newN,5);
newX(newY == 1,:) = mnrnd(tokensPerEmail,tokenProbs(1,:),...
    sum(newY == 1));
newX(newY == -1,:) = mnrnd(tokensPerEmail,tokenProbs(2,:),...
    sum(newY == -1));

Assess Classifier Performance

Classify the new emails using the trained naive Bayes classifier Mdl, and determine whether the algorithm generalizes.

oosGenRate = loss(Mdl,newX,newY)

oosGenRate =
0.0261

The out-of-sample misclassification rate is 2.6% indicating that the classifier generalizes fairly well.

Optimize Naive Bayes Classifier

Open Live Script

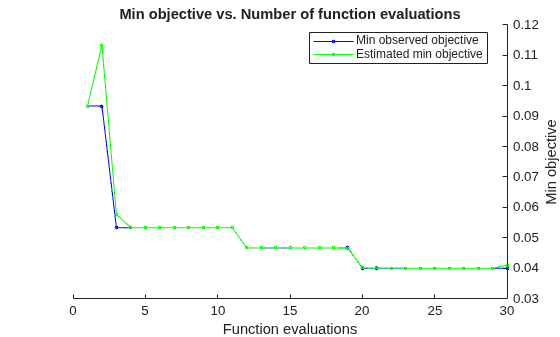

This example shows how to use the OptimizeHyperparameters name-value pair to minimize cross-validation loss in a naive Bayes classifier using fitcnb. The example uses Fisher's iris data.

Load Fisher's iris data.

load fisheriris
X = meas;
Y = species;
classNames = {'setosa','versicolor','virginica'};

Optimize the classification using the 'auto' parameters.

For reproducibility, set the random seed and use the 'expected-improvement-plus' acquisition function.

rng default
Mdl = fitcnb(X,Y,'ClassNames',classNames,'OptimizeHyperparameters','auto',...
    'HyperparameterOptimizationOptions',struct('AcquisitionFunctionName',...
    'expected-improvement-plus'))

|====================================================================================================================|
| Iter | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   | Distribution-|        Width |  Standardize |
|      | result |             | runtime     | (observed)  | (estim.)    | Names        |              |              |
|====================================================================================================================|
|    1 | Best   |    0.093333 |     0.83173 |    0.093333 |    0.093333 |       kernel |       5.6939 |        false |
|    2 | Accept |     0.13333 |     0.23764 |    0.093333 |     0.11333 |       kernel |       94.849 |         true |
|    3 | Best   |    0.053333 |     0.14704 |    0.053333 |     0.05765 |       normal |            - |            - |
|    4 | Accept |    0.053333 |     0.07454 |    0.053333 |    0.053336 |       normal |            - |            - |
|    5 | Accept |     0.26667 |     0.42396 |    0.053333 |    0.053338 |       kernel |     0.001001 |         true |
|    6 | Accept |    0.093333 |     0.57991 |    0.053333 |    0.053337 |       kernel |       10.043 |        false |
|    7 | Accept |     0.26667 |     0.31942 |    0.053333 |     0.05334 |       kernel |    0.0010132 |        false |
|    8 | Accept |    0.093333 |     0.21229 |    0.053333 |    0.053338 |       kernel |       985.05 |        false |
|    9 | Accept |     0.13333 |     0.16062 |    0.053333 |    0.053338 |       kernel |       993.63 |         true |
|   10 | Accept |    0.053333 |    0.083777 |    0.053333 |    0.053336 |       normal |            - |            - |
|   11 | Accept |    0.053333 |    0.092382 |    0.053333 |    0.053336 |       normal |            - |            - |
|   12 | Best   |    0.046667 |     0.25145 |    0.046667 |    0.046679 |       kernel |      0.30205 |         true |
|   13 | Accept |     0.11333 |     0.30332 |    0.046667 |    0.046685 |       kernel |       1.3021 |         true |
|   14 | Accept |    0.053333 |     0.14542 |    0.046667 |    0.046695 |       kernel |      0.10521 |         true |
|   15 | Accept |    0.046667 |     0.25081 |    0.046667 |    0.046677 |       kernel |      0.25016 |        false |
|   16 | Accept |        0.06 |     0.33618 |    0.046667 |    0.046686 |       kernel |      0.58328 |        false |
|   17 | Accept |    0.046667 |     0.28551 |    0.046667 |    0.046656 |       kernel |      0.07969 |        false |
|   18 | Accept |    0.093333 |      0.3948 |    0.046667 |    0.046654 |       kernel |       131.33 |        false |
|   19 | Accept |    0.046667 |     0.60157 |    0.046667 |     0.04648 |       kernel |      0.13384 |        false |
|   20 | Best   |        0.04 |     0.25428 |        0.04 |    0.040132 |       kernel |      0.19525 |         true |
|====================================================================================================================|
| Iter | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   | Distribution-|        Width |  Standardize |
|      | result |             | runtime     | (observed)  | (estim.)    | Names        |              |              |
|====================================================================================================================|
|   21 | Accept |        0.04 |     0.52819 |        0.04 |    0.040066 |       kernel |      0.19458 |         true |
|   22 | Accept |        0.04 |     0.58062 |        0.04 |    0.040043 |       kernel |      0.19601 |         true |
|   23 | Accept |        0.04 |     0.63256 |        0.04 |    0.040031 |       kernel |      0.19412 |         true |
|   24 | Accept |     0.10667 |      0.6465 |        0.04 |    0.040018 |       kernel |    0.0084391 |         true |
|   25 | Accept |    0.073333 |     0.67267 |        0.04 |    0.040022 |       kernel |      0.02769 |        false |
|   26 | Accept |        0.04 |     0.66828 |        0.04 |     0.04002 |       kernel |       0.2037 |         true |
|   27 | Accept |     0.13333 |     0.16347 |        0.04 |    0.040021 |       kernel |       12.501 |         true |
|   28 | Accept |     0.11333 |     0.15503 |        0.04 |    0.040006 |       kernel |    0.0048728 |        false |
|   29 | Accept |         0.1 |     0.16626 |        0.04 |    0.039993 |       kernel |     0.028653 |         true |
|   30 | Accept |    0.046667 |     0.55771 |        0.04 |    0.041008 |       kernel |      0.18725 |         true |

__________________________________________________________
Optimization completed.
MaxObjectiveEvaluations of 30 reached.
Total function evaluations: 30
Total elapsed time: 22.5001 seconds
Total objective function evaluation time: 10.7579

Best observed feasible point:
    DistributionNames     Width     Standardize
    _________________    _______    ___________

         kernel          0.19525       true

Observed objective function value = 0.04
Estimated objective function value = 0.041117
Function evaluation time = 0.25428

Best estimated feasible point (according to models):
    DistributionNames    Width     Standardize
    _________________    ______    ___________

         kernel          0.2037       true

Estimated objective function value = 0.041008
Estimated function evaluation time = 0.34966

Figure contains an axes object. The axes object with title Min objective vs. Number of function evaluations, xlabel Function evaluations, ylabel Min objective contains 2 objects of type line. These objects represent Min observed objective, Estimated min objective.

Mdl =
  ClassificationNaiveBayes
                         ResponseName: 'Y'
                CategoricalPredictors: []
                           ClassNames: {'setosa'  'versicolor'  'virginica'}
                       ScoreTransform: 'none'
                      NumObservations: 150
    HyperparameterOptimizationResults: [1x1 BayesianOptimization]
                    DistributionNames: {'kernel'  'kernel'  'kernel'  'kernel'}
               DistributionParameters: {3x4 cell}
                               Kernel: {'normal'  'normal'  'normal'  'normal'}
                              Support: {'unbounded'  'unbounded'  'unbounded'  'unbounded'}
                                Width: [3x4 double]
                                   Mu: [5.8433 3.0573 3.7580 1.1993]
                                Sigma: [0.8281 0.4359 1.7653 0.7622]

Input Arguments

collapse all

`Tbl` — Sample data
table

Sample data used to train the model, specified as a table. Each row of Tbl corresponds to one observation, and each column corresponds to one predictor variable. Optionally, Tbl can contain one additional column for the response variable. Multicolumn variables and cell arrays other than cell arrays of character vectors are not allowed.

If Tbl contains the response variable, and you want to use all remaining variables in Tbl as predictors, then specify the response variable by using ResponseVarName.
If Tbl contains the response variable, and you want to use only a subset of the remaining variables in Tbl as predictors, then specify a formula by using formula.
If Tbl does not contain the response variable, then specify a response variable by using Y. The length of the response variable and the number of rows in Tbl must be equal.

`ResponseVarName` — Response variable name
name of variable in `Tbl`

Response variable name, specified as the name of a variable in Tbl.

You must specify ResponseVarName as a character vector or string scalar. For example, if the response variable Y is stored as Tbl.Y, then specify it as "Y". Otherwise, the software treats all columns of Tbl, including Y, as predictors when training the model.

The response variable must be a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors. If Y is a character array, then each element of the response variable must correspond to one row of the array.

A good practice is to specify the order of the classes by using the ClassNames name-value argument.

Data Types: char | string

`formula` — Explanatory model of response variable and subset of predictor variables
character vector | string scalar

Explanatory model of the response variable and a subset of the predictor variables, specified as a character vector or string scalar in the form "Y~x1+x2+x3". In this form, Y represents the response variable, and x1, x2, and x3 represent the predictor variables.

To specify a subset of variables in Tbl as predictors for training the model, use a formula. If you specify a formula, then the software does not use any variables in Tbl that do not appear in formula.

The variable names in the formula must be both variable names in Tbl (Tbl.Properties.VariableNames) and valid MATLAB^® identifiers. You can verify the variable names in Tbl by using the isvarname function. If the variable names are not valid, then you can convert them by using the matlab.lang.makeValidName function.

Data Types: char | string

`Y` — Class labels
categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

Class labels to which the naive Bayes classifier is trained, specified as a categorical, character, or string array, a logical or numeric vector, or a cell array of character vectors. Each element of Y defines the class membership of the corresponding row of X. Y supports K class levels.

If Y is a character array, then each row must correspond to one class label.

The length of Y and the number of rows of X must be equivalent.

`X` — Predictor data
numeric matrix

Predictor data, specified as a numeric matrix.

Each row of X corresponds to one observation (also known as an instance or example), and each column corresponds to one variable (also known as a feature).

The length of Y and the number of rows of X must be equivalent.

Data Types: double

Note:

The software treats NaN, empty character vector (''), empty string (""), <missing>, and <undefined> elements as missing data values.

If Y contains missing values, then the software removes them and the corresponding rows of X.
If X contains any rows composed entirely of missing values, then the software removes those rows and the corresponding elements of Y.
If X contains missing values and you set 'DistributionNames','mn', then the software removes those rows of X and the corresponding elements of Y.
If a predictor is not represented in a class, that is, if all of its values are NaN within a class, then the software returns an error.

Removing rows of X and corresponding elements of Y decreases the effective training or cross-validation sample size.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'DistributionNames','mn','Prior','uniform','KSWidth',0.5 specifies that the data distribution is multinomial, the prior probabilities for all classes are equal, and the kernel smoothing window bandwidth for all classes is 0.5 units.

Note

You cannot use any cross-validation name-value argument together with the OptimizeHyperparameters name-value argument. You can modify the cross-validation for OptimizeHyperparameters only by using the HyperparameterOptimizationOptions name-value argument.

Naive Bayes Options

collapse all

`DistributionNames` — Data distributions
`'kernel'` | `'mn'` | `'mvmn'` | `'normal'` | string array | cell array of character vectors

Data distributions fitcnb uses to model the data, specified as the comma-separated pair consisting of 'DistributionNames' and a character vector or string scalar, a string array, or a cell array of character vectors with values from this table.

Value	Description
`'kernel'`	Kernel smoothing density estimate.
`'mn'`	Multinomial distribution. If you specify `mn`, then all features are components of a multinomial distribution. Therefore, you cannot include `'mn'` as an element of a string array or a cell array of character vectors. For details, see Algorithms.
`'mvmn'`	Multivariate multinomial distribution. For details, see Algorithms.
`'normal'`	Normal (Gaussian) distribution.

If you specify a character vector or string scalar, then the software models all the features using that distribution. If you specify a 1-by-P string array or cell array of character vectors, then the software models feature j using the distribution in element j of the array.

By default, the software sets all predictors specified as categorical predictors (using the CategoricalPredictors name-value pair argument) to 'mvmn'. Otherwise, the default distribution is 'normal'.

You must specify that at least one predictor has distribution 'kernel' to additionally specify Kernel, Standardize, Support, or Width.

Example: 'DistributionNames','mn'

Example: 'DistributionNames',{'kernel','normal','kernel'}

`Kernel` — Kernel smoother type
`'normal'` (default) | `'box'` | `'epanechnikov'` | `'triangle'` | string array | cell array of character vectors

Kernel smoother type, specified as the comma-separated pair consisting of 'Kernel' and a character vector or string scalar, a string array, or a cell array of character vectors.

This table summarizes the available options for setting the kernel smoothing density region. Let I{u} denote the indicator function.

Value	Kernel	Formula
`'box'`	Box (uniform)	$f (x) = 0.5 I {\| x \| \leq 1}$
`'epanechnikov'`	Epanechnikov	$f (x) = 0.75 (1 - x^{2}) I {\| x \| \leq 1}$
`'normal'`	Gaussian	$f (x) = \frac{1}{\sqrt{2 π}} \exp (- 0.5 x^{2})$
`'triangle'`	Triangular	$f (x) = (1 - \| x \|) I {\| x \| \leq 1}$

If you specify a 1-by-P string array or cell array, with each element of the array containing any value in the table, then the software trains the classifier using the kernel smoother type in element j for feature j in X. The software ignores elements of Kernel not corresponding to a predictor whose distribution is 'kernel'.

You must specify that at least one predictor has distribution 'kernel' to additionally specify Kernel, Standardize, Support, or Width.

Example: 'Kernel',{'epanechnikov','normal'}

`Standardize` — Flag to standardize kernel-distributed predictors
`false` or `0` (default) | `true` or `1`

Since R2023b

Flag to standardize the kernel-distributed predictors, specified as a numeric or logical 0 (false) or 1 (true). This argument is valid only when the DistributionNames value contains at least one kernel distribution ("kernel").

If you set Standardize to true, then the software centers and scales each kernel-distributed predictor variable by the corresponding column mean and standard deviation. The software does not standardize predictors with nonkernel distributions, such as categorical predictors.

Example: "Standardize",true

Data Types: single | double | logical

`Support` — Kernel smoothing density support
`'unbounded'` (default) | `'positive'` | string array | cell array | numeric row vector

Kernel smoothing density support, specified as the comma-separated pair consisting of 'Support' and 'positive', 'unbounded', a string array, a cell array, or a numeric row vector. The software applies the kernel smoothing density to the specified region.

This table summarizes the available options for setting the kernel smoothing density region.

Value	Description
1-by-2 numeric row vector	For example, `[L,U]`, where `L` and `U` are the finite lower and upper bounds, respectively, for the density support.
`'positive'`	The density support is all positive real values.
`'unbounded'`	The density support is all real values.

If you specify a 1-by-P string array or cell array, with each element in the string array containing any text value in the table and each element in the cell array containing any value in the table, then the software trains the classifier using the kernel support in element j for feature j in X. The software ignores elements of Kernel not corresponding to a predictor whose distribution is 'kernel'.

You must specify that at least one predictor has distribution 'kernel' to additionally specify Kernel, Standardize, Support, or Width.

Example: 'Support',{[-10,20],'unbounded'}

Data Types: char | string | cell | double

`Width` — Kernel smoothing window width
matrix of numeric values | numeric column vector | numeric row vector | scalar

Kernel smoothing window width, specified as the comma-separated pair consisting of 'Width' and a matrix of numeric values, numeric column vector, numeric row vector, or scalar.

Suppose there are K class levels and P predictors. This table summarizes the available options for setting the kernel smoothing window width.

Value	Description
K-by-P matrix of numeric values	Element (k,j) specifies the width for predictor j in class k.
K-by-1 numeric column vector	Element k specifies the width for all predictors in class k.
1-by-P numeric row vector	Element j specifies the width in all class levels for predictor j.
scalar	Specifies the bandwidth for all features in all classes.

By default, the software selects a default width automatically for each combination of predictor and class by using a value that is optimal for a Gaussian distribution. If you specify Width and it contains NaNs, then the software selects widths for the elements containing NaNs.

You must specify that at least one predictor has distribution 'kernel' to additionally specify Kernel, Standardize, Support, or Width.

Example: 'Width',[NaN NaN]

Data Types: double | struct

Cross-Validation Options

collapse all

`CrossVal` — Cross-validation flag
`'off'` (default) | `'on'`

Cross-validation flag, specified as the comma-separated pair consisting of 'Crossval' and 'on' or 'off'.

If you specify 'on', then the software implements 10-fold cross-validation.

To override this cross-validation setting, use one of these name-value pair arguments: CVPartition, Holdout, KFold, or Leaveout. To create a cross-validated model, you can use one cross-validation name-value pair argument at a time only.

Alternatively, cross-validate later by passing Mdl to crossval.

Example: 'CrossVal','on'

`CVPartition` — Cross-validation partition
`[]` (default) | `cvpartition` object

Cross-validation partition, specified as a cvpartition object that specifies the type of cross-validation and the indexing for the training and validation sets.

To create a cross-validated model, you can specify only one of these four name-value arguments: CVPartition, Holdout, KFold, or Leaveout.

Example: Suppose you create a random partition for 5-fold cross-validation on 500 observations by using cvp = cvpartition(500,KFold=5). Then, you can specify the cross-validation partition by setting CVPartition=cvp.

`Holdout` — Fraction of data for holdout validation
scalar value in the range (0,1)

Fraction of the data used for holdout validation, specified as a scalar value in the range (0,1). If you specify Holdout=p, then the software completes these steps:

Randomly select and reserve p*100% of the data as validation data, and train the model using the rest of the data.
Store the compact trained model in the Trained property of the cross-validated model.

To create a cross-validated model, you can specify only one of these four name-value arguments: CVPartition, Holdout, KFold, or Leaveout.

Example: Holdout=0.1

Data Types: double | single

`KFold` — Number of folds
`10` (default) | positive integer value greater than 1

Number of folds to use in the cross-validated model, specified as a positive integer value greater than 1. If you specify KFold=k, then the software completes these steps:

Randomly partition the data into k sets.
For each set, reserve the set as validation data, and train the model using the other k – 1 sets.
Store the k compact trained models in a k-by-1 cell vector in the Trained property of the cross-validated model.

To create a cross-validated model, you can specify only one of these four name-value arguments: CVPartition, Holdout, KFold, or Leaveout.

Example: KFold=5

Data Types: single | double

`Leaveout` — Leave-one-out cross-validation flag
`"off"` (default) | `"on"`

Leave-one-out cross-validation flag, specified as "on" or "off". If you specify Leaveout="on", then for each of the n observations (where n is the number of observations, excluding missing observations, specified in the NumObservations property of the model), the software completes these steps:

Reserve the one observation as validation data, and train the model using the other n – 1 observations.
Store the n compact trained models in an n-by-1 cell vector in the Trained property of the cross-validated model.

To create a cross-validated model, you can specify only one of these four name-value arguments: CVPartition, Holdout, KFold, or Leaveout.

Example: Leaveout="on"

Data Types: char | string

Other Classification Options

collapse all

`CategoricalPredictors` — Categorical predictors list
vector of positive integers | logical vector | character matrix | string array | cell array of character vectors | `'all'`

Categorical predictors list, specified as one of the values in this table.

Value	Description
Vector of positive integers	Each entry in the vector is an index value indicating that the corresponding predictor is categorical. The index values are between 1 and `p`, where `p` is the number of predictors used to train the model. If `fitcnb` uses a subset of input variables as predictors, then the function indexes the predictors using only the subset. The `CategoricalPredictors` values do not count any response variable, observation weights variable, or other variable that the function does not use.
Logical vector	A `true` entry means that the corresponding predictor is categorical. The length of the vector is `p`.
Character matrix	Each row of the matrix is the name of a predictor variable. The names must match the entries in `PredictorNames`. Pad the names with extra blanks so each row of the character matrix has the same length.
String array or cell array of character vectors	Each element in the array is the name of a predictor variable. The names must match the entries in `PredictorNames`.
`"all"`	All predictors are categorical.

By default, if the predictor data is in a table (Tbl), fitcnb assumes that a variable is categorical if it is a logical vector, categorical vector, character array, string array, or cell array of character vectors. If the predictor data is a matrix (X), fitcnb assumes that all predictors are continuous. To identify any other predictors as categorical predictors, specify them by using the CategoricalPredictors name-value argument.

For the identified categorical predictors, fitcnb uses multivariate multinomial distributions. For details, see DistributionNames and Algorithms.

Example: 'CategoricalPredictors','all'

`ClassNames` — Names of classes to use for training
categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

Names of classes to use for training, specified as a categorical, character, or string array; a logical or numeric vector; or a cell array of character vectors. ClassNames must have the same data type as the response variable in Tbl or Y.

If ClassNames is a character array, then each element must correspond to one row of the array.

Use ClassNames to:

Specify the order of the classes during training.
Specify the order of any input or output argument dimension that corresponds to the class order. For example, use ClassNames to specify the order of the dimensions of Cost or the column order of classification scores returned by predict.
Select a subset of classes for training. For example, suppose that the set of all distinct class names in Y is ["a","b","c"]. To train the model using observations from classes "a" and "c" only, specify "ClassNames",["a","c"].

The default value for ClassNames is the set of all distinct class names in the response variable in Tbl or Y.

Example: "ClassNames",["b","g"]

`Cost` — Cost of misclassification
square matrix | structure

Cost of misclassification of a point, specified as the comma-separated pair consisting of 'Cost' and one of the following:

Square matrix, where Cost(i,j) is the cost of classifying a point into class j if its true class is i (i.e., the rows correspond to the true class and the columns correspond to the predicted class). To specify the class order for the corresponding rows and columns of Cost, additionally specify the ClassNames name-value pair argument.
Structure S having two fields: S.ClassNames containing the group names as a variable of the same type as Y, and S.ClassificationCosts containing the cost matrix.

The default is Cost(i,j)=1 if i~=j, and Cost(i,j)=0 if i=j.

Example: 'Cost',struct('ClassNames',{{'b','g'}},'ClassificationCosts',[0 0.5; 1 0])

Data Types: single | double | struct

`PredictorNames` — Predictor variable names
string array of unique names | cell array of unique character vectors

Predictor variable names, specified as a string array of unique names or cell array of unique character vectors. The functionality of PredictorNames depends on the way you supply the training data.

If you supply X and Y, then you can use PredictorNames to assign names to the predictor variables in X.
- The order of the names in PredictorNames must correspond to the column order of X. That is, PredictorNames{1} is the name of X(:,1), PredictorNames{2} is the name of X(:,2), and so on. Also, size(X,2) and numel(PredictorNames) must be equal.
- By default, PredictorNames is {'x1','x2',...}.
If you supply Tbl, then you can use PredictorNames to choose which predictor variables to use in training. That is, fitcnb uses only the predictor variables in PredictorNames and the response variable during training.
- PredictorNames must be a subset of Tbl.Properties.VariableNames and cannot include the name of the response variable.
- By default, PredictorNames contains the names of all predictor variables.
- A good practice is to specify the predictors for training using either PredictorNames or formula, but not both.

Example: "PredictorNames",["SepalLength","SepalWidth","PetalLength","PetalWidth"]

Data Types: string | cell

`Prior` — Prior probabilities
`'empirical'` (default) | `'uniform'` | vector of scalar values | structure

Prior probabilities for each class, specified as the comma-separated pair consisting of 'Prior' and a value in this table.

Value	Description
`'empirical'`	The class prior probabilities are the class relative frequencies in `Y`.
`'uniform'`	All class prior probabilities are equal to 1/K, where K is the number of classes.
numeric vector	Each element is a class prior probability. Order the elements according to `Mdl.ClassNames` or specify the order using the `ClassNames` name-value pair argument. The software normalizes the elements such that they sum to `1`.
structure	A structure `S` with two fields: `S.ClassNames` contains the class names as a variable of the same type as `Y`. `S.ClassProbs` contains a vector of corresponding prior probabilities. The software normalizes the elements such that they sum to `1`.

If you set values for both Weights and Prior, the weights are renormalized to add up to the value of the prior probability in the respective class.

Example: 'Prior','uniform'

Data Types: char | string | single | double | struct

`ResponseName` — Response variable name
`"Y"` (default) | character vector | string scalar

Response variable name, specified as a character vector or string scalar.

If you supply Y, then you can use ResponseName to specify a name for the response variable.
If you supply ResponseVarName or formula, then you cannot use ResponseName.

Example: ResponseName="response"

Data Types: char | string

`ScoreTransform` — Score transformation
`"none"` (default) | `"doublelogit"` | `"invlogit"` | `"ismax"` | `"logit"` | function handle | ...

Score transformation, specified as a character vector, string scalar, or function handle.

This table summarizes the available character vectors and string scalars.

Value	Description
`"doublelogit"`	1/(1 + e^–2x)
`"invlogit"`	log(x / (1 – x))
`"ismax"`	Sets the score for the class with the largest score to 1, and sets the scores for all other classes to 0
`"logit"`	1/(1 + e^–x)
`"none"` or `"identity"`	x (no transformation)
`"sign"`	–1 for x < 0 0 for x = 0 1 for x > 0
`"symmetric"`	2x – 1
`"symmetricismax"`	Sets the score for the class with the largest score to 1, and sets the scores for all other classes to –1
`"symmetriclogit"`	2/(1 + e^–x) – 1

For a MATLAB function or a function you define, use its function handle for the score transform. The function handle must accept a matrix (the original scores) and return a matrix of the same size (the transformed scores).

Example: "ScoreTransform","logit"

Data Types: char | string | function_handle

`Weights` — Observation weights
numeric vector of positive values | name of variable in `Tbl`

Observation weights, specified as the comma-separated pair consisting of 'Weights' and a numeric vector of positive values or name of a variable in Tbl. The software weighs the observations in each row of X or Tbl with the corresponding value in Weights. The size of Weights must equal the number of rows of X or Tbl.

If you specify the input data as a table Tbl, then Weights can be the name of a variable in Tbl that contains a numeric vector. In this case, you must specify Weights as a character vector or string scalar. For example, if the weights vector W is stored as Tbl.W, then specify it as 'W'. Otherwise, the software treats all columns of Tbl, including W, as predictors or the response when training the model.

The software normalizes Weights to sum up to the value of the prior probability in the respective class.

By default, Weights is ones(n,1), where n is the number of observations in X or Tbl.

Data Types: double | single | char | string

Hyperparameter Optimization

collapse all

`OptimizeHyperparameters` — Parameters to optimize
`'none'` (default) | `'auto'` | `'all'` | string array or cell array of eligible parameter names | vector of `optimizableVariable` objects

Parameters to optimize, specified as the comma-separated pair consisting of 'OptimizeHyperparameters' and one of the following:

'none' — Do not optimize.
'auto' — Use {'DistributionNames','Standardize','Width'}.
'all' — Optimize all eligible parameters.
String array or cell array of eligible parameter names.
Vector of optimizableVariable objects, typically the output of hyperparameters.

The optimization attempts to minimize the cross-validation loss (error) for fitcnb by varying the parameters. To control the cross-validation type and other aspects of the optimization, use the HyperparameterOptimizationOptions name-value argument. When you use HyperparameterOptimizationOptions, you can use the (compact) model size instead of the cross-validation loss as the optimization objective by setting the ConstraintType and ConstraintBounds options.

Note

The values of OptimizeHyperparameters override any values you specify using other name-value arguments. For example, setting OptimizeHyperparameters to "auto" causes fitcnb to optimize hyperparameters corresponding to the "auto" option and to ignore any specified values for the hyperparameters.

The eligible parameters for fitcnb are:

DistributionNames — fitcnb searches among 'normal' and 'kernel'.
Kernel — fitcnb searches among 'normal', 'box', 'epanechnikov', and 'triangle'.
Standardize — fitcnb searches among true and false.
Width — fitcnb searches among real values, by default log-scaled in the range [1e-3,1e3].

Set nondefault parameters by passing a vector of optimizableVariable objects that have nondefault values. For example,

load fisheriris
params = hyperparameters('fitcnb',meas,species);
params(2).Range = [1e-2,1e2];

Pass params as the value of OptimizeHyperparameters.

By default, the iterative display appears at the command line, and plots appear according to the number of hyperparameters in the optimization. For the optimization and plots, the objective function is the misclassification rate. To control the iterative display, set the Verbose option of the HyperparameterOptimizationOptions name-value argument. To control the plots, set the ShowPlots field of the HyperparameterOptimizationOptions name-value argument.

For an example, see Optimize Naive Bayes Classifier.

Example: 'auto'

`HyperparameterOptimizationOptions` — Options for optimization
`HyperparameterOptimizationOptions` object | structure

Options for optimization, specified as a HyperparameterOptimizationOptions object or a structure. This argument modifies the effect of the OptimizeHyperparameters name-value argument. If you specify HyperparameterOptimizationOptions, you must also specify OptimizeHyperparameters. All the options are optional. However, you must set ConstraintBounds and ConstraintType to return AggregateOptimizationResults. The options that you can set in a structure are the same as those in the HyperparameterOptimizationOptions object.

Option	Values	Default
`Optimizer`	`"bayesopt"` — Use Bayesian optimization. Internally, this setting calls `bayesopt`. `"gridsearch"` — Use grid search with `NumGridDivisions` values per dimension. `"gridsearch"` searches in a random order, using uniform sampling without replacement from the grid. After optimization, you can get a table in grid order by using the command `sortrows(Mdl.HyperparameterOptimizationResults)`. `"randomsearch"` — Search at random among `MaxObjectiveEvaluations` points.	`"bayesopt"`
`ConstraintBounds`	Constraint bounds for N optimization problems, specified as an N-by-2 numeric matrix or `[]`. The columns of `ConstraintBounds` contain the lower and upper bound values of the optimization problems. If you specify `ConstraintBounds` as a numeric vector, the software assigns the values to the second column of `ConstraintBounds`, and zeros to the first column. If you specify `ConstraintBounds`, you must also specify `ConstraintType`.	`[]`
`ConstraintTarget`	Constraint target for the optimization problems, specified as `"matlab"` or `"coder"`. If `ConstraintBounds` and `ConstraintType` are `[]` and you set `ConstraintTarget`, then the software sets `ConstraintTarget` to `[]`. The values of `ConstraintTarget` and `ConstraintType` determine the objective and constraint functions. For more information, see `HyperparameterOptimizationOptions`.	If you specify `ConstraintBounds` and `ConstraintType`, then the default value is `"matlab"`. Otherwise, the default value is `[]`.
`ConstraintType`	Constraint type for the optimization problems, specified as `"size"` or `"loss"`. If you specify `ConstraintType`, you must also specify `ConstraintBounds`. The values of `ConstraintTarget` and `ConstraintType` determine the objective and constraint functions. For more information, see `HyperparameterOptimizationOptions`.	`[]`
`AcquisitionFunctionName`	Type of acquisition function: `"expected-improvement-per-second-plus"` `"expected-improvement"` `"expected-improvement-plus"` `"expected-improvement-per-second"` `"lower-confidence-bound"` `"probability-of-improvement"` Acquisition functions whose names include `per-second` do not yield reproducible results, because the optimization depends on the run time of the objective function. Acquisition functions whose names include `plus` modify their behavior when they overexploit an area. For more details, see Acquisition Function Types.	`"expected-improvement-per-second-plus"`
`MaxObjectiveEvaluations`	Maximum number of objective function evaluations. If you specify multiple optimization problems using `ConstraintBounds`, the value of `MaxObjectiveEvaluations` applies to each optimization problem individually.	`30` for `"bayesopt"` and `"randomsearch"`, and the entire grid for `"gridsearch"`
`MaxTime`	Time limit for the optimization, specified as a nonnegative real scalar. The time limit is in seconds, as measured by `tic` and `toc`. The software performs at least one optimization iteration, regardless of the value of `MaxTime`. The run time can exceed `MaxTime` because `MaxTime` does not interrupt function evaluations. If you specify multiple optimization problems using `ConstraintBounds`, the time limit applies to each optimization problem individually.	`Inf`
`NumGridDivisions`	For `Optimizer="gridsearch"`, the number of values in each dimension. The value can be a vector of positive integers giving the number of values for each dimension, or a scalar that applies to all dimensions. This option is ignored for categorical variables.	`10`
`ShowPlots`	Logical value indicating whether to show plots of the optimization progress. If this option is `true`, the software plots the best observed objective function value against the iteration number. If you use Bayesian optimization (`Optimizer="bayesopt"`), then the software also plots the best estimated objective function value. The best observed objective function values and best estimated objective function values correspond to the values in the `BestSoFar (observed)` and `BestSoFar (estim.)` columns of the iterative display, respectively. You can find these values in the properties `ObjectiveMinimumTrace` and `EstimatedObjectiveMinimumTrace` of `Mdl.HyperparameterOptimizationResults`. If the problem includes one or two optimization parameters for Bayesian optimization, then `ShowPlots` also plots a model of the objective function against the parameters.	`true`
`SaveIntermediateResults`	Logical value indicating whether to save the optimization results. If this option is `true`, the software overwrites a workspace variable named `"BayesoptResults"` at each iteration. The variable is a `BayesianOptimization` object. If you specify multiple optimization problems using `ConstraintBounds`, the workspace variable is an `AggregateBayesianOptimization` object named `"AggregateBayesoptResults"`.	`false`
`Verbose`	Display level at the command line: `0` — No iterative display `1` — Iterative display `2` — Iterative display with additional information For details, see the `bayesopt` `Verbose` name-value argument and the example Optimize Classifier Fit Using Bayesian Optimization.	`1`
`UseParallel`	Logical value indicating whether to run the Bayesian optimization in parallel, which requires Parallel Computing Toolbox™. Due to the nonreproducibility of parallel timing, parallel Bayesian optimization does not necessarily yield reproducible results. For details, see Parallel Bayesian Optimization.	`false`
`Repartition`	Logical value indicating whether to repartition the cross-validation at every iteration. If this option is `false`, the optimizer uses a single partition for the optimization. A value of `true` usually gives the most robust results because this setting takes partitioning noise into account. However, for optimal results, `true` requires at least twice as many function evaluations.	`false`
Specify only one of the following three options.
`CVPartition`	`cvpartition` object created by `cvpartition`	`Kfold=5` if you do not specify a cross-validation option
`Holdout`	Scalar in the range `(0,1)` representing the holdout fraction
`Kfold`	Integer greater than 1

Example: HyperparameterOptimizationOptions=struct(UseParallel=true)

Output Arguments

collapse all

`Mdl` — Trained naive Bayes classification model
`ClassificationNaiveBayes` model object | `ClassificationPartitionedModel` cross-validated model object

Trained naive Bayes classification model, returned as a ClassificationNaiveBayes model object or a ClassificationPartitionedModel cross-validated model object.

If you set any of the name-value pair arguments KFold, Holdout, CrossVal, or CVPartition, then Mdl is a ClassificationPartitionedModel cross-validated model object. Otherwise, Mdl is a ClassificationNaiveBayes model object.

To reference properties of Mdl, use dot notation. For example, to access the estimated distribution parameters, enter Mdl.DistributionParameters.

`AggregateOptimizationResults` — Aggregate optimization results
`AggregateBayesianOptimization` object

Aggregate optimization results for multiple optimization problems, returned as an AggregateBayesianOptimization object. To return AggregateOptimizationResults, you must specify OptimizeHyperparameters and HyperparameterOptimizationOptions. You must also specify the ConstraintType and ConstraintBounds options of HyperparameterOptimizationOptions. For an example that shows how to produce this output, see Hyperparameter Optimization with Multiple Constraint Bounds.

More About

collapse all

Bag-of-Tokens Model

In the bag-of-tokens model, the value of predictor j is the nonnegative number of occurrences of token j in the observation. The number of categories (bins) in the multinomial model is the number of distinct tokens (number of predictors).

Naive Bayes

Naive Bayes is a classification algorithm that applies density estimation to the data.

The algorithm leverages Bayes theorem, and (naively) assumes that the predictors are conditionally independent, given the class. Although the assumption is usually violated in practice, naive Bayes classifiers tend to yield posterior distributions that are robust to biased class density estimates, particularly where the posterior is 0.5 (the decision boundary) [1].

Naive Bayes classifiers assign observations to the most probable class (in other words, the maximum a posteriori decision rule). Explicitly, the algorithm takes these steps:

Estimate the densities of the predictors within each class.
Model posterior probabilities according to Bayes rule. That is, for all k = 1,...,K,

$\hat{P} (Y = k | X_{1}, .., X_{P}) = \frac{π (Y = k) \prod_{j = 1}^{P} P (X_{j} | Y = k)}{\sum_{k = 1}^{K} π (Y = k) \prod_{j = 1}^{P} P (X_{j} | Y = k)},$
where:
- Y is the random variable corresponding to the class index of an observation.
- X₁,...,X_P are the random predictors of an observation.
- $π (Y = k)$ is the prior probability that a class index is k.
Classify an observation by estimating the posterior probability for each class, and then assign the observation to the class yielding the maximum posterior probability.

If the predictors compose a multinomial distribution, then the posterior probability $\hat{P} (Y = k | X_{1}, .., X_{P}) \propto π (Y = k) P_{m n} (X_{1}, ..., X_{P} | Y = k),$ where $P_{m n} (X_{1}, ..., X_{P} | Y = k)$ is the probability mass function of a multinomial distribution.

Tips

For classifying count-based data, such as the bag-of-tokens model, use the multinomial distribution (e.g., set 'DistributionNames','mn').
After training a model, you can generate C/C++ code that predicts labels for new data. Generating C/C++ code requires MATLAB Coder™. For details, see Introduction to Code Generation.

Algorithms

If predictor variable j has a conditional normal distribution (see the DistributionNames name-value argument), the software fits the distribution to the data by computing the class-specific weighted mean and the unbiased estimate of the weighted standard deviation. For each class k:
- The weighted mean of predictor j is

  ${\bar{x}}_{j | k} = \frac{\sum_{{i : y_{i} = k}} w_{i} x_{i j}}{\sum_{{i : y_{i} = k}} w_{i}},$
  where w_i is the weight for observation i. The software normalizes weights within a class such that they sum to the prior probability for that class.
- The unbiased estimator of the weighted standard deviation of predictor j is

  $s_{j | k} = {[\frac{\sum_{{i : y_{i} = k}} w_{i} {(x_{i j} - {\bar{x}}_{j | k})}^{2}}{z_{1 | k} - \frac{z_{2 | k}}{z_{1 | k}}}]}^{1 / 2},$
  where z_1|k is the sum of the weights within class k and z_2|k is the sum of the squared weights within class k.
If all predictor variables compose a conditional multinomial distribution (you specify 'DistributionNames','mn'), the software fits the distribution using the bag-of-tokens model. The software stores the probability that token j appears in class k in the property DistributionParameters{k,j}. Using additive smoothing [2], the estimated probability is

$P (token j | class k) = \frac{1 + c_{j | k}}{P + c_{k}},$
where:
- $c_{j | k} = n_{k} \frac{\sum_{{i : y_{i} = k}}^{} x_{i j} w_{i}^{}}{\sum_{{i : y_{i} = k}}^{} w_{i}},$ which is the weighted number of occurrences of token j in class k.
- n_k is the number of observations in class k.
- $w_{i}^{}$ is the weight for observation i. The software normalizes weights within a class such that they sum to the prior probability for that class.
- $c_{k} = \sum_{j = 1}^{P} c_{j | k},$ which is the total weighted number of occurrences of all tokens in class k.
If predictor variable j has a conditional multivariate multinomial distribution:
1. The software collects a list of the unique levels, stores the sorted list in CategoricalLevels, and considers each level a bin. Each predictor/class combination is a separate, independent multinomial random variable.
2. For each class k, the software counts instances of each categorical level using the list stored in CategoricalLevels{j}.
3. The software stores the probability that predictor j, in class k, has level L in the property DistributionParameters{k,j}, for all levels in CategoricalLevels{j}. Using additive smoothing [2], the estimated probability is

  $P (predictor j = L | class k) = \frac{1 + m_{j | k} (L)}{m_{j} + m_{k}},$
  where:
  - $m_{j | k} (L) = n_{k} \frac{\sum_{{i : y_{i} = k}}^{} I {x_{i j} = L} w_{i}^{}}{\sum_{{i : y_{i} = k}}^{} w_{i}^{}},$ which is the weighted number of observations for which predictor j equals L in class k.
  - n_k is the number of observations in class k.
  - $I {x_{i j} = L} = 1$ if x_ij = L, 0 otherwise.
  - $w_{i}^{}$ is the weight for observation i. The software normalizes weights within a class such that they sum to the prior probability for that class.
  - m_j is the number of distinct levels in predictor j.
  - m_k is the weighted number of observations in class k.

If you specify the Cost, Prior, and Weights name-value arguments, the output model object stores the specified values in the Cost, Prior, and W properties, respectively. The Cost property stores the user-specified cost matrix as is. The Prior and W properties store the prior probabilities and observation weights, respectively, after normalization. For details, see Misclassification Cost Matrix, Prior Probabilities, and Observation Weights.
The software uses the Cost property for prediction, but not training. Therefore, Cost is not read-only; you can change the property value by using dot notation after creating the trained model.

References

[1] Hastie, T., R. Tibshirani, and J. Friedman. The Elements of Statistical Learning, Second Edition. NY: Springer, 2008.

[2] Manning, Christopher D., Prabhakar Raghavan, and Hinrich Schütze. Introduction to Information Retrieval, NY: Cambridge University Press, 2008.

Extended Capabilities

Tall Arrays
Calculate with arrays that have more rows than fit in memory.

This function supports tall arrays with the limitations:

Supported syntaxes are:
- Mdl = fitcnb(Tbl,Y)
- Mdl = fitcnb(X,Y)
- Mdl = fitcnb(___,Name,Value)
- [Mdl,AggregateOptimizationResults] = fitcnb(___,Name=Value) — fitcnb additionally returns the AggregateBayesianOptimization object AggregateOptimizationResults, which contains hyperparameter optimization results when you specify the OptimizeHyperparameters and HyperparameterOptimizationOptions name-value arguments. You must also specify the ConstraintType and ConstraintBounds options of HyperparameterOptimizationOptions.
Options related to kernel densities, cross-validation, and hyperparameter optimization are not supported. The supported name-value pair arguments are:
- 'DistributionNames' — 'kernel' value is not supported.
- 'CategoricalPredictors'
- 'Cost'
- 'PredictorNames'
- 'Prior'
- 'ResponseName'
- 'ScoreTransform'
- 'Weights' — Value must be a tall array.

For more information, see Tall Arrays for Out-of-Memory Data.

Automatic Parallel Support
Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

To perform parallel hyperparameter optimization, use the UseParallel=true option in the HyperparameterOptimizationOptions name-value argument in the call to the fitcnb function.

For more information on parallel hyperparameter optimization, see Parallel Bayesian Optimization.

For general information about parallel computing, see Run MATLAB Functions with Automatic Parallel Support (Parallel Computing Toolbox).

Version History

Introduced in R2014b

expand all

R2023b: Naive Bayes models support standardization of kernel-distributed predictors

Starting in R2023b, fitcnb supports the standardization of predictors with kernel distributions. That is, you can specify the Standardize name-value argument as true when the DistributionNames name-value argument includes at least one "kernel" distribution.

You can also optimize the Standardize hyperparameter by using the OptimizeHyperparameters name-value argument. Unlike in previous releases, when you specify "auto" as the OptimizeHyperparameters value, fitcnb includes Standardize as an optimizable hyperparameter.

R2023b: `Width` hyperparameter search range does not depend on predictor data during optimization of naive Bayes models

Starting in R2023b, fitcnb optimizes the kernel smoothing window width of naive Bayes models by using the default search range [1e-3,1e3]. That is, when you specify to optimize the naive Bayes hyperparameter Width by using the OptimizeHyperparameters name-value argument, the function searches among positive values log-scaled in the range [1e-3,1e3].

In previous releases, the default search range for the Width hyperparameter was [MinPredictorDiff/4,max(MaxPredictorRange,MinPredictorDiff)], where MinPredictorDiff and MaxPredictorRange were determined as follows:

diffs = diff(sort(X));
MinPredictorDiff = min(diffs(diffs ~= 0),[],"omitnan");
MaxPredictorRange = max(max(X) - min(X));

fitcnb

Syntax

Description

Examples

Train a Naive Bayes Classifier

Specify Prior Probabilities When Training Naive Bayes Classifiers

Specify Predictor Distributions for Naive Bayes Classifiers

Compare Classifiers Using Cross-Validation

Train Naive Bayes Classifiers Using Multinomial Predictors

Optimize Naive Bayes Classifier

Input Arguments

Tbl — Sample data table

ResponseVarName — Response variable name name of variable in Tbl

formula — Explanatory model of response variable and subset of predictor variables character vector | string scalar

Y — Class labels categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

X — Predictor data numeric matrix

Name-Value Arguments

DistributionNames — Data distributions 'kernel' | 'mn' | 'mvmn' | 'normal' | string array | cell array of character vectors

Kernel — Kernel smoother type 'normal' (default) | 'box' | 'epanechnikov' | 'triangle' | string array | cell array of character vectors

Standardize — Flag to standardize kernel-distributed predictors false or 0 (default) | true or 1

Support — Kernel smoothing density support 'unbounded' (default) | 'positive' | string array | cell array | numeric row vector

Width — Kernel smoothing window width matrix of numeric values | numeric column vector | numeric row vector | scalar

CrossVal — Cross-validation flag 'off' (default) | 'on'

CVPartition — Cross-validation partition [] (default) | cvpartition object

Holdout — Fraction of data for holdout validation scalar value in the range (0,1)

KFold — Number of folds 10 (default) | positive integer value greater than 1

Leaveout — Leave-one-out cross-validation flag "off" (default) | "on"

CategoricalPredictors — Categorical predictors list vector of positive integers | logical vector | character matrix | string array | cell array of character vectors | 'all'

ClassNames — Names of classes to use for training categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

Cost — Cost of misclassification square matrix | structure

PredictorNames — Predictor variable names string array of unique names | cell array of unique character vectors

Prior — Prior probabilities 'empirical' (default) | 'uniform' | vector of scalar values | structure

ResponseName — Response variable name "Y" (default) | character vector | string scalar

ScoreTransform — Score transformation "none" (default) | "doublelogit" | "invlogit" | "ismax" | "logit" | function handle | ...

Weights — Observation weights numeric vector of positive values | name of variable in Tbl

OptimizeHyperparameters — Parameters to optimize 'none' (default) | 'auto' | 'all' | string array or cell array of eligible parameter names | vector of optimizableVariable objects

HyperparameterOptimizationOptions — Options for optimization HyperparameterOptimizationOptions object | structure

Output Arguments

Mdl — Trained naive Bayes classification model ClassificationNaiveBayes model object | ClassificationPartitionedModel cross-validated model object

AggregateOptimizationResults — Aggregate optimization results AggregateBayesianOptimization object

More About

Bag-of-Tokens Model

Naive Bayes

Tips

Algorithms

References

Extended Capabilities

Tall Arrays Calculate with arrays that have more rows than fit in memory.

Automatic Parallel Support Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

Version History

R2023b: Naive Bayes models support standardization of kernel-distributed predictors

R2023b: Width hyperparameter search range does not depend on predictor data during optimization of naive Bayes models

See Also

Topics

`Tbl` — Sample data
table

`ResponseVarName` — Response variable name
name of variable in `Tbl`

`formula` — Explanatory model of response variable and subset of predictor variables
character vector | string scalar

`Y` — Class labels
categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

`X` — Predictor data
numeric matrix

`DistributionNames` — Data distributions
`'kernel'` | `'mn'` | `'mvmn'` | `'normal'` | string array | cell array of character vectors

`Kernel` — Kernel smoother type
`'normal'` (default) | `'box'` | `'epanechnikov'` | `'triangle'` | string array | cell array of character vectors

`Standardize` — Flag to standardize kernel-distributed predictors
`false` or `0` (default) | `true` or `1`

`Support` — Kernel smoothing density support
`'unbounded'` (default) | `'positive'` | string array | cell array | numeric row vector

`Width` — Kernel smoothing window width
matrix of numeric values | numeric column vector | numeric row vector | scalar

`CrossVal` — Cross-validation flag
`'off'` (default) | `'on'`

`CVPartition` — Cross-validation partition
`[]` (default) | `cvpartition` object

`Holdout` — Fraction of data for holdout validation
scalar value in the range (0,1)

`KFold` — Number of folds
`10` (default) | positive integer value greater than 1

`Leaveout` — Leave-one-out cross-validation flag
`"off"` (default) | `"on"`

`CategoricalPredictors` — Categorical predictors list
vector of positive integers | logical vector | character matrix | string array | cell array of character vectors | `'all'`

`ClassNames` — Names of classes to use for training
categorical array | character array | string array | logical vector | numeric vector | cell array of character vectors

`Cost` — Cost of misclassification
square matrix | structure

`PredictorNames` — Predictor variable names
string array of unique names | cell array of unique character vectors

`Prior` — Prior probabilities
`'empirical'` (default) | `'uniform'` | vector of scalar values | structure

`ResponseName` — Response variable name
`"Y"` (default) | character vector | string scalar

`ScoreTransform` — Score transformation
`"none"` (default) | `"doublelogit"` | `"invlogit"` | `"ismax"` | `"logit"` | function handle | ...

`Weights` — Observation weights
numeric vector of positive values | name of variable in `Tbl`

`OptimizeHyperparameters` — Parameters to optimize
`'none'` (default) | `'auto'` | `'all'` | string array or cell array of eligible parameter names | vector of `optimizableVariable` objects

`HyperparameterOptimizationOptions` — Options for optimization
`HyperparameterOptimizationOptions` object | structure

`Mdl` — Trained naive Bayes classification model
`ClassificationNaiveBayes` model object | `ClassificationPartitionedModel` cross-validated model object

`AggregateOptimizationResults` — Aggregate optimization results
`AggregateBayesianOptimization` object

Tall Arrays
Calculate with arrays that have more rows than fit in memory.

Automatic Parallel Support
Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

R2023b: `Width` hyperparameter search range does not depend on predictor data during optimization of naive Bayes models
