# OneClassSVM

## Description

Use a one-class support vector machine model object `OneClassSVM`

for outlier detection and novelty detection.

Outlier detection (detecting anomalies in training data) — Detect anomalies in training data by using the

`ocsvm`

function. The`ocsvm`

function trains a`OneClassSVM`

object and returns anomaly indicators and scores for the training data.Novelty detection (detecting anomalies in new data with uncontaminated training data) — Create a

`OneClassSVM`

object by passing uncontaminated training data (data with no outliers) to`ocsvm`

, and detect anomalies in new data by passing the object and the new data to the object function`isanomaly`

. The`isanomaly`

function returns anomaly indicators and scores for the new data.

## Creation

Create a `OneClassSVM`

object by using the `ocsvm`

function.

## Properties

`CategoricalPredictors`

— Categorical predictor indices

vector of positive integers | `[]`

This property is read-only.

Categorical predictor
indices, specified as a vector of positive integers. `CategoricalPredictors`

contains index values indicating that the corresponding predictors are categorical. The index
values are between 1 and `p`

, where `p`

is the number of
predictors used to train the model. If none of the predictors are categorical, then this
property is empty (`[]`

).

`ContaminationFraction`

— Fraction of anomalies in training data

numeric scalar in the range `[0,1]`

This property is read-only.

Fraction of anomalies in the training data, specified as a numeric scalar in the
range `[0,1]`

.

If the

`ContaminationFraction`

value is 0, then`ocsvm`

treats all training observations as normal observations, and sets the score threshold (`ScoreThreshold`

property value) to the maximum anomaly score value of the training data.If the

`ContaminationFraction`

value is in the range (`0`

,`1`

], then`ocsvm`

determines the threshold value (`ScoreThreshold`

property value) so that the function detects the specified fraction of training observations as anomalies.

`KernelScale`

— Kernel scale parameter

positive scalar

This property is read-only.

Kernel scale parameter, specified as a positive scalar.

`Lambda`

— Regularization term strength

nonnegative scalar

This property is read-only.

Regularization term strength, specified as a nonnegative scalar.

`Mu`

— Predictor means

numeric vector | `[]`

This property is read-only.

Predictor means of the training data, specified as a numeric vector.

If you specify

`StandardizeData=true`

when you train a one-class SVM model using`ocsvm`

:The length of

`Mu`

is equal to the number of predictors.If you set

`StandardizeData=false`

, then`Mu`

is an empty vector (`[]`

).

`NumExpansionDimensions`

— Number of dimensions of expanded space

positive integer

This property is read-only.

Number of dimensions of the expanded space, specified as a positive integer.

`ObjectiveValue`

— Value of objective function

scalar

This property is read-only.

Value of the objective function that the Limited-memory Broyden-Fletcher-Goldfarb-Shanno (LBFGS) solver minimizes to solve the one-class SVM problem, specified as a scalar.

`PredictorNames`

— Predictor variable names

cell array of character vectors

This property is read-only.

Predictor variable names, specified as a cell array of character vectors. The order of the
elements in `PredictorNames`

corresponds to the order in which the
predictor names appear in the training data.

`ScoreThreshold`

— Threshold for anomaly score

numeric scalar in the range `(–Inf,Inf)`

This property is read-only.

Threshold for the anomaly score used to identify anomalies in the training data,
specified as a numeric scalar in the range `(–Inf,Inf)`

.

The software identifies observations with anomaly scores above the threshold as anomalies.

The

`ocsvm`

function determines the threshold value to detect the specified fraction (`ContaminationFraction`

property) of training observations as anomalies.

The

`isanomaly`

object function uses the`ScoreThreshold`

property value as the default value of the`ScoreThreshold`

name-value argument.

`Sigma`

— Predictor standard deviations

numeric vector | `[]`

This property is read-only.

Predictor standard deviations of the training data, specified as a numeric vector.

If you specify

`StandardizeData=true`

when you train a one-class SVM model using`ocsvm`

:The length of

`Sigma`

is equal to the number of predictors.If you set

`StandardizeData=false`

, then`Sigma`

is an empty vector (`[]`

).

## Object Functions

`isanomaly` | Find anomalies in data using one-class support vector machine (SVM) |

`incrementalLearner` | Convert one-class SVM model to incremental learner |

## Examples

### Detect Outliers

Detect outliers (anomalies in training data) by using the `ocsvm`

function.

Load the sample data set `NYCHousing2015`

.

`load NYCHousing2015`

The data set includes 10 variables with information on the sales of properties in New York City in 2015. Display a summary of the data set.

summary(NYCHousing2015)

double Values: Min 1 Median 3 Max 5 NEIGHBORHOOD: 91446×1 cell array of character vectors BUILDINGCLASSCATEGORY: 91446×1 cell array of character vectors RESIDENTIALUNITS: 91446×1 double Values: Min 0 Median 1 Max 8759 COMMERCIALUNITS: 91446×1 double Values: Min 0 Median 0 Max 612 LANDSQUAREFEET: 91446×1 double Values: Min 0 Median 1700 Max 2.9306e+07 GROSSSQUAREFEET: 91446×1 double Values: Min 0 Median 1056 Max 8.9422e+06 YEARBUILT: 91446×1 double Values: Min 0 Median 1939 Max 2016 SALEPRICE: 91446×1 double Values: Min 0 Median 3.3333e+05 Max 4.1111e+09 SALEDATE: 91446×1 datetime Values: Min 01-Jan-2015 Median 09-Jul-2015 Max 31-Dec-2015

The `SALEDATE`

column is a `datetime`

array, which is not supported by `ocsvm`

. Create columns for the month and day numbers of the `datetime`

values, and delete the `SALEDATE`

column.

[~,NYCHousing2015.MM,NYCHousing2015.DD] = ymd(NYCHousing2015.SALEDATE); NYCHousing2015.SALEDATE = [];

Train a one-class SVM model for `NYCHousing2015`

. Specify the fraction of anomalies in the training observations as 0.1, and specify the first variable (`BOROUGH`

) as a categorical predictor. The first variable is a numeric array, so `ocsvm`

assumes it is a continuous variable unless you specify the variable as a categorical variable. In addition, specify `StandardizeData`

as `true`

to standardize the input data, because the predictors have largely different scales. Set `KernelScale`

to `"auto"`

so that the software selects an appropriate kernel scale parameter using a heuristic procedure.

rng("default") % For reproducibility [Mdl,tf,scores] = ocsvm(NYCHousing2015,ContaminationFraction=0.1, ... CategoricalPredictors=1,StandardizeData=true, ... KernelScale="auto");

`Mdl`

is a `OneClassSVM`

object. `ocsvm`

also returns the anomaly indicators (`tf`

) and anomaly scores (`scores`

) for the training data `NYCHousing2015`

.

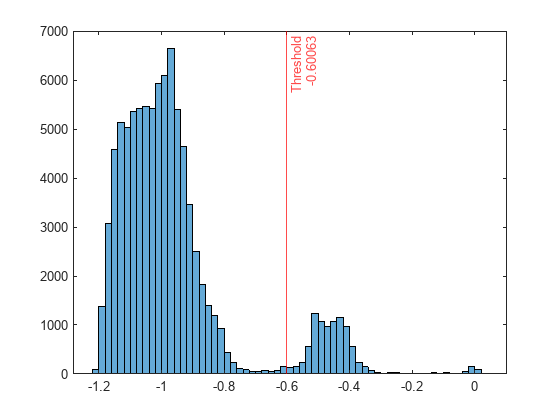

Plot a histogram of the score values. Create a vertical line at the score threshold corresponding to the specified fraction.

histogram(scores) xline(Mdl.ScoreThreshold,"r-",["Threshold" Mdl.ScoreThreshold])

If you want to identify anomalies with a different contamination fraction (for example, 0.01), you can train a new one-class SVM model.

rng("default") % For reproducibility [newMdl,newtf,scores] = ocsvm(NYCHousing2015, ... ContaminationFraction=0.01,CategoricalPredictors=1, ... KernelScale="auto");

If you want to identify anomalies with a different score threshold value (for example, -0.7), you can pass the `OneClassSVM`

object, the training data, and a new threshold value to the `isanomaly`

function.

[newtf,scores] = isanomaly(Mdl,NYCHousing2015,ScoreThreshold=-0.7);

Note that changing the contamination fraction or score threshold changes the anomaly indicators only, and does not affect the anomaly scores. Therefore, if you do not want to compute the anomaly scores again by using `ocsvm`

or `isanomaly`

, you can obtain a new anomaly indicator with the existing score values.

Change the fraction of anomalies in the training data to 0.01.

newContaminationFraction = 0.01;

Find a new score threshold by using the `quantile`

function.

newScoreThreshold = quantile(scores,1-newContaminationFraction)

newScoreThreshold = -0.3745

Obtain a new anomaly indicator.

newtf = scores > newScoreThreshold;

### Detect Novelties

Create a `OneClassSVM`

object for uncontaminated training observations by using the `ocsvm`

function. Then detect novelties (anomalies in new data) by passing the object and the new data to the object function `isanomaly`

.

Load the 1994 census data stored in `census1994.mat`

. The data set consists of demographic data from the US Census Bureau to predict whether an individual makes over $50,000 per year.

`load census1994`

`census1994`

contains the training data set `adultdata`

and the test data set `adulttest`

.

`ocsvm`

does not use observations with missing values. Remove missing values in the data sets to reduce memory consumption and speed up training.

adultdata = rmmissing(adultdata); adulttest = rmmissing(adulttest);

Train a one-class SVM for `adultdata`

. Assume that `adultdata`

does not contain outliers. Specify `StandardizeData`

as `true`

to standardize the input data, and set `KernelScale`

to `"auto"`

to let the function select an appropriate kernel scale parameter using a heuristic procedure.

rng("default") % For reproducibility [Mdl,~,s] = ocsvm(adultdata,StandardizeData=true,KernelScale="auto");

`Mdl`

is a `OneClassSVM`

object. If you do not specify the `ContaminationFraction`

name-value argument as a value greater than 0, then `ocsvm`

treats all training observations as normal observations. The function sets the score threshold to the maximum score value. Display the threshold value.

Mdl.ScoreThreshold

ans = 0.0322

Find anomalies in `adulttest`

by using the trained one-class SVM model. Because you specified `StandardizeData=true`

when you trained the model, the `isanomaly`

function standardizes the input data by using the predictor means and standard deviations of the training data stored in the `Mu`

and `Sigma`

properties, respectively.

[tf_test,s_test] = isanomaly(Mdl,adulttest);

The `isanomaly`

function returns the anomaly indicators `tf_test`

and scores `s_test`

for `adulttest`

. By default, `isanomaly`

identifies observations with scores above the threshold (`Mdl.ScoreThreshold`

) as anomalies.

Create histograms for the anomaly scores `s`

and `s_test`

. Create a vertical line at the threshold of the anomaly scores.

h1 = histogram(s,NumBins=50,Normalization="probability"); hold on h2 = histogram(s_test,h1.BinEdges,Normalization="probability"); xline(Mdl.ScoreThreshold,"r-",join(["Threshold" Mdl.ScoreThreshold])) h1.Parent.YScale = 'log'; h2.Parent.YScale = 'log'; legend("Training Data","Test Data",Location="north") hold off

Display the observation index of the anomalies in the test data.

find(tf_test)

ans = 0x1 empty double column vector

The anomaly score distribution of the test data is similar to that of the training data, so `isanomaly`

does not detect any anomalies in the test data with the default threshold value. You can specify a different threshold value by using the `ScoreThreshold`

name-value argument. For an example, see Specify Anomaly Score Threshold.

## More About

### One-Class SVM

One-class SVM, or unsupervised SVM, is an
algorithm used for anomaly detection. The algorithm tries to separate data from the origin in
the transformed high-dimensional predictor space. `ocsvm`

finds the decision
boundary based on the primal form of SVM with the Gaussian kernel approximation method.

### Random Feature Expansion

*Random feature
expansion*, such as Random Kitchen Sinks[1]
or Fastfood[2], is a scheme to approximate Gaussian kernels of
the kernel classification algorithm to use for big data in a computationally efficient way.
Random feature expansion is more practical for big data applications that have large
training sets, but can also be applied to smaller data sets that fit in memory.

The kernel classification algorithm searches for an
optimal hyperplane that separates the data into two classes after mapping features into a
high-dimensional space. Nonlinear features that are not linearly separable in a
low-dimensional space can be separable in the expanded high-dimensional space. All the
calculations for hyperplane classification use only dot products. You can obtain a nonlinear
classification model by replacing the dot product *x*_{1}*x*_{2}' with the nonlinear kernel function $$G({x}_{1},{x}_{2})=\langle \phi ({x}_{1}),\phi ({x}_{2})\rangle $$, where *x _{i}* is the

*i*th observation (row vector) and

*φ*(

*x*) is a transformation that maps

_{i}*x*to a high-dimensional space (called the “kernel trick”). However, evaluating

_{i}*G*(

*x*

_{1},

*x*

_{2}) (Gram matrix) for each pair of observations is computationally expensive for a large data set (large

*n*).

The random feature expansion scheme finds a random transformation so that its dot product approximates the Gaussian kernel. That is,

$$G({x}_{1},{x}_{2})=\langle \phi ({x}_{1}),\phi ({x}_{2})\rangle \approx T({x}_{1})T({x}_{2})\text{'},$$

where *T*(*x*) maps *x* in $${\mathbb{R}}^{p}$$ to a high-dimensional space ($${\mathbb{R}}^{m}$$). The Random Kitchen Sinks scheme uses the random transformation

$$T(x)={m}^{-1/2}\mathrm{exp}\left(iZx\text{'}\right)\text{'},$$

where $$Z\in {\mathbb{R}}^{m\times p}$$ is a sample drawn from $$N\left(0,{\sigma}^{-2}\right)$$ and *σ* is a kernel scale. This scheme requires *O*(*m**p*) computation and storage.

The Fastfood scheme introduces another random
basis *V* instead of *Z* using Hadamard matrices combined
with Gaussian scaling matrices. This random basis reduces the computation cost to *O*(*m*`log`

*p*) and reduces storage to *O*(*m*).

The `ocsvm`

function uses the Fastfood
scheme for random feature expansion, and uses linear classification to train a one-class
Gaussian kernel classification model.

## References

[1] Rahimi, A., and B. Recht. “Random Features for Large-Scale Kernel Machines.” *Advances in Neural Information Processing Systems*. Vol. 20, 2008, pp. 1177–1184.

[2] Le, Q., T. Sarlós, and A. Smola. “Fastfood — Approximating Kernel Expansions in Loglinear Time.” *Proceedings of the 30th International Conference on Machine Learning*. Vol. 28, No. 3, 2013, pp. 244–252.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™. (since R2023b)

Usage notes and limitations:

The

`isanomaly`

function supports code generation.

For more information, see Introduction to Code Generation.

## Version History

**Introduced in R2022b**

### R2023b: Generate C/C++ code for prediction

You can generate C/C++ code for the `isanomaly`

function.

## MATLAB 命令

您点击的链接对应于以下 MATLAB 命令：

请在 MATLAB 命令行窗口中直接输入以执行命令。Web 浏览器不支持 MATLAB 命令。

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
