Predict Class Labels Using ClassificationECOC Predict Block

Train Classification Model

Load the humanactivity data set. This data set contains 24,075 observations of five physical human activities: Sitting, Standing, Walking, Running, and Dancing. Each observation has 60 features extracted from acceleration data measured by smartphone accelerometer sensors.

load humanactivity

Create the predictor X as a numeric matrix that contains 60 features for 24,075 observations. Create the class labels Y as a numeric vector that contains the activity IDs in integers: 1, 2, 3, 4, and 5 representing Sitting, Standing, Walking, Running, and Dancing, respectively.

X = feat;
Y = actid;

Randomly partition observations into a training set and a test set with stratification, using the class information in Y. Use approximately 80% of the observations to train an ECOC model, and 20% of the observations to test the performance of the trained model on new data.

rng("default") % For reproducibility of the partition
cv = cvpartition(Y,"Holdout",0.20);

Extract the training and test indices.

trainingInds = training(cv);
testInds = test(cv);

Specify the training and test data sets.

XTrain = X(trainingInds,:);
YTrain = Y(trainingInds);
XTest = X(testInds,:);
YTest = Y(testInds);

Train an ECOC classification model by passing the training data XTrain and YTrain to the fitcecoc function.

ecocMdl = fitcecoc(XTrain,YTrain);

ecocMdl is a ClassificationECOC model. You can use dot notation to access the properties of ecocMdl. For example, enter ecocMdl.CodingMatrix to display the coding design matrix of the model.

ecocMdl.CodingMatrix

ans = 5×10

     1     1     1     1     0     0     0     0     0     0
    -1     0     0     0     1     1     1     0     0     0
     0    -1     0     0    -1     0     0     1     1     0
     0     0    -1     0     0    -1     0    -1     0     1
     0     0     0    -1     0     0    -1     0    -1    -1

Each row of the coding design matrix corresponds to a class, and each column corresponds to a binary learner. For example, the first binary learner is for classes 1 and 2, and the fourth binary learner is for classes 1 and 5, where both learners assume class 1 as a positive class.

Enter ecocMdl.BinaryLearners to display the model type of each binary learner.

ecocMdl.BinaryLearners

ans=10×1 cell array
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}
    {1x1 classreg.learning.classif.CompactClassificationSVM}

Enter ecocMdl.BinaryLoss to display the binary learner loss function.

ecocMdl.BinaryLoss

ans =
'hinge'

To classify a new observation, the model computes positive-class classification scores for the binary learners, applies the hinge function to the scores to compute the binary losses, and then combines the binary losses into the classification scores using the loss-weighted decoding scheme.

Compute and display the label, classification scores, and positive-class scores for a new observation by using the predict function.

[label,scores,pbscores] = predict(ecocMdl,XTest(1,:));
label

label =
1

scores

scores = 1×5

         0   -0.7281   -1.1774   -2.4186   -2.1109

pbscores'

ans = 10×1

    4.8247
    2.6695
    2.4870
    1.9088
    4.7496
    7.5894
    9.4470
    3.8461
    2.5316
   -1.4261

The ClassificationECOC Predict block can return the three outputs for each observation you pass to the block.

Create Simulink Model

This example provides the Simulink model slexClassificationECOCPredictExample.slx, which includes the ClassificationECOC Predict block. You can open the Simulink model or create a new model as described in this section.

Open the Simulink model slexClassificationECOCPredictExample.slx.

SimMdlName = "slexClassificationECOCPredictExample";
open_system(SimMdlName)

If you open the Simulink model, then the software runs the code in the PreLoadFcn callback function before loading the Simulink model. The PreLoadFcn callback function of slexClassificationECOCPredictExample includes code to check if your workspace contains the ecocMdl variable for the trained model. If the workspace does not contain the variable, PreLoadFcn loads the sample data, trains the ECOC model, and creates an input signal for the Simulink model. To view the callback function, in the Setup section on the Modeling tab, click Model Settings and select Model Properties. Then, on the Callbacks tab, select the PreLoadFcn callback function in the Model callbacks pane.

To create a new Simulink model, open the Blank Model template and add the ClassificationECOC Predict block. Add the Inport and Outport blocks and connect them to the ClassificationECOC Predict block.

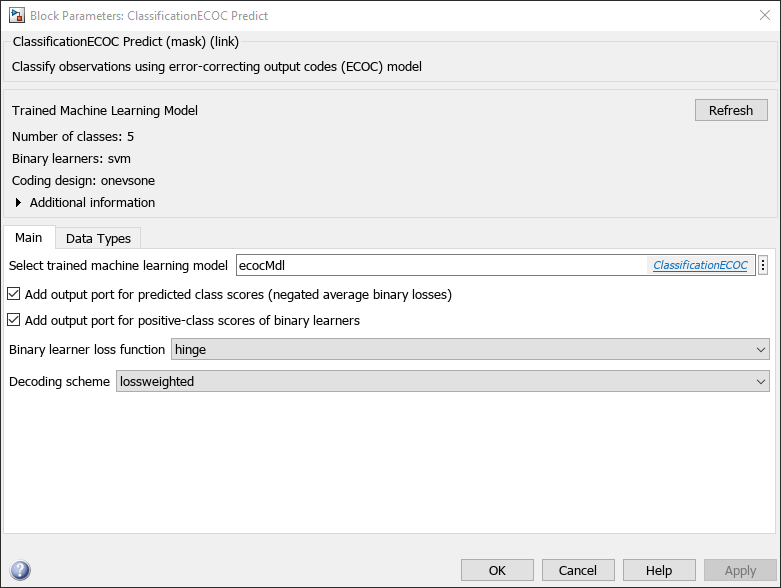

Double-click the ClassificationECOC Predict block to open the Block Parameters dialog box. Specify the Select trained machine learning model parameter as ecocMdl, the workspace variable that contains the trained ECOC model. Click the Refresh button. The dialog box displays the options used to train ecocMdl under Trained Machine Learning Model. Select the check box for Add output port for predicted class scores (negated average binary losses) to add the second output port score, and select the check box for Add output port for positive-class scores of binary learners to add the third output port pbscore. Click OK.

Create an input signal in the form of a structure array for the Simulink model. The structure array must contain these fields:

Create an appropriate structure array for the test human activity data set.

[nTest,p] = size(XTest);
activityInput.time = (0:(nTest-1))';
activityInput.signals(1).values = XTest;
activityInput.signals(1).dimensions = p;

To import signal data from the workspace:

For more details, see Load Signal Data for Simulation (Simulink).

Simulate the model.

sim(SimMdlName);

When the Inport block detects an observation, it directs the observation into the ClassificationECOC Predict block. You can use the Simulation Data Inspector (Simulink) to view the logged data of the Outport blocks.
