insertShape

Insert shapes in image or video

Description

RGB = insertShape(I,shape,position) insert the specified shape into the truecolor or grayscale image I. The function draws the shapes by overwriting pixel values, and returns a truecolor image.

example

RGB = insertShape(___,Name=Value) specifies options using one or more name-value arguments in addition to the input arguments from the input arguments from the previous syntax. For example, LineWidth=5 sets the line width value to 5 of the inserted shapes.

Examples

collapse all

Read an image into the workspace.

I = imread("peppers.png");

Place a circle on the image with a border line width of 5 pixels.

RGB = insertShape(I,"circle",[150 280 35],LineWidth=5);

Place a filled triangle and a filled hexagon on the image.

pos_triangle = [183 297 302 250 316 297];
pos_hexagon = [340 163 305 186 303 257 334 294 362 255 361 191];
RGB = insertShape(RGB,"filled-polygon",{pos_triangle pos_hexagon}, ...
    ShapeColor=["white","green"],Opacity=0.7);

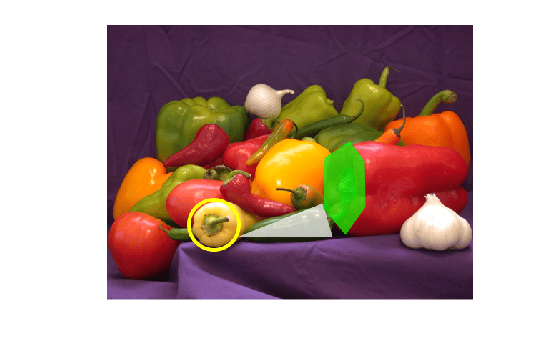

Display the resulting image.

imshow(RGB)

Figure contains an axes object. The hidden axes object contains an object of type image.

Input Arguments

collapse all

Input image, specified as an M-by-N-by-3 truecolor or an M-by-N grayscale image.

Data Types: single | double | int16 | uint8 | uint16

Type of shape, specified as "rectangle", "filled-rectangle", "line", "polygon", "filled-polygon", "circle", "filled-circle", "projected-cuboid", "ellipse", or "filled-ellipse".

Data Types: char | string

Position of shape, specified according to the type of shape, as described in the table.

ShapePositionDefinition

rectangle

filled-rectangle

For one or more axis-aligned rectangles or filled rectangles, specify as an M-by-4 numeric matrix, where each row specifies a rectangle of the form [xywidthheight].

  • M is the number of axis-aligned rectangles.

  • x and y specify the upper-left corner of the rectangle.

  • w specifies the width of the rectangle, which is its length along the x-axis.

  • h specifies the height of the rectangle, which is its length along the y-axis.

[x1y1width1height1x2y2width2height2xMyMwidthMheightM]

For one or more rotated rectangles, specify in spatial coordinates as an M-by-5 numeric matrix, where each row specifies a rotated rectangle of the form [xctr yctr w h yaw].

  • M is the number of rotated rectangles.

  • xctr and yctr specify the center of the rectangle.

  • w specifies the width of the rectangle, which is its length along the x-axis before rotation.

  • h specifies the height of the rectangle, which is its length along the y-axis before rotation.

  • yaw specifies the rotation angle in degrees. The rotation is clockwise-positive around the center of the rectangle.

Square rectangle rotated by -30 degrees.

circle

filled-circle

For one or more circles, specify spatial coordinates as an M-by-3 numeric matrix, where each row specifies a circle of the form [xctr yctr radius].

  • M is the number of circles.

  • xctr and yctr specify the center of the circle.

  • radius specifies the radius of the circle.

[xctr1yctr1radius1xctr2yctr2radius2xctrMyctrMradiusM]

ellipse

filled-ellipse

For one or more ellipses, specify in spatial coordinates as an M-by-5 matrix, where each row specifies an ellipse of the form [xctr yctr major minor yaw]

  • M is the number of ellipses.

  • xctr and yctr specify the center of the ellipse.

  • major and minor are the lengths of the major and minor ellipse axes, respectively.

  • yaw is the angle of rotation in degrees. The angle of rotation is clockwise positive around the center of the ellipse.

line

For one or more lines, specify spatial coordinates using one of these formats to specify a single line with connected endpoints, multiple lines with the same number of endpoints, or multiple lines with different numbers of endpoints.

  • Single lines with connected endpoints — Specify as a P-by-2 matrix, where each row specifies an endpoint in the form [x y], and the endpoint in one row connects directly to the endpoint in the next. P is the number of endpoints in the line.

  • Multiple lines with the same number of endpoints — Specify as an M-by-2P matrix, where each row specifies the consecutive endpoints of a single line in the form [x1 y1 x2 y2 ... xp yp]. Each [x y] pair is the coordinates of a single endpoint. M is the number of specified lines, and P is the number of endpoints per line.

  • Multiple lines with different numbers of endpoints — Specify as an M-by-1 cell array, where each cell contains the endpoints for a single line as a P-by-2 matrix or a 1-by-2P vector]. M is the number of specified lines, and P is the number of endpoints for each line

polygon

filled-polygon

For one or more polygons, specify in spatial coordinates as an M-by-1 cell array, where each cell contains an L-by-2 matrix of [x y] vertex locations or a 1-by-2L vector of consecutive vertex locations of the form [x1, y1, x2,y2, … xL,yL ].

  • M is the number of polygons.

  • Each [x y] pair describes a vertex location or endpoint.

  • L is the number of vertices in a polygon or endpoints in a line. Each polygon or line can have a different number of vertices or endpoints.

projected-cuboid

For one or more projected cuboids, specify in spatial coordinates as an 8-by-2-by-M array or an M-by-8 matrix, where M is the number of projected cuboids.

When specified as an 8-by-2-by-M array, each row must contain the [x y] location of a projected cuboid vertex. The vertices connect to form a cuboid with six faces. The order of the input vertices must match the order shown in the diagram.

When specified as an M-by-8 matrix, each row specifies the dimensions of the front-facing and rear-facing sides of a projected cuboid in the form, [x1 y1 w1 h1 x2 y2 w2 h2], where [x1 y1] and [x2 y2] specify the upper-left coordinates of the front-facing and rear-facing sides, respectively, and [w1 h1] and [w2 h2] specify the corresponding widths and heights.

Cuboid showing numbered vertices. The number starts with 1 assigned to the top right corner of the front facing rectangle. Going counter-clockwise 1-4 for the top face of cuboid, then 5-8 for the bottom face. The positive Z-axis goes up, the positive Y-axis goes to the right and the positive X-axis faces forward.

Data Types: single | double | cell | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: insertShape(I,"circle",position,Color="yellow") sets the shape color to yellow.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: insertShape(I,"circle",position,"Color","yellow") sets the shape color to yellow.

Shape border line width, specified as a positive integer, in pixels. This argument applies to only the "Rectangle", "Line", "Polygon", and "Circle" shapes.

Data Types: uint8 | uint16 | int16 | double | single

Shape color, specified as a short color name, color name, vector of color names, three-column matrix of RGB triplets.

The supported colors table lists RGB intensities in the range [0, 1], but you must specify RGB triplets in the range of your selected data type. For example, if specifying this argument as a matrix of uint8 values, you must convert each intensity value to the range [0, 255]. To convert the listed intensity values to a uint8 data type, use the code uint8(255*intensity), where intensity is an RGB triplet value listed in the table.

You can specify a different color for each shape or one color for all shapes. To specify one color for all markers, specify ShapeColor as a color name or an [R G B] vector.

SpecificationFormatExample
Specify one color for all shapes (or markers)

Short color name or color name

"r"

"red"

RGB triplet

[1 0 0]1-by-3 grid, with columns labeled r,g,b respectively.

Specify a color for each shape (or marker)

Vector of color names

["red","yellow","blue"]

Three-column matrix of RGB triplets

[1 0 0
 0 1 1
 1 0 1
 1 1 1]
M-by-3 grid, with columns labeled r,g,b respectively.

This table lists the supported shape colors.

Color NameShort NameRGB TripletAppearance
"red""r"[1 0 0]

Sample of the color red

"green""g"[0 1 0]

Sample of the color green

"blue""b"[0 0 1]

Sample of the color blue

"cyan" "c"[0 1 1]

Sample of the color cyan

"magenta""m"[1 0 1]

Sample of the color magenta

"yellow""y"[1 1 0]

Sample of the color yellow

"black""k"[0 0 0]

Sample of the color black

"white""w"[1 1 1]

Sample of the color white

Data Types: logical | uint8 | uint16 | int16 | double | single | cell

Opacity of a filled shape, specified as a scalar in the range [0 1]. The Opacity argument applies to only the "filled-rectangle", "filled-polygon", and "filled-circle" shapes.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Smooth shape edges, specified as a logical 1 (true) or 0 (false). A true value enables an antialiasing filter to smooth shape edges. This value applies to only nonrectangular shapes. When you enable antialiasing requires additional time to draw the shapes.

Data Types: logical

Output Arguments

collapse all

Output image, returned as an M-by-N-by-3 truecolor image.

Extended Capabilities

Version History

Introduced in R2014a
