quantizeOCR

Quantize OCR model

Since R2023a

collapse all in page

    Syntax

    outputFileName = quantizeOCR(inputFileName,outputModelName)
    outputFileName = quantizeOCR(___,OutputLocation=location)

    Description

    outputFileName = quantizeOCR(inputFileName,outputModelName) quantizes the specified optical character recognition (OCR) model inputFileName and stores it in the present working directory, specified by outputModelName.

    quantizeOCR quantizes the weights of an OCR model to produce a new OCR model that is faster and use less memory, but at the cost of reduced accuracy in results.

    example

    outputFileName = quantizeOCR(___,OutputLocation=location) specifies the location to store the returned quantized model, in addition to the input arguments from the previous syntax.. By default, location is set to the present working directory. Specify location as a character vector or string scalar of the absolute or relative path for the desired output location

    Examples

    collapse all

    Open Live Script

    This example shows how to quantize the seven-segment OCR model that ships with the Computer Vision Toolbox™.

    Specify the fullpath to the OCR model.

    model = fullfile(toolboxdir("vision"),"visionutilities",...
    "tessdata_best","seven_segment.traineddata");

    Specify a filename to save the quantized OCR model.

    outputModelName = "quantizedModel";

    Quantize the OCR model.

    outputModel = quantizeOCR(model,outputModelName);

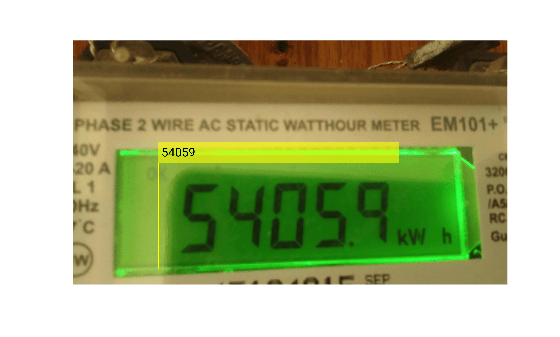

    Use the quantized model to perform OCR on a test image and visualize the results.

    I = imread("sevSegDisp.jpg");
roi = [506 725 1418 626];
ocrResults = ocr(I,roi,Model=outputModel,LayoutAnalysis="block");
Iocr = insertObjectAnnotation(I,"rectangle",...
            ocrResults.WordBoundingBoxes,ocrResults.Words,...
            LineWidth=5,FontSize=72);
imshow(Iocr)

    Figure contains an axes object. The hidden axes object contains an object of type image.

    Open Live Script

    This example shows how to improve runtime performance of an OCR model with quantization. This can be useful when deploying an OCR model in resource constrained systems.

    Specify the fullpath to the OCR model.

    originalModel = fullfile(toolboxdir("vision"),"visionutilities",...
    "tessdata_best","seven_segment.traineddata");

    Specify a filename to save the quantized OCR model.

    outputModelName = "quantizedModel";

    Quantize the OCR model.

    quantizedModel = quantizeOCR(originalModel,outputModelName);

    Compare the runtime performance of the quantized model against the original model.

    I = imread("sevSegDisp.jpg");
roi = [506 725 1418 626];
fOCR = @() ocr(I, roi, Model=originalModel, LayoutAnalysis="block");
tOCR = timeit(fOCR);

fQuantizedOCR = @() ocr(I, roi, Model=quantizedModel, LayoutAnalysis="block");
tQuantizedOCR = timeit(fQuantizedOCR);

perfRatio = tOCR/tQuantizedOCR;
disp("Quantized model is " + perfRatio + "x faster");
    Quantized model is 1.1456x faster

    Compare file size of the quantized model with that of the original model.

    originalModelFile     = dir(originalModel);
originalModelFileSizeInMB = originalModelFile.bytes/1000000;

quantizedModelFile     = dir(quantizedModel);
quantizedModelFileSizeInMB = quantizedModelFile.bytes/1000000;

sizeRatio = originalModelFileSizeInMB/quantizedModelFileSizeInMB;
disp("Quantized model is " + sizeRatio + "x smaller");
    Quantized model is 7.8483x smaller

    While the quantized model is smaller and faster than the original model, these advantages of quantization comes at the expense of accuracy. To understand this trade-off, compare the accuracy of the two models by evaluating them against the YUVA EB dataset.

    Download the dataset.

    datasetURL = "https://ssd.mathworks.com/supportfiles/vision/data/7SegmentImages.zip";
datasetZip = "7SegmentImages.zip";
if ~exist(datasetZip,"file")
    disp("Downloading evaluation data set (" + datasetZip + " - 96 MB)...");
    websave(datasetZip,datasetURL);
end
    Downloading evaluation data set (7SegmentImages.zip - 96 MB)...

    datasetFiles = unzip(datasetZip);

    Load ground truth to be used for evaluation.

    ld = load("7SegmentGtruth.mat");
gTruth = ld.gTruth;

    Create datastores that contain images, bounding boxes and text labels from the groundTruth object using the ocrTrainingData function with the label and attribute names used during labeling.

    labelName = "Text";
attributeName = "Digits";
[imds,boxds,txtds] = ocrTrainingData(gTruth,labelName,attributeName);
cds = combine(imds,boxds,txtds);

    Run the two models on the dataset and evaluate recognition accuracy using evaluateOCR.

    originalResult  = ocr(cds, Model=originalModel);
quantizedResult = ocr(cds, Model=quantizedModel);

metricsOriginal = evaluateOCR(originalResult, cds);
    Evaluating ocr results
----------------------
* Selected metrics: character error rate, word error rate.
* Processed 119 images.
* Finalizing... Done.
* Data set metrics:

    CharacterErrorRate    WordErrorRate
    __________________    _____________

         0.082195            0.19958

    metricsQuantized = evaluateOCR(quantizedResult, cds);
    Evaluating ocr results
----------------------
* Selected metrics: character error rate, word error rate.
* Processed 119 images.
* Finalizing... Done.
* Data set metrics:

    CharacterErrorRate    WordErrorRate
    __________________    _____________

         0.13018             0.31933

    Display the model accuracies.

    originalModelAccuracy = 100*(1-metricsOriginal.DataSetMetrics.CharacterErrorRate);
quantizedModelAccuracy = 100*(1-metricsQuantized.DataSetMetrics.CharacterErrorRate);
disp("Original model accuracy = " +  originalModelAccuracy + "%")
    Original model accuracy = 91.7805%

    disp("Quantized model accuracy = " + quantizedModelAccuracy + "%")
    Quantized model accuracy = 86.9816%

    Tabulate the quantitative results.

    trainedModelResults = [originalModelAccuracy; originalModelFileSizeInMB; tOCR];
quantizedModelResults = [quantizedModelAccuracy; quantizedModelFileSizeInMB; tQuantizedOCR];

table(trainedModelResults, quantizedModelResults, ...
    VariableNames=["OriginalModel", "QuantizedModel"], ...
    RowNames=["Accuracy (in %)", "File Size (in MB)", "Runtime (in seconds)"])
    ans=3×2 table
                            OriginalModel    QuantizedModel
                            _____________    ______________

    Accuracy (in %)             91.781            86.982
    File Size (in MB)           11.297            1.4394
    Runtime (in seconds)      0.065532          0.057203

    Input Arguments

    collapse all

    Name of the OCR model file, specified as a string scalar or a character vector. If inputFileName does not include the full path, the function searches for the file in the current folder and along the MATLAB® path. If you do not specify a file extension, the function appends .traineddata.

    Output quantized model name, specified as a string scalar or character vector.

    Output Arguments

    collapse all

    Name of quantized OCR model file, specified as a string scalar or character vector.

    Version History

    Introduced in R2023a
