dipoleJ
Create J-dipole antenna
Description
Use the dipoleJ
object to create a J-dipole on the
yz-plane. The antenna contains a half-wavelength radiator and a
quarter-wavelength stub. The default antenna dimensions are set for an operating
frequency of 144MHz.
Creation
Description
creates a
J-dipole antenna at an operating frequency of 144MHz.jdipole
= dipoleJ
creates a J-dipole antenna with additional Properties
specified by one or more name-value arguments. jdipole
= dipoleJ(Name=Value)Name
is
the property name and Value
is the corresponding value.
You can specify several name-value pair arguments in any order as
Name1=Value1
, ...
,
NameN=ValueN
. Properties that you do not specify
retain their default values.
Properties
Object Functions
axialRatio | Calculate and/or plot axial ratio of antenna or array |
bandwidth | Calculate and/or plot absolute bandwidth of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |
current | Current distribution on antenna or array surface |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |
impedance | Input impedance of antenna or scan impedance of array |
info | Display information about antenna, array, or platform |
memoryEstimate | Estimate memory required to solve antenna or array mesh |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |
pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array |
resonantFrequency | Calculate and/or plot resonant frequency of antenna |
returnLoss | Return loss of antenna or scan return loss of array |
show | Display antenna, array structures, shapes, or platform |
sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |
wireStack | Create single or multi-feed wire antenna |
Examples

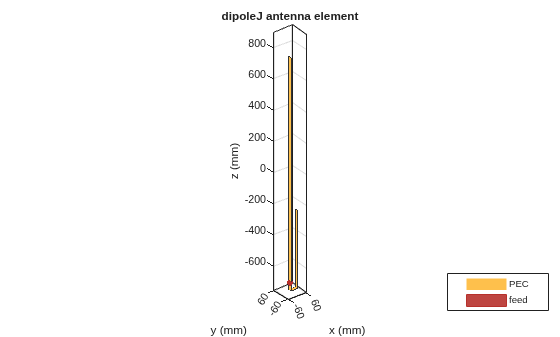

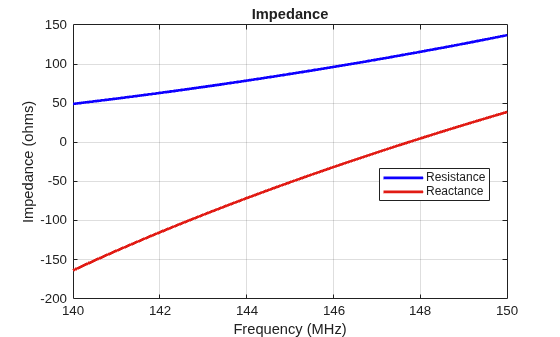

Version History
Introduced in R2018a
