MATLAB Functions for Scene Authoring

R2026b

Create and modify RoadRunner scenario elements, such as actors, logic phases, and waypoints, using MATLAB^®

Automated Driving Toolbox™ offers functions that enable you to programmatically author scenes in RoadRunner, such as by adding roads, modifying road geometry, and adding lanes and junctions, from the MATLAB command-line interface. By authoring scenes programmatically, you can quickly build scenes without switching between applications, automate repetitive authoring tasks, and generate scene variations for automated tests.

Functions

expand all

Create RoadRunner Authoring API Object

roadrunnerAPI RoadRunner authoring API (Since R2025a)

Extract Project and Scene Objects

`Project`	Specify RoadRunner project folder (Since R2025a)
`Scene`	Current RoadRunner scene (Since R2025a)
`createAsset`	Create new asset (Since R2025a)
`getAsset`	Extract object for specified asset (Since R2025a)

Add Roads

Define Road Types

`addLineArcRoad`	Add road with line-arc horizontal curve type to RoadRunner scene (Since R2025a)
`addSegmentedRoad`	Add road with segmented curve type to RoadRunner scene (Since R2025a)
`addClothoidFitRoad`	Add clothoid curve type road to RoadRunner scene (Since R2025a)

Road Layout

Road Specify road in RoadRunner scene (Since R2025a)

Add Horizontal Road Curves

Define Horizontal Road Curve Geometry

`addControlPoint`	Add control point to line-arc road curve (Since R2025a)
`addLine`	Add new line segment to horizontal curve of segmented road (Since R2025a)
`addArc`	Add new arc segment to horizontal curve of segmented road (Since R2025a)
`addSpiral`	Add new spiral segment to horizontal curve of segmented road (Since R2025a)
`addParametricCubic`	Add new parametric cubic segment to horizontal curve of segmented road (Since R2025a)

Horizontal Road Curve Types

`LineArcRoadCurve`	Specify line-arc road curve in RoadRunner scene (Since R2025a)
`LineArcRoadCurvePoint`	Specify control point on line-arc road curve in RoadRunner scene (Since R2025a)
`SegmentedRoadCurve`	Define horizontal curve of segmented road (Since R2025a)

Create and Modify Lanes

Extract Lane Object

`Lane`	Lane on road in RoadRunner scene (Since R2025a)
`ReferenceLane`	Reference lane of road in RoadRunner scene (Since R2025a)

Add Lanes

`addLaneToRight`	Add lane to right side of specified lane (Since R2025a)
`addLaneToLeft`	Add lane to left side of specified lane (Since R2025a)

Define Lane Marking Profile

`LaneMarkingProfile`	Marking profile for lane boundaries in RoadRunner scene (Since R2025a)
`LaneMarkingStyle`	Marking style of lane boundary in RoadRunner scene (Since R2025a)
`LaneMarkingSpan`	Span in lane marking profile in RoadRunner scene (Since R2025a)
`LaneMarkingNode`	Node in lane marking profile in RoadRunner scene (Since R2025a)

Define Lane Width Profile

`LaneWidthProfile`	Width profile for lane boundaries in RoadRunner scene (Since R2025a)
`LaneWidthSpan`	Span in lane width profile in RoadRunner scene (Since R2025a)
`LaneWidthNode`	Node in lane width profile in RoadRunner scene (Since R2025a)

Add Vertical Road Curves

Define Vertical Road Curve Geometry

insertNode Insert node in span sequence (Since R2025a)

Vertical Road Curve Types

`SpanSequence`	Define sequence of nodes connected by spans (Since R2025a)
`SpanSequenceNode`	Define span sequence node in span sequence (Since R2025a)
`SpanSequenceSpan`	Define span between two nodes in span sequence (Since R2025a)

Add Road Superelevation

`SuperElevationCurve`	Road superelevation or banking angle profile (Since R2026a)
`SuperElevationNode`	Road superelevation or banking angle at point (Since R2026a)
`SuperElevationSpan`	Banking angle transition between adjacent superelevation nodes along road (Since R2026a)
`addSuperElevation`	Add or update road superelevation or banking angle at point (Since R2026a)

Add Height Variation to Road Cross-Sections

`LateralProfile`	Lateral profile of road (Since R2026a)
`LateralProfileNode`	Node in lateral profile (Since R2026a)
`LateralProfileSpan`	Span in lateral profile in RoadRunner scene (Since R2026a)
`CrossSectionCurve`	Cross-section profile of road (Since R2026a)
`CrossSectionSpan`	Span in cross-section profile (Since R2026a)
`CrossSectionNode`	Node in cross-section profile (Since R2026a)
`addLateralHeight`	Add lateral height variation to road (Since R2026a)

Add Junctions

Create and Modify Junctions

`Junction`	Junctions in RoadRunner scene (Since R2026b)
`addJunction`	Add junction to RoadRunner scene (Since R2026b)
`clearMarkingsInJunction`	Clear lane markings in junction (Since R2026b)

Manage Junction Maneuvers

`Maneuver`	Maneuver roads in junction (Since R2026b)
`addAutomaticManeuvers`	Add automatic maneuvers to junction (Since R2026b)
`addManeuver`	Add maneuver roads to junction (Since R2026b)

Modify Corner Geometry

`Corner`	Corner of junction connecting edges of two adjacent approach roads (Since R2026b)
`setRadius`	Set corner radius (Since R2026b)

Manage Road Overlaps

`OverlapGroup`	Overlap group of road (Since R2026b)
`addOverlapGroup`	Add overlap group (Since R2026b)
`getRoadOverlaps`	Returns distance ranges where two roads overlap (Since R2026b)

Query Junction Topology

`getLanes`	Query direction specific lanes on road relative to junction (Since R2026b)
`getConnectedRoads`	Query approach roads connected by corner (Since R2026b)
`getConnectedRoadOrientations`	Query orientation of connected approach roads (Since R2026b)
`getJunctions`	Returns all junctions for road (Since R2026b)

Featured Examples

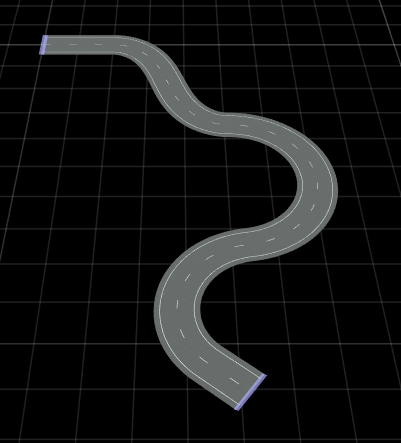

Design a Curved Road Programmatically using MATLAB Scene Authoring Functions

Design a curved road using scene authoring functions.

Open Live Script
