dsp.FIRHalfbandInterpolator

Interpolate signal using polyphase FIR halfband filter

Description

The dsp.FIRHalfbandInterpolator System object™ performs efficient polyphase interpolation of the input signal using an upsampling factor of two. You can use dsp.FIRHalfbandInterpolator to implement the synthesis portion of a two-band filter bank to synthesize a signal from lowpass and highpass subbands. dsp.FIRHalfbandInterpolator uses an FIR equiripple design or a Kaiser window design to construct the halfband filters and a polyphase implementation to filter the input. For more details, see Algorithms.

To upsample and interpolate your data:

Create the dsp.FIRHalfbandInterpolator object and set its properties.
Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

This object supports C/C++ code generation and SIMD code generation under certain conditions. This object also supports code generation for ARM^® Cortex^®-M and ARM Cortex-A processors. For more information, see Code Generation.

Creation

Syntax

firhalfbandinterp = dsp.FIRHalfbandInterpolator

firhalfbandinterp = dsp.FIRHalfbandInterpolator(Name=Value)

Description

firhalfbandinterp = dsp.FIRHalfbandInterpolator returns a FIR halfband interpolation filter, firhalfbandinterp, with the default settings. Under the default settings, the System object upsamples and interpolates the input data using a halfband frequency of 11025 Hz, a transition width of 4.1 kHz, and a stopband attenuation of 80 dB. The design method is set to "Auto".

firhalfbandinterp = dsp.FIRHalfbandInterpolator(Name=Value) returns a halfband interpolator, with additional properties specified by one or more Name-Value pair arguments.

Example: firhalfbandinterp = dsp.FIRHalfbandInterpolator(Specification="Filter order and stopband attenuation") creates an FIR halfband interpolator object with filter order set to 52 and stopband attenuation set to 80 dB.

example

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

`Specification` — Filter design parameters
`"Transition width and stopband attenuation"` (default) | `"Filter order and stopband attenuation"` | `"Filter order and transition width"` | `"Coefficients"`

Filter design parameters, specified as a character vector. When you set Specification to one of the following, you choose two of the three available design parameters to design the FIR Halfband filter.

"Transition width and stopband attenuation" –– Transition width and stopband attenuation are the design parameters.
"Filter order and stopband attenuation" –– Filter order and stopband attenuation are the design parameters.
"Filter order and transition width" –– Filter order and transition width are the design parameters.

The filter is designed using optimal equiripple filter design method.

When you set Specification to "Coefficients", you specify the halfband filter coefficients directly through the Numerator property.

`FilterOrder` — Filter order
`52` (default) | even positive integer

Filter order, specified as an even positive integer.

Dependencies

To enable this property, set Specification to "Filter order and stopband attenuation" or "Filter order and transition width".

`StopbandAttenuation` — Stopband attenuation
`80` (default) | positive real scalar

Stopband attenuation in dB, specified as a positive real scalar.

Dependencies

To enable this property, set Specification to "Filter order and stopband attenuation" or "Transition width and stopband attenuation".

`TransitionWidth` — Transition width
`4100` (default) | positive real scalar

Transition width in Hz, specified as a positive real scalar or in normalized frequency units (since R2023b).

If you set the NormalizedFrequency property to:

false –– The value of the transition width is in Hz and must be less than half the output sample rate (2 × SampleRate property) value.
true –– The value of the transition width is in normalized frequency units. The value must be a positive scalar less than 1.0.
When you set the NormalizedFrequency property to true while creating the object and you do not set the transition width, the default transition width is automatically set to normalized frequency units using the default sample rate at which the filter operates (2 × 44100) Hz. The filter in the halfband interpolator effectively runs at twice the sample rate of the input signal.
When you set the NormalizedFrequency property to true after you create the object, the transition width must be specified in normalized units before you run the object algorithm. To specify the normalized frequency value, set NormalizedFrequency to true and manually convert the frequency value in Hz to the normalized value using the input sample rate in Hz. For example, if the input sample rate Fs is 44100 Hz, the corresponding transition width value in normalized units is TW_Hz/(2×Fs/2).
```
firhalfbandinterp = dsp.FIRHalfbandInterpolator;
firhalfbandinterp.NormalizedFrequency = true;
firhalfbandinterp.TransitionWidth = 4100/((2x44100)/2)
```

(since R2023b)

Dependencies

To enable this property, set Specification to "Transition width and stopband attenuation" or "Filter order and transition width".

`Numerator` — FIR halfband filter coefficients
`designHalfbandFIR(TransitionWidth=0.186,StopbandAttenuation=80, Structure='interp')` (default) | row vector

FIR halfband filter coefficients, specified as a row vector. The coefficients must comply with the FIR halfband impulse response format. For details on this format, see Halfband Filters and FIR Halfband Filter Design. If half the order of the filter, (length(Numerator) - 1)/2 is even, every other coefficient starting from the first coefficient must be a zero except for the center coefficient which must be a 1.0. If half the order of the filter is odd, the sequence of alternating zeros with a 1.0 at the center starts at the second coefficient.

Dependencies

To enable this property, set Specification to "Coefficients".

`DesignMethod` — Filter design method
`"Auto"` (default) | `"Equiripple"` | `"Kaiser"`

Specify the filter design method as one of the following:

"Auto" –– The algorithm automatically chooses the filter design method depending on the filter design parameters. The algorithm uses the equiripple or the Kaiser window method to design the filter.
If the design constraints are very tight, such as very high stopband attenuation or very narrow transition width, then the algorithm automatically chooses the Kaiser method, as this method is optimal for designing filters with very tight specifications. However, if the design constraints are not tight, then the algorithm chooses the equiripple method.
When you set the DesignMethod property to "Auto", you can determine the method used by the algorithm by examining the passband and stopband ripple characteristics of the designed filter. If the object used the equiripple method, the passband and stopband ripples of the designed filter have a constant amplitude in the frequency response. If the filter design method the object chooses in the "Auto" mode is not suitable for your application, manually specify the DesignMethod as "Equiripple" or "Kaiser".
"Equiripple" –– The algorithm uses the equiripple method.
"Kaiser" –– The algorithm uses the Kaiser window method.

For more details on these two methods, see Algorithms.

Dependencies

To enable this property, set Specification to "Transition width and stopband attenuation", "Filter order and stopband attenuation", or "Filter order and transition width".

Data Types: char | string

`FilterBankInputPort` — Synthesis filter bank
`false` (default) | `true`

Synthesis filter bank, specified as either false or true. If this property is false, dsp.FIRHalfbandInterpolator is an interpolation filter for a single vector- or matrix-valued input when you call the algorithm. If this property is true, dsp.FIRHalfbandInterpolator is a synthesis filter bank and the algorithm accepts two inputs, the lowpass and highpass subbands to synthesize.

`NormalizedFrequency` — Flag to set frequencies in normalized units
`false` (default) | `true`

Since R2023b

Flag to set frequencies in normalized units, specified as one of these values:

true –– The transition width must be in the normalized frequency units and less than 1.0.
When you set the NormalizedFrequency property to true while creating the object and you do not set the transition width, the default transition width is automatically set to normalized frequency units using the default sample rate at which the filter operates (2 × 44100) Hz. The filter in the halfband interpolator effectively runs at twice the sample rate of the input signal.
When you set the NormalizedFrequency property to true after you create the object, the transition width must be specified in normalized units before you run the object algorithm. To specify the normalized frequency value, set NormalizedFrequency to true and manually convert the frequency value in Hz to the normalized value using the input sample rate in Hz. For example, if the input sample rate Fs is 44100 Hz, the corresponding transition width value in normalized units is TW_Hz/(2×Fs/2).
```
firhalfbandinterp = dsp.FIRHalfbandInterpolator;
firhalfbandinterp.NormalizedFrequency = true;
firhalfbandinterp.TransitionWidth = 4100/((2x44100)/2)
```
false –– The transition width is in Hz. You can specify the input sample rate through the SampleRate property.

Dependency

To enable this property, set Specification to any accepted value except "Coefficients".

Data Types: logical

`SampleRate` — Input sample rate
`44100` (default) | positive real scalar

Input sample rate in Hz, specified as a positive real scalar. The input sample rate defaults to 44100 Hz. If you specify a transition width as one of your filter design parameters, the transition width cannot exceed 1/2 the output sample rate (2 × SampleRate property) value.

Dependency

To enable this property, set:

Specification to any accepted value except "Coefficients".
NormalizedFrequency to false. (since R2023b)

Data Types: single | double

Fixed-Point Properties

`CoefficientsDataType` — Word and fraction lengths of coefficients
`numerictype(1,16)` (default) | `numerictype` object

Word and fraction lengths of coefficients, specified as a signed or unsigned numerictype object. The default, numerictype(1,16) corresponds to a signed numeric type object with 16-bit coefficients and a fraction length determined based on the coefficient values, to give the best possible precision.

This property is not tunable.

Word length of the output is same as the word length of the input. Fraction length of the output is computed such that the entire dynamic range of the output can be represented without overflow. For details on how the fraction length of the output is computed, see Fixed-Point Precision Rules for Avoiding Overflow in FIR Filters.

`RoundingMethod` — Rounding method for output fixed-point operations
`"Floor"` (default) | `"Ceiling"` | `"Convergent"` | `"Nearest"` | `"Round"` | `"Simplest"` | `"Zero"`

Rounding method for output fixed-point operations, specified as a character vector. For more information on the rounding modes, see Precision and Range.

Usage

Syntax

y = firhalfbandinterp(x1)

y = firhalfbandinterp(x1,x2)

Description

y = firhalfbandinterp(x1) upsamples by two and interpolates the input signal x1 using the FIR halfband interpolator, firhalfbandinterp.

example

y = firhalfbandinterp(x1,x2) implements a halfband synthesis filter bank for the inputs x1 and x2. x1 is the lowpass output of a halfband analysis filter bank and x2 is the highpass output of a halfband analysis filter bank. dsp.FIRHalfbandInterpolator implements a synthesis filter bank only when the FilterBankInputPort property is set to true.

example

Input Arguments

expand all

`x1` — Data input
column vector | matrix

Data input to the FIR halfband interpolator, specified as a column vector or a matrix. This signal is the lowpass output of a halfband analysis filter bank. If the input signal is a matrix, each column of the matrix is treated as an independent channel.

`x2` — Second data input
column vector | matrix

Second data input to the synthesis filter bank, specified as a column vector or a matrix. This signal is the highpass output of a halfband analysis filter bank. If the input signal is a matrix, each column of the matrix is treated as an independent channel.

The size, data type, and complexity of both the inputs must be the same.

Output Arguments

expand all

`y` — Output of interpolator
column vector | matrix

Output of the interpolator, returned as a column vector or a matrix. The number of rows in the interpolator output is twice the number of rows in the input signal.

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

Specific to `dsp.FIRHalfbandInterpolator`

`freqz`	Frequency response of discrete-time filter System object
`freqzmr`	Compute DTFT approximation of impulse response of multirate or single-rate filter
`filterAnalyzer`	Analyze filters with Filter Analyzer app
`info`	Information about filter System object
`cost`	Estimate cost of implementing filter System object
`coeffs`	Returns the filter System object coefficients in a structure
`polyphase`	Polyphase decomposition of multirate filter
`outputDelay`	Determine output delay of single-rate or multirate filter

Common to All System Objects

`step`	Run System object algorithm
`release`	Release resources and allow changes to System object property values and input characteristics
`reset`	Reset internal states of System object

Examples

collapse all

Impulse and Frequency Response of Halfband Interpolation Filter

Open Live Script

Create two lowpass halfband interpolation filters. The design method in the first filter is set to "Equiripple" and in the second filter is set to "Kaiser".

Specify a filter order of 52 and a transition width of 0.0930 in normalized frequency units.

Order = 52;
TW = 0.0930;
filterspec = "Filter order and transition width";

firhalfbandinterpEqui = dsp.FIRHalfbandInterpolator(...
    NormalizedFrequency=true,...
    Specification=filterspec,...
    FilterOrder=Order,...
    TransitionWidth=0.0930,...
    DesignMethod="Equiripple");

firhalfbandinterpKaiser = dsp.FIRHalfbandInterpolator(...
    NormalizedFrequency=true,...
    Specification=filterspec,...
    FilterOrder=Order,...
    TransitionWidth=TW,...
    DesignMethod="Kaiser");

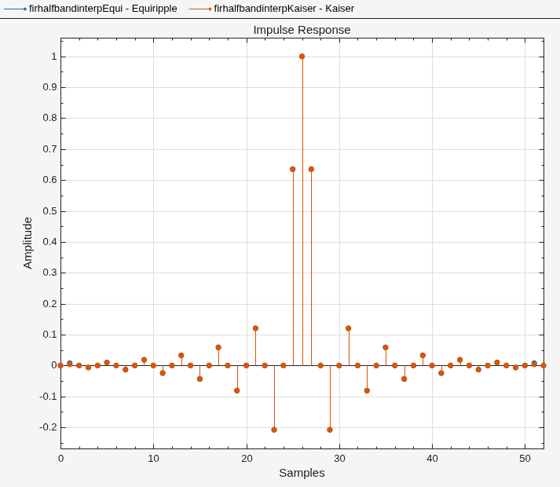

Plot the impulse response of both the filters. The zeroth-order coefficient is delayed by 26 samples, which is equal to the group delay of the filter. This yields a causal halfband filter.

hfvt = filterAnalyzer(firhalfbandinterpEqui,firhalfbandinterpKaiser,...
    Analysis="impulse");
setLegendStrings(hfvt,["Equiripple","Kaiser"])

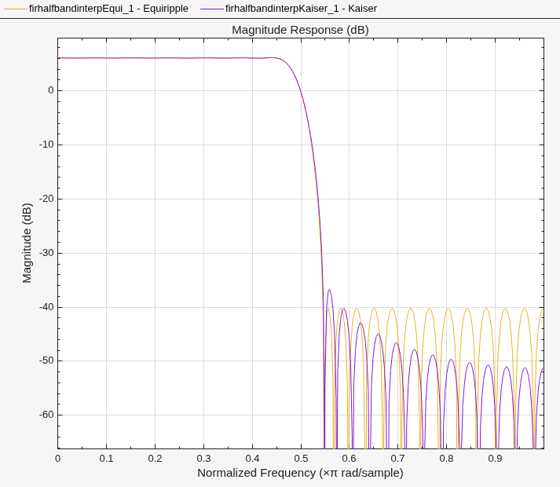

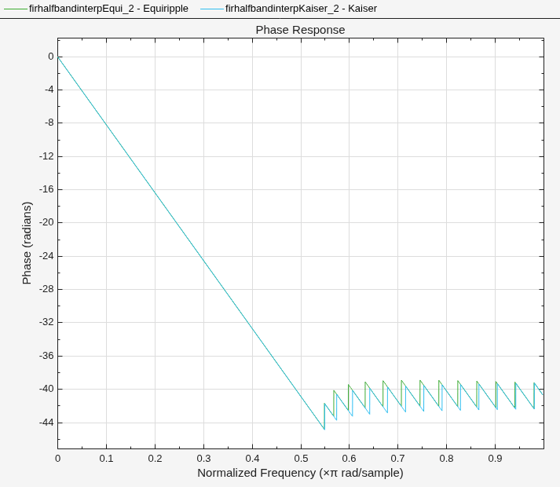

Plot the magnitude and phase response.

If the filter specifications are tight, say a very high filter order with a very narrow transition width, the filter designed using the "Kaiser" method converges more effectively.

hvftMag = filterAnalyzer(firhalfbandinterpEqui,firhalfbandinterpKaiser,...
    Analysis="magnitude");
setLegendStrings(hvftMag,["Equiripple","Kaiser"])

hvftPhase = filterAnalyzer(firhalfbandinterpEqui,firhalfbandinterpKaiser,...
    Analysis="phase");
setLegendStrings(hvftPhase,["Equiripple","Kaiser"])

Design and Implement FIR Halfband Interpolator

Open Live Script

Design an equiripple FIR halfband interpolator object of order 48 using the designHalfbandFIR function. Set the Verbose argument to true.

hbFIR = designHalfbandFIR(FilterOrder=48,SystemObject=true,...
    Structure='interp',Verbose=true)

designHalfbandFIR(FilterOrder=48, TransitionWidth=0.1, DesignMethod="equiripple", Passband="lowpass", Structure="interp", PhaseConstraint="linear", Datatype="double", SystemObject=true)

hbFIR =
  dsp.FIRHalfbandInterpolator with properties:

          Specification: 'Coefficients'
              Numerator: [0 -0.0082 0 0.0079 0 -0.0116 0 0.0165 0 -0.0227 0 0.0309 0 -0.0419 0 0.0571 0 -0.0800 0 0.1193 0 -0.2073 0 0.6350 1 0.6350 0 -0.2073 0 0.1193 0 -0.0800 0 0.0571 0 -0.0419 0 0.0309 0 -0.0227 0 0.0165 0 -0.0116 ... ] (1x49 double)
    FilterBankInputPort: false

  Use get to show all properties

Create a dsp.DynamicFilterVisualizer object and visualize the magnitude response of the filter.

dfv = dsp.DynamicFilterVisualizer(NormalizedFrequency=true);
dfv(hbFIR);

The input is a cosine wave with an angular frequency of $\frac{π}{4}$ radians/sample.

input = cos(pi/4*(0:39)');

Interpolate the cosine signal using the FIR halfband interpolator.

output = hbFIR(input);

Plot the original and interpolated signals. In order to plot the two signals on the same plot, you must account for the output delay introduced by the FIR halfband interpolator and the scaling introduced by the filter. Use the outputDelay function to compute the delay value introduced by the interpolator. Shift the output by this delay value.

Visualize the input and the resampled signals. The input and output values coincide every other sample due to the interpolation factor of 2.

[delay,FsOut] = outputDelay(hbFIR,FsIn=1)

delay =
12

FsOut =
2

nInput = (0:length(input)-1);
tOutput = (0:length(output)-1)/FsOut-delay;
stem(tOutput,output,'filled',MarkerSize=4); hold on;
stem(nInput,input); hold off;
xlim([-5,20])
legend('Interpolated by 2','Input signal','Location','best');

Figure contains an axes object. The axes object contains 2 objects of type stem. These objects represent Interpolated by 2, Input signal.

Extract Low Frequency Subband From Speech

Open Live Script

Use a halfband analysis filter bank and interpolation filter to extract the low frequency subband from a speech signal.

Note: The audioDeviceWriter System object™ is not supported in MATLAB Online.

Set up the audio file reader, the analysis filter bank, audio device writer, and interpolation filter. The sample rate of the audio data is 22050 Hz. The order of the halfband filter is 52, with a transition width of 2 kHz.

Set the design method to "Auto". This mode chooses one of the filter design methods, equiripple or Kaiser, based on the design parameters of the filter.

afr = dsp.AudioFileReader(...
    "speech_dft.mp3",...
    SamplesPerFrame=1024);

filtSpec = "Filter order and transition width";
Order = 52;
TW = 2000;

firhalfbanddecim = dsp.FIRHalfbandDecimator(...
    Specification=filtSpec,...
    FilterOrder=Order,...
    TransitionWidth=TW,...
    DesignMethod="Auto",...
    SampleRate=afr.SampleRate);

firhalfbandinterp = dsp.FIRHalfbandInterpolator(...
    Specification=filtSpec,...
    FilterOrder=Order,...
    TransitionWidth=TW,...
    DesignMethod="Auto",...
    SampleRate=afr.SampleRate/2);

adw = audioDeviceWriter(SampleRate=afr.SampleRate);

View the magnitude response of the halfband filter.

filterAnalyzer(firhalfbanddecim)

Read the speech signal from the audio file in frames of 1024 samples. Filter the speech signal into lowpass and highpass subbands with a halfband frequency of 5512.5 Hz. Reconstruct a lowpass approximation of the speech signal by interpolating the lowpass subband. Play the filtered output.

while ~isDone(afr)
  audioframe = afr();
  xlo = firhalfbanddecim(audioframe);
  ylow = firhalfbandinterp(xlo);
  adw(ylow);
end

Wait until the audio file is played to the end, then close the input file and release the audio output resource.

release(afr);
release(adw);

Two-Channel Filter Bank

Open Live Script

Use a halfband decimator and interpolator to implement a two-channel filter bank. This example uses an audio file input and shows that the power spectrum of the filter bank output does not differ significantly from the input.

Note: The audioDeviceWriter System object™ is not supported in MATLAB Online.

Set up the audio file reader and device writer. Construct the FIR halfband decimator and interpolator. Finally, set up the spectrum analyzer to display the power spectra of the filter-bank input and output.

AF = dsp.AudioFileReader("speech_dft.mp3",SamplesPerFrame=1024);
AP = audioDeviceWriter(SampleRate=AF.SampleRate);

filterspec = "Filter order and transition width";
Order = 52;
TW = 2000;

firhalfbanddecim = dsp.FIRHalfbandDecimator(...
    Specification=filterspec,FilterOrder=Order,...
    TransitionWidth=TW,DesignMethod="Auto",...
    SampleRate=AF.SampleRate);

firhalfbandinterp = dsp.FIRHalfbandInterpolator(...
    Specification=filterspec,FilterOrder=Order,...
    TransitionWidth=TW,SampleRate=AF.SampleRate/2,...
    DesignMethod="Auto",...
    FilterBankInputPort=true);

SpecAna = spectrumAnalyzer(SampleRate=AF.SampleRate,...
    PlotAsTwoSidedSpectrum=false,...
    ShowLegend=true,...
    ChannelNames={'Input signal','Filtered output signal'});

Read the audio 1024 samples at a time. Filter the input to obtain the lowpass and highpass subband signals decimated by a factor of two. This is the analysis filter bank. Use the halfband interpolator as the synthesis filter bank. Display the running power spectrum of the audio input and the output of the synthesis filter bank. Play the output.

while ~isDone(AF)
    audioInput = AF();
    [xlo,xhigh] = firhalfbanddecim(audioInput);
    audioOutput = firhalfbandinterp(xlo,xhigh);
    spectrumInput = [audioInput audioOutput];
    SpecAna(spectrumInput);
    AP(audioOutput);
end

release(AF);
release(AP);
release(SpecAna);

Upsample and Interpolate Multichannel Input Using FIR Halfband Interpolator

Open Live Script

Create a half-band interpolation filter. The filter order is 52 with a transition width of 0.0930 in normalized frequency units. Use the filter to upsample and interpolate a multichannel input.

Set the design method to "Auto". This mode chooses one of the filter design methods, equiripple or Kaiser, based on the specified filter design parameters.

Fs = 44.1e3;
filterspec = "Filter order and transition width";
Order = 52;
TW = 0.0930;
firhalfbandinterp = dsp.FIRHalfbandInterpolator(...
    NormalizedFrequency=true,...
    Specification=filterspec,...
    FilterOrder=Order,...
    TransitionWidth=TW,...
    DesignMethod="Auto");

x = randn(1024,4);
y = firhalfbandinterp(x);

More About

expand all

Halfband Filters

An ideal lowpass halfband filter is given by

$h (n) = \frac{1}{2 π} \int_{- π / 2}^{π / 2} e^{j ω n} d ω = \frac{\sin (\frac{π}{2} n)}{π n} .$

An ideal filter is not realizable because the impulse response is noncausal and not absolutely summable. However, the impulse response of an ideal lowpass filter possesses some important properties that are required in a realizable approximation. The impulse response of an ideal lowpass halfband filter is:

Equal to 0 for all even-indexed samples
Equal to 1/2 at n=0 as shown by L'Hôpital's rule on the continuous-valued equivalent of the discrete-time impulse response

The ideal highpass halfband filter is given by

$g (n) = \frac{1}{2 π} \int_{- π}^{- π / 2} e^{j ω n} d ω + \frac{1}{2 π} \int_{π / 2}^{π} e^{j ω n} d ω .$

Evaluating the preceding integral gives the following impulse response

$g (n) = \frac{\sin (π n)}{π n} - \frac{\sin (\frac{π}{2} n)}{π n} .$

The impulse response of an ideal highpass halfband filter is:

Equal to 0 for all even-indexed samples
Equal to 1/2 at n=0

The FIR halfband interpolator uses a causal FIR approximation to the ideal halfband response, which is based on minimizing the $ℓ^{\infty}$ norm of the error (minimax). See Algorithms for more information.

Kaiser Window

The coefficients of a Kaiser window are computed from this equation:

$w (n) = \frac{I_{0} (β \sqrt{1 - {(\frac{n - N / 2}{N / 2})}^{2}})}{I_{0} (β)}, 0 \leq n \leq N,$

where I₀ is the zeroth-order modified Bessel function of the first kind.

To obtain a Kaiser window that represents an FIR filter with stopband attenuation of α dB, use this β.

$β = {\begin{array}{l} 0.1102 (α - 8.7), & α > 50 \\ 0.5842 {(α - 21)}^{0.4} + 0.07886 (α - 21), & 50 \geq α \geq 21 \\ 0, & α < 21 \end{array}$

The filter order n is given by:

$n = \frac{α - 7.95}{2.285 (Δ ω)},$

where Δω is the transition width.

Algorithms

expand all

Filter Design Method

The FIR halfband interpolator algorithm uses the equiripple or the Kaiser window method to design the FIR halfband filter. When the design constraints are tight, such as very high stopband attenuation or very narrow transition width, use the Kaiser window method. When the design constraints are not tight, use the equiripple method. If you are not sure of which method to use, set the design method to Auto. In this mode, the algorithm automatically chooses a design method that optimally meets the specified filter constraints.

Halfband Equiripple Design

In the equiripple method, the algorithm uses a minimax (minimize the maximum error) FIR design to design a fullband linear phase filter with the desired specifications. The algorithm upsamples a fullband filter to replace the even-indexed samples of the filter with zeros and creates a halfband filter. It then sets the filter tap corresponding to the group delay of the filter in samples to 1/2. This yields a causal linear-phase FIR filter approximation to the ideal halfband filter defined in Halfband Filters. See [1] for a description of this filter design method using the Remez exchange algorithm. Since you can design a filter using this approximation method with a constant ripple both in the passband and stopband, the filter is also known as the equiripple filter.

Kaiser Window Design

In the Kaiser window method, the algorithm first truncates the ideal halfband filter defined in Halfband Filters, then it applies a Kaiser window defined in Kaiser Window. This yields a causal linear-phase FIR filter approximation to the ideal halfband filter.

The coefficients of the designed halfband interpolation filter are scaled by the interpolation factor, two, to preserve the output power of the signal.

For more information on designing FIR halfband filters, see FIR Halfband Filter Design.

Polyphase Implementation with Halfband Filters

The FIR halfband interpolator uses an efficient polyphase implementation for halfband filters when you filter the input signal. You can use a polyphase implementation to move the upsampling operation after filtering. This allows you to filter at the lower sampling rate.

Splitting a filter’s impulse response h(n) into two polyphase components results in an even polyphase component with z-transform of

$H_{0} (z) = \sum_{n} h (2 n) z^{- n},$

and an odd polyphase component with z-transform of

$H_{1} (z) = \sum_{n} h (2 n + 1) z^{- n} .$

The z-transform of the filter can be written in terms of the even and odd polyphase components as

$H (z) = H_{0} (z^{2}) + z^{- 1} H_{1} (z^{2}) .$

You can represent the upsampling by 2 and then filtering the signal using this figure.

Using the multirate noble identity for upsampling, you can move the upsampling operation after the filtering. This enables you to filter at the lower rate.

For a halfband filter, the only nonzero coefficient in the even polyphase component is the coefficient corresponding to z⁰. Implementing the halfband filter as a causal FIR filter shifts the nonzero coefficient to approximately z^-N/4, where N is the number of filter taps. This process is shown in the following figure. The top plot shows a halfband filter of order 52. The bottom plot shows the even polyphase component. Both filters are noncausal. Delaying the even polyphase component by 13 samples creates a causal FIR filter.

To efficiently implement the halfband interpolator, the algorithm replaces the upsampling operator, delay block, and adder with a commutator switch. The commutator switch starts on the even branch and takes input samples from the two branches alternately, one sample at a time. This doubles the sampling rate of the input signal. Which polyphase component reduces to a simple delay depends on whether the half order of the filter is even or odd.

Here is the implementation when the filter half order is even. In this diagram, H₀(z) becomes the gain followed by the delay.

When the filter half order is odd, H₁(z) becomes the gain followed by the delay and the switch. This is because the delay required to make the even polyphase component causal can be odd or even depending on the filter half order.

To confirm this behavior, run the following code in the MATLAB^® command prompt and inspect the polyphase components of the following filters.

filterspec = "Filter order and stopband attenuation";
halfOrderEven = dsp.FIRHalfbandInterpolator(Specification=filterspec,...
    FilterOrder=64,StopbandAttenuation=80);
halfOrderOdd = dsp.FIRHalfbandInterpolator(Specification=filterspec,...
    FilterOrder=54,StopbandAttenuation=80);
polyphase(halfOrderEven)
polyphase(halfOrderOdd)

One of the polyphase components has a single nonzero coefficient indicating that it is a simple delay. To preserve the output power of the signal, the coefficients are scaled by the interpolation factor, two. To see this scaling, compare the polyphase components of a halfband interpolator with the coefficients of a halfband decimator.

hfirinterp = dsp.FIRHalfbandInterpolator;
hfirdecim = dsp.FIRHalfbandDecimator;
polyphase(hfirdecim)
polyphase(hfirinterp)

Synthesis Filter Bank

The FIR halfband interpolator implements the synthesis portion of a two-band filter bank to synthesize a signal from lowpass and highpass subbands.

For more information on filter banks, see Overview of Filter Banks.

To summarize, the FIR halfband interpolator:

Filters the input before upsampling with the even and odd polyphase components of the filter.
Exploits the fact that one filter polyphase component is a simple delay for a halfband filter.
Acts as a synthesis filter bank.

References

[1] Harris, F.J. Multirate Signal Processing for Communication Systems, Prentice Hall, 2004, pp. 208–209.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

See System Objects in MATLAB Code Generation (MATLAB Coder).

This object supports code generation for ARM Cortex-M and ARM Cortex-A processors. To learn more about ARM Cortex code generation, see Code Generation for ARM Cortex-M and ARM Cortex-A Processors.

This object also supports SIMD code generation using Intel^® AVX2 code replacement library when the input signal has a data type of single or double.

The SIMD technology significantly improves the performance of the generated code. For more information, see SIMD Code Generation. To generate SIMD code from this object, see Use Intel AVX2 Code Replacement Library to Generate SIMD Code from MATLAB Algorithms.

Version History

Introduced in R2014b

expand all

R2023b: Support for normalized frequencies

When you set the NormalizedFrequency property to true, you must specify the transition width in normalized frequency units (0 to 1).

When you set the NormalizedFrequency property to true while creating the object and you do not set the transition width, the default transition width is automatically set to normalized frequency units using the default sample rate at which the filter operates (2 × 44100) Hz. The filter in the halfband interpolator effectively runs at twice the sample rate of the input signal.

firhalfbandinterp = dsp.FIRHalfbandInterpolator(NormalizedFrequency=true)

firhalfbandinterp =
  dsp.FIRHalfbandInterpolator with properties:

          Specification: 'Transition width and stopband attenuation'
        TransitionWidth: 0.0930
    StopbandAttenuation: 80
           DesignMethod: 'Auto'
    FilterBankInputPort: false
    NormalizedFrequency: true

  Show all properties

When you set the NormalizedFrequency property to true after you create the object, the transition width must be specified in normalized units before you run the object algorithm.

firhalfbandinterp = dsp.FIRHalfbandInterpolator

firhalfbandinterp =
  dsp.FIRHalfbandInterpolator with properties:

          Specification: 'Transition width and stopband attenuation'
        TransitionWidth: 4100
    StopbandAttenuation: 80
           DesignMethod: 'Auto'
    FilterBankInputPort: false
    NormalizedFrequency: false
             SampleRate: 44100

  Show all properties

To specify the normalized frequency values, set NormalizedFrequency to true and manually convert the frequency values in Hz to normalized values using the input sample rate in Hz. For example, if the input sample rate is 44100 Hz, the corresponding values in normalized units are computed using these equations.

firhalfbandinterp.NormalizedFrequency = true;
firhalfbandinterp.TransitionWidth = 4100/((2x44100)/2)

firhalfbandinterp =
  dsp.FIRHalfbandInterpolator with properties:

          Specification: 'Transition width and stopband attenuation'
        TransitionWidth: 0.0930
    StopbandAttenuation: 80
           DesignMethod: 'Auto'
    FilterBankInputPort: false
    NormalizedFrequency: true

  Show all properties

dsp.FIRHalfbandInterpolator

Description

Creation

Syntax

Description

Properties

Specification — Filter design parameters "Transition width and stopband attenuation" (default) | "Filter order and stopband attenuation" | "Filter order and transition width" | "Coefficients"

FilterOrder — Filter order 52 (default) | even positive integer

Dependencies

StopbandAttenuation — Stopband attenuation 80 (default) | positive real scalar

Dependencies

TransitionWidth — Transition width 4100 (default) | positive real scalar

Dependencies

Numerator — FIR halfband filter coefficients designHalfbandFIR(TransitionWidth=0.186,StopbandAttenuation=80, Structure='interp') (default) | row vector

Dependencies

DesignMethod — Filter design method "Auto" (default) | "Equiripple" | "Kaiser"

Dependencies

FilterBankInputPort — Synthesis filter bank false (default) | true

NormalizedFrequency — Flag to set frequencies in normalized units false (default) | true

Dependency

SampleRate — Input sample rate 44100 (default) | positive real scalar

Dependency

Fixed-Point Properties

CoefficientsDataType — Word and fraction lengths of coefficients numerictype(1,16) (default) | numerictype object

RoundingMethod — Rounding method for output fixed-point operations "Floor" (default) | "Ceiling" | "Convergent" | "Nearest" | "Round" | "Simplest" | "Zero"

Usage

Syntax

Description

Input Arguments

x1 — Data input column vector | matrix

x2 — Second data input column vector | matrix

Output Arguments

y — Output of interpolator column vector | matrix

Object Functions

Specific to dsp.FIRHalfbandInterpolator

Common to All System Objects

Examples

Impulse and Frequency Response of Halfband Interpolation Filter

Design and Implement FIR Halfband Interpolator

Extract Low Frequency Subband From Speech

Two-Channel Filter Bank

Upsample and Interpolate Multichannel Input Using FIR Halfband Interpolator

More About

Halfband Filters

Kaiser Window

Algorithms

Filter Design Method

Polyphase Implementation with Halfband Filters

References

Extended Capabilities

C/C++ Code Generation Generate C and C++ code using MATLAB® Coder™.

Version History

R2023b: Support for normalized frequencies

See Also

Functions

Objects

Blocks

Topics

`Specification` — Filter design parameters
`"Transition width and stopband attenuation"` (default) | `"Filter order and stopband attenuation"` | `"Filter order and transition width"` | `"Coefficients"`

`FilterOrder` — Filter order
`52` (default) | even positive integer

`StopbandAttenuation` — Stopband attenuation
`80` (default) | positive real scalar

`TransitionWidth` — Transition width
`4100` (default) | positive real scalar

`Numerator` — FIR halfband filter coefficients
`designHalfbandFIR(TransitionWidth=0.186,StopbandAttenuation=80, Structure='interp')` (default) | row vector

`DesignMethod` — Filter design method
`"Auto"` (default) | `"Equiripple"` | `"Kaiser"`

`FilterBankInputPort` — Synthesis filter bank
`false` (default) | `true`

`NormalizedFrequency` — Flag to set frequencies in normalized units
`false` (default) | `true`

`SampleRate` — Input sample rate
`44100` (default) | positive real scalar

`CoefficientsDataType` — Word and fraction lengths of coefficients
`numerictype(1,16)` (default) | `numerictype` object

`RoundingMethod` — Rounding method for output fixed-point operations
`"Floor"` (default) | `"Ceiling"` | `"Convergent"` | `"Nearest"` | `"Round"` | `"Simplest"` | `"Zero"`

`x1` — Data input
column vector | matrix

`x2` — Second data input
column vector | matrix

`y` — Output of interpolator
column vector | matrix

Specific to `dsp.FIRHalfbandInterpolator`

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
