使用 Infineon AURIX 进行多核仿真和代码生成
Infineon AURIX TC3x 微控制器具有多个同构 TriCore® 处理单元。TC39x 系列由六个 TriCore（TriCore0 到 TriCore5）组成，TC38x 系列由四个 TriCore（TriCore0 到 TriCore3）组成，TC37x 系列由三个 TriCore（TriCore0 到 TriCore2）组成。TriCore0 是主核，其余核为辅助核。
您可以在可用的核上运行不同的模型，也可以对复杂模型进行分区以便在多个核上同时运行，从而实现设计模块化。Interprocess Data Channel 模块处理多个核之间的通信。在对多核模型进行仿真后，您可以使用 SoC 构建器工具在 Infineon AURIX TC3x 硬件板上部署生成的代码，并使用 Infineon 的 One Eye 工具监控来自硬件的信号。
使用 SoC 构建器工具生成可执行文件、代码和对硬件板进行编程。请参阅Getting Started with Multicore Modeling and Targeting for Infineon AURIX TC3x Microcontrollers示例，了解如何验证、编译和运行多核模型，以生成可执行文件、代码和对 Infineon AURIX TC4x 硬件板进行编程。
模块
工具
主题
- Top-Level Models Using TriCores of Infineon AURIX
Simulate, and generate code for top-level models with referenced models using TriCores of Infineon AURIX microcontrollers.
- Generate Code and Deploy Using SoC Builder
Generate code and run it on the target hardware board using the SoC Builder tool.
- Generate Software Executables for Multicore Models
Generate ELF file for all participating homogenous cores of Infineon AURIX.
- Task Duration
Set the execution time or duration of a task in Task Manager block.
- What is Task Execution?
Learn the definition of task execution and task life-cycle in a processor.
- Task Execution Playback Using Recorded Data
Replay task execution timing using recorded task timing data from previous simulations or processors.
精选示例
Getting Started with Multicore Modeling and Targeting for Infineon AURIX TC3x Microcontrollers
Use Embedded Coder® Support Package for Infineon® AURIX™ TC3x Microcontrollers to implement multicore modeling and communication between two cores on an Infineon® AURIX™ microcontroller. This example uses a top-level model and two referenced models for two-way multicore data communication. The model supports both simulation and code generation. You can simulate the model and deploy the code on an Infineon AURIX TC3x hardware board using the Soc Builder tool and observe the blinking of the configured LEDs of each core to verify the communication between the cores.
Analyze Sensorless Observers for Field-Oriented Control Using Multiple Cores of Infineon AURIX TC3x
Use Embedded Coder® Support Package for Infineon® AURIX™ TC3x Microcontrollers for sensorless field-oriented control using multiple cores of an Infineon AURIX microcontroller board. This example uses a top-level model and two referenced models. You use the TriCore0 referenced model to implement a sensor-based field-oriented control (FOC) technique to control the speed of a three-phase brushless DC (BLDC) motor. You use the TriCore1 referenced model to implement and analyze different sensorless algorithms, such as the algorithms implemented in the Flux Observer (Motor Control Blockset), 滑动模式观测器 (Motor Control Blockset), and Extended EMF Observer (Motor Control Blockset) blocks.

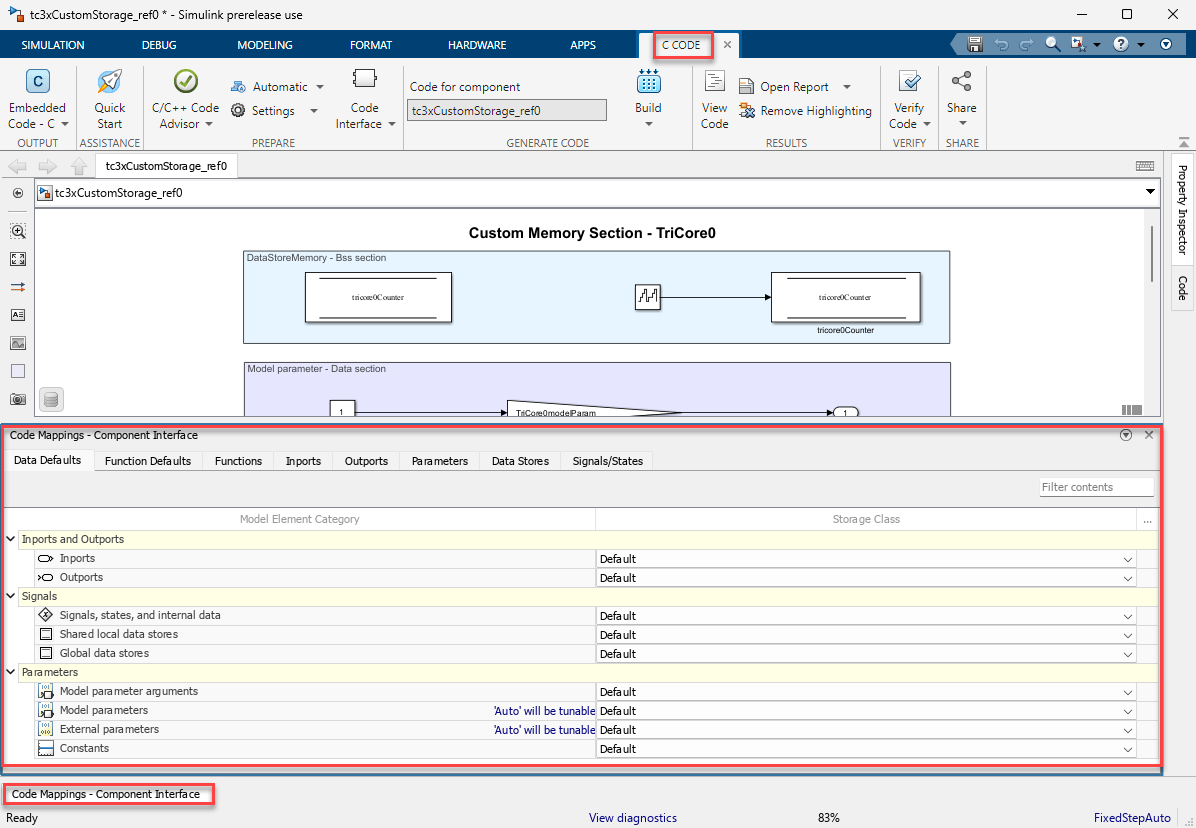

Custom Storage Class for Infineon AURIX TC3x Microcontrollers
Define a custom storage class for Infineon® AURIX™ TC3x Microcontrollers using Embedded Coder® Support Package for Infineon® AURIX™ TC3x Microcontrollers.

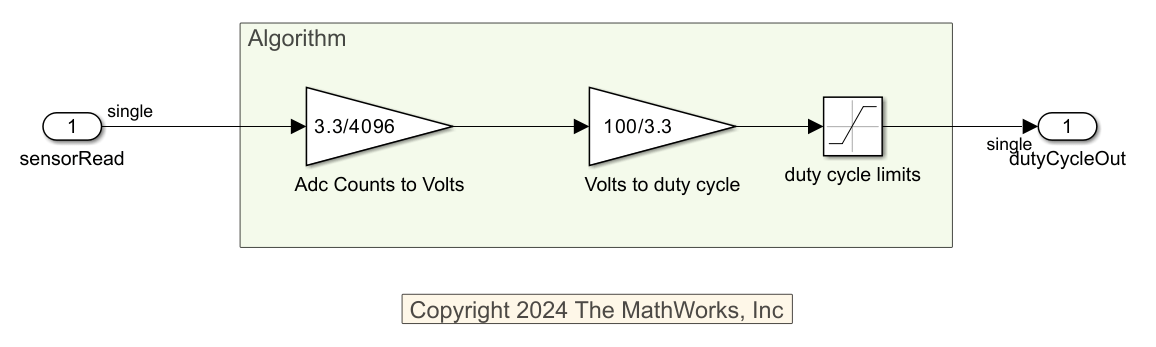

Integrate Code Generated for Infineon TC3x with ADS Workflow
Export code generated from Simulink® using Embedded Coder® Support Package for Infineon® AURIX™ TC3x Microcontrollers and deploy the code to hardware using AURIX Development Studio (ADS).
