hac

Heteroscedasticity and autocorrelation consistent covariance estimators

Syntax

[EstCoeffCov,se,coeff] = hac(X,y)

[EstCoeffCov,se,coeff] = hac(Mdl)

[CovTbl,CoeffTbl] = hac(Tbl)

[___] = hac(___,Name=Value)

Description

[EstCoeffCov,se,coeff] = hac(X,y) returns a robust covariance matrix estimate, and vectors of corrected standard errors and OLS coefficient estimates from applying ordinary least squares (OLS) on the multiple linear regression models y = Xβ + ε under general forms of heteroscedasticity and autocorrelation in the innovations process ε. y is a vector of response data and X is a matrix of predictor data.

example

[EstCoeffCov,se,coeff] = hac(Mdl) returns a robust covariance matrix estimate, and vectors of corrected standard errors and OLS coefficient estimates from a fitted multiple linear regression model, as returned by fitlm.

example

[CovTbl,CoeffTbl] = hac(Tbl) returns a table containing the robust covariance matrix estimate, and a table containing the corrected standard errors and OLS coefficient estimates, from a fitted multiple linear regression model of the variables in the input table or timetable.

The response variable in the regression is the last table variable, and all other variables are the predictor variables. To select a different response variable for the regression, use the ResponseVariable name-value argument. To select different predictor variables, use the PredictorNames name-value argument.

example

[___] = hac(___,Name=Value) specifies options using one or more name-value arguments in addition to any of the input argument combinations in previous syntaxes. hac returns the output argument combination for the corresponding input arguments.

For example, hac(Tbl,ResponseVariable="GDP",Type="HC") provides a heteroscedasticity-consistent coefficient covariance estimate of a regression where the table variable GDP is the response while all other variables are predictors.

example

Examples

collapse all

Return Newey-West Coefficient Covariance Estimate

Open Live Script

By default, hac returns the Newey-West coefficient covariance estimate, which is appropriate when residuals from a linear regression fit show evidence of heteroscedasticity and autocorrelation.

Simulate data from a linear model in which the innovations process is heteroscedastic and autocorrelated. Compare coefficient covariance estimates from regular OLS and the Newey-West estimator by using the default options of hac.

Simulate Data

Simulate a 1000-path series of data from the following innovations process.

$\begin{array}{l} ε_{t} = 0.5 ε_{t - 1} + u_{t} \\ u_{t} \sim N (0, σ_{t}^{2}), \end{array}$

where $σ_{t}^{2} = 0.001 t$ and $ε_{0} = 0.1$ .

rng(1); % For reproducibility
T = 1000;
sigma2 = 0.001*(1:T)';
ut = randn(T,1).*sqrt(sigma2);
eMdl = arima(AR=0.5,Constant=0,Variance=1);
et = filter(eMdl,ut,Y0=0.1);

Simulate responses from the following linear model.

$y_{t} = X_{t} [\begin{array}{cccccccccccccccccccc} 1 \\ 2 \\ 3 \end{array}] + ε_{t},$

where

$\begin{array}{l} X_{t} = [\begin{array}{cccccccccccccccccccc} 1 & x_{1, t} & x_{2, t} \end{array}] \\ x_{j, t} \sim N (j, \frac{j}{2}) . \end{array}$

X = [1 2] + randn(T,2).*sqrt([1/2 1]);
beta = (1:3)';
y = [ones(T,1) X]*beta + et;

Fit Linear Model

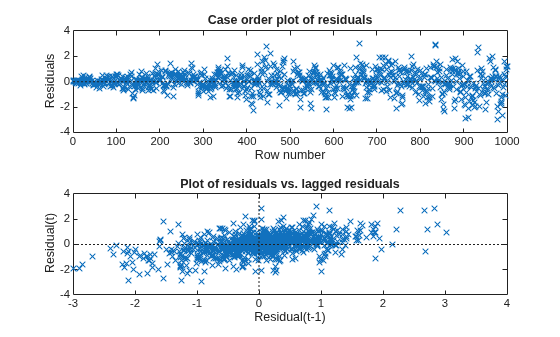

Fit a CLM to the simulated data. Plot the residuals in case order and plot each residual with respect to the previous residual.

Mdl = fitlm(X,y);

tiledlayout(2,1)
nexttile
plotResiduals(Mdl,"caseorder")
nexttile
plotResiduals(Mdl,"lagged")

The residuals exhibit heteroscedasticity and autocorrelation.

Compute Newey-West Coefficient Covariance Estimate

Estimate the Newey-West covariance, which accounts for the heteroscedasticity and autocorrelation of the residuals, by passing the data to hac. Return standard errors and coefficients. Compare results against the CLM approach.

[EstCoeffCov,se,coeff] = hac(X,y)

Estimator type: HAC
Estimation method: BT
Bandwidth: 11.1758
Whitening order: 0
Effective sample size: 1000
Small sample correction: on

Coefficient Covariances:

       |  Const      x1       x2
-----------------------------------
 Const |  0.0042  -0.0009  -0.0011
 x1    | -0.0009   0.0012  -0.0000
 x2    | -0.0011  -0.0000   0.0006

EstCoeffCov = 3×3

    0.0042   -0.0009   -0.0011
   -0.0009    0.0012   -0.0000
   -0.0011   -0.0000    0.0006

coeff = 3×1

    1.0444
    2.0153
    2.9567

EstCoeffCovOLS = Mdl.CoefficientCovariance

EstCoeffCovOLS = 3×3

    0.0045   -0.0012   -0.0013
   -0.0012    0.0012   -0.0000
   -0.0013   -0.0000    0.0007

seOLS = Mdl.Coefficients.SE

seOLS = 3×1

    0.0669
    0.0348
    0.0257

coeffOLS = Mdl.Coefficients.Estimate

coeffOLS = 3×1

    1.0444
    2.0153
    2.9567

Between the CLM and Newey-West approaches, the coefficient estimates are equal, but the standard errors and covariances are different.

Estimate White's Robust Covariance from Fitted Linear Model

Open Live Script

Model an automobile's price with its curb weight, engine size, and cylinder bore diameter using the linear model:

${price}_{i} = β_{0} + β_{1} {curbWeight}_{i} + β_{2} {engineSize}_{i} + β_{3} {bore}_{i} + ε_{i} .$

Estimate model coefficients and White's robust covariance.

Load the 1985 automobile imports data set import-85.mat, which contains all variables in the matrix X. Collect the variables in the regression model in a table.

load imports-85
varnames = ["CurbWeight" "EngineSize" "Bore" "Price"];

Tbl = array2table(X(:,[7:9 15]),VariableNames=varnames);

Fit the linear model to the data and plot the residuals versus the fitted values.

Mdl = fitlm(Tbl);
plotResiduals(Mdl,"fitted")

Figure contains an axes object. The axes object with title Plot of residuals vs. fitted values, xlabel Fitted values, ylabel Residuals contains 2 objects of type line. One or more of the lines displays its values using only markers

The residuals appear to flare out, which indicates heteroscedasticity.

Use hac to compute the usual OLS coefficient covariance estimate and White's robust covariance estimate.

[LSCov,lsSE,lsCoeff] = hac(Mdl,Type="HC",Weights="CLM", ...
    Display="off") % OLS estimates

LSCov = 4×4

   13.7124    0.0000    0.0120   -4.5609
    0.0000    0.0000   -0.0000   -0.0005
    0.0120   -0.0000    0.0002   -0.0017
   -4.5609   -0.0005   -0.0017    1.8195

lsCoeff = 4×1

   64.0948
   -0.0087
   -0.0158
   -2.6998

[WhiteCov,whiteSE,whiteCoeff] = hac(Mdl,Type="HC",Weights="HC0", ...
    Display="off") % White's estimates

WhiteCov = 4×4

   15.5122   -0.0008    0.0137   -4.4461
   -0.0008    0.0000   -0.0000   -0.0003
    0.0137   -0.0000    0.0001   -0.0010
   -4.4461   -0.0003   -0.0010    1.5707

whiteSE = 4×1

    3.9385
    0.0011
    0.0105
    1.2533

whiteCoeff = 4×1

   64.0948
   -0.0087
   -0.0158
   -2.6998

The OLS coefficient covariance estimate is not equal to White's robust estimate because the latter accounts for the heteroscedasticity in the residuals.

Set Bandwidth for Newey-West Coefficient Covariance Estimate

Open Live Script

Model the nominal GNP (GNPN) with consumer price index (CPI), real wages (WR), and the money stock (MS) using the linear model:

${GNPN}_{i} = β_{0} + β_{1} {CPI}_{i} + β_{2} {WR}_{i} + β_{3} {MS}_{i} + ε_{i} .$

Estimate the model coefficients and the Newey-West OLS coefficient covariance matrix.

Load the Nelson Plosser data set Data_NelsonPlosser.mat, which contains the table DataTable. Remove all observations containing at least one NaN and compute the log of the series.

load Data_NelsonPlosser
Tbl = rmmissing(DataTable);
LogTbl = varfun(@log,Tbl);
T = height(LogTbl);

Fit the linear model using the log of all series. Plot the residuals by case order and plot a correlogram of them.

Mdl = fitlm(LogTbl,"log_GNPN ~ 1 + log_CPI + log_WR + log_MS");
resid = Mdl.Residuals.Raw;

figure
tiledlayout(2,1)
nexttile
plotResiduals(Mdl,"caseorder")
axis tight
nexttile
autocorr(resid)

The residual plot exhibits signs of heteroscedasticity, autocorrelation, and possibly model misspecification. The sample autocorrelation function clearly exhibits autocorrelation.

Calculate the lag selection parameter for the standard Newey-West HAC estimate [2].

maxLag = floor(4*(T/100)^(2/9));

Estimate the standard Newey-West OLS coefficient covariance by using hac. Set the bandwidth to maxLag + 1. Display the OLS coefficient estimates, and their standard errors and covariance matrix.

prednames = ["log_CPI" "log_WR" "log_MS"];
[CovTbl,CoeffTbl] = hac(LogTbl,ResponseVariable="log_GNPN", ...
    PredictorVariables=prednames,Bandwidth=maxLag + 1, ...
    Display="full")

Estimator type: HAC
Estimation method: BT
Bandwidth: 4.0000
Whitening order: 0
Effective sample size: 62
Small sample correction: on

Coefficient Estimates:

         |  Coeff     SE
---------------------------
 Const   | -4.3473  0.4297
 log_CPI |  0.9947  0.1001
 log_WR  |  1.3954  0.1283
 log_MS  |  0.0789  0.0625

Coefficient Covariances:

         |  Const   log_CPI   log_WR   log_MS
----------------------------------------------
 Const   |  0.1847  -0.0318  -0.0433   0.0239
 log_CPI | -0.0318   0.0100   0.0027  -0.0043
 log_WR  | -0.0433   0.0027   0.0165  -0.0064
 log_MS  |  0.0239  -0.0043  -0.0064   0.0039

CovTbl=4×4 table
                 Const       log_CPI       log_WR        log_MS
               _________    __________    _________    __________

    Const        0.18468      -0.03177    -0.043323      0.023939
    log_CPI     -0.03177      0.010015    0.0026864    -0.0043025
    log_WR     -0.043323     0.0026864     0.016454     -0.006435
    log_MS      0.023939    -0.0043025    -0.006435     0.0039086

CoeffTbl=4×2 table
                Coeff         SE
               ________    ________

    Const       -4.3473     0.42974
    log_CPI     0.99472     0.10008
    log_WR       1.3954     0.12827
    log_MS     0.078933    0.062519

The first table in the output contains the OLS estimates ( ${β_{}^{ˆ}}_{0}, . . ., {β_{}^{ˆ}}_{3}$ , respectively) and their standard errors. The second table is the Newey-West coefficient covariance matrix estimate. For example, $C o v ({β_{}^{ˆ}}_{1}, {β_{}^{ˆ}}_{2}) = 0.0027$ . hac returns tables of estimates when you supply a table of data.

Plot Kernel Densities

Open Live Script

Plot the kernel density functions available in hac.

Set domain, x, and range w.

x = (0:0.001:3.2)';
w = zeros(size(x));

Compute the truncated kernel density.

cTR = 2;    % Renormalization constant
TR = (abs(x) <= 1);
TRRn = (abs(cTR*x) <= 1);
wTR = w;
wTR(TR) = 1;
wTRRn = w;
wTRRn(TRRn) = 1;

Compute the Bartlett kernel density.

cBT = 2/3;  % Renormalization constant
BT = (abs(x) <= 1);
BTRn = (abs(cBT*x) <= 1);
wBT = w;
wBT(BT) = 1-abs(x(BT));
wBTRn = w;
wBTRn(BTRn) = 1-abs(cBT*x(BTRn));

Compute the Parzen kernel density.

cPZ = 0.539285;     % Renormalization constant
PZ1 = (abs(x) >= 0) & (abs(x) <= 1/2);
PZ2 = (abs(x) >= 1/2) & (abs(x) <= 1);
PZ1Rn = (abs(cPZ*x) >= 0) & (abs(cPZ*x) <= 1/2);
PZ2Rn = (abs(cPZ*x) >= 1/2) & (abs(cPZ*x) <= 1);
wPZ = w;
wPZ(PZ1) = 1-6*x(PZ1).^2+6*abs(x(PZ1)).^3;
wPZ(PZ2) = 2*(1-abs(x(PZ2))).^3;
wPZRn = w;
wPZRn(PZ1Rn) = 1-6*(cPZ*x(PZ1Rn)).^2 ...
    + 6*abs(cPZ*x(PZ1Rn)).^3;
wPZRn(PZ2Rn) = 2*(1-abs(cPZ*x(PZ2Rn))).^3;

Compute the Tukey-Hanning kernel density.

cTH = 3/4;  % Renormalization constant
TH = (abs(x) <= 1);
THRn = (abs(cTH*x) <= 1);
wTH = w;
wTH(TH) = (1+cos(pi*x(TH)))/2;
wTHRn = w;
wTHRn(THRn) = (1+cos(pi*cTH*x(THRn)))/2;

Compute the quadratic spectral kernel density.

argQS = 6*pi*x/5;
w1 = 3./(argQS.^2);
w2 = (sin(argQS)./argQS)-cos(argQS);
wQS = w1.*w2;
wQS(x == 0) = 1;
wQSRn = wQS;    % Renormalization constant = 1

Plot the kernel densities.

figure
plot(x,[wTR wBT wPZ wTH wQS],LineWidth=2)
hold on
plot(x,w,"k",LineWidth=2)
axis([0 3.2 -0.2 1.2])
grid on
title("\bf HAC Kernels")
legend(["Truncated" "Bartlett" "Parzen" "Tukey-Hanning", ...
    "Quadratic spectral"])
xlabel("Covariance Lag")
ylabel("Weight")

Figure contains an axes object. The axes object with title equation HAC Kernels, xlabel Covariance Lag, ylabel Weight contains 6 objects of type line. These objects represent Truncated, Bartlett, Parzen, Tukey-Hanning, Quadratic spectral.

All graphs are truncated at Covariance Lag = 1, except for the quadratic spectral. The quadratic spectral density approaches 0 as Covariance Lag gets large, but does not get truncated.

Plot renormalized kernels. Unlike the densities in the previous plot, these have the same asymptotic variance [1].

figure
plot(x,[wTRRn,wBTRn,wPZRn,wTHRn,wQSRn],LineWidth=2)
hold on
plot(x,w,"k",LineWidth=2)
axis([0 3.2 -0.2 1.2])
grid on
title("{\bf Renormalized HAC Kernels} (Equal Asymptotic Variance)")
legend(["Truncated" "Bartlett" "Parzen" "Tukey-Hanning" "Quadratic spectral"])
xlabel("Covariance Lag")
ylabel("Weight")

Figure contains an axes object. The axes object with title blank Renormalized blank HAC blank Kernels blank (Equal blank Asymptotic blank Variance), xlabel Covariance Lag, ylabel Weight contains 6 objects of type line. These objects represent Truncated, Bartlett, Parzen, Tukey-Hanning, Quadratic spectral.

Examine the effects of changing the bandwidth parameter on the quadratic spectral density.

Assign several bandwidth values to b. Assign the domain to l. Calculate x = l/|b|.

b = (1:5)';
l = (0:0.1:10);
x = bsxfun(@rdivide,repmat(l,[size(b) 1]),b)';

Calculate the quadratic spectral density under the domain for each bandwidth value.

argQS = 6*pi*x/5;
w1 = 3./(argQS.^2);
w2 = (sin(argQS)./argQS)-cos(argQS);
wQS = w1.*w2;
wQS(x == 0) = 1;

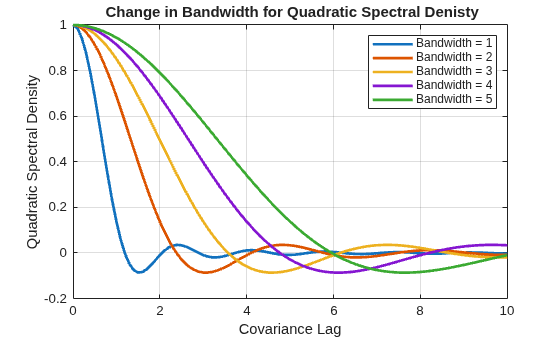

Plot the quadratic spectral densities.

figure
plot(l,wQS,LineWidth=2);
grid on
xlabel("Covariance Lag");
ylabel("Quadratic Spectral Density");
title("\bf Change in Bandwidth for Quadratic Spectral Denisty");
legend("Bandwidth = 1","Bandwidth = 2","Bandwidth = 3", ...
    "Bandwidth = 4","Bandwidth = 5");

Figure contains an axes object. The axes object with title equation Change in Bandwidth for Quadratic Spectral Denisty, xlabel Covariance Lag, ylabel Quadratic Spectral Density contains 5 objects of type line. These objects represent Bandwidth = 1, Bandwidth = 2, Bandwidth = 3, Bandwidth = 4, Bandwidth = 5.

As the bandwidth increases, the kernel imparts more weight to larger lags.

Input Arguments

collapse all

`X` — Predictor data X
numeric matrix

Predictor data X for the multiple linear regression model, specified as a numObs-by-numPreds numeric matrix.

Each row represents one of the numObs observations and each column represents one of the numPreds predictor variables.

Data Types: double

`y` — Response data y
numeric vector

Response data y for the multiple linear regression model, specified as a numObs-by-1 numeric vector. Rows of y and X correspond.

Data Types: double

`Mdl` — Fitted linear model
`LinearModel` model

Fitted linear model, specified as a LinearModel object returned by fitlm.

`Tbl` — Combined predictor and response data
table | timetable

Combined predictor and response data for the multiple linear regression model, specified as a table or timetable with numObs rows. Each row of Tbl is an observation.

The test regresses the response variable, which is the last variable in Tbl, on the predictor variables, which are all other variables in Tbl. To select a different response variable for the regression, use the ResponseVariable name-value argument. To select different predictor variables, use the PredictorNames name-value argument to select numPreds predictors.

Note

NaNs in X, y, or Tbl indicate missing values, and hac removes observations containing at least one NaN. That is, to remove NaNs in X or y, hac merges the variables [X y], and then it uses list-wise deletion to remove any row that contains at least one NaN. hac also removes any row of Tbl containing at least one NaN. Removing NaNs in the data reduces the sample size and can create irregular time series.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: hac(Tbl,ResponseVariable="GDP",Type="HC") provides a heteroscedasticity-consistent coefficient covariance estimate of a regression where the table variable GDP is the response while all other variables are predictors.

`VarNames` — Unique variable names used in displays and plots of results
string vector | character vector | cell vector of strings | cell vector of character vectors

Unique variable names used in displays and plots of the results, specified as a string vector or cell vector of strings of a length numCoeffs.

VarNames must include names for all coefficients in the model.

If you do not supply an input model Mdl:
- If Intercept=true, VarNames(1) is the name of the intercept, and VarNames(j + 1) specifies the name to use for variable X(:,j) or PredictorVariables(j).
- If Intercept=false, VarNames(j) specifies the name to use for variable X(:,j) or PredictorVariables(j).
If you supply an input model Mdl, you must additionally supply names for higher-order terms (for example, "x1^2" or "x1:x2").

The default is one of the following alternatives with 'Const' representing the intercept term when it is present:

{'x1' 'x2' ...} when you supply inputs X and y
Tbl.Properties.VariableNames when you supply input table or timetable Tbl
Mdl.CoefficientNames when you supply the input LinearModel object Mdl.

Example: VarNames=["Const" "AGE" "BBD"]

Data Types: char | cell | string

`Intercept` — Flag to include intercept
`true` (default) | `false`

Flag to include a model intercept, specified as a value in this table.

Value	Description
`true`	`hac` include an intercept in the model.
`false`	`hac` exclude an intercept from the model.

The number of model coefficients numCoeffs is numPreds + Intercept.

If you specify Mdl, hac ignores Intercept and uses the intercept in Mdl.

Example: Intercept=false

Data Types: logical

`Type` — Coefficient covariance estimator type
`"HAC"` (default) | `"HC"` | character vector

Coefficient covariance estimator type, specified as a value in this table.

Value	Covariance Estimate	Usage
`"HAC"`	Heteroscedasticity-and-autocorrelation-consistent (HAC) estimate as described in [1], [2], [6], and [10]	When residuals exhibit both heteroscedasticity and autocorrelation
`"HC"`	Heteroscedasticity-consistent (HC) estimate as described in [3], [9], and [12]	When residuals exhibit only heteroscedasticity

Example: Type="HC"

Data Types: char

`Weights` — Coefficient covariance estimator weighting scheme
`"CLM"` | `"HC0"` | `"HC1"` | `"HC2"` | `"HC3"` | `"HC4"` | `"TR"` | `"BT"` | `"PZ"` | `"TH"` | `"QS"` | numeric vector | character vector | ...

Coefficient covariance estimator weighting scheme, specified as a value in the following tables or a length numObs numeric vector.

Set Weights to specify the structure of the innovations covariance Ω. hac uses this specification to compute $\hat{Φ} = X^{'} \hat{Ω} X$ (see Sandwich Estimators).

If Type="HC", then $\hat{Ω} = d i a g (ω),$ where ω_i estimates innovation variance i, i = 1,...,T, and T = numObs. hac estimates ω_i using the residual i, ε_i, its leverage $h_{i} = x_{i} {(X^{'} X)}^{- 1} x_{i}^{'},$ $d_{i} = \min (4, \frac{h_{i}}{\bar{h}})$ , and the degrees of freedom, dfe.

Value	Weight	Reference
`"CLM"`	$ω_{i} = \frac{1}{d f e} \sum_{i = 1}^{T} ε_{i}^{2}$	[7]
`"HCO"` (default when `Type="HC"`)	$ω_{i} = ε_{i}^{2}$	[12]
`"HC1"`	$ω_{i} = \frac{T}{d f e} ε_{i}^{2}$	[9]
`"HC2"`	$ω_{i} = \frac{ε_{i}^{2}}{1 - h_{i}}$	[9]
`"HC3"`	$ω_{i} = \frac{ε_{i}^{2}}{{(1 - h_{i})}^{2}}$	[9]
`"HC4"`	$ω_{i} = \frac{ε_{i}^{2}}{{(1 - h_{i})}^{d_{i}}}$	[3]

If Type="HAC", hac weights the component products that form $\hat{Φ}$ , $x_{i}^{'} ε_{i} ε_{j} x_{j}$ , using a measure of autocorrelation strength, ω(l), at each lag, l = |i – j|. ω(l) = k(l/b), where k is a kernel density estimator and b is a bandwidth specified by the Bandwidth name-value argument.

Value	Kernel Density	Kernel Density Function	Reference
`"TR"`	Truncated	$k (z) = {\begin{cases} 1 for \| z \| \leq 1 \\ 0 otherwise \end{cases}$	This setting produces the White estimator in [13].
`"BT"` (default when `Type="HAC"`)	Bartlett	$k (z) = {\begin{cases} 1 - \| z \| for \| z \| \leq 1 \\ 0 otherwise \end{cases}$	This setting produces the Newey-West estimator in [10].
`"PZ"`	Parzen	$k (z) = {\begin{cases} 1 - 6 x^{2} + 6 {\| z \|}^{3} for 0 \leq z < 0.5 \\ 2 (^{1 - \| z \|) 3} for 0.5 \leq z \leq 1 \\ 0 otherwise \end{cases}$	This setting produces the Gallant estimator in [6].
`"TH"`	Tukey-Hanning	$k (z) = {\begin{cases} \frac{1 + \cos (π z)}{2} for \| z \| \leq 1 \\ 0 otherwise \end{cases}$	[1]
`"QS"`	Quadratic spectral	$k (z) = \frac{25}{12 π^{2} z^{2}} (\frac{\sin (6 π z / 5)}{6 π z / 5} - \cos (6 π z / 5))$	[1]

For a visual description of the kernel densities, see Plot Kernel Densities.

For either value of Type, you can set Weights to any length numObs numeric vector without containing NaNs. However, such a custom vector might not produce positive definite matrices.
If you set Weights to a numeric vector, hac concatenates the input data and the weights, and removes all rows containing at least one NaN.

Example: Weights="QS"

Data Types: double | char | string

`Bandwidth` — Bandwidth value or method
`"AR1""AR1MLE"` (default) | `"AR1OLS"` | `"ARMA11"` | positive numeric scalar | character vector

Bandwidth value or method name indicating how hac estimates the data-driven bandwidth parameter, specified as a positive scalar or a method name.

If Type="HC", hac ignores Bandwidth.
If Type="HAC", you must provide a nonzero scalar for the bandwidth or use a name in the following table to indicate which model and method hac uses to estimate the data-driven bandwidth. For details, see [1].

Method Name Model Method
"AR1" AR(1) Maximum likelihood
"AR1MLE" AR(1) Maximum likelihood
"AR1OLS" AR(1) OLS
"ARMA11" ARMA(1,1) Maximum likelihood

Method Name	Model	Method
`"AR1"`	AR(1)	Maximum likelihood
`"AR1MLE"`	AR(1)	Maximum likelihood
`"AR1OLS"`	AR(1)	OLS
`"ARMA11"`	ARMA(1,1)	Maximum likelihood

Example: Bandwidth=floor(4*(T/100)^(2/9))+1

Data Types: double | char

`SmallT` — Flag to apply small sample correction
`true` | `false`

Flag to apply the small sample correction to the estimated covariance matrix, specified as a logical value.

The small sample correction factor is $\frac{T}{d f e}$ , where T is the sample size and dfe is the residual degrees of freedom. For details, see [1].

Value	Description
`true`	`hac` applies the small sample correction.
`false`	`hac` do not apply the small sample correction.

The defaults is:

false when Type="HC"
true when Type="HAC"

Example: SmallT=false

Data Types: logical

`Whiten` — Lag order for VAR filter
0 (default) | nonnegative integer

Lag order for the VAR model prewhitening filter, specified as a nonnegative integer.

For details on prewhitening filters, see [2].

If Type="HC", hac ignores Whiten.
If Whiten=0, hac does not apply a prewhitening filter.

Example: Whiten=1

Data Types: double

`Display` — Command window display control
`"cov"` (default) | `"full"` | `"off"` | character vector

Command window display control, specified as a value in this table. hac displays results in tabular form.

Value	Description
`"cov"`	`hac` displays a table of the estimated covariances of the OLS coefficients.
`"full"`	`hac` displays a table of coefficient estimates, their standard errors, and their estimated covariances.
`"off"`	`hac` do not display an estimates table to the Command Window.

Example: Display="off"

`ResponseVariable` — Variable in `Tbl` to use for response
first variable in `Tbl` (default) | string vector | cell vector of character vectors | vector of integers | logical vector

Variable in Tbl to use for response, specified as a string vector or cell vector of character vectors containing variable names in Tbl.Properties.VariableNames, or an integer or logical vector representing the indices of names. The selected variables must be numeric.

hac uses the same specified response variable for all tests.

Example: ResponseVariable="GDP"

Example: ResponseVariable=[true false false false] or ResponseVariable=1 selects the first table variable as the response.

Data Types: double | logical | char | cell | string

`PredictorVariables` — Variables in `Tbl` to use for the predictors
string vector | cell vector of character vectors | vector of integers | logical vector

Variables in Tbl to use for the predictors, specified as a string vector or cell vector of character vectors containing variable names in Tbl.Properties.VariableNames, or an integer or logical vector representing the indices of names. The selected variables must be numeric.

hac uses the same specified predictors for all tests.

By default, hac uses all variables in Tbl that are not specified by the ResponseVariable name-value argument.

Example: PredictorVariables=["UN" "CPI"]

Example: PredictorVariables=[false true true false] or DataVariables=[2 3] selects the second and third table variables.

Data Types: double | logical | char | cell | string

Output Arguments

collapse all

`EstCoeffCov` — Coefficient covariance estimate
numeric matrix

Coefficient covariance estimate, returned as a numPreds-by-numPreds numeric matrix. hac returns EstCoeffCov when you supply the inputs X and y or Mdl.

If you specify inputs X and y, rows and columns of EstCoeffCov correspond to the predictor matrix columns, with the first row and column corresponding to the intercept when Intercept=true. For example, in a model with an intercept, the estimated covariance of ${\hat{β}}_{1}$ (corresponding to the predictor x₁) and ${\hat{β}}_{2}$ (corresponding to the predictor x₂) are in positions (2,3) and (3,2) of EstCoeffCov, respectively.
If you specify the input Mdl, rows and columns of EstCoeffCov correspond to Mdl.Coefficients.

`se` — Coefficient standard error estimates
numeric vector

Coefficient standard error estimates, returned as a length numPreds numeric vector whose elements are sqrt(diag(EstCoeffCov)). hac returns se when you supply the inputs X and y or Mdl.

If you specify inputs X and y, rows of se correspond to the predictor matrix columns, with the first row corresponding to the intercept when Intercept=true. For example, in a model with an intercept, the estimated standard error of ${\hat{β}}_{1}$ (corresponding to the predictor x₁) is in position 2 of se, and is the square root of the value in position (2,2) of EstCoeffCov.
If you specify the input Mdl, rows of se correspond to Mdl.Coefficients.

`coeff` — OLS coefficient estimates
numeric vector

OLS coefficient estimates, returned as a numPreds numeric vector. hac returns coeff when you supply the inputs X and y or Mdl.

If you specify inputs X and y, rows of coeff correspond to the predictor matrix columns, with the first row corresponding to the intercept when Intercept=true. For example, in a model with an intercept, the value of ${\hat{β}}_{1}$ (corresponding to the predictor x₁) is in position 2 of coeff.
If you specify the input Mdl, rows of coeff correspond to Mdl.Coefficients.

`CovTbl` — Coefficient covariance matrix estimate
table

Coefficient covariance matrix estimate, returned as a numCoeffs-by-numCoeffs table containing the coefficient covariance matrix estimate EstCoeffCov. hac returns CovTbl when you supply the input Tbl.

For each pair (i,j), CovTbl(i,j) contains the covariance estimate of coefficients i and j in the regression model. The label of row and variable j is VarNames(j), j = 1,…,numCoeffs.

`CoeffTbl` — Coefficient estimates and standard errors
table

Coefficient estimates and standard errors, returned as a numCoeffs-by-2 table. hac returns CoeffTbl when you supply the input Tbl.

For j = 1,…,numCoeffs, row j of CoeffTbl contains estimates of coefficient j in the regression model and it has label VarNames(j). The first variable Coeff contains the coefficient estimates coeff and the second variable SE contains the standard errors se.

More About

collapse all

Sandwich Estimators

This estimator has the form $A^{- 1} B A^{- 1}$ .

The estimated covariance matrix that hac returns is called a sandwich estimator because of its form:

$c {(X^{'} X)}^{- 1} \hat{Φ} {(X^{'} X)}^{- 1},$

where ${(X^{'} X)}^{- 1}$ is the bread, $\hat{Φ} = X^{'} \hat{Ω} X$ is the filling, and c is an optional small sample correction.

Lag-Truncation Parameter

This parameter directs a kernel density to assign no weight to all lags above its value.

For kernel densities with unit-interval support, the bandwidth parameter, b, is often called the lag-truncation parameter since w(l) = k(l/b) = 0 for lags l > b.

Tips

To reduce bias in HAC estimators, prewhiten the input series [2]. The prewhitening procedure tends to increase estimator variance and mean-squared error, but it can improve confidence interval coverage probabilities and reduce the over-rejection of t statistics.

Algorithms

The original White HC estimator, specified by the settings Type="HC",Weights="HC0" is justified asymptotically. The other values of the Weights name-value argument, "HC1", "HC2", "HC3", and "HC4", are meant to improve small-sample performance. Specify "HC3" or "HC4" in the presence of influential observations (see [6] and [3]).
HAC estimators formed using the truncated kernel might not be positive semidefinite in finite samples. [10] proposes using the Bartlett kernel as a remedy, but the resulting estimator is suboptimal in terms of its rate of consistency. The quadratic spectral kernel achieves an optimal rate of consistency.
The default estimation method for HAC bandwidth selection, specified by the Bandwidth name-value argument, is "AR1MLE", which is generally more accurate, but slower, than the AR(1) alternative "AR1OLS". If you specify Bandwidth="ARMA11", hac fits the model using maximum likelihood.
Bandwidth selection models might exhibit sensitivity to the relative scale of the input predictors.

References

[1] Andrews, D. W. K. "Heteroskedasticity and Autocorrelation Consistent Covariance Matrix Estimation." Econometrica. Vol. 59, 1991, pp. 817–858.

[2] Andrews, D. W. K., and J. C. Monohan. "An Improved Heteroskedasticity and Autocorrelation Consistent Covariance Matrix Estimator." Econometrica. Vol. 60, 1992, pp. 953–966.

[3] Cribari-Neto, F. "Asymptotic Inference Under Heteroskedasticity of Unknown Form." Computational Statistics & Data Analysis. Vol. 45, 2004, pp. 215–233.

[4] den Haan, W. J., and A. Levin. "A Practitioner's Guide to Robust Covariance Matrix Estimation." In Handbook of Statistics. Edited by G. S. Maddala and C. R. Rao. Amsterdam: Elsevier, 1997.

[5] Frank, A., and A. Asuncion. UCI Machine Learning Repository. Irvine, CA: University of California, School of Information and Computer Science. https://archive.ics.uci.edu/, 2012.

[6] Gallant, A. R. Nonlinear Statistical Models. Hoboken, NJ: John Wiley & Sons, Inc., 1987.

[7] Kutner, M. H., C. J. Nachtsheim, J. Neter, and W. Li. Applied Linear Statistical Models. 5th ed. New York: McGraw-Hill/Irwin, 2005.

[8] Long, J. S., and L. H. Ervin. "Using Heteroscedasticity-Consistent Standard Errors in the Linear Regression Model." The American Statistician. Vol. 54, 2000, pp. 217–224.

[9] MacKinnon, J. G. "Numerical Distribution Functions for Unit Root and Cointegration Tests." Journal of Applied Econometrics. Vol. 11, 1996, pp. 601–618.

[10] Newey, W. K., and K. D. West. "A Simple, Positive Semidefinite, Heteroskedasticity and Autocorrelation Consistent Covariance Matrix." Econometrica. Vol. 55, 1987, pp. 703–708.

[11] Newey, W. K, and K. D. West. “Automatic Lag Selection in Covariance Matrix Estimation.” The Review of Economic Studies. Vol. 61 No. 4, 1994, pp. 631–653.

[12] White, H. "A Heteroskedasticity-Consistent Covariance Matrix and a Direct Test for Heteroskedasticity." Econometrica. Vol. 48, 1980, pp. 817–838.

[13] White, H. Asymptotic Theory for Econometricians. New York: Academic Press, 1984.

Version History

Introduced in R2013a

expand all

R2022a: `hac` returns estimates in tables when you supply a table of data

If you supply a table of time series data Tbl, hac returns the following outputs:

In the first position, hac returns a table containing the estimated coefficient covariances CovTbl with rows and variables corresponding to, and labeled as, VarNames.
In the second position, hac returns the table CoeffTbl containing variables for coefficient estimates Coeff and standard errors SE with rows corresponding to, and labeled as, VarNames.

Before R2022a, hac returned the numeric outputs in separate positions of the output when you supplied a table of input data.

Starting in R2022a, if you supply a table of input data, update your code to return all outputs in the first and second output positions.

[CoeffTbl,CovTbl] = hac(Tbl,Name=Value)

If you request more outputs, hac issues an error.

Also, access results by using table indexing. For more details, see Access Data in Tables.

hac

Syntax

Description

Examples

Return Newey-West Coefficient Covariance Estimate

Estimate White's Robust Covariance from Fitted Linear Model

Set Bandwidth for Newey-West Coefficient Covariance Estimate

Plot Kernel Densities

Input Arguments

X — Predictor data X numeric matrix

y — Response data y numeric vector

Mdl — Fitted linear model LinearModel model

Tbl — Combined predictor and response data table | timetable

Name-Value Arguments

VarNames — Unique variable names used in displays and plots of results string vector | character vector | cell vector of strings | cell vector of character vectors

Intercept — Flag to include intercept true (default) | false

Type — Coefficient covariance estimator type "HAC" (default) | "HC" | character vector

Weights — Coefficient covariance estimator weighting scheme "CLM" | "HC0" | "HC1" | "HC2" | "HC3" | "HC4" | "TR" | "BT" | "PZ" | "TH" | "QS" | numeric vector | character vector | ...

Bandwidth — Bandwidth value or method "AR1""AR1MLE" (default) | "AR1OLS" | "ARMA11" | positive numeric scalar | character vector

SmallT — Flag to apply small sample correction true | false

Whiten — Lag order for VAR filter 0 (default) | nonnegative integer

Display — Command window display control "cov" (default) | "full" | "off" | character vector

ResponseVariable — Variable in Tbl to use for response first variable in Tbl (default) | string vector | cell vector of character vectors | vector of integers | logical vector

PredictorVariables — Variables in Tbl to use for the predictors string vector | cell vector of character vectors | vector of integers | logical vector

Output Arguments

EstCoeffCov — Coefficient covariance estimate numeric matrix

se — Coefficient standard error estimates numeric vector

coeff — OLS coefficient estimates numeric vector

CovTbl — Coefficient covariance matrix estimate table

CoeffTbl — Coefficient estimates and standard errors table

More About

Sandwich Estimators

Lag-Truncation Parameter

Tips

Algorithms

References

Version History

R2022a: hac returns estimates in tables when you supply a table of data

See Also

Functions

Objects

Topics

`X` — Predictor data X
numeric matrix

`y` — Response data y
numeric vector

`Mdl` — Fitted linear model
`LinearModel` model

`Tbl` — Combined predictor and response data
table | timetable

`VarNames` — Unique variable names used in displays and plots of results
string vector | character vector | cell vector of strings | cell vector of character vectors

`Intercept` — Flag to include intercept
`true` (default) | `false`

`Type` — Coefficient covariance estimator type
`"HAC"` (default) | `"HC"` | character vector

`Weights` — Coefficient covariance estimator weighting scheme
`"CLM"` | `"HC0"` | `"HC1"` | `"HC2"` | `"HC3"` | `"HC4"` | `"TR"` | `"BT"` | `"PZ"` | `"TH"` | `"QS"` | numeric vector | character vector | ...

`Bandwidth` — Bandwidth value or method
`"AR1""AR1MLE"` (default) | `"AR1OLS"` | `"ARMA11"` | positive numeric scalar | character vector

`SmallT` — Flag to apply small sample correction
`true` | `false`

`Whiten` — Lag order for VAR filter
0 (default) | nonnegative integer

`Display` — Command window display control
`"cov"` (default) | `"full"` | `"off"` | character vector

`ResponseVariable` — Variable in `Tbl` to use for response
first variable in `Tbl` (default) | string vector | cell vector of character vectors | vector of integers | logical vector

`PredictorVariables` — Variables in `Tbl` to use for the predictors
string vector | cell vector of character vectors | vector of integers | logical vector

`EstCoeffCov` — Coefficient covariance estimate
numeric matrix

`se` — Coefficient standard error estimates
numeric vector

`coeff` — OLS coefficient estimates
numeric vector

`CovTbl` — Coefficient covariance matrix estimate
table

`CoeffTbl` — Coefficient estimates and standard errors
table

R2022a: `hac` returns estimates in tables when you supply a table of data
