Hardware Implementation Pane

R2026b

Hardware Implementation Pane Overview

Configure hardware parameters for an FPGA or SoC device when using the SoC modeling and generation feature set. These parameters enable code generation for rate-based and event-based tasks. They also enable advanced profiling capabilities, such as task and core profiling, and code and kernel instrumentation. To configure these parameters, follow these steps:

On the Simulink^® toolstrip, on the Modeling tab, click Model Settings.
In the Configuration Parameter dialog box, click Hardware Implementation.
Set the Hardware board parameter to Altera Arria 10 SoC development kit, Altera Cyclone V SoC development kit, or Arrow SoCKit development board.
Then, click Apply.
If you chose Altera Arria 10 SoC development kit or Altera Cyclone V SoC development kit, set Feature set for selected hardware board to SoC Modeling and Generation and click Apply.
The parameter values under Hardware board settings are automatically populated to their default values. You can optionally adjust these parameters for your particular use case.
Click Apply.

If you want to enable code generation for rate-based tasks and basic profiling capabilities, set Feature set for selected hardware board to Embedded Coder. For information about configuring the associated hardware parameters, see Hardware Implementation Pane: Arria 10, Cyclone V, or Arrow SoCKit.

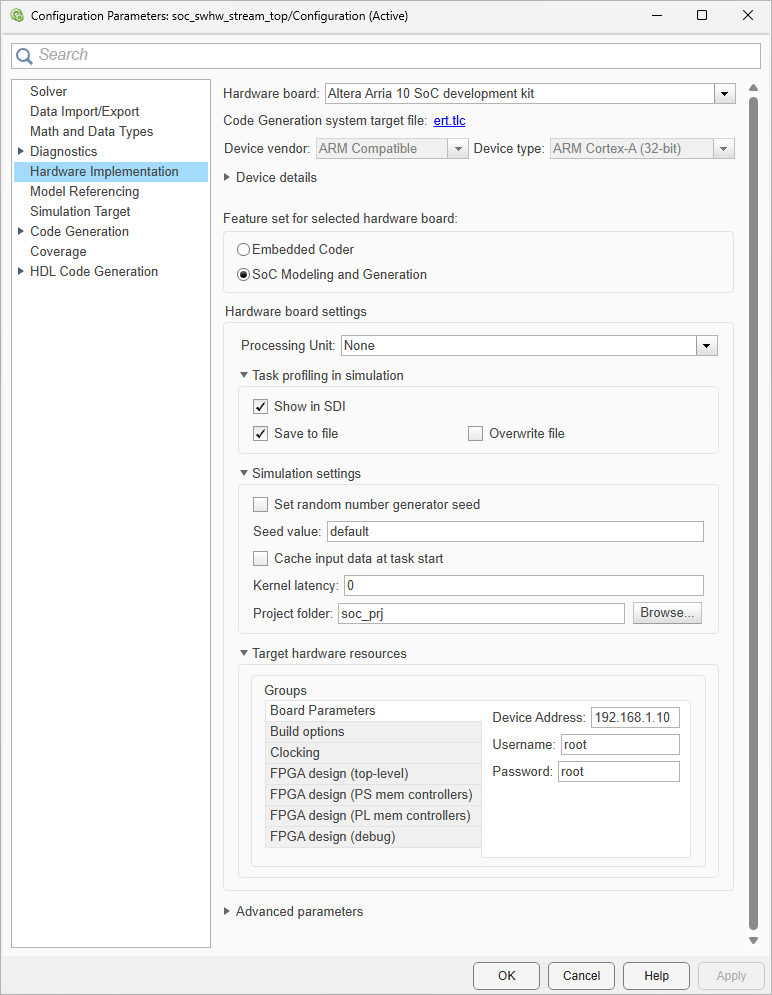

Hardware Implementation pane

Hardware board settings

Set the processing unit to build and deploy the application model.

Parameter	Description	Default Value
Processing Unit (SoC Blockset)	Select processing unit for SoC model deployment.	`None`

Task profiling in simulation

Define the settings to display and record tasks in simulation.

Parameter	Description	Default Value
Show in SDI (SoC Blockset)	Show the task execution data collected in simulation in the Simulation Data Inspector application.	`on`
Save to file (SoC Blockset)	Save the task execution data to a file.	`on`
Overwrite file (SoC Blockset)	Overwrite the last task execution data file.	`off`

Task profiling on processor

Define the settings to display and record tasks on hardware board.

Parameter	Description	Default Value
Show in SDI (SoC Blockset)	Show the task execution data collected on hardware in the Simulation Data Inspector application.	`off`
Save to file (SoC Blockset)	Save the task execution data to a file.	`off`
Overwrite file (SoC Blockset)	Overwrite the last task execution data file.	`off`
Instrumentation (SoC Blockset)	Choose to perform code instrumentation or Kernel instrumentation.	`Code`
Profiling duration (SoC Blockset)	Choose whether to perform Kernel profiling for an unlimited or limited time duration.	`Unlimited`

Operating system/scheduler

Define the kernel latency of the OS in simulation of a task.

Parameter	Description	Default Value
Operating system (SoC Blockset)	Specify the operation system.	`Linux`

Simulation settings

Define the settings used to simulate task execution timing.

Parameter	Description	Default Value
Set random number generator seed (SoC Blockset)	Set the random number generator seed.	`off`
Seed Value (SoC Blockset)	Specify the seed value for the simulation of task duration deviation.	`default`
Cache input data at task start (SoC Blockset)	Cache the input data at the start of a task.	`off`
Kernel latency (SoC Blockset)	Set the simulated delay.	`0`
Project folder (SoC Blockset)	Specify the project folder.	`soc_prj`

Board parameters

Define the board parameters.

Parameter	Description	Default Value
Device Address (SoC Blockset)	Network address of hardware board or device.	`192.168.1.10`
Username (SoC Blockset)	Login `username` on hardware board or device.	`root`
Password (SoC Blockset)	Login password on hardware board or device.	`root`

Processor

Specify processor features for the entire model.

Parameter	Description	Default Value
Number of cores (SoC Blockset)	Set the number of CPU cores in the processor.	`1`

Build options

Define how SoC builder tool responds when you press Ctrl+B to build your model.

Parameter	Description	Default Value
Build Action (SoC Blockset)	Defines how SoC Builder tool responds when you build your model.	`Build, load, and run`

Clocking

Define the settings for the clock signals on the embedded processor.

Parameter	Description	Default Value
CPU Clock (MHz) (SoC Blockset)	The CPU clock frequency in MHz.	`1000`

External mode

Define the external mode communication properties of a model.

Parameter	Description	Default Value
Communication Interface (SoC Blockset)	Transport layer used to exchange data between the development computer and hardware.	`XCP on TCP/IP`
Run external mode in a background thread (SoC Blockset)	Execute the external mode engine in the generated code in a background task.	`disabled`
Port (SoC Blockset)	IP address port on hardware board.	`17725`
Verbose (SoC Blockset)	Enable view of the external mode execution progress and updates in the Diagnostic Viewer.	`disabled`

FPGA design (top-level)

Define the FPGA design parameters for the entire model.

Parameter	Description	Default Value
Include AXI Manager IP for host-based interaction (SoC Blockset)	Use host-based scripts with an integrated JTAG manager on the target platform.	`on`
Include processing system (SoC Blockset)	For processor-based platforms, include the processing system.	`on`
Register configuration clock frequency (MHz) (SoC Blockset)	The system configuration clock drives the configuration register interfaces for the vendor IP cores in the system.	`50`
IP core clock frequency (MHz) (SoC Blockset)	The clock for all Simulink based generated HDL IP cores.	`100`

FPGA design (PS mem controllers)

Define the FPGA design parameters for the PS memory controllers. The default values for these parameters vary by board.

Parameter	Description	Default Value
Controller clock frequency (MHz) (SoC Blockset)	Frequency of datapath between PS memory interconnect and PS memory controller.	`200`
Controller data width (bits) (SoC Blockset)	Bit width of datapath between PS memory interconnect and PS memory controller.	`64`
Bandwidth derating (%) (SoC Blockset)	For every 100 clocks, will hold off all transaction execution for this number of clocks.	`2.3`
First write transfer latency (clocks) (SoC Blockset)	Number of clock cycles between write request and start of transfer.	`5`
Last write transfer latency (clocks) (SoC Blockset)	Number of clock cycles between the end of write transfer and completion of transaction.	`5`
First read transfer latency (clocks) (SoC Blockset)	Number of clock cycles between read request and start of transfer.	`5`
Last read transfer latency (clocks) (SoC Blockset)	Number of clock cycles between the end of read transfer and completion of transaction.	`5`

FPGA design (PL mem controllers)

Define the FPGA design parameters for the PL memory controllers. The default values for these parameters vary by board.

Parameter	Description	Default Value
Controller clock frequency (MHz) (SoC Blockset)	Frequency of datapath between PL memory interconnect and PL memory controller.	`200`
Controller data width (bits) (SoC Blockset)	Bit width of datapath between PL memory interconnect and PL memory controller.	`64`
Bandwidth derating (%) (SoC Blockset)	For every 100 clocks, will hold off all transaction execution for this number of clocks.	`2.3`
First write transfer latency (clocks) (SoC Blockset)	Number of clock cycles between write request and start of transfer.	`5`
Last write transfer latency (clocks) (SoC Blockset)	Number of clock cycles between the end of write transfer and completion of transaction.	`5`
First read transfer latency (clocks) (SoC Blockset)	Number of clock cycles between read request and start of transfer.	`5`
Last read transfer latency (clocks) (SoC Blockset)	Number of clock cycles between the end of read transfer and completion of transaction.	`5`

FPGA design (debug)

Define the FPGA design parameters for debugging.

Parameter	Description	Default Value
Include AXI interconnect monitor (SoC Blockset)	Gather performance metrics of the memory interconnect such as data throughput, latency, and number of bursts executed.	`off`
Trace capture depth (SoC Blockset)	Maximum number of Trace entries to be logged in trace mode	`1024`
