generateFPGADataCaptureIP

R2026b

Open FPGA Data Capture Component Generator

collapse all in page

    Syntax

    generateFPGADataCaptureIP
    generateFPGADataCaptureIP('restore',true)
    generateFPGADataCaptureIP(matFile)

    Description

    Add-On Required: This feature requires the HDL Coder Support Package for Intel FPGA and SoC Devices add-on.

    generateFPGADataCaptureIP opens the FPGA Data Capture Component Generator tool.

    example

    generateFPGADataCaptureIP('restore',true) opens the FPGA Data Capture Component Generator tool and reloads the parameters of the most recent design.

    generateFPGADataCaptureIP(matFile) opens the FPGA Data Capture Component Generator tool and reloads the parameters of a design you already generated and saved in matFile.

    Examples

    collapse all

    Open Live Script

    This example shows how to launch the FPGA Data Capture Component Generator tool.

    Open Tool with Default Settings

    Run the following command to launch the FPGA Data Capture Component Generator tool:

    generateFPGADataCaptureIP

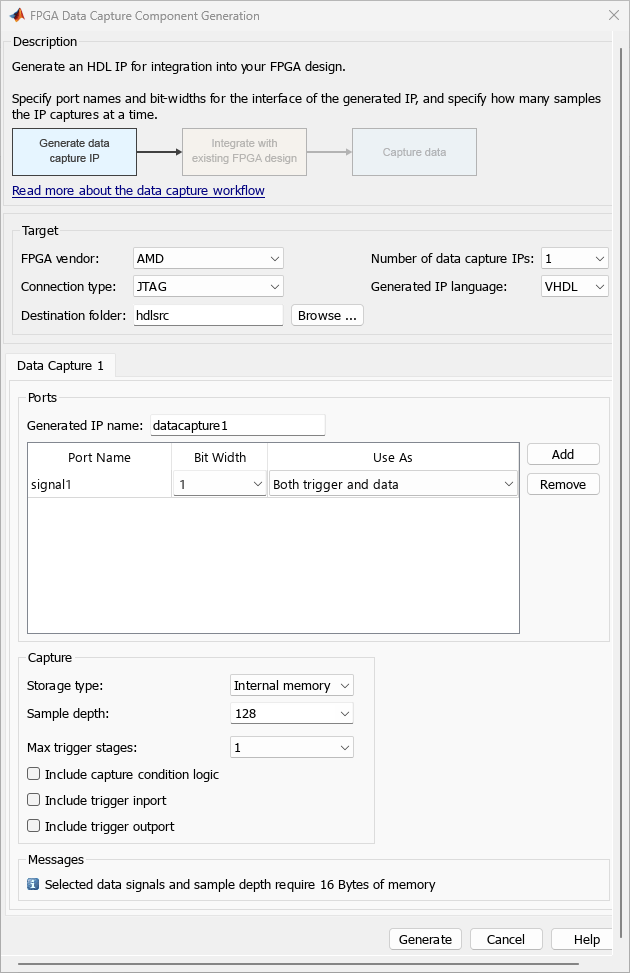

    FPGA Data Capture Component Generator tool with default settings

    Input Arguments

    collapse all

    Option to reload the most recent design parameters, specified as true or false. When you specify this input as true, the FPGA Data Capture Component Generator tool opens and reloads the parameters of the most recent design. Otherwise, the tool opens with default settings.

    Example: 'restore',true

    Data Types: logical

    MAT file containing design parameters, specified as a character vector or string scalar. Specify this input in one of these forms:

    • datacapture_generation_settings.mat — This MAT file holds the build parameters for a data capture IP specified by datacapture.

    • multipleDatacaptureIPs_gensettings.mat — This MAT file holds the build parameters for all the generated data capture IPs.

      Note

      You can enable multiple data capture IPs only when targeting the AMD® devices over a JTAG interface.

    This MAT file is a generated file in the same folder as your other generated data capture components. When you specify this input, the FPGA Data Capture Component Generator tool opens and reloads the parameters of the design specified by this value.

    You must provide only the MAT file name if the file is in the current working folder.

    Example: 'datacapture_generation_settings.mat'

    You must provide the full path to the saved MAT file if the file is not in the current working folder.

    Example: 'C:/home/user/datacapture_generation_settings.mat'

    Data Types: char | string

    Version History

    Introduced in R2017a

    expand all
