Synthesize Code for Frame-Based Model

Sobel Edge Detection Model

Open the model to see a frame-based implementation of the Sobel edge detection algorithm.

open_system('FrameBasedEdgeDetectionForHDLCodeGenExample')
set_param('FrameBasedEdgeDetectionForHDLCodeGenExample','SimulationCommand','Update')

The model consists of two designs under test (DUT) and a testbench. The DUT subsystem contains a MATLAB® Function block that implements a Sobel edge detection algorithm using hdl.npufun.

function [O, E] = edgeDetectionAndOverlay(I)

E = hdl.npufun(@sobel_kernel, [3 3], I);
O = hdl.npufun(@mix_kernel, [1 1], E, I);

end

function e = sobel_kernel(in)

u = fi(in);
hGrad = u(1) + fi(2)*u(2) + u(3) - (u(7) + fi(2)*u(8) + u(9));
vGrad = u(1) + fi(2)*u(4) + u(7) - (u(3) + fi(2)*u(6) + u(9));

hGrad = bitshift(hGrad, -3); % Divide by 8
vGrad = bitshift(vGrad, -3); % Divide by 8

thresholdValueSq = fi(49); % Threshold parameter
e = (hGrad*hGrad + vGrad*vGrad) > thresholdValueSq;

end

function O = mix_kernel(E, I)

alpha = fi(0.8); % Parameter for combining images
scaleE = E*fi(255,0,8,0);
O = scaleE * (fi(1)-alpha) + I*alpha;

end

The DUTPipelined subsystem contains a MATLAB Function block with a manually pipelined version of the previous algorithm that uses the coder.hdl.pipeline pragma. For example, you can modify the mix_kernel function to insert pipeline registers for the overlay operation.

function O = mix_kernel(E, I)

alpha = fi(0.8); % Parameter for combining images
scaleE = E*fi(255,0,8,0);
scaleEdelay = coder.hdl.pipeline(scaleE,2);
O1 = scaleEdelay*(1-alpha);
O1delay = coder.hdl.pipeline(O1,2);
O2 = I*alpha;
O2delay = coder.hdl.pipeline(O2,4);
O = O1delay + O2delay;

end

Perform FPGA Synthesis and Analysis

Use the HDL Workflow Advisor to synthesize the DUTs and compare the resources and timing achieved by each of the implementations. To generate HDL code and run synthesis on your design using the HDL Workflow Advisor, see HDL Code Generation and FPGA Synthesis from Simulink Model.

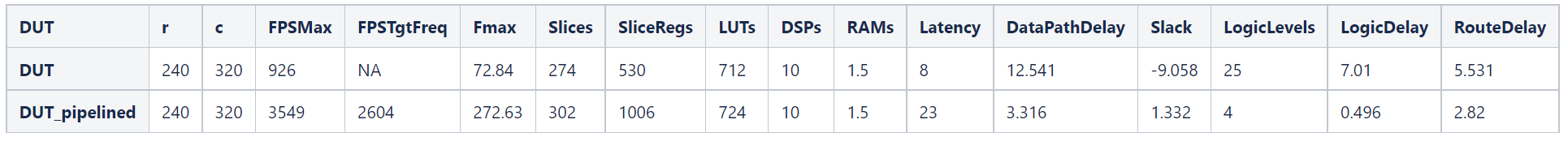

This table shows the results achieved for each DUT subsystem when you use these settings in the HDL Workflow Advisor:

The FPSMax and FPSTgtFreq columns correspond to the average frames per second (FPS) at the output when using the maximum achievable frequency (Fmax) and the Target Frequency (200 MHz), respectively, and r and c correspond to the number of rows and columns of the frame. To calculate the average frames per second, you can use this equation:

$$\mathrm{FPS}=\frac{\mathrm{Frequency}\left(\mathrm{Hz}\right)}{\mathit{r}\cdot \mathit{c}}$$.

Converting a frame-based algorithm to a sample-based algorithm requires more time to process each pixel than the frame-based version. This conversion adds additional latency between the input and output frames. In this example, the first pixel of the manually pipelined DUT output frame is available after an initial latency of 321 valid input pixels, plus the latency of 23 clock cycles reported in the table. For more information, see HDL Code Generation from Frame-Based Algorithms.

Optimized Speed by Using Speed Optimizations

You can use the distributed pipelining and the adaptive pipelining optimizations from HDL Coder™ with the frame-to-sample optimization to reduce the critical path of the design and achieve higher clock speed hardware for the DUT subsystem. Distributed pipelining moves existing design delays and pipeline registers in your design to reduce the critical path and adaptive pipelining inserts pipeline registers to blocks in the design that could result in area or speed optimizations. For this example, add input and output pipelines for distributed pipelining to redistribute and enable adaptive pipelining to obtain an optimal result. For more information on distributed pipelining and adaptive pipelining, see Distributed Pipelining and Adaptive Pipelining respectively.

Enable distributed pipelining, adaptive pipelining, and set the MATLAB Function block input and output pipeline registers to 16 by entering:

hdlset_param('FrameBasedEdgeDetectionForHDLCodeGenExample', 'DistributedPipelining', 'on');
hdlset_param('FrameBasedEdgeDetectionForHDLCodeGenExample', 'AdaptivePipelining', 'on');
hdlset_param('FrameBasedEdgeDetectionForHDLCodeGenExample/DUT/MATLAB Function', 'DistributedPipelining', 'on');
hdlset_param('FrameBasedEdgeDetectionForHDLCodeGenExample/DUT/MATLAB Function', 'OutputPipeline', 16);
hdlset_param('FrameBasedEdgeDetectionForHDLCodeGenExample/DUT/MATLAB Function', 'InputPipeline', 16);

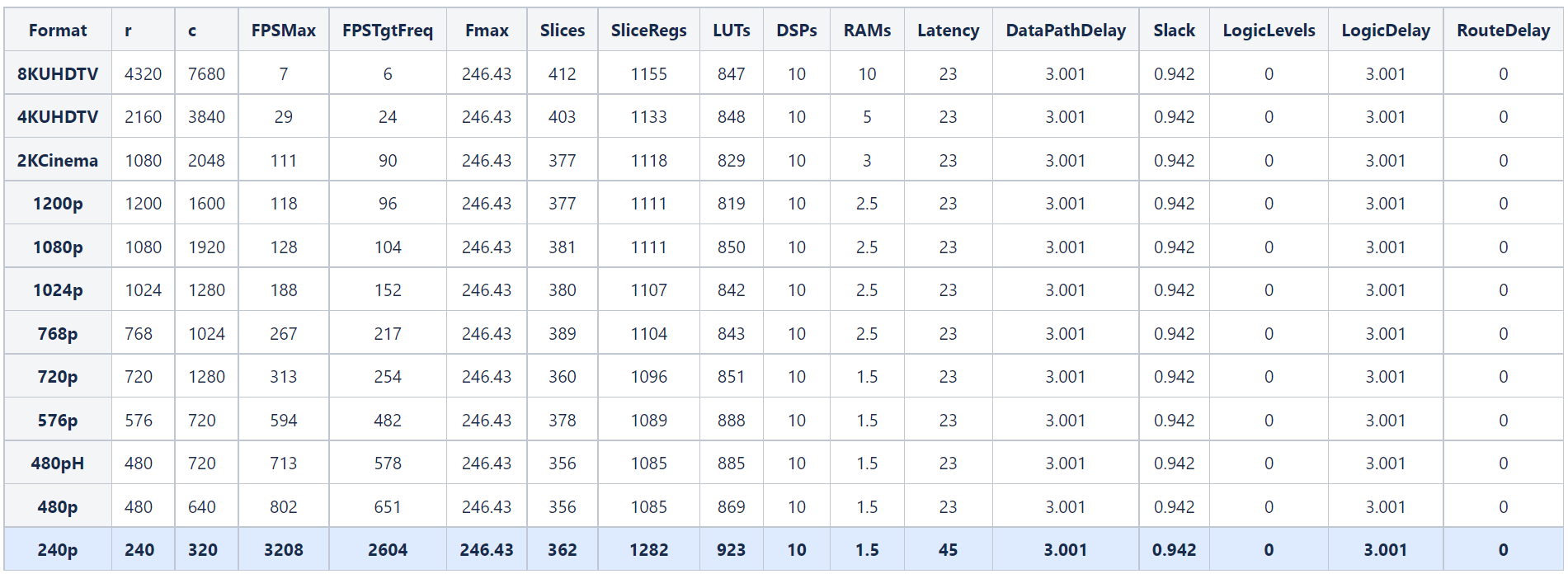

This table shows the resources and timing achieved when using distributed pipelining for different video formats. The highlighted row corresponds to the video format used in the previous section.

For all video formats, the synthesis results show a clock frequency of 246.43 MHz, indicating that the timing constraints are met.

Optimized Speed by Modifying the Samples per Cycle

You can vary the video size and achieve higher FPS by using the SamplesPerCycle parameter in the Configuration Parameters window:

$$\mathrm{FPS}=\frac{\mathrm{Frequency}\left(\mathrm{Hz}\right)}{\mathit{r}\cdot \left(\frac{\mathit{c}}{\mathrm{SamplesPerCycle}}\right)}$$.

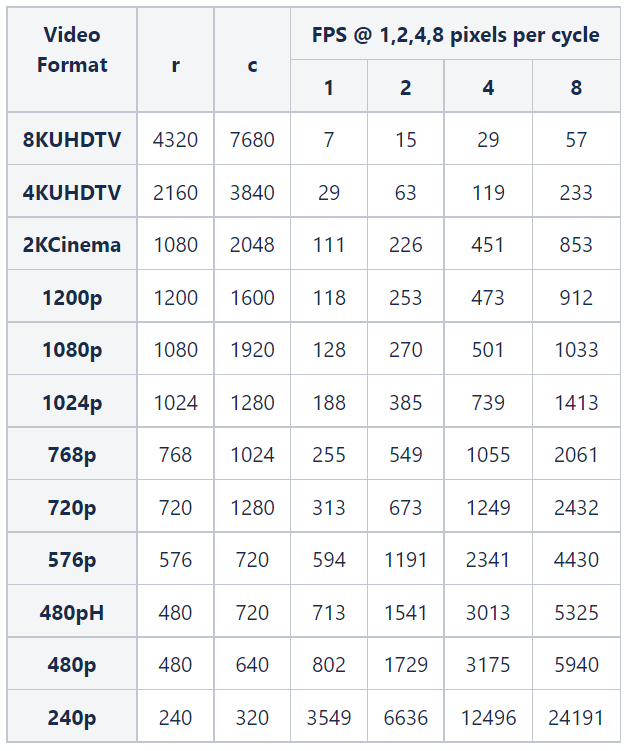

This table shows the FPS obtained for the DUTPipelined subsystem (manually pipelined) when you vary the size of the frames and the Samples per cycle parameter.
