LensDistortionChart
Description
Add-On Required: This feature requires the Optical Design and Simulation Library for Image Processing Toolbox add-on.
A LensDistortionChart object stores information used to display
the lens distortion of an optical system. You can change aspects of the display, such as the
title, line color, and legend, by modifying properties of the
LensDistortionChart object.
Creation
Create a LensDistortionChart object by using the show function
with a LensDistortion
object.
Properties
Lens distortion results, specified as a LensDistortion object.
Line color, specified as an RGB triplet, a hexadecimal color code, or a color name. You can also specify multiple colors as an M-by-3 numeric matrix where each row is an RGB triplet, or as an M-element string vector where each element is a hexadecimal color code or color name. If you specify a single color, the chart displays all results using the same color. If you specify multiple colors, then M must be equal to the number of wavelengths.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1], for example,[0.4 0.6 0.7].A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#) followed by three or six hexadecimal digits, which can range from0toF. The values are not case sensitive. Therefore, the color codes"#FF8800","#ff8800","#F80", and"#f80"are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.
| Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
|---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" |
|
"green" | "g" | [0 1 0] | "#00FF00" |
|
"blue" | "b" | [0 0 1] | "#0000FF" |
|
"cyan"
| "c" | [0 1 1] | "#00FFFF" |
|
"magenta" | "m" | [1 0 1] | "#FF00FF" |
|
"yellow" | "y" | [1 1 0] | "#FFFF00" |
|
"black" | "k" | [0 0 0] | "#000000" |
|
"white" | "w" | [1 1 1] | "#FFFFFF" |
|
Example: Color="r"
Example: Color="green"
Example: Color=[0 0.4470 0.7410]
Title of chart, specified as a string scalar or character vector.
Data Types: char | string
Legend display, specified as "on" or "off", or
as numeric or logical 1 (true) or
0 (false). A value of "on"
is equivalent to true, and "off" is equivalent to
false. The value is stored as an on/off logical value of type
matlab.lang.OnOffSwitchState.
Grid lines to display, specified as one of these options.
"major"— The chart displays only major grid lines."minor"— The chart displays major and minor grid lines."off"— The chart does not display any grid lines.
Data Types: char | string
Parent UI container, specified as a Figure object,
Panel object, Tab object, or
TiledChartLayout object. By default, the function creates a new
Figure object. You can create these UI containers using their
respective creation functions.
UI Figure —
uifigureUI Panel —
uipanelUI Tab —
uitabUI Tiled Layout —
tiledlayout
Examples
Create an optical system containing a camera lens by using the createDoubleGauss helper function, attached to this example as a supporting file.
opsys = createDoubleGauss;
Specify the position of the light source located at infinity in the *yz-*plane at 15 degrees below the optical axis using the FieldPoints property of the opticalSystem object.
opsys.FieldPoints = fieldPoint(Angles=[15 0]);

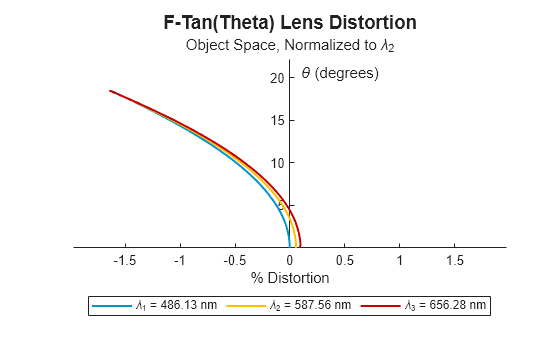

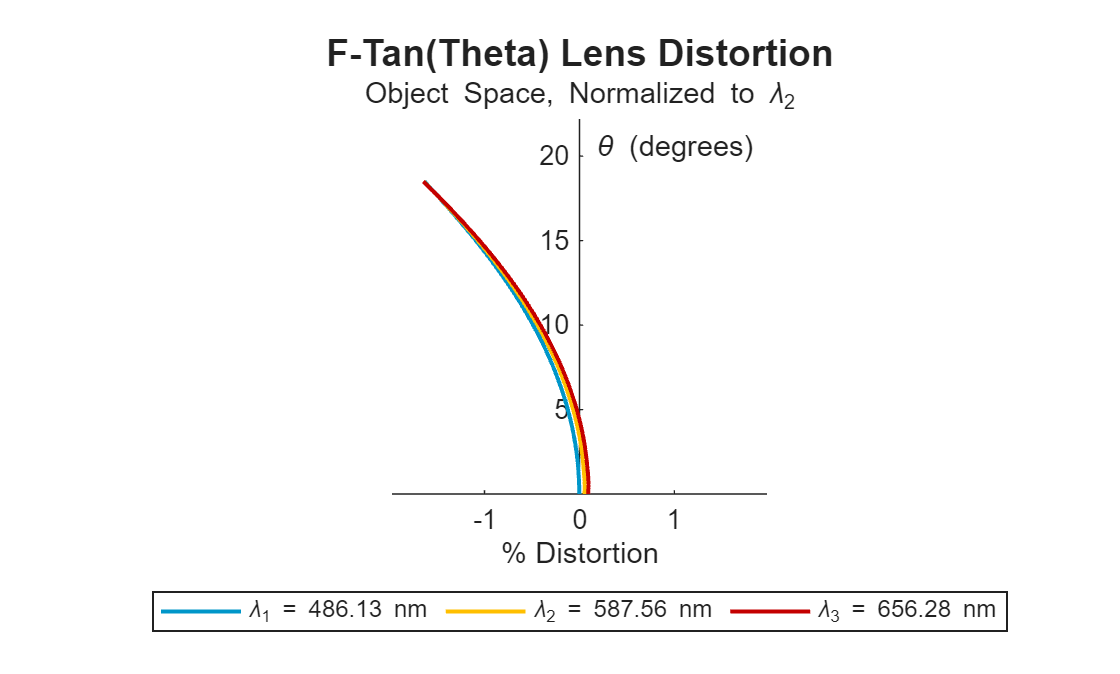

Compute the lens distortion of the optical system using the lensDistortion object function. Display the lens distortion chart using the show object function.
ld = lensDistortion(opsys); plot_ld = show(ld)
plot_ld =
LensDistortionChart with properties:
LensDistortion: [1×1 optics.result.LensDistortion]
Color: [3×3 double]
Title: "F-Tan(Theta) Lens Distortion"
Subtitle: "Object Space, Normalized to \lambda_2"
Legend: on
Grid: "off"
Parent: [1×1 Figure]
Show all properties
Version History
Introduced in R2026a
