asinh

Inverse hyperbolic sine

collapse all in page

Syntax

Y = asinh(X)

Description

Y = asinh(X) returns the inverse hyperbolic sine of the elements of X. The function accepts both real and complex inputs. All angles are in radians.

example

Examples

collapse all

Open Live Script

Find the inverse hyperbolic sine of the elements of vector X. The asinh function acts on X element-wise.

X = [2 -3 1+2i];
Y = asinh(X)
Y = 1×3 complex

   1.4436 + 0.0000i  -1.8184 + 0.0000i   1.4694 + 1.0634i
Open Live Script

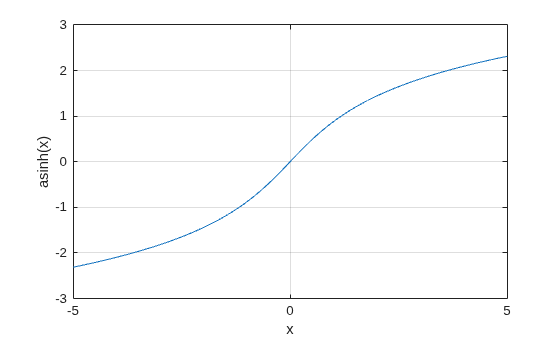

Plot the inverse hyperbolic sine function over the interval -5≤x≤5.

x = -5:.01:5;
plot(x,asinh(x))
grid on
xlabel('x')
ylabel('asinh(x)')

Figure contains an axes object. The axes object with xlabel x, ylabel asinh(x) contains an object of type line.

Input Arguments

collapse all

Hyperbolic sine of angle, specified as a scalar, vector, matrix, multidimensional array, table, or timetable. The asinh operation is element-wise when X is nonscalar.

Data Types: single | double | table | timetable
Complex Number Support: Yes

More About

collapse all

Extended Capabilities

expand all

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Version History

Introduced before R2006a
