# global2frenet

## Syntax

## Description

converts global states to Frenet trajectory states.`frenetState`

= global2frenet(`refPath`

,`globalState`

)

`[___,`

returns `latTimeDerivatives`

] = global2frenet(`refPath`

,`globalState`

)`latTimeDerivatives`

containing first and second-order
derivatives of lateral deviation with respect to time and a flag indicating if the heading
should flip when converting to global coordinates.

`[___] = global2frenet(`

accepts a vector of arc lengths, `refPath`

,`globalState`

,`sFrame`

)`sFrame`

at which the Frenet frame
should be centered at.

## Examples

### Generate Trajectory from Reference Path

Generate a reference path from a set of waypoints.

waypoints = [0 0; 50 20; 100 0; 150 10]; refPath = referencePathFrenet(waypoints);

Create a `trajectoryGeneratorFrenet`

object from the reference path.

connector = trajectoryGeneratorFrenet(refPath);

Generate a five-second trajectory between the path origin and a point 30 meters down the path as Frenet states.

initCartState = refPath.SegmentParameters(1,:); initFrenetState = global2frenet(refPath,initCartState); termFrenetState = initFrenetState + [30 zeros(1,5)]; frenetTraj = connect(connector,initFrenetState,termFrenetState,5);

Convert the trajectory to the global states.

globalTraj = frenet2global(refPath,frenetTraj.Trajectory);

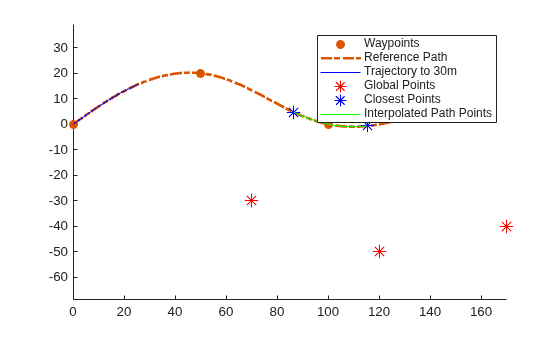

Display the reference path and the trajectory.

show(refPath); axis equal hold on plot(globalTraj(:,1),globalTraj(:,2),'b')

Specify global points and find the closest points on reference path.

globalPoints = waypoints(2:end,:) + [20 -50]; nearestPathPoint = closestPoint(refPath,globalPoints);

Display the global points and the closest points on reference path.

plot(globalPoints(:,1),globalPoints(:,2),'r*','MarkerSize',10) plot(nearestPathPoint(:,1),nearestPathPoint(:,2),'b*','MarkerSize',10)

Interpolate between the arc lengths of the first two closest points along the reference path.

arclengths = linspace(nearestPathPoint(1,6),nearestPathPoint(2,6),10); pathStates = interpolate(refPath,arclengths);

Display the interpolated path points.

plot(pathStates(:,1),pathStates(:,2),'g') legend(["Waypoints","Reference Path","Trajectory to 30m",... "Global Points","Closest Points","Interpolated Path Points"])

## Input Arguments

`refPath`

— Reference path

`referencePathFrenet`

object

Reference path, specified as a `referencePathFrenet`

object.

`globalState`

— States in global coordinate frame

*P*-by-6 numeric matrix

States in the global coordinate frame, specified as a *P*-by-6
numeric matrix with rows of form `[`

, where:*x*
*y*
*theta*
*kappa*
*speed*
*accel*]

*x**y*and*theta*–– SE(2) state expressed in global coordinates, with*x*and*y*in meters and*theta*in radians.*kappa*–– Curvature, or inverse of the radius, in`m`

.^{-1}*speed*–– Speed in the`theta`

direction in`m/s`

.*accel*–– Acceleration in the`theta`

direction in`m/s`

.^{2}

*P* is the total number of Global states.

`sFrame`

— Arc length frame locations

*N*-element vector

Arc length center locations for the Frenet frames, specified as an
*N*-element vector in meters. For correct results, the vector between
the frame and the *xy* location of the `globalState`

must be orthogonal to the tangent angle.

## Output Arguments

`frenetState`

— States in Frenet coordinate frame

*P*-by-6 numeric matrix

States in the Frenet coordinate frame, returned as a *P*-by-6 numeric
matrix with rows of form `[S dS ddS L dL ddL]`

, where
`S`

is the arc length and `L`

is the perpendicular
deviation from the direction of the reference path. Derivatives of `S`

are relative to time. Derivatives of `L`

are relative to the arc
length, `S`

. *P* is the total number of Frenet
states.

`latTimeDerivatives`

— Lateral time derivatives

*N*-by-3 matrix

Lateral time derivatives, specified as an *N*-by-3 matrix where each row is of the form [*dL/dt* *ddL/dt^2* *invertHeading*] and *N* is the total number of points in `points`

. Each row contains the 1st and 2nd order time derivatives of lateral deviation and a flag, *invertHeading*, which indicates whether the heading should be flipped when converting to global coordinates (`true`

) or not (`false`

).

**Note**

If defining `latTimeDerivatives`

without the use of `global2frenet`

, the following rules should be followed:

The

*invertHeading*flag should be true when:The vehicle is moving in reverse (speed is less than 0)

The vehicle is stationary (speed is equal to 0), and the vehicle is facing away from the path's tangent vector. i.e. cos(|tangentAngle(obj,S)-thetaExpected|) < 0

If 1b is true, then

*dL/dS*must be negated.

## More About

### Frenet Coordinate System Conversions

The

`global2frenet`

object function finds a point`[`

along the path that is closest to the*x**y*]_{p}*xy*-coordinate of the global state`[`

. Since the reference path is C1 continuous (tangentially continuous), the distance will be shortest, where*x**y**theta**kappa**speed**accel*]_{g}`[`

is orthogonal to the tangent of the path.*x**y*]_{g}-[*x**y*]_{p}where:

*x**y*and*theta*–– SE(2) state expressed in global coordinates, with*x*and*y*in meters and*theta*in radians.*kappa*–– Curvature, or inverse of the radius, in`m`

.^{-1}*speed*–– Speed in the*theta*direction in`m/s`

.*accel*–– Acceleration in the*theta*direction in`m/s`

.^{2}

The function then evaluates the full state of the path

`[`

. This is equivalent to a moving reference frame located at*x**y**theta**kappa**dkappa**s*]_{p}`[`

whose longitudinal axis points along*x**y*]_{p}

and lateral axis intersects with*theta*_{p}`[`

(right-hand rule). The instantaneous motion of this frame is described by*x**y*]_{g}`[`

.*kappa**dkappa*]_{p}where:

*x**y*and*theta*— SE(2) state expressed in global coordinates, with*x*and*y*in meters and*theta*in radians.*kappa*— Curvature, or inverse of the radius, in`m`

.^{-1}*dkappa*— Derivative of curvature with respect to arc length in`m`

.^{-2}*s*— Arc length, or distance along path from path origin, in meters.

The velocity and acceleration components of the global state act along the tangent defined by

, which itself evolves based on*theta*_{g}

. The function then maps the global position, velocity, and acceleration to the local Frenet frame and returns the Frenet state,*kappa*_{g}`[`

.*s**ds**dds**L**dL**ddL*]_{f}where:

*s*— Arc length, or distance along path from path origin, in meters.*L*— Perpendicular deviation from the direction of the reference path, in meters.*ds*and*dds*— Derivatives of*s*relative to time.*dL*and*ddL*— Derivatives of*L*relative to the arc length,*s*.

The process for the

`frenet2global`

function is the inverse of the`global2frenet`

function.The

`frenet2global`

function evaluates the path at the arc length of the Frenet state,

, returning*s*_{f}=*s*_{p}`[`

.*x**y**theta**kappa**dkappa**s*]_{p}This point once again defines a reference frame whose axes and motion can be used to project the lateral or longitudinal deviations and their first and second-order derivatives back into the global frame.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

## Version History

**Introduced in R2020b**
