# invfreqs

Identify continuous-time filter parameters from frequency response data

## Syntax

``[b,a] = invfreqs(h,w,n,m)``
``[b,a] = invfreqs(h,w,n,m,wt)``
``[b,a] = invfreqs(___,iter)``
``[b,a] = invfreqs(___,tol)``
``[b,a] = invfreqs(___,'trace')``
``[b,a] = invfreqs(h,w,'complex',n,m,___)``

## Description

````[b,a] = invfreqs(h,w,n,m)` returns the real numerator and denominator coefficient vectors `b` and `a` of the transfer function `h`.```

example

````[b,a] = invfreqs(h,w,n,m,wt)` weights the fit-errors versus frequency using `wt`.```
````[b,a] = invfreqs(___,iter)` provides an algorithm that guarantees stability of the resulting linear system by searching for the best fit using a numerical, iterative scheme. This syntax can include any combination of input arguments from the previous syntaxes.```

example

````[b,a] = invfreqs(___,tol)` uses `tol` to decide convergence of the iterative algorithm.```
````[b,a] = invfreqs(___,'trace')` displays a textual progress report of the iteration.```
````[b,a] = invfreqs(h,w,'complex',n,m,___)` creates a complex filter. In this case no symmetry is enforced, and the frequency is specified in radians between –π and π.```

## Examples

collapse all

Convert a simple transfer function to frequency-response data and then back to the original filter coefficients.

```a = [1 2 3 2 1 4]; b = [1 2 3 2 3]; [h,w] = freqs(b,a,64); [bb,aa] = invfreqs(h,w,4,5)```
```bb = 1×5 1.0000 2.0000 3.0000 2.0000 3.0000 ```
```aa = 1×6 1.0000 2.0000 3.0000 2.0000 1.0000 4.0000 ```

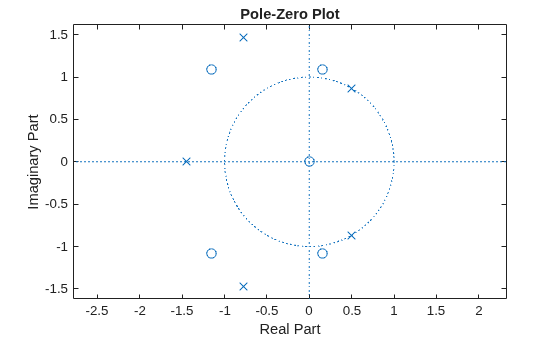

`bb` and `aa` are equivalent to `b` and `a`, respectively. However, the system is unstable because `aa` has poles with positive real part. View the poles of `bb` and `aa`.

`zplane(bb,aa)`

Use the iterative algorithm of `invfreqs` to find a stable approximation to the system.

`[bbb,aaa] = invfreqs(h,w,4,5,[],30)`
``` INITIAL ESTIMATE Current fit: 14.6322 par-vector 2.0000 3.0000 2.0000 1.0000 4.0000 1.0000 2.0000 3.0000 2.0000 3.0000 0 ITERATION # 1 Current fit: 10.7257 Previous fit: 14.6322 Current par prev.par GN-dir 8.8120 2.0000 -6.8120 22.6038 3.0000 -19.6038 37.7456 2.0000 -35.7456 30.7079 1.0000 -29.7079 19.0754 4.0000 -15.0754 0.8255 1.0000 0.1745 9.2270 2.0000 -7.2270 12.1247 3.0000 -9.1247 9.0900 2.0000 -7.0900 13.3229 3.0000 -10.3229 Norm of GN-vector: 1.02 0 1 ITERATION # 2 Current fit: 5.2165 Previous fit: 10.7257 Current par prev.par GN-dir 6.3781 8.8120 4.8679 14.6152 22.6038 15.9772 19.6572 37.7456 36.1768 15.6202 30.7079 30.1754 6.1840 19.0754 25.7828 0.8118 0.8255 0.0274 5.5594 9.2270 7.3351 5.0094 12.1247 14.2306 9.4769 9.0900 -0.7739 2.6124 13.3229 21.4211 Norm of GN-vector: 1.02 0 1 ITERATION # 3 Current fit: 3.9314 Previous fit: 5.2165 Current par prev.par GN-dir 4.1801 6.3781 4.3960 9.4121 14.6152 10.4062 9.3775 19.6572 20.5594 8.1148 15.6202 15.0109 1.7929 6.1840 8.7822 0.8191 0.8118 -0.0146 2.9779 5.5594 5.1629 3.9421 5.0094 2.1345 3.7840 9.4769 11.3860 0.9825 2.6124 3.2598 Norm of GN-vector: 1.02 0 1 ITERATION # 4 Current fit: 3.76 Previous fit: 3.9314 Current par prev.par GN-dir 3.1641 4.1801 2.0320 8.0369 9.4121 2.7504 11.6674 9.3775 -4.5798 8.5321 8.1148 -0.8347 5.7079 1.7929 -7.8301 0.8245 0.8191 -0.0107 1.8347 2.9779 2.2865 4.8827 3.9421 -1.8811 3.4502 3.7840 0.6675 3.0012 0.9825 -4.0375 Norm of GN-vector: 1.02 0 ITERATION # 5 Current fit: 3.6897 Previous fit: 3.76 Current par prev.par GN-dir 5.5414 3.1641 -2.3773 13.6887 8.0369 -5.6518 22.3820 11.6674 -10.7146 16.9016 8.5321 -8.3694 12.6568 5.7079 -6.9489 0.8463 0.8245 -0.0219 3.6662 1.8347 -1.8316 8.5813 4.8827 -3.6986 6.9118 3.4502 -3.4616 6.6495 3.0012 -3.6483 Norm of GN-vector: 1.02 0 ITERATION # 6 Current fit: 3.6703 Previous fit: 3.6897 Current par prev.par GN-dir 9.7416 5.5414 -4.2002 23.0042 13.6887 -9.3155 40.1756 22.3820 -17.7936 35.4599 16.9016 -18.5584 28.1668 12.6568 -15.5099 0.8137 0.8463 0.0326 7.1751 3.6662 -3.5089 13.5489 8.5813 -4.9676 14.5313 6.9118 -7.6196 14.8048 6.6495 -8.1553 Norm of GN-vector: 1.02 0 ITERATION # 7 Current fit: 3.6657 Previous fit: 3.6703 Current par prev.par GN-dir 18.1583 9.7416 -8.4167 47.0850 23.0042 -24.0808 87.6701 40.1756 -47.4945 85.6959 35.4599 -50.2360 59.2754 28.1668 -31.1087 0.7515 0.8137 0.0622 14.1169 7.1751 -6.9418 27.9647 13.5489 -14.4158 36.5138 14.5313 -21.9825 31.1937 14.8048 -16.3890 Norm of GN-vector: 1.02 0 1 2 3 4 ITERATION # 8 Current fit: 3.6643 Previous fit: 3.6657 Current par prev.par GN-dir 10.2150 18.1583 127.0934 26.2877 47.0850 332.7554 46.2217 87.6701 663.1737 45.2631 85.6959 646.9253 26.6968 59.2754 521.2579 0.7618 0.7515 -0.1648 7.8062 14.1169 100.9715 14.9328 27.9647 208.5090 20.0396 36.5138 263.5861 14.0374 31.1937 274.5012 Norm of GN-vector: 1.02 0 1 2 3 ITERATION # 9 Current fit: 3.6529 Previous fit: 3.6643 Current par prev.par GN-dir 5.0286 10.2150 41.4913 12.5896 26.2877 109.5850 18.6943 46.2217 220.2194 17.9670 45.2631 218.3684 4.6265 26.6968 176.5620 0.7690 0.7618 -0.0574 3.6842 7.8062 32.9759 6.3394 14.9328 68.7475 8.9539 20.0396 88.6861 2.4072 14.0374 93.0420 Norm of GN-vector: 1.02 0 1 2 3 4 ITERATION # 10 Current fit: 3.6112 Previous fit: 3.6529 Current par prev.par GN-dir 3.9318 5.0286 17.5494 9.4738 12.5896 49.8531 12.5970 18.6943 97.5578 11.7310 17.9670 99.7758 0.8446 4.6265 60.5104 0.7733 0.7690 -0.0690 2.7882 3.6842 14.3365 4.4477 6.3394 30.2677 6.1980 8.9539 44.0935 0.4156 2.4072 31.8644 Norm of GN-vector: 1.02 0 1 2 3 4 5 ITERATION # 11 Current fit: 3.5702 Previous fit: 3.6112 Current par prev.par GN-dir 3.6840 3.9318 7.9300 8.7625 9.4738 22.7603 11.2344 12.5970 43.6021 10.3776 11.7310 43.3107 0.1619 0.8446 21.8471 0.7716 0.7733 0.0556 2.5818 2.7882 6.6028 4.0067 4.4477 14.1117 5.5630 6.1980 20.3217 0.0515 0.4156 11.6522 Norm of GN-vector: 1.02 0 1 2 3 4 5 6 ITERATION # 12 Current fit: 3.3656 Previous fit: 3.5702 Current par prev.par GN-dir 3.6207 3.6840 5.1581 8.6043 8.7625 14.1438 10.9485 11.2344 27.8311 10.1562 10.3776 26.2605 0.0874 0.1619 15.9587 0.7689 0.7716 0.1701 2.5150 2.5818 4.2758 3.8562 4.0067 9.6304 5.3710 5.5630 12.2833 -0.0846 0.0515 8.7095 Norm of GN-vector: 1.02 0 1 2 3 4 5 ITERATION # 13 Current fit: 3.2971 Previous fit: 3.3656 Current par prev.par GN-dir 3.5160 3.6207 3.6489 8.3584 8.6043 8.9094 10.5209 10.9485 16.1543 9.8789 10.1562 11.9799 0.0455 0.0874 4.2535 0.7632 0.7689 0.1844 2.4193 2.5150 3.0625 3.6661 3.8562 6.0838 5.1617 5.3710 6.7005 -0.1544 -0.0846 2.2337 Norm of GN-vector: 1.02 0 1 2 3 4 5 ITERATION # 14 Current fit: 3.2835 Previous fit: 3.2971 Current par prev.par GN-dir 3.4280 3.5160 3.1299 8.1605 8.3584 7.4079 10.1831 10.5209 13.3650 9.6875 9.8789 9.3076 0.0473 0.0455 2.9685 0.7574 0.7632 0.1857 2.3376 2.4193 2.6148 3.5062 3.6661 5.1152 4.9937 5.1617 5.3757 -0.2007 -0.1544 1.4830 Norm of GN-vector: 1.02 0 1 2 3 4 5 ITERATION # 15 Current fit: 3.2768 Previous fit: 3.2835 Current par prev.par GN-dir 3.3452 3.4280 2.8050 7.9718 8.1605 6.5651 9.8532 10.1831 11.8133 9.4834 9.6875 8.0821 0.0233 0.0473 2.2586 0.7519 0.7574 0.1756 2.2648 2.3376 2.3317 3.3661 3.5062 4.4856 4.8466 4.9937 4.7069 -0.2326 -0.2007 1.0209 Norm of GN-vector: 1.02 0 1 2 3 4 5 6 ITERATION # 16 Current fit: 3.2708 Previous fit: 3.2768 Current par prev.par GN-dir 3.3076 3.3452 2.5149 7.8868 7.9718 5.7924 9.7025 9.8532 10.4860 9.3897 9.4834 7.0322 0.0078 0.0233 1.9923 0.7492 0.7519 0.1734 2.2323 2.2648 2.0796 3.3036 3.3661 3.9950 4.7821 4.8466 4.1235 -0.2462 -0.2326 0.8669 Norm of GN-vector: 1.02 0 1 2 3 4 5 6 7 8 ITERATION # 17 Current fit: 3.2656 Previous fit: 3.2708 Current par prev.par GN-dir 3.2983 3.3076 2.3862 7.8655 7.8868 5.4429 9.6639 9.7025 9.8950 9.3641 9.3897 6.5518 0.0004 0.0078 1.9112 0.7485 0.7492 0.1736 2.2246 2.2323 1.9679 3.2889 3.3036 3.7864 4.7671 4.7821 3.8599 -0.2494 -0.2462 0.8281 Norm of GN-vector: 1.02 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 ITERATION # 18 Current fit: 3.2656 Previous fit: 3.2656 Current par prev.par GN-dir 3.2983 3.2983 -0.0232 7.8655 7.8655 -0.0177 9.6639 9.6639 -0.0221 9.3641 9.3641 0.0585 0.0004 0.0004 0.3879 0.7485 0.7485 0.0384 2.2246 2.2246 0.0541 3.2889 3.2889 0.0536 4.7671 4.7671 -0.1003 -0.2494 -0.2494 -0.1377 Norm of GN-vector: 1.02 No improvement of the criterion possible along the search direction Iterations therefore terminated ```
```bbb = 1×5 0.7485 2.2246 3.2889 4.7671 -0.2494 ```
```aaa = 1×6 1.0000 3.2983 7.8655 9.6639 9.3641 0.0004 ```

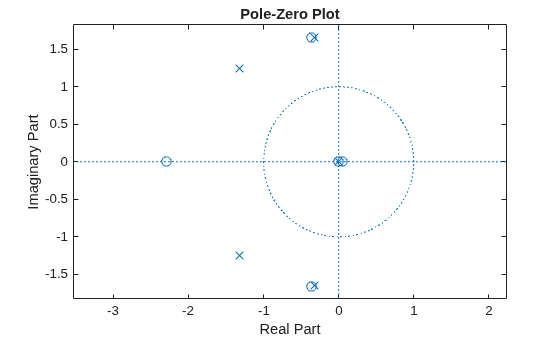

Verify that the system is stable by plotting the new poles.

`zplane(bbb,aaa)`

Generate two vectors, `mag` and `phase`, that simulate magnitude and phase data gathered in a laboratory. Also generate a vector, `w`, of frequencies.

```rng('default') fs = 1000; t = 0:1/fs:2; mag = periodogram(sin(2*pi*100*t)+randn(size(t))/10,[],[],fs); phase = randn(size(mag))/10; w = linspace(0,fs/2,length(mag))';```

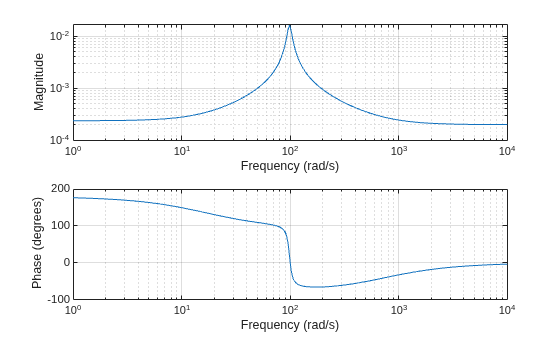

Use `invfreqs` to convert the data into a continuous-time transfer function. Plot the result.

`[b,a] = invfreqs(mag.*exp(1j*phase),w,2,2,[],4);`
``` INITIAL ESTIMATE Current fit: 0.94648 par-vector 1.0e+04 * 0.0000 1.0019 0.0000 -0.0000 0.0000 0 ITERATION # 1 Current fit: 0.88173 Previous fit: 0.94648 Current par prev.par GN-dir 1.0e+04 * 0.0000 0.0000 0.0000 0.9997 1.0019 0.0022 0.0000 0.0000 -0.0000 0.0000 -0.0000 -0.0000 0.0003 0.0000 -0.0003 Norm of GN-vector: 1.02 0 ITERATION # 2 Current fit: 0.75065 Previous fit: 0.88173 Current par prev.par GN-dir 1.0e+03 * 0.0015 0.0000 -0.0015 9.8048 9.9974 0.1926 0.0000 0.0000 0.0000 0.0000 0.0000 -0.0000 0.0001 0.0032 0.0031 Norm of GN-vector: 1.02 0 1 ITERATION # 3 Current fit: 0.74495 Previous fit: 0.75065 Current par prev.par GN-dir 1.0e+04 * 0.0013 0.0002 -0.0024 1.0245 0.9805 -0.0880 0.0000 0.0000 -0.0000 0.0000 0.0000 -0.0000 -0.0003 0.0000 0.0006 Norm of GN-vector: 1.02 0 1 2 3 ITERATION # 4 Current fit: 0.73558 Previous fit: 0.74495 Current par prev.par GN-dir 1.0e+04 * 0.0008 0.0013 0.0039 0.9760 1.0245 0.3878 0.0000 0.0000 -0.0000 0.0000 0.0000 0.0000 -0.0002 -0.0003 -0.0003 Norm of GN-vector: 1.02 ```
`freqs(b,a)`

## Input Arguments

collapse all

Frequency response, specified as a vector.

Angular frequencies at which `h` is computed, specified as a vector.

Desired order of the numerator and denominator polynomials, specified as positive integer scalars.

Data Types: `single` | `double`

Weighting factors, specified as a vector. `wt` is a vector of weighting factors that is the same length as `w`.

Data Types: `single` | `double`

Number of iterations in the search algorithm, specified as a positive real scalar. The `iter` parameter tells `invfreqs` to end the iteration when the algorithm has converged to a solution, or after `iter` iterations, whichever occurs first.

Tolerance, specified as a scalar. `invfreqs` defines convergence as occurring when the norm of the (modified) gradient vector is less than `tol`.

To obtain a weight vector of all ones, use

`invfreqs(h,w,n,m,[],iter,tol)`

## Output Arguments

collapse all

Transfer function coefficients, returned as vectors. Express the transfer function in terms of `b` and `a` as

`$H\left(s\right)=\frac{B\left(s\right)}{A\left(s\right)}=\frac{b\left(1\right){s}^{n}+b\left(2\right){s}^{n-1}+\cdots +b\left(n+1\right)}{a\left(1\right){s}^{m}+a\left(2\right){s}^{m-1}+\cdots +a\left(m+1\right)}$`

Example: `b = [1 3 3 1]/6` and `a = [3 0 1 0]/3` specify a third-order Butterworth filter with normalized 3 dB frequency 0.5π rad/sample.

Data Types: `double` | `single`
Complex Number Support: Yes

## Tips

When building higher order models using high frequencies, it is important to scale the frequencies, dividing by a factor such as half the highest frequency present in `w`, so as to obtain well-conditioned values of `a` and `b`. This corresponds to a rescaling of time.

## Algorithms

By default, `invfreqs` uses an equation error method to identify the best model from the data. This finds `b` and `a` in

`$\underset{b,a}{\mathrm{min}}\sum _{k=1}^{n}wt\left(k\right){|h\left(k\right)A\left(w\left(k\right)\right)-B\left(w\left(k\right)\right)|}^{2}$`

by creating a system of linear equations and solving them with the MATLAB® `\` operator. Here A(w(k)) and B(w(k)) are the Fourier transforms of the polynomials `a` and `b`, respectively, at the frequency w(k), and n is the number of frequency points (the length of `h` and `w`). This algorithm is based on Levi [1]. Several variants have been suggested in the literature, where the weighting function `wt` gives less attention to high frequencies.

The superior (“output-error”) algorithm uses the damped Gauss-Newton method for iterative search [2], with the output of the first algorithm as the initial estimate. This solves the direct problem of minimizing the weighted sum of the squared error between the actual and the desired frequency response points.

`$\underset{b,a}{\mathrm{min}}\sum _{k=1}^{n}wt\left(k\right){|h\left(k\right)-\frac{B\left(w\left(k\right)\right)}{A\left(w\left(k\right)\right)}|}^{2}$`

## References

[1] Levi, E. C. “Complex-Curve Fitting.” IRE Trans. on Automatic Control. Vol. AC-4, 1959, pp. 37–44.

[2] Dennis, J. E., Jr., and R. B. Schnabel. Numerical Methods for Unconstrained Optimization and Nonlinear Equations. Englewood Cliffs, NJ: Prentice-Hall, 1983.

## Version History

Introduced before R2006a
