signalDatastore

Datastore for collection of signals

Since R2020a

Description

Use a signalDatastore object to manage a collection of in-memory data or signal files, where each individual file fits in memory, but the entire collection does not necessarily fit.

Creation

Syntax

sds = signalDatastore(data)

sds = signalDatastore(location)

sds = signalDatastore(___,Name,Value)

Description

sds = signalDatastore(data) creates a signal datastore with in-memory input signals contained in data.

example

sds = signalDatastore(location) creates a signal datastore based on a collection of either MAT files or CSV files in location. If location contains a mixture of MAT files and CSV files, then sds contains MAT files.

example

sds = signalDatastore(___,Name,Value) specifies additional properties using one or more name-value arguments.

example

Input Arguments

expand all

`data` — In-memory input data
cell array of vectors | cell array of matrices | cell array of timetables | cell array of cell arrays

In-memory input data, specified as vectors, matrices, timetables, or cell arrays. Each element of data is a member that is output by the datastore on each call to read.

Example: {randn(100,1); randn(120,3); randn(135,2); randn(100,1)}

`location` — Files or folders to include in datastore
`FileSet` object | path | `DsFileSet` object

Files or folders to include in the datastore, specified as one of these values:

FileSet object — Specifying the location as a FileSet object leads to a faster construction time for datastores compared to specifying a path or DsFileSet object. For more information, see matlab.io.datastore.FileSet.
DsFileSet object — For more information, see matlab.io.datastore.DsFileSet.
File path — You can specify a single file path as a string scalar or character vector. You can specify multiple file paths as a string array or cell array of character vectors.

Files or folders can be local or remote:

Local files or folders — If the files are not in the current folder, then specify full or relative paths. Files within subfolders of a specified folder are not automatically included in the datastore. You can use the wildcard character (*) when specifying the local path. This character specifies that the datastore include all matching files or all files in the matching folders.
Remote files or folders — Specify full paths to remote files or folders as a uniform resource locator (URL) of the form hdfs:///path_to_file. Internet URLs must include the protocol type "http://" or "https://". For more information, see Work with Remote Data.

When you specify a folder, the datastore includes only files with supported file formats and ignores files with any other format. To specify a custom list of file extensions to include in your datastore, see the FileExtensions name-value argument.

Example: 'whale.mat'

Example: '../dir/data/signal.mat'

Data Types: char | string | cell

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: sds = signalDatastore('C:\dir\signaldata','FileExtensions','.csv')

`IncludeSubfolders` — Subfolder inclusion flag
`false` or `0` (default) | `true` or `1`

Subfolder inclusion flag, specified as true or false. Specify true to include all files and subfolders within each folder or false to include only the files within each folder.

Example: 'IncludeSubfolders',true

Data Types: logical | double

`FileExtensions` — Signal file extensions
character vector | cell array of character vectors | string scalar | string array

Signal file extensions, specified as a string scalar, string array, character vector, or cell array of character vectors.

If no read function is specified, 'FileExtensions' can only be set to .mat to read MAT files, or to .csv to read CSV files. If 'FileExtensions' is omitted, it defaults to .mat if there are MAT files in the specified location, otherwise 'FileExtensions' defaults to .csv if there are CSV files in the specified location.

If the specified location contains both MAT files and CSV files, signalDatastore defaults to reading the MAT files. If neither MAT files nor CSV files are present, signalDatastore errors out with the default read function. Specify a custom read using ReadFcn function to read files of any other type.

When you do not specify a file extension, the signalDatastore needs to parse the files to decide the default extension to read. Specify an extension to avoid the parsing time.

Example: 'FileExtensions','.csv'

Data Types: string | char | cell

In addition to these name-value arguments, you also can specify any of the properties on this page as name-value arguments, except for the Files property.

Properties

expand all

In-Memory Data

`Members` — Member names
cell array

Member names, specified as a cell array. The length of the member names for the input data should equal the length of the data cell array. This property applies only when the datastore contains in-memory data.

`MemberNames` — Signal member data
`["Member1"..."MemberN"]` (default) | string scalar | string array

Signal member data, specified as a string scalar or a string array. The length of the member names for the input data should equal the length of the data cell array. This property applies only when the datastore contains in-memory data.

File Data

`Files` — Files included in datastore
cell array of strings | cell array of character vectors

Files included in the datastore, specified as a cell array of strings or character vectors. Each character vector in the cell array represents the full path to a file. The location argument in the signalDatastore defines Files when the datastore is created. This property applies only when the datastore contains file data.

Data Types: string | char | cell

`ReadFcn` — Custom read function
`read` (default) | function handle

Function that reads data, specified as a function handle. The function must take a file name as input, and then it outputs the corresponding data. For example, if customreader is the specified function to read the data, then it must have one of these templates:

function data = customreader(filename)
...
end

function [data,info] = customreader(filename)
...
end

The signal data is output in the data variable. The info variable must be a user-defined structure containing user-defined information from the file. If you need extra arguments, you can include them after the filename argument. signalDatastore appends to the info structure a field containing the name of the file.

Example: @customreader

Data Types: function_handle

`AlternateFileSystemRoots` — Alternate file system root paths
string vector | cell array

Alternate file system root paths, specified as the name-value argument consisting of "AlternateFileSystemRoots" and a string vector or a cell array. Use "AlternateFileSystemRoots" when you create a datastore on a local machine, but need to access and process the data on another machine (possibly of a different operating system). Also, when processing data using the Parallel Computing Toolbox™ and the MATLAB^® Parallel Server™, and the data is stored on your local machines with a copy of the data available on different platform cloud or cluster machines, you must use "AlternateFileSystemRoots" to associate the root paths.

To associate a set of root paths that are equivalent to one another, specify "AlternateFileSystemRoots" as a string vector. For example,
```
["Z:\datasets","/mynetwork/datasets"]
```
To associate multiple sets of root paths that are equivalent for the datastore, specify "AlternateFileSystemRoots" as a cell array containing multiple rows where each row represents a set of equivalent root paths. Specify each row in the cell array as either a string vector or a cell array of character vectors. For example:
- Specify "AlternateFileSystemRoots" as a cell array of string vectors.
```
{["Z:\datasets", "/mynetwork/datasets"];...
 ["Y:\datasets", "/mynetwork2/datasets","S:\datasets"]}
```
- Alternatively, specify "AlternateFileSystemRoots" as a cell array of cell array of character vectors.
```
{{'Z:\datasets','/mynetwork/datasets'};...
 {'Y:\datasets', '/mynetwork2/datasets','S:\datasets'}}
```

The value of "AlternateFileSystemRoots" must satisfy these conditions:

Contains one or more rows, where each row specifies a set of equivalent root paths.
Each row specifies multiple root paths and each root path must contain at least two characters.
Root paths are unique and are not subfolders of one another.
Contains at least one root path entry that points to the location of the files.

For more information, see Set Up Datastore for Processing on Different Machines or Clusters.

Example: ["Z:\datasets","/mynetwork/datasets"]

Data Types: string | cell

`SignalVariableNames` — Names of variables in signal files
first variable name (default) | string scalar | string vector

Names of variables in signal files, specified as a string scalar or vector of unique names. Use this property when your files contain more than one variable and you want to specify the names of the variables that hold the signal data you want to read.

When the property value is a string scalar, signalDatastore returns data contained in the specified variable.
When the property value is a string vector, signalDatastore returns a cell array with the data contained in the specified variables. In this case, you can use the ReadOutputOrientation property to specify the orientation of the output cell array as a column or a row.

If this property is not specified, signalDatastore reads the first variable in the variable list of each file.

Note

To determine the name of the first variable in a file, signalDatastore follows these steps:

For MAT files:

s = load(fileName);
varNames = fieldnames(s);
firstVar = s.(varNames{1});

For CSV files:

opts = detectImportOptions(fileName,'PreserveVariableNames',true);
varNames = opts.VariableNames;
firstVar = string(varNames{1});

This property applies only when the datastore contains file data and the default read function is used.

`ReadOutputOrientation` — Output signal data cell array orientation
`'column'` (default) | `'row'`

Output signal data cell array orientation, specified as 'column' or 'row'. This property specifies how to orient the output signal data cell array after a call to the read function when SignalVariableNames contains more than one signal name. ReadOutputOrientation has no effect when SignalVariableNames contains only one element and does not apply if SignalVariableNames has not been specified.

This property applies only when the datastore contains file data and the default read function is used.

Example: Output Cell Array Orientation

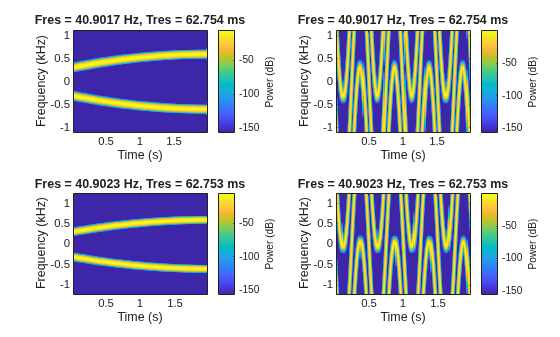

In the Read Multiple Variables from Files in Signal Datastore example, data has the default output orientation and is a 2-by-1 column array:

    {1×4941 double}
    {1×4941 double}

If you specify ReadOutputOrientation as 'row', then data is a 1-by-2 row array:

    {1×4941 double}    {1×4941 double}

`SampleRateVariableName` — Name of variable holding sample rate
string scalar

Name of the variable holding the sample rate, specified as a string scalar. This property applies only when the datastore contains file data.

`SampleTimeVariableName` — Name of variable holding sample time value
string scalar

Name of the variable holding the sample time value, specified as a string scalar. This property applies only when the datastore contains file data.

`TimeValuesVariableName` — Name of variable holding time values vector
string scalar

Name of the variable holding the time values vector, specified as a string scalar. This property applies only when the datastore contains file data.

Note

'SampleRateVariableName', 'SampleTimeVariableName', and 'TimeValuesVariableName' are mutually exclusive. Use these properties when your files contain a variable that holds the time information of the signal data. If not specified, signalDatastore assumes that signal data has no time information. These properties are not valid if a custom read function is specified.

In-Memory and File Data

`SampleRate` — Sample rate values
positive scalar | positive vector

Sample rate values, specified as a positive real scalar or vector.

Set the value of SampleRate to a scalar to specify the same sample rate for all signals in the signalDatastore.
Set the value of SampleRate to a vector to specify a different sample rate for each signal in the signalDatastore.

The number of elements in the vector must equal the number of elements in the signalDatastore.

`SampleTime` — Sample time values
positive scalar | vector | `duration` scalar | `duration` vector

Sample time values, specified as a positive scalar, a vector, a duration scalar, or a duration vector.

Set the value of SampleTime to a scalar to specify the same sample time for all signals in the signalDatastore.
Set the value of SampleTime to a vector to specify a different sample time for each signal in the signalDatastore.

The number of elements in the vector must equal the number of elements in the signalDatastore.

`TimeValues` — Time values
vector | `duration` vector | matrix | cell array

Time values, specified as a vector, a duration vector, a matrix, or a cell array.

Set TimeValues to a numeric or duration vector to specify the same time values for all signals in the signalDatastore. The vector must have the same length as all the signals in the set.
Set TimeValues to a numeric or duration matrix or cell array to specify that each signal of the signalDatastore has signals with the same time values, but the time values differ from signal to signal.
- If TimeValues is a matrix, then the number of columns equal the number of members of the signalDatastore. All signals in the datastore must have a length equal to the number of rows of the matrix.
- If TimeValues is a cell array, then the number of vectors equal the number of members of the signalDatastore. All signals in a member must have a length equal to the number of elements of the corresponding vector in the cell array.

`ReadSize` — Maximum number of signal files returned by `read`
`1` (default) | positive real scalar

Maximum number of signal files returned by read, specified as a positive real scalar. If you set the ReadSize property to n, such that n > 1, each time you call the read function, the function reads:

The first variable of the first n files, if sds contains file data.
The first n members, if sds contains in-memory data.

The output of read is a cell array of signal data when ReadSize > 1.

`OutputEnvironment` — Hardware resource for output data
`"cpu"` (default) | `"gpu"`

Since R2024b

Hardware resource for output data, specified as one of these:

"cpu" — Return read data on the CPU.
"gpu" — Return read numeric data on the GPU as gpuArray objects.

When you read each member of the signalDatastore object with the OutputEnvironment property set to "gpu", the read function attempts moving the data from each member element into the GPU.

If the member element is numeric, read moves its data into the GPU using a gpuArray object.
If the member element is not numeric, read keeps its data in the CPU.

Using a GPU requires a Parallel Computing Toolbox license and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).

Data Types: char | string

`OutputDataType` — Data type of read output
`"same"` (default) | `"double"` | `"single"` | string array | cell array of character vectors

Since R2024b

Data type of read output, specified as one of these:

"same" — Do not cast data and return.
"double" — Cast read data to double precision.
"single" — Cast read data to single precision.
String array or cell array of character vectors — Cast read data from each member element and return with the specified new data type.
- You must create the signalDatastore object from file data to specify OutputDataType as a string array or cell array of character vectors.
- Specify OutputDataType as an array where each element is one of these: "same", "double", or "single".
- The number of elements in the array specified in OutputDataType must be 1, or must correspond with the number of variables specified in SignalVariableNames.

When you read each member of the signalDatastore object with the OutputDataType property set to "single" or "double", the read function attempts casting all member elements of the object to single-precision or double-precision numbers.

If all the member elements support conversion to the specified new data type, read converts and returns each element with the specified new data type.
If any member element does not support conversion to the specified new data type, read errors out.

When you specify the OutputDataType property with a string array or cell array of character vectors, the read function attempts casting the data from each variable specified in SignalVariableNames depending on the number of elements in OutputDataType.

If OutputDataType has one element, the read function casts all the variables specified in SignalVariableNames to the data type specified in OutputDataType if all the variables support conversion to the specified new data type.
If OutputDataType has as many elements as variables specified in SignalVariableNames, the read function casts the ith variable in SignalVariableNames to the ith data type specified in OutputDataType if the ith variable supports conversion to the specified new data type.
If any variable does not support conversion to the specified new data type, read errors out.

For more information about determining data casting support, see cast.

Data Types: char | string

Object Functions

`read`	Read next consecutive signal observation
`readall`	Read all signals from datastore
`writeall`	Write datastore to files
`preview`	Read first signal observation from datastore for preview
`shuffle`	Shuffle signals in signal datastore
`subset`	Create datastore with subset of signals
`partition`	Partition signal datastore and return partitioned portion
`numpartitions`	Return estimate for reasonable number of partitions for parallel processing
`reset`	Reset datastore to initial state
`progress`	Determine how much data has been read
`hasdata`	Determine if data is available to read
`transform`	Transform datastore
`combine`	Combine data from multiple datastores
`isPartitionable`	Determine whether datastore is partitionable
`isShuffleable`	Determine whether datastore is shuffleable

Note

isPartitionable and isShuffleable return true by default for signalDatastore. You can test if the output of combine and transform are partitionable or shuffleable using the two functions.

Examples

collapse all

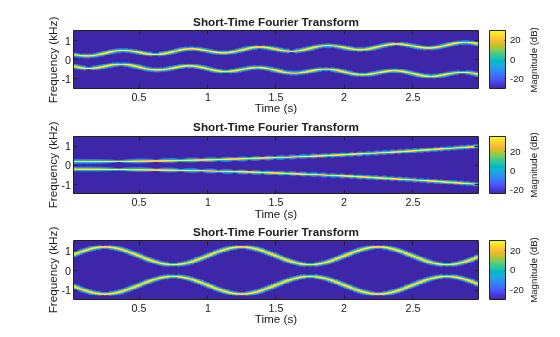

Signal Datastore with In-Memory Data

Open Live Script

Create a signal datastore to iterate through the elements of an in-memory cell array of signal data. The data consists of a sinusoidally modulated linear chirp, a concave quadratic chirp, and a voltage controlled oscillator. The signals are sampled at 3000 Hz.

fs = 3000;
t = 0:1/fs:3-1/fs;
data = {chirp(t,300,t(end),800).*exp(2j*pi*10*cos(2*pi*2*t)); ...
        2*chirp(t,200,t(end),1000,'quadratic',[],'concave'); ...
        vco(sin(2*pi*t),[0.1 0.4]*fs,fs)};
sds = signalDatastore(data,'SampleRate',fs);

While the datastore has data, read each observation from the signal datastore and plot the short-time Fourier transform.

plotID = 1;
while hasdata(sds)
    [dataOut,info] = read(sds);
    subplot(3,1,plotID)
    stft(dataOut,info.SampleRate)
    plotID = plotID + 1;
end

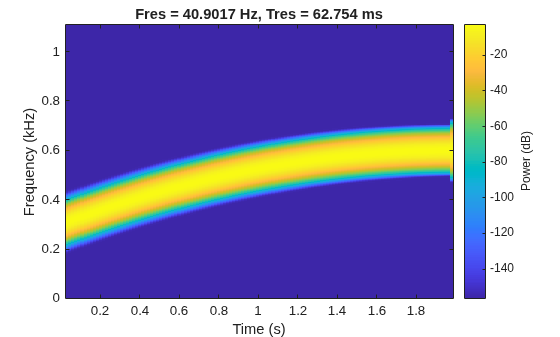

Create Signal Datastore

Open Live Script

The folder dataset contains signal samples included with Signal Processing Toolbox™. Create a signal datastore that points to the folder and set the name of the sample rate variable.

folder = "dataset";
sds = signalDatastore(folder,SampleRateVariableName="fs");

Read the first file in the datastore and plot the spectrogram.

[data,info] = read(sds);
pspectrum(data,info.SampleRate,"spectrogram")

Figure contains an axes object. The axes object with title Fres = 40.9017 Hz, Tres = 62.754 ms, xlabel Time (s), ylabel Frequency (kHz) contains an object of type image.

Specify File Extension to Include in Signal Datastore

Open Live Script

Specify the folder that contains signal samples included with Signal Processing Toolbox™. The signals are stored in .csv, .dat, and .mat files.

folder = "healthdata";

Create a signal datastore that points to the .csv file in the specified folder. Plot the short-time Fourier transform of the signal.

sds = signalDatastore(folder, ...
    FileExtensions=".csv",SignalVariableNames=["tx" "x"]);
data = read(sds);
stft(data{2})

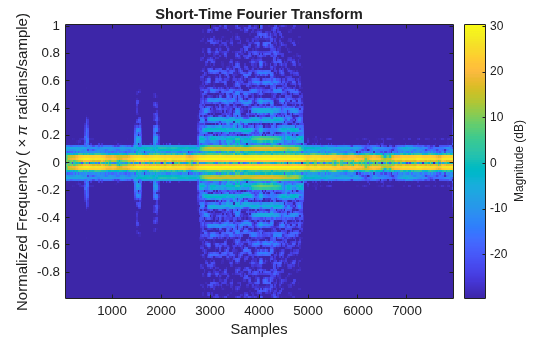

Figure contains an axes object. The axes object with title Short-Time Fourier Transform, xlabel Samples, ylabel Normalized Frequency ( times pi blank radians/sample) contains an object of type image.

Read Multiple Files with Signal Datastore

Open Live Script

Specify the names of four example files included with Signal Processing Toolbox™.

files = ["INR.mat","relatedsig.mat","spots_num.mat","voice.mat"];

Create a signalDatastore object containing the specified files and set the ReadSize property to 2 to read data from two files at a time. Each read returns a cell array where the first cell contains the first variable of the first file read, and the second cell contains the first variable from the second file. While the datastore has data, display the names of the variables read in each read.

sds = signalDatastore(files,ReadSize=2);
while hasdata(sds)
    [data,info] = read(sds);
    fprintf("Variable Name:\t%s\n",info.SignalVariableNames)
end

Variable Name:	Date
Variable Name:	s1
Variable Name:	year
Variable Name:	fs

Custom Read Data From Signal Datastore

Open Live Script

Create a signal datastore that contains three signals included with Signal Processing Toolbox™.

The strong.mat file contains three variables: her, him and fs.
The slogan.mat file contains three variables: hotword, phrase and fs.
The Ring.mat file contains two variables: y and Fs.

Each file contains multiple variables of different names. The scalar in each file represents a sample rate. Define a custom read function that reads all the variables in the file as a structure and returns the variable in dataOut and information about the variables in infoOut. The SampleRate field of infoOut contains the scalar contained in each file, and dataOut contains the variables read from each file.

function [dataOut,infoOut] =   MyCustomRead(filename)
    fText = importdata(filename);
    value = struct2cell(fText);
    dataOut = {};
    for i = 1:length(value)
        if isscalar(value{i}) == 1
            infoOut.SampleRate = value{i};
        else
            dataOut{end+1} = value{i};
        end
    end
end

files = ["strong.mat","slogan.mat","Ring.mat"];
sds = signalDatastore(files,ReadFcn=@MyCustomRead);

While the datastore has unread files, read from the datastore and compute the short-time Fourier transforms of the signals.

while hasdata(sds)
    [data,infoOut] = read(sds);
    fs = infoOut.SampleRate;
    figure
    for i = 1:length(data)
        if length(data)>1
        subplot(2,1,i)
        end
        stft(data{i},fs)
    end
end

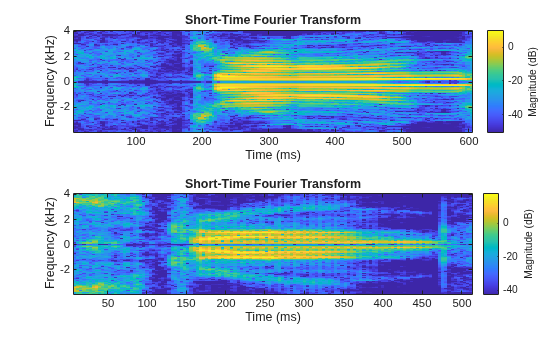

Figure contains 2 axes objects. Axes object 1 with title Short-Time Fourier Transform, xlabel Time (ms), ylabel Frequency (kHz) contains an object of type image. Axes object 2 with title Short-Time Fourier Transform, xlabel Time (ms), ylabel Frequency (kHz) contains an object of type image.

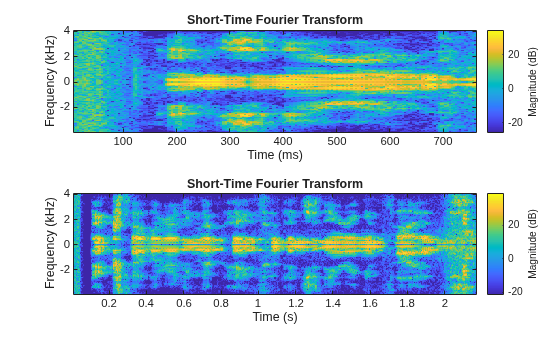

Figure contains 2 axes objects. Axes object 1 with title Short-Time Fourier Transform, xlabel Time (ms), ylabel Frequency (kHz) contains an object of type image. Axes object 2 with title Short-Time Fourier Transform, xlabel Time (s), ylabel Frequency (kHz) contains an object of type image.

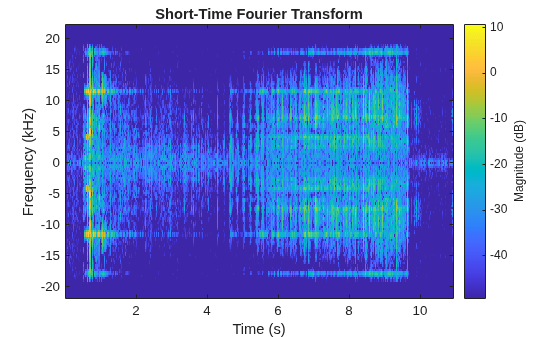

Figure contains an axes object. The axes object with title Short-Time Fourier Transform, xlabel Time (s), ylabel Frequency (kHz) contains an object of type image.

Read Multiple Variables from Files in Signal Datastore

Open Live Script

The dataset folder contains example files included with Signal Processing Toolbox™. Each file contains two signals and a random sample rate fs ranging from 3000 to 4000 Hz.

The first signal, x1, is a convex quadratic chirp.
The second signal, x2, is a chirp with sinusoidally varying frequency content.

folder = "dataset";

Create a signal datastore that points to the specified folder, set the names of the signal variables and sample rate, and specify the output data type as single precision. While the datastore has data, read each observation and visualize the spectrogram of each signal.

sds = signalDatastore(folder,SignalVariableNames=["x1";"x2"], ...
    SampleRateVariableName="fs",OutputDataType="single");

tiledlayout flow
while hasdata(sds)
    [data,info] = read(sds);
    nexttile
    pspectrum(data{1},info.SampleRate,"spectrogram",TwoSided=true)
    nexttile
    pspectrum(data{2},info.SampleRate,"spectrogram",TwoSided=true)
end

Extended Capabilities

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The signalDatastore function supports GPU array input with these usage notes and limitations:

This object can generate GPU arrays, but does not run on a GPU. A signalDatastore object can return data on the GPU in a gpuArray object if you set the OutputEnvironment property to "gpu".

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2020a

expand all

R2024b: Return single-precision data and `gpuArray` objects

When you use read or readall, you can now select the precision of the signalDatastore output data and the hardware that you want to use to return the output data. You must have Parallel Computing Toolbox to use gpuArray objects.

signalDatastore

Description

Creation

Syntax

Description

Input Arguments

data — In-memory input data cell array of vectors | cell array of matrices | cell array of timetables | cell array of cell arrays

location — Files or folders to include in datastore FileSet object | path | DsFileSet object

IncludeSubfolders — Subfolder inclusion flag false or 0 (default) | true or 1

FileExtensions — Signal file extensions character vector | cell array of character vectors | string scalar | string array

Properties

In-Memory Data

Members — Member names cell array

MemberNames — Signal member data ["Member1"..."MemberN"] (default) | string scalar | string array

File Data

Files — Files included in datastore cell array of strings | cell array of character vectors

ReadFcn — Custom read function read (default) | function handle

AlternateFileSystemRoots — Alternate file system root paths string vector | cell array

SignalVariableNames — Names of variables in signal files first variable name (default) | string scalar | string vector

ReadOutputOrientation — Output signal data cell array orientation 'column' (default) | 'row'

Example: Output Cell Array Orientation

SampleRateVariableName — Name of variable holding sample rate string scalar

SampleTimeVariableName — Name of variable holding sample time value string scalar

TimeValuesVariableName — Name of variable holding time values vector string scalar

In-Memory and File Data

SampleRate — Sample rate values positive scalar | positive vector

SampleTime — Sample time values positive scalar | vector | duration scalar | duration vector

TimeValues — Time values vector | duration vector | matrix | cell array

ReadSize — Maximum number of signal files returned by read 1 (default) | positive real scalar

OutputEnvironment — Hardware resource for output data "cpu" (default) | "gpu"

OutputDataType — Data type of read output "same" (default) | "double" | "single" | string array | cell array of character vectors

Object Functions

Examples

Signal Datastore with In-Memory Data

Create Signal Datastore

Specify File Extension to Include in Signal Datastore

Read Multiple Files with Signal Datastore

Custom Read Data From Signal Datastore

Read Multiple Variables from Files in Signal Datastore

Extended Capabilities

GPU Arrays Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

R2024b: Return single-precision data and gpuArray objects

See Also

Topics

`data` — In-memory input data
cell array of vectors | cell array of matrices | cell array of timetables | cell array of cell arrays

`location` — Files or folders to include in datastore
`FileSet` object | path | `DsFileSet` object

`IncludeSubfolders` — Subfolder inclusion flag
`false` or `0` (default) | `true` or `1`

`FileExtensions` — Signal file extensions
character vector | cell array of character vectors | string scalar | string array

`Members` — Member names
cell array

`MemberNames` — Signal member data
`["Member1"..."MemberN"]` (default) | string scalar | string array

`Files` — Files included in datastore
cell array of strings | cell array of character vectors

`ReadFcn` — Custom read function
`read` (default) | function handle

`AlternateFileSystemRoots` — Alternate file system root paths
string vector | cell array

`SignalVariableNames` — Names of variables in signal files
first variable name (default) | string scalar | string vector

`ReadOutputOrientation` — Output signal data cell array orientation
`'column'` (default) | `'row'`

`SampleRateVariableName` — Name of variable holding sample rate
string scalar

`SampleTimeVariableName` — Name of variable holding sample time value
string scalar

`TimeValuesVariableName` — Name of variable holding time values vector
string scalar

`SampleRate` — Sample rate values
positive scalar | positive vector

`SampleTime` — Sample time values
positive scalar | vector | `duration` scalar | `duration` vector

`TimeValues` — Time values
vector | `duration` vector | matrix | cell array

`ReadSize` — Maximum number of signal files returned by `read`
`1` (default) | positive real scalar

`OutputEnvironment` — Hardware resource for output data
`"cpu"` (default) | `"gpu"`

`OutputDataType` — Data type of read output
`"same"` (default) | `"double"` | `"single"` | string array | cell array of character vectors

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

R2024b: Return single-precision data and `gpuArray` objects
