Transfer Fcn
Model linear system by transfer function
 Library:
Simulink / Continuous
Description
The Transfer Fcn block models a linear system by a transfer function of the Laplacedomain
variable s
. The block can model singleinput singleoutput
(SISO) and singleinput multipleoutput (SIMO) systems.
Conditions for Using This Block
The Transfer Fcn block assumes the following conditions:
The transfer function has the form
$$H(s)=\frac{y(s)}{u(s)}=\frac{num(s)}{den(s)}=\frac{num(1){s}^{nn1}+num(2){s}^{nn2}+\dots +num(nn)}{den(1){s}^{nd1}+den(2){s}^{nd2}+\dots +den(nd)},$$
where u and y are the system input and outputs, respectively, nn and nd are the number of numerator and denominator coefficients, respectively. num(s) and den(s) contain the coefficients of the numerator and denominator in descending powers of s.
The order of the denominator must be greater than or equal to the order of the numerator.
For a multipleoutput system, all transfer functions have the same denominator and all numerators have the same order.
Modeling a SingleOutput System
For a singleoutput system, the input and output of the block are scalar timedomain signals. To model this system:
Enter a vector for the numerator coefficients of the transfer function in the Numerator coefficients field.
Enter a vector for the denominator coefficients of the transfer function in the Denominator coefficients field.
Modeling a MultipleOutput System
For a multipleoutput system, the block input is a scalar and the output is a vector, where each element is an output of the system. To model this system:
Enter a matrix in the Numerator coefficients field.
Each row of this matrix contains the numerator coefficients of a transfer function that determines one of the block outputs.
Enter a vector of the denominator coefficients common to all transfer functions of the system in the Denominator coefficients field.
Specifying Initial Conditions
A transfer function describes the relationship between input and output in Laplace (frequency) domain. Specifically, it is defined as the Laplace transform of the response (output) of a system with zero initial conditions to an impulse input.
Operations like multiplication and division of transfer functions rely on zero initial state. For example, you can decompose a single complicated transfer function into a series of simpler transfer functions. Apply them sequentially to get a response equivalent to that of the original transfer function. This will not be correct if one of the transfer functions assumes a nonzero initial state. Furthermore, a transfer function has infinitely many time domain realizations, most of whose states do not have any physical meaning.
For these reasons, Simulink^{®} presets the initial conditions of the Transfer Fcn
block to zero. To specify initial conditions for a given transfer function, convert
the transfer function to its controllable, canonical statespace realization using
tf2ss
. Then, use the StateSpace block. The
tf2ss
utility provides the A
,
B
, C
, and D
matrices
for the system.
For more information, type help tf2ss
or
see the Control System Toolbox™ documentation.
Transfer Function Display on the Block
The Transfer Fcn block displays the transfer function depending on how you specify the numerator and denominator parameters.
If you specify each parameter as an expression or a vector, the block shows the transfer function with the specified coefficients and powers of s. If you specify a variable in parentheses, the block evaluates the variable.
For example, if you specify Numerator coefficients as
[3,2,1]
and Denominator coefficients as(den)
, whereden
is[7,5,3,1]
, the block looks like this:Tip
If you see only:
hover the block icon and drag a corner to resize the block icon until the denominator and numerator appear.
If you specify each parameter as a variable, the block shows the variable name followed by
(s)
.For example, if you specify Numerator coefficients as
num
and Denominator coefficients asden
, the block looks like this:
Ports
Input
Output
Parameters

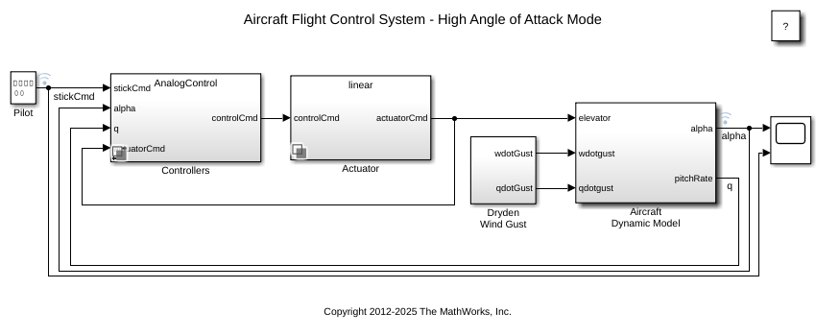

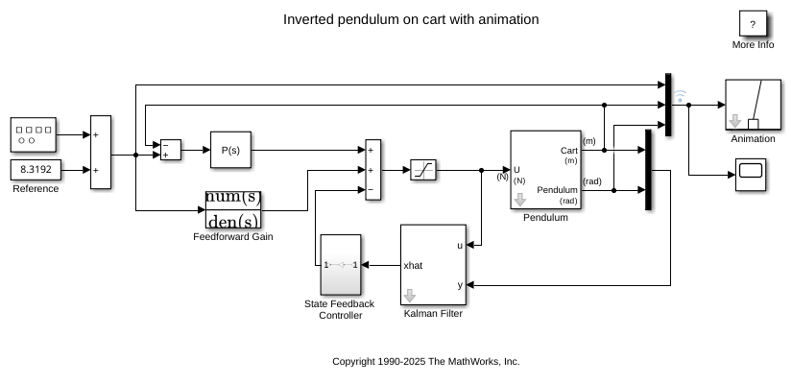

Model Examples
Block Characteristics
Data Types

Direct Feedthrough

Multidimensional Signals

VariableSize Signals

ZeroCrossing Detection

Extended Capabilities
Version History
Introduced before R2006a
