Getting Started with Keyboard Control of Parrot Minidrones

Introduction

The Simulink Support Package for Parrot Minidrones provides a Keyboard Read block that reads the keys pressed on the keyboard of the host computer, when the Simulink model is running on the drone. The output of this Keyboard Read block is the corresponding ASCII code of the character pressed, which you can use to trigger any control logic.

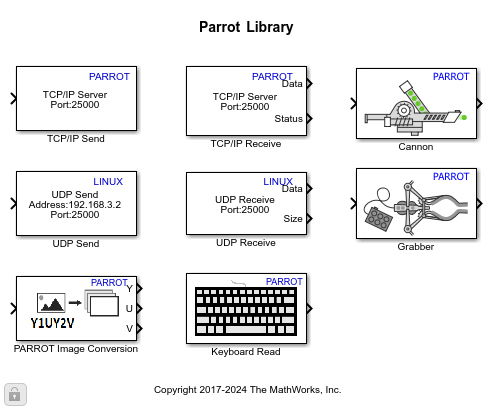

The Keyboard Read block can be found in the Simulink library. To access the block from Simulink Library Browser:

1. Enter slLibraryBrowser at the MATLAB prompt.

2. In the Simulink Library Browser, navigate to Simulink Support Package for Parrot Minidrones.

In this example, you will learn how to use the Keyboard Read block in the Code Generation Template to set the speed of one of the motors on Parrot minidrone, using two different keys on the keyboard.

Prerequisites

Required Hardware

To run this example, you will need the following hardware:

Task 1 - Add a Keyboard Read block and model the logic to detect the received characters

1. On the Simulink Start page, navigate to Simulink Support Package for Parrot Minidrones and select Code Generation Template.

2. In the Simulink model, navigate into the Flight Control System, and insert the Keyboard Read block from the library.

3. Add two Compare to Constant blocks in the model, and connect the output of Keyboard Read block to the inputs of the two Compare to Constant blocks.

In this example, we assume that the character 'a' on the keyboard will be used to start a motor, and the character 's' will be used to stop the motor. You can use one of the Compare to Constant blocks to compare the received character with the ASCII code of 'a' (which is 97), and use the other block to compare the received character with the ASCII code of 's' (which is 115).

4. Double-click the Compare to Constant blocks, set the Operator value to ==, and Constant value to 97 and 115 respectively.

Task 2 - Add additional logic for controlling the motor

In this task, you will perform the following:

1. Insert an Add block, and combine the two outputs (from the two Compare to Constant blocks) using the Add block.

2. Insert a Switch block, and connect the output of the Add block to Input 2 of the Switch block.

3. Add a Gain block with value 400, and connect it to the output of Compare to Constant block configured for character 'a'. Connect the output of the Gain block to Input 1 of the Switch block.

4. For the Input 3 of the Switch block, we will a delay feedback that is derived from the output of the Switch block. Insert a delay block and connect it to Input 3.

5. Connect the output of Switch block to Motor 1.

6. Add a Constant block with value 200 and connect it to other motors.

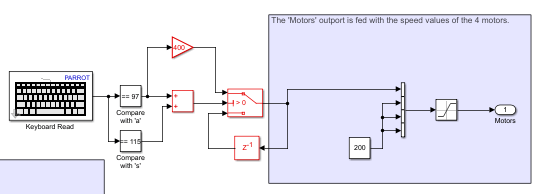

The completed logic will look like this:

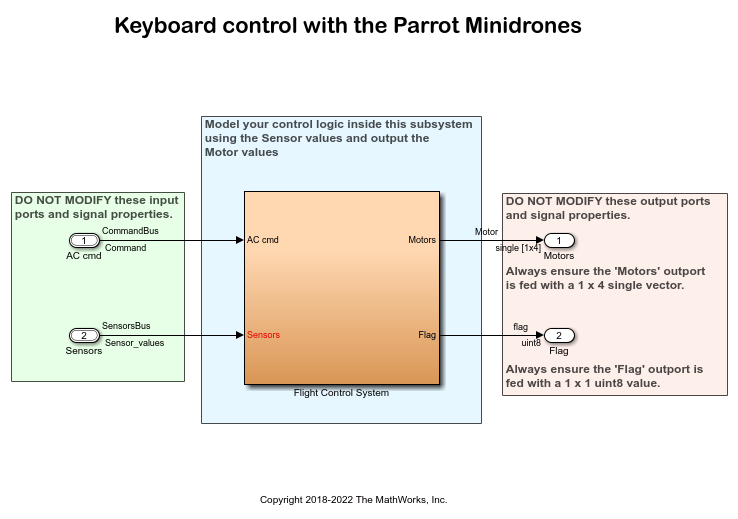

A pre-configured model parrot_keyboard_control is also included for your convenience. Double-click the Flight Control System subsystem in this model to view the control logic.

Task 3 - Deploy the model and use the keyboard to control the drone

In this task, you will deploy the Simulink model to Parrot minidrone, start the model, and use the keyboard of the host computer to control the speed of Motor 1.

1. On the Simulink toolbar, click the Deploy to hardware button. The model is deployed to the Parrot Minidrone.

If you have selected the Launch PARROT Flight Control Interface automatically after build option in the Configuration Parameters dialog box (Hardware Implementation pane > Target Hardware Resources > Build Options), the Parrot Flight Control Interface opens automatically after the build goes through successfully.

You can also launch the interface by executing the command Parrot_FlightInterface at the MATLAB command prompt.

2. On the Parrot Flight Control Interface, click Start. The deployed model is now ready to accept keyboard key actions.

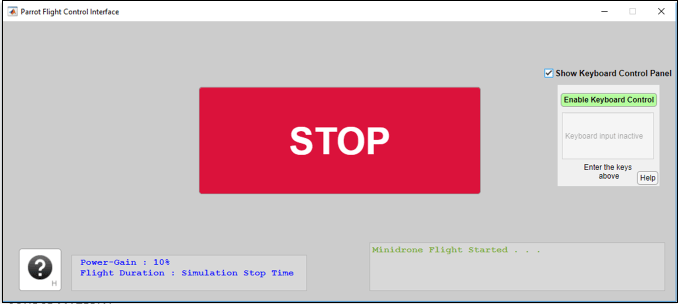

3. On the Parrot Flight Control Interface, click Show Keyboard Control Panel.

4. Click Enable Keyboard Control

5. Place the cursor in the field below the Enable Keyboard Control button, and type the character a on the keyboard of the host computer.

The Motor 1 starts running.

6. Type the character s on the keyboard of the host computer. The Motor 1 stops running.

7 Click STOP on the Flight Control Interface to stop the model running on the drone.

For more details, see Keyboard Control of Parrot Minidrones.

Use MATLAB script to control the drone

The above behavior can be reproduced using a MATLAB script. For more details, refer to the topic Using MATLAB Scripts for Keyboard Control.

A sample script is provided below, which switches on the motor for 3 seconds and then switches it off for 3 seconds, for 10 cycles.

You need to first deploy the Simulink model to the drone, start the model using the Flight Control Interface, and then run the below script at the MATLAB command prompt.

try
  tcpHandle = tcpclient('192.168.3.1',26061);

   for i = 1:10
       write(tcpHandle, uint8('a'));
       pause(3);
       write(tcpHandle, uint8('s'));
       pause(3);
   end
catch ex
   if(isequal(ex.identifier,'MATLAB:networklib:tcpclient:cannotCreateObject'))
       error('Simulink model that includes a Keyboard Read block must be running in drone to enable Keyboard Control.');
   else
       error('Failed to transfer keyboard character to drone. Check if Simulink model is running in drone.');
   end
end

Click STOP on the Flight Control Interface to stop the model running on the drone.
