Model Reference Adaptive Control
Compute control actions to make controlled system track reference model
Since R2021b
Libraries:
Simulink Control Design /
Adaptive Control
Description
The Model Reference Adaptive Control block computes control actions to make an uncertain controlled system track the behavior of a given reference plant model. Using this block, you can implement the following model reference adaptive control (MRAC) algorithms.
Direct MRAC — Estimate the following controller gains and compute control actions using the estimated controller.
Feedback gains that relate the state of the controlled system to the control signal.
Feedforward gains that relate the reference signal to the control signal.
Indirect MRAC — Estimate the following matrices of the uncertain controlled system and derive control actions based on the estimated model.
State matrix A
Control effective matrix B
Both direct and indirect MRAC also estimate a model of the external disturbances and uncertainty in the system being controlled and use this model when computing control actions.
In both cases, based on the real-time tracking error, the controller can update the estimated parameters and disturbance model.
For more information, see Model Reference Adaptive Control.
Examples

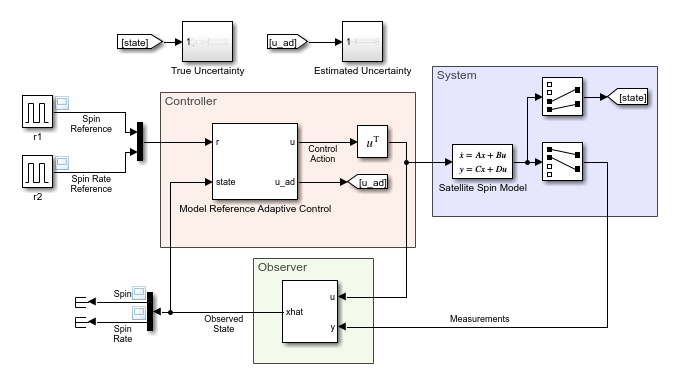

Model Reference Adaptive Control of Satellite Spin
Design an MRAC controller that adapts plant uncertainty model parameters to achieve performance that matches an ideal reference model.
Model Reference Adaptive Control of Aircraft Undergoing Wing Rock
Design an MRAC controller that adapts disturbance model parameters to achieve performance matching an ideal reference model.
Indirect Model Reference Adaptive Control of First-Order System
Design an indirect MRAC controller that estimates the properties of an unknown first-order system.
Indirect MRAC Control of Mass-Spring-Damper System
Design an indirect MRAC controller that estimates the parameters of an unknown MIMO system.
Ports
Input
r — Reference signal
scalar signal | vector signal
Provide the reference signal for the controlled system to follow.
state — Controlled system state
vector signal
Provide the current state vector from the controlled system.
phi — Disturbance model features
vector signal | matrix signal
Provide custom disturbance model features.
Dependencies
To enable this input port, set the Feature type parameter
to Use External Source for Feature
.
Output
u — Control input
scalar signal | matrix signal
Connect the control input signal to the input of the controlled system. The control input is a vector signal with length equal to the number of control inputs in the controlled system.
u_ad — Disturbance and uncertainty estimate
scalar signal | matrix signal
The disturbance and uncertainty estimate is the product of the disturbance model features and the disturbance model weight vector. You can use this signal to compare the estimated disturbance model with the actual disturbances in your system.
Dependencies
To enable this output port, select the Output disturbance/uncertainty estimate parameter.
Ahat — Estimator state matrix
matrix signal
Use this port to output the estimated state matrix for the estimator plant model.
Dependencies
This output port is used for indirect MRAC. To enable this port, first select the Indirect algorithm option. Then, select the Output estimated parameters parameter.
Bhat — Estimator control effective matrix
vector signal | matrix signal
Use this port to output the estimated control effective matrix for the estimator plant model.
Dependencies
This output port is used for indirect MRAC. To enable this port, first select the Indirect algorithm option. Then, select the Output estimated parameters parameter.
Parameters
System
Select an MRAC algorithm and specify nominal, reference, and estimator model dynamics.
A — Nominal model state matrix
0
(default) | square matrix
Specify the state matrix for the nominal model as an N-by-N matrix, where N is the number of states in the controlled system.
Dependencies
This parameter is used for direct MRAC. To enable this parameter, select the Direct algorithm option.
Programmatic Use
Block Parameter:
'A' |
Type: character vector |
Values: square matrix |
Default:
'0' |
B — Nominal model control effective matrix
1
(default) | vector | matrix
Specify the control effective matrix of the nominal model as a nonzero N-by-M matrix, where N is the number of states in the controlled system and M is the number of control inputs in the controlled system.
Dependencies
This parameter is used for direct MRAC. To enable this parameter, select the Direct algorithm option.
Programmatic Use
Block Parameter:
'B' |
Type: character vector |
Values: vector | matrix |
Default:
'1' |
Am — Reference model state matrix
-1
(default) | matrix
Specify the state matrix for the reference model as a matrix with the same dimensions as parameter A. For a stable reference model, Am must be a Hurwitz matrix for which every eigenvalue must have a strictly negative real part.
Programmatic Use
Block Parameter:
'Am' |
Type: character vector |
Values: square matrix |
Default:
'-1' |
Bm — Reference model control effective matrix
1
(default) | vector | matrix
Specify the control effective matrix of the reference model as a nonzero matrix with the same dimensions as parameter B.
Programmatic Use
Block Parameter:
'Bm' |
Type: character vector |
Values: vector | matrix |
Default:
'[0;4]' |
Ahat — Estimator plant model state matrix
0
(default) | square matrix
Specify the state matrix for the estimator plant model as an N-by-N matrix, where N is the number of states in the controlled system.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.
Programmatic Use
Block Parameter:
'Ahat' |
Type: character vector |
Values: square matrix |
Default:
'0' |
Adapt Ahat — Option to adapt estimator plant model state matrix
on
(default) | off
When you select this parameter, the controller adapts the estimator plant model state matrix.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.
Programmatic Use
Block Parameter:
'ALrEnable' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Learning rate (gamma_a) — Learning rate for adapting estimator plant model state matrix
1
(default) | finite positive scalar
Use this parameter to control the rate at which the controller adapts the estimator plant model state matrix. A larger value increases the size of the updates.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Ahat parameter.
Programmatic Use
Block Parameter:
'gamma_a' |
Type: character vector |
Values: finite positive scalar |
Default:
'1' |
Use learning modification — Option to enable learning modification for updating the estimator model state matrix
on
(default) | off
To add robustness at higher gains, select this option to add a momentum term to the estimator model state matrix updates. Configure the learning modification on the Learning Modification tab.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Ahat parameter.
Programmatic Use
Block Parameter:
'ALrEnableMod' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Bhat — Estimator plant model control effective matrix
1
(default) | vector | matrix
Specify the control effective matrix of the estimator plant model as a nonzero N-by-M matrix, where N is the number of states in the controlled system and M is the number of control inputs in the controlled system.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.
Programmatic Use
Block Parameter:
'Bhat' |
Type: character vector |
Values: vector | matrix |
Default:
'1' |
Adapt Bhat — Option to adapt estimator plant model control effective matrix
on
(default) | off
When you select this parameter, the controller adapts the estimator plant model control effective matrix.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.
Programmatic Use
Block Parameter:
'BLrEnable' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Learning rate (gamma_b) — Learning rate for adapting estimator plant model control effective matrix
1
(default) | finite positive scalar
Use this parameter to control the rate at which the controller adapts the estimator plant model control effective matrix. A larger value increases the size of the updates.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Bhat parameter.
Programmatic Use
Block Parameter:
'gamma_a' |
Type: character vector |
Values: finite positive scalar |
Default:
'1' |
Use learning modification — Option to enable learning modification for updating the estimator model control effective matrix
on
(default) | off
To add robustness at higher gains, select this option to add a momentum term to the estimator model control effective matrix updates. Configure the learning modification on the Learning Modification tab.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Bhat parameter.
Programmatic Use
Block Parameter:
'BLrEnableMod' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Specify estimator feedback gain — Option to enable specification of estimator feedback gain
off
(default) | on
To specify the estimator feedback gain, first select this parameter. Then, specify the Estimator feedback gain parameter.
If you do not select this parameter, the estimator uses a default feedback gain equal to the Am parameter.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.
Programmatic Use
Block Parameter:
'externalKTauEnable' |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
Estimator feedback gain — Estimator feedback gain
-1
(default) | matrix
To use the Am matrix as the default estimator feedback gain,
specify this parameter as -1
. Otherwise, specify the feedback gain
as a Hurwitz matrix with the same dimensions as Am.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Specify estimator feedback gain parameter.
Programmatic Use
Block Parameter:
'k_tau' |
Type: character vector |
Values:
-1 | matrix |
Default:
'-1' |
Output estimated parameters — Option to output estimator state and control effective matrices
off
(default) | on
Select this parameter to add the Ahat and Bhat output ports for the estimator state and control effective matrix values, respectively.
Dependencies
This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.
Programmatic Use
Block Parameter:
'estParamOutput' |
Type: character vector |
Values:
'off' | 'on' |
Default:
'off' |
Control Gains
Define initial feedback and feedforward gains for model matching when using direct MRAC. You can configure the block to update these control gains and adjust the corresponding learning rates. To enable the parameters on this tab, select the Direct algorithm option.
Feedback gains — Feedback gains for model matching
0
(default) | finite scalar | matrix of finite values
Initial feedback gain values. If you do not select the Adapt feedback gains parameter, then the controller holds the specified feedback gains at these initial values.
Programmatic Use
Block Parameter:
'kx' |
Type: character vector |
Values: finite scalar | matrix of finite values |
Default:
'0' |
Adapt feedback gains — Option to adapt feedback gains
on
(default) | off
When you select this parameter, the controller adapts the feedback gains based on the difference between the states of the controlled system and the reference model.
Programmatic Use
Block Parameter:
'FBLrEnable' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Learning rate (gamma_x) — Learning rate for adapting feedback gains
1
(default) | finite positive scalar
Use this parameter to control the rate at which the controller adapts the feedback gains. A larger value increases the size of the gain updates.
Programmatic Use
Block Parameter:
'gamma_kx' |
Type: character vector |
Values: finite positive scalar |
Default:
'1' |
Use learning modification — Option to enable learning modification for updating the feedback gains
on
(default) | off
To add robustness at higher gains, select this option to add a momentum term to the feedback gain updates. Configure the learning modification on the Learning Modification tab.
Programmatic Use
Block Parameter:
'FBLrEnableMod' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Feedforward gains — Feedforward gains for model matching
0
(default) | finite scalar | matrix of finite values
Initial feedforward gain values. If you do not select the Adapt feedforward gains parameter, then the controller holds the specified feedforward gains at these initial values.
Programmatic Use
Block Parameter:
'kr' |
Type: character vector |
Values: finite scalar | matrix of finite values |
Default:
'0' |
Adapt feedforward gains — Option to adapt feedforward gains
on
(default) | off
When you select this parameter, the controller adapts the feedforward gains based on the difference between the states of the controlled system and the reference model.
Programmatic Use
Block Parameter:
'FFLrEnable' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Learning rate (gamma_r) — Learning rate for adapting feedforward gains
1
(default) | finite positive scalar
Use this parameter to control the rate at which the controller adapts the feedforward gains. A larger value increases the size of the gain updates.
Programmatic Use
Block Parameter:
'gamma_kr' |
Type: character vector |
Values: finite positive scalar |
Default:
'1' |
Use learning modification — Option to enable learning modification for updating the feedforward gains
on
(default) | off
To add robustness at higher gains, select this option to add a momentum term to the feedforward gain updates. Configure the learning modification on the Learning Modification tab.
Programmatic Use
Block Parameter:
'FFLrEnableMod' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Disturbance Model
Configure the disturbance and uncertainty model used by the block. During operation, the block adapts the disturbance model parameters.
Enable disturbance adaptation — Option to enable adaptation to system disturbances and uncertainties
on
(default) | off
When you select this parameter, the controller uses a disturbance model to estimate the uncertainty and external disturbances in the controlled system. The controller adapts the parameters of the disturbance model based on the error between the states of the controlled system and reference model.
The disturbance model has the form wTϕ(x).
ϕ(x) is the disturbance model feature vector. To configure the feature vector, use the Feature type parameter.
wT is a weighting matrix that contains disturbance model parameters. The controller adjusts its disturbance and uncertainty model by adapting these parameters.
Programmatic Use
Block Parameter:
'AdaptEnable' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Learning rate (gamma_w) — Learning rate for adapting disturbance model parameters
1
(default) | finite positive scalar
Use this parameter to control the rate at which the controller adapts the disturbance model parameters. A larger value increases the size of the parameter updates.
Dependencies
To enable this parameter, select the Enable disturbance adaptation parameter.
Programmatic Use
Block Parameter:
'gamma' |
Type: character vector |
Values: finite positive scalar |
Default:
'100' |
Use learning modification — Option to enable learning modification for updating disturbance model parameters
on
(default) | off
To add robustness at higher gains, select this option to add a momentum term to the disturbance parameter updates. Configure the learning modification on the Learning Modification tab.
Dependencies
To enable this parameter, select the Enable disturbance adaptation parameter.
Programmatic Use
Block Parameter:
'WLrEnableMod' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Channel learning rate (Q) — Channel learning rate used for the Lyapunov solution
1
(default) | finite positive scalar | vector of length N containing positive finite values | symmetric positive definite matrix of size
N-by-N
The channel learning rate Q is a weighting matrix for state tracking errors in the Lyapunov function for the error dynamics. The larger the value of Q, the faster the tracking error goes to zero. However, a larger value of Q also creates larger transients and a less robust system.
Dependencies
To enable this parameter, select the Enable disturbance adaptation parameter.
Programmatic Use
Block Parameter:
'Q' |
Type: character vector |
Values: finite positive scalar | vector of positive values | symmetric positive definite matrix |
Default:
'1' |
Feature type — Disturbance model feature type
State
(default) | Radial Basis Function
| Single Hidden Layer Network
| Use External Source for Feature
Select one of the following types for the disturbance model feature vector.
State
— Use the states from the controlled plant as the disturbance model. This option can underrepresent the uncertainty and therefore perform poorly.Radial Basis Function
— Use Gaussian radial basis functions to create the feature vector.Single Hidden Layer Network
— Use a neural network with a single-hidden layer.Use External Source for Feature
— Add the phi input port to the block. Use this port to provide your own custom feature vector.
For more information on when to use each type of feature vector, see Disturbance and Uncertainty Model.
Dependencies
To enable this parameter, select the Enable disturbance adaptation parameter.
Programmatic Use
Block Parameter:
'FeatureTypeOptions' |
Type: character vector |
Values:
'Radial Basis Function' | 'State' |
'Single Hidden Layer Network' | 'Use External Source
for Feature' |
Default:
'Radial Basis Function' |
Number of RBF centers — Number of radial basis function centers for disturbance model
20
(default) | positive integer
Number of radial basis function (RBF) centers to use in the disturbance model. The RBF centers are evenly spaced across the span defined by the Centers min and Centers max parameters.
Dependencies
To enable this parameter, select the Enable disturbance
adaptation parameter and set the Feature type
parameter to Radial Basis Function
.
Programmatic Use
Block Parameter:
'nCen' |
Type: character vector |
Values: positive integer |
Default:
'20' |
Centers min — Lower limit for radial basis function centers
-1
(default) | finite scalar | vector
Specify the lower limits for the radial basis function centers. If you specify a scalar value, the same minimum is used for all basis functions. Otherwise, you must specify a vector with length equal to the Number of RBF centers parameter.
The Centers min parameter must be less than the Centers max parameter.
Dependencies
To enable this parameter, select the Enable disturbance
adaptation parameter and set the Feature type
parameter to Radial Basis Function
.
Programmatic Use
Block Parameter:
'cSpanMin' |
Type: character vector |
Values: finite scalar | vector |
Default:
'-1' |
Centers max — Upper limit for radial basis function centers
1
(default) | finite scalar | vector
Specify the upper limits for the radial basis function centers. If you specify a scalar value, the same maximum is used for all basis functions. Otherwise, you must specify a vector with length equal to the Number of RBF centers parameter.
The Centers max parameter must be greater than the Centers min parameter.
Dependencies
To enable this parameter, select the Enable disturbance
adaptation parameter and set the Feature type
parameter to Radial Basis Function
.
Programmatic Use
Block Parameter:
'cSpanMax' |
Type: character vector |
Values: finite scalar | vector |
Default:
'1' |
Bandwidth — Radial basis function standard deviation
5
(default) | positive scalar | vector
Specify the standard deviation for the Gaussian basis function kernel. If you specify a scalar value, the same standard deviation is used for all basis functions. Otherwise, you must specify a vector with length equal to the Number of RBF centers parameter.
Dependencies
To enable this parameter, select the Enable disturbance
adaptation parameter and set the Feature type
parameter to Radial Basis Function
.
Programmatic Use
Block Parameter:
'cSig' |
Type: character vector |
Values: positive scalar | vector |
Default:
'5' |
Number of neurons in hidden layer — Number of neurons
10
(default) | positive integer
Specify the number of neurons in the hidden layer of the neural network. In general, a network with more neurons can approximate more complex nonlinear disturbances. Though, too many neurons can produce a noisy disturbance estimate.
Dependencies
To enable this parameter, select the Enable disturbance
adaptation parameter and set the Feature type
parameter to Single Hidden Layer Network
.
Programmatic Use
Block Parameter:
'shlHiddenLayerSize' |
Type: character vector |
Values: positive scalar | vector |
Default:
'10' |
Hidden layer learning rate (gamma_v) — Learning rate for updating neural network weights
0.1
(default) | positive scalar
Use this parameter to control the rate at which the controller adapts the weights of the neural network. A larger value increases the size of the weight updates.
Dependencies
To enable this parameter, select the Enable disturbance
adaptation parameter and set the Feature type
parameter to Single Hidden Layer Network
.
Programmatic Use
Block Parameter:
'gamma_V' |
Type: character vector |
Values: positive scalar | vector |
Default:
'0.1' |
Output disturbance/uncertancy estimate — Option to output disturbance and uncertainty estimate
on
(default) | off
Select this parameter to add the u_ad output port.
Dependencies
To enable this parameter, select the Enable disturbance adaptation parameter.
Programmatic Use
Block Parameter:
'adaptiveCntrlOutport' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Learning Modification
To add robustness at higher gains, you can modify the parameter updates to include a momentum term. The equations in the Parameter Update Equations section show the update formulas for the current block configuration.
Modification Methods — Modification method for updating parameters
None
(default) | e-Modification
| Sigma Modification
Select one of the following options for computing the momentum term that is added to the parameter updates.
Sigma Modification
— The momentum term is the product of the momentum weight parameter σ and the current parameter values.e-Modification
— Scale the sigma-modification momentum term by the magnitude of the error valueNone
— Do not use learning modification.
To specify σ, use the Sigma parameter.
Programmatic Use
Block Parameter:
'modChoice' |
Type: character vector |
Values:
'Sigma Modification' | 'e-Modification' |
'None' |
Default:
'Sigma Modification' |
Sigma — Momentum weight for parameter updates
0.1
(default) | scalar
Specify the value for the momentum weight term. A larger value increases the size of the parameter updates gain and parameter updates.
Dependencies
To enable this parameter, set the Modification Methods
parameter to either Sigma Modification
or
e-Modification
.
Programmatic Use
Block Parameter:
'sigma_val' |
Type: character vector |
Values: finite positive scalar |
Default:
'0.1' |
Use discrete-time integration in adaptation — Use discrete-time integration in adaptation
off
(default) | on
Since R2024b
Select to use discrete-time integration for parameter updates. Doing so allows you to generate code for embedded systems that require a user-specified sample time.
Programmatic Use
Block Parameter:
'DiscreteEnable' |
Type: character vector |
Values:
'on' | 'off' |
Default:
'on' |
Sample time — Sample time
0.05
(default) | finite positive scalar
Since R2024b
Sample time for discrete-time integration, specified as a finite positive scalar.
Dependencies
To enable this parameter, select the Use discrete-time integration in adaptation parameter.
Programmatic Use
Block Parameter:
'Ts' |
Type: character vector |
Values: finite positive scalar |
Default:
'0.05' |
Integration method — Discrete integration method
Forward Euler
(default) | Backward Euler
| Trapezoidal
Since R2024b
Specify the discrete integration formula for calculating the integral in parameter update equations as one of the following:
Forward Euler
—Backward Euler
—Trapezoidal
—
Dependencies
To enable this parameter, select the Use discrete-time integration in adaptation parameter.
Programmatic Use
Block Parameter:
'IntegrationMethods' |
Type: character vector |
Values:
'Forward Euler' | 'Backward Euler' |
'Trapezoidal' |
Default:
'Forward Euler' |
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2021bR2024b: Support for embedded code generation
You can now configure the Model Reference Adaptive Control block to use discrete-time integration for parameter updates. Doing so allows you to generate code for embedded systems that require a user-specified sample time. To use discrete-time integration, on the Learning Modification tab, enable Use discrete-time integration in adaptation. You can then specify a desired sample time and discrete integration method for parameter updates.
R2023b: Library location changed
The Model Reference Adaptive Control block is now in the Simulink Control Design/Adaptive Control sublibrary.
In R2023b, when you open a model saved in a previous release, the library links for Model Reference Adaptive Control blocks update automatically.
R2023a: Single hidden layer disturbance model
You can now model disturbances and uncertainty in your system using a single hidden layer (SHL) neural network. An SHL neural network is a universal function approximator, which can be useful for modeling unstructured uncertainty in your system.
To learn the disturbance model, the MRAC controller adapts the weights of the hidden layer and output layer of the neural network. You can configure the SHL neural network model by specifying the number of neurons in the hidden layer and the learning rate.
R2022a: Indirect model reference adaptive control
The Model Reference Adaptive Control block now supports indirect model reference adaptive control (MRAC). Previously, the block supported only direct MRAC.
Direct MRAC computes control actions to make an uncertain controlled system track the behavior of a given reference plant model. However, indirect MRAC estimates the parameters of the uncertain system and derives the control signal based on the estimated parameters.
See Also
MATLAB 命令
您点击的链接对应于以下 MATLAB 命令:
请在 MATLAB 命令行窗口中直接输入以执行命令。Web 浏览器不支持 MATLAB 命令。
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
