实时应用程序仪表
通过向模型添加仪表，与目标计算机上运行的实时应用程序进行交互。使用仪表对象将参数和信号连接到仪表。在 MATLAB® 中运行您的实时应用程序。使用该仪表控制参数并查看信号输出。请参阅Add Instruments to Real-Time Application from Simulink Model。
App
| Simulink Real-Time | 生成实时应用程序，用于在目标计算机上运行的仿真，并与目标计算机中的 I/O 设备进行交互。 |
| Simulink Real-Time Explorer | Interact with target computer and real-time application running on target computer |
| Simulink Real-Time TET Monitor | 观察在目标计算机上运行的实时应用程序的任务执行时间 |
| Simulink Real-Time App Generator | Generate instrument panel app to interact with target computer and real-time application running on target computer (自 R2022a 起) |
| Simulink Real-Time Application Property Inspector | View and modify application properties (自 R2023b 起) |
工具
| 仿真数据检查器 | 检查并比较数据与仿真结果，以验证和迭代模型设计 |
对象
Instrument | 创建实时仪表对象 |
slrealtime.instrument.LineStyle | 创建实时仪表线型对象 (自 R2022b 起) |
函数
slrtExplorer | 打开 Simulink Real-Time 资源管理器，并与目标计算机及实时应用程序进行交互 |
slrtTETMonitor | 打开 Simulink Real-Time 任务执行时间 (TET) 监控器 |
slrtAppGenerator | 生成仪表盘应用程序，用于与目标计算机及其上运行的实时应用程序进行交互。 (自 R2022a 起) |
slrtApplicationInspector | 打开 Simulink Real-Time 应用程序属性检查器，查看应用程序信息、信号和参数。 (自 R2023b 起) |
getAllInstruments | 获取添加到目标对象的仪表信息 (自 R2021b 起) |
主题
- Add Instruments to Real-Time Application from Simulink Model
Create instruments for your real-time application by using Simulink Editor.
- 实时应用的仪表应用程序
通过仪表盘应用程序与您的实时应用程序进行交互。
- Filter Hierarchical List of Signals and Parameters in Simulink Real-Time Explorer
Find and view signals and parameters with hierarchical path information.
- Export and Import Signals in Instrument by Using Simulink Real-Time Explorer
Group signals across hierarchical model boundaries.
精选示例

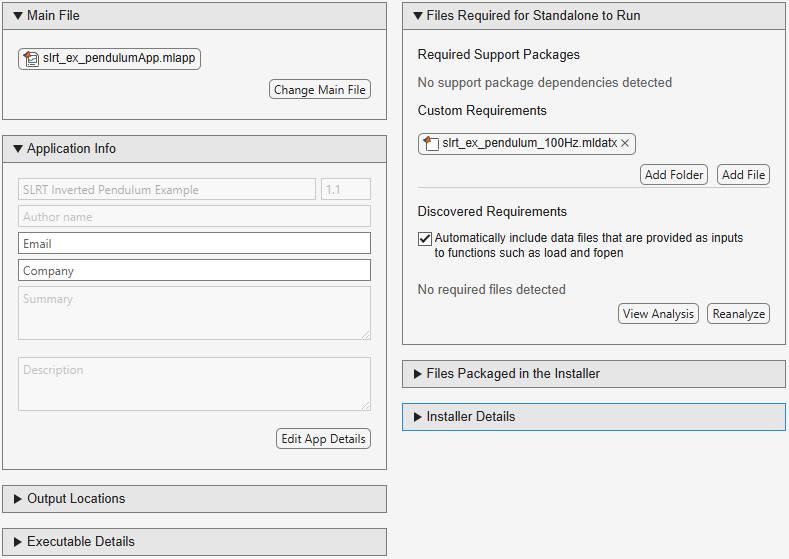

Create Standalone Instrument Panel App by Using Application Compiler
Create executable instrument panel apps by using application compiler.
Control Color of Lamp on Instrument Panel by Using MATLAB®
Connect a lamp indicator on an instrument panel, connect the lamp instrument to the real-time application, and control the color of the lamp.
Control Color of Lamp on Instrument Panel by Using App Generator
Connect a lamp indicator on an instrument panel from App Generator, connect the lamp instrument to the real-time application, and control the color of the lamp.
基础 App Designer 工具：实时应用程序界面设计应用
为 Simulink Real-Time 应用程序配置一个基础的 App Designer 仪表板应用程序。
