oobPermutedPredictorImportance

Out-of-bag predictor importance estimates for random forest of classification trees by permutation

collapse all in page

Syntax

imp = oobPermutedPredictorImportance(Mdl)
imp = oobPermutedPredictorImportance(Mdl,Name=Value)

Description

imp = oobPermutedPredictorImportance(Mdl) returns out-of-bag, predictor importance estimates by permutation using the random forest of classification trees Mdl. Mdl must be a ClassificationBaggedEnsemble model object. imp is a 1-by-p numeric vector, where p is the number of predictor variables in the training data (size(Mdl.X,2)). imp(j) is the predictor importance of the predictor Mdl.PredictorNames(j).

example

imp = oobPermutedPredictorImportance(Mdl,Name=Value) specifies additional options using one or more name-value arguments. For example, you can specify which trees to use in the predictor importance estimation.

example

Examples

collapse all

Open Live Script

Load the census1994 data set. Consider a model that predicts a person's salary category given their age, working class, education level, martial status, race, sex, capital gain and loss, and number of working hours per week.

load census1994
X = adultdata(:,{'age','workClass','education_num','marital_status','race',...
    'sex','capital_gain','capital_loss','hours_per_week','salary'});

You can train a random forest of 50 classification trees using the entire data set.

Mdl = fitcensemble(X,'salary','Method','Bag','NumLearningCycles',50);

fitcensemble uses a default template tree object templateTree() as a weak learner when 'Method' is 'Bag'. In this example, for reproducibility, specify 'Reproducible',true when you create a tree template object, and then use the object as a weak learner.

rng('default') % For reproducibility
t = templateTree('Reproducible',true); % For reproducibiliy of random predictor selections
Mdl = fitcensemble(X,'salary','Method','Bag','NumLearningCycles',50,'Learners',t);

Mdl is a ClassificationBaggedEnsemble model.

Estimate predictor importance measures by permuting out-of-bag observations. Compare the estimates using a bar graph.

imp = oobPermutedPredictorImportance(Mdl);

figure;
bar(imp);
title('Out-of-Bag Permuted Predictor Importance Estimates');
ylabel('Estimates');
xlabel('Predictors');
h = gca;
h.XTickLabel = Mdl.PredictorNames;
h.XTickLabelRotation = 45;
h.TickLabelInterpreter = 'none';

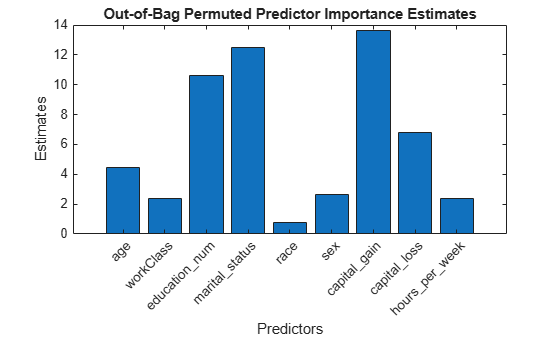

Figure contains an axes object. The axes object with title Out-of-Bag Permuted Predictor Importance Estimates, xlabel Predictors, ylabel Estimates contains an object of type bar.

imp is a 1-by-9 vector of predictor importance estimates. Larger values indicate predictors that have a greater influence on predictions. In this case, education_num, marital_status, and capital_gain are the most important predictors.

This example uses:

Open Live Script

Load the census1994 data set. Consider a model that predicts a person's salary category given their age, working class, education level, martial status, race, sex, capital gain and loss, and number of working hours per week.

load census1994
X = adultdata(:,{'age','workClass','education_num','marital_status','race', ...
    'sex','capital_gain','capital_loss','hours_per_week','salary'});

Display the number of categories represented in the categorical variables using summary.

summary(X)
Variables:

    age: 32561×1 double

        Values:

            Min        17
            Median     37
            Max        90

    workClass: 32561×1 categorical

        Values:

            Federal-gov              960
            Local-gov               2093
            Never-worked               7
            Private                22696
            Self-emp-inc            1116
            Self-emp-not-inc        2541
            State-gov               1298
            Without-pay               14
            NumMissing              1836

    education_num: 32561×1 double

        Values:

            Min              1
            Median          10
            Max             16

    marital_status: 32561×1 categorical

        Values:

            Divorced                       4443
            Married-AF-spouse                23
            Married-civ-spouse            14976
            Married-spouse-absent           418
            Never-married                 10683
            Separated                      1025
            Widowed                         993

    race: 32561×1 categorical

        Values:

            Amer-Indian-Eskimo      311
            Asian-Pac-Islander     1039
            Black                  3124
            Other                   271
            White                 27816

    sex: 32561×1 categorical

        Values:

            Female    10771
            Male      21790

    capital_gain: 32561×1 double

        Values:

            Min               0
            Median            0
            Max           99999

    capital_loss: 32561×1 double

        Values:

            Min               0
            Median            0
            Max            4356

    hours_per_week: 32561×1 double

        Values:

            Min               1
            Median           40
            Max              99

    salary: 32561×1 categorical

        Values:

            <=50K     24720
            >50K       7841

Because there are few categories represented in the categorical variables compared to levels in the continuous variables, the standard CART, predictor-splitting algorithm prefers splitting a continuous predictor over the categorical variables.

Train a random forest of 50 classification trees using the entire data set. To grow unbiased trees, specify usage of the curvature test for splitting predictors. Because there are missing values in the data, specify usage of surrogate splits. To reproduce random predictor selections, set the seed of the random number generator by using rng and specify 'Reproducible',true.

rng('default') % For reproducibility
t = templateTree('PredictorSelection','curvature','Surrogate','on', ...
    'Reproducible',true); % For reproducibility of random predictor selections
Mdl = fitcensemble(X,'salary','Method','bag','NumLearningCycles',50, ...
    'Learners',t);

Estimate predictor importance measures by permuting out-of-bag observations. Perform calculations in parallel.

options = statset('UseParallel',true);
imp = oobPermutedPredictorImportance(Mdl,'Options',options);
Starting parallel pool (parpool) using the 'local' profile ...
Connected to the parallel pool (number of workers: 6).

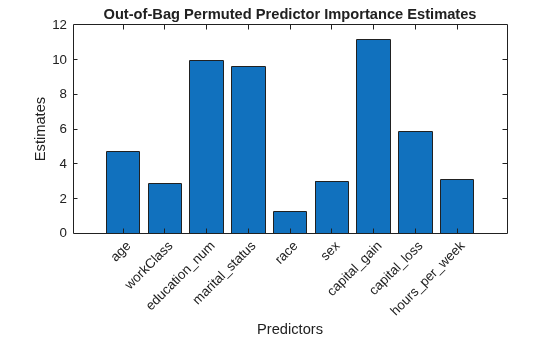

Compare the estimates using a bar graph.

figure
bar(imp)
title('Out-of-Bag Permuted Predictor Importance Estimates')
ylabel('Estimates')
xlabel('Predictors')
h = gca;
h.XTickLabel = Mdl.PredictorNames;
h.XTickLabelRotation = 45;
h.TickLabelInterpreter = 'none';

In this case, capital_gain is the most important predictor, followed by martial_status. Compare these results to the results in Estimate Importance of Predictors.

Input Arguments

collapse all

Random forest of classification trees, specified as a ClassificationBaggedEnsemble model object created with fitcensemble.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: oobPermutedPredictorImportance(Mdl,Learners=[1 2 3 5]) specifies to use the first, second, third, and fifth learners in Mdl.

Indices of learners to use in predictor importance estimation, specified as a vector of positive integers. The maximum allowable integer value is Mdl.NumTrained. When oobPermutedPredictorImportance estimates the predictor importance, it includes the learners in Mdl.Trained(learners) only, where learners is the value of Learners.

Example: Learners=[1:2:Mdl.NumTrained]

Data Types: single | double

Parallel computing options, specified as a structure array returned by statset. You must have a Parallel Computing Toolbox™ license to specify Options.

oobPermutedPredictorImportance uses only the UseParallel field in the structure array. statset(UseParallel=true) invokes a pool of parallel workers.

Example: Options=statset(UseParallel=true)

Data Types: structure array

More About

collapse all

Out-of-Bag Predictor Importance Estimates by Permutation

Out-of-bag predictor importance estimates by permutation measure how influential the model's predictor variables are at predicting the response. The influence of a predictor increases with the value of this measure.

If a predictor is influential in prediction, then permuting its values should affect the model error. If a predictor is not influential, then permuting its values should have little to no effect on the model error.

The following process describes the estimation of out-of-bag predictor importance values by permutation. Suppose that R is a random forest of T learners and p is the number of predictors in the training data.

  1. For tree t, t = 1,...,T:

    1. Identify the out-of-bag observations and the indices of the predictor variables that were split to grow tree t, st ⊆ {1,...,p}.

    2. Estimate the out-of-bag error εt.

    3. For each predictor variable xj, j ∊ st:

      1. Randomly permute the observations of xj.

      2. Estimate the model error, εtj, using the out-of-bag observations containing the permuted values of xj.

      3. Take the difference dtj = εtj – εt. Predictor variables not split when growing tree t are attributed a difference of 0.

  2. For each predictor variable in the training data, compute the mean, d¯j, and standard deviation, σj, of the differences over the learners, j = 1,...,p.

  3. The out-of-bag predictor importance by permutation for xj is d¯j/σj.

Tips

When growing a random forest using fitcensemble:

  • Standard CART tends to select split predictors containing many distinct values, e.g., continuous variables, over those containing few distinct values, e.g., categorical variables [3]. If the predictor data set is heterogeneous, or if there are predictors that have relatively fewer distinct values than other variables, then consider specifying the curvature or interaction test.

  • Trees grown using standard CART are not sensitive to predictor variable interactions. Also, such trees are less likely to identify important variables in the presence of many irrelevant predictors than the application of the interaction test. Therefore, to account for predictor interactions and identify importance variables in the presence of many irrelevant variables, specify the interaction test [2].

  • If the training data includes many predictors and you want to analyze predictor importance, then specify NumVariablesToSample of the templateTree function as "all" for the tree learners of the ensemble. Otherwise, the software might not select some predictors, underestimating their importance.

For more details, see templateTree and Choose Split Predictor Selection Technique.

References

[1] Breiman, L., J. Friedman, R. Olshen, and C. Stone. Classification and Regression Trees. Boca Raton, FL: CRC Press, 1984.

[2] Loh, W.Y. “Regression Trees with Unbiased Variable Selection and Interaction Detection.” Statistica Sinica, Vol. 12, 2002, pp. 361–386.

[3] Loh, W.Y., and Y.S. Shih. “Split Selection Methods for Classification Trees.” Statistica Sinica, Vol. 7, 1997, pp. 815–840.
