PartitionedDirectForecaster

Cross-validated direct forecasting model

Since R2023b

    Description

    PartitionedDirectForecaster is a set of direct forecasting models trained on partitioned, regularly sampled time series data. You can evaluate the quality of the cross-validated direct forecasting model by using the cvloss and cvpredict object functions.

    The cvloss and cvpredict object functions use models trained on training observations to predict the response for test observations. For example, suppose you cross-validate a direct forecasting model that predicts one step ahead by using five sliding windows. In this case, the software splits the data set into five windows with fixed-size training and test sets. Cross-validation proceeds as follows:

    1. The software trains the first model (stored in CVMdl.Learners{1}) by using the observations in the first training set, and uses the observations in the first test set for validation.

    2. The software trains the second model (stored in CVMdl.Learners{2}) by using the observations in the second training set, and uses the observations in the second test set for validation.

    3. The software proceeds in a similar way for the third, fourth, and fifth models.

    If you validate by using cvpredict, the software computes predictions for the observations in test set i by using model i. If an observation is in more than one test set, then the function returns the prediction for that observation, averaged over all test sets, by default.

    Creation

    You can create a PartitionedDirectForecaster model in two ways:

    Properties

    expand all

    Partition and Learner Properties

    This property is read-only.

    Compact direct forecasting models used for cross-validation, specified as a cell array of CompactDirectForecaster model objects. The number of models in Learners matches the number of test sets in the data partition Partition.

    Data Types: cell

    This property is read-only.

    Template for the regression models in each Learners model, specified as the output of one of these template functions.

    Template FunctionDescription
    templateEnsembleEnsemble learning template, with the ensemble aggregation method specified as "Bag" or "LSBoost"
    templateGAMGeneral additive model template
    templateGPGaussian process regression model template
    templateKernelKernel model template
    templateLinearLinear learner template
    templateSVMSupport vector machine template
    templateTreeDecision tree template

    This property is read-only.

    Data partition indicating how the software splits the data for cross-validation, specified as a tspartition object. The model uses expanding window cross-validation, sliding window cross-validation, or holdout validation.

    Data Properties

    This property is read-only.

    Indices of categorical exogenous predictors, specified as a positive integer vector. Each index value in CategoricalPredictors indicates that the corresponding exogenous predictor in X is categorical. (See PredictorNames for the list of exogenous predictors.) If none of the exogenous predictors are categorical, then this property is empty ([]).

    Data Types: double

    This property is read-only.

    Number of observations in the data stored in X and Y, specified as a positive integer scalar.

    Data Types: double

    This property is read-only.

    Names of the exogenous predictors, specified as a cell array of character vectors. The order of the elements in PredictorNames corresponds to the order of the exogenous predictors in X.

    Data Types: cell

    This property is read-only.

    Name of the response variable, specified as a character vector.

    Data Types: char

    This property is read-only.

    Exogenous predictor data used to cross-validate the model, specified as a numeric matrix, table, or timetable. Each row of X corresponds to one observation, and each column corresponds to one variable.

    This property is read-only.

    Response data used to cross-validate the model, specified as a numeric vector, one-column table, or one-column timetable. Each row of Y corresponds to one observation.

    Forecasting and Prepared Data Properties

    This property is read-only.

    Future time steps at which to forecast, specified as a positive integer vector. Each of the compact direct forecasting models in Learners contains a regression model for each horizon step.

    For example, if the Horizon value of a cross-validated direct forecasting model CVMdl is [1 3], then CVMdl.Learners{1}.Learners contains two regression models: one that forecasts at horizon step 1 and one that forecasts at horizon step 3.

    Data Types: double

    This property is read-only.

    Leading predictor lags used for preparing leading exogenous predictors, specified as a nonnegative integer vector or cell array of nonnegative integer vectors.

    • If LeadingPredictorLags is a vector, then for each element i in the vector, the software shifts the leading exogenous predictors backward in time by i steps, relative to the horizon time step. The software uses the resulting features as predictors. When the LeadingPredictorLags value is 0, the software uses the unshifted leading predictors.

      For example, if the Horizon value of a cross-validated direct forecasting model CVMdl is 3 and the LeadingPredictorLags value is 0, then the software uses the unshifted leading predictor values at horizon step 3 as predictor values.

    • If LeadingPredictorLags is a cell array, then the numeric values in element i of the cell array indicate the lags for leading exogenous predictor i.

    If no leading predictor lags are used, then this property is empty ([]).

    Data Types: double | cell

    This property is read-only.

    Indices of the leading exogenous predictors, specified as a positive integer vector. Leading predictors are predictors for which future values are known. Each index value in LeadingPredictors indicates that the corresponding exogenous predictor in X is leading. (See PredictorNames for the list of exogenous predictors.) If no exogenous predictors are leading predictors, then this property is empty ([]).

    Data Types: double

    This property is read-only.

    Maximum lag value, specified as a nonnegative integer scalar. The MaxLag value depends on the values in ResponseLags, PredictorLags, and LeadingPredictorLags. Specifically, the software computes the maximum lag as follows:

    MaxLag = max([0,ResponseLags,PredictorLags, ...
        LeadingPredictorLags - min(Horizon) + 1])
    Unlike response lags and nonleading predictor lags, leading predictor lags are relative to horizon time steps instead of the current time step.

    Data Types: double

    This property is read-only.

    Predictor lags used for preparing nonleading exogenous predictors, specified as a positive integer vector or cell array of positive integer vectors.

    • If PredictorLags is a vector, then for each element i in the vector, the software shifts the nonleading exogenous predictors backward in time by i steps and uses the resulting features as predictors.

    • If PredictorLags is a cell array, then the numeric values in element i of the cell array indicate the lags for nonleading exogenous predictor i.

    If no predictor lags are used, then this property is empty ([]).

    Data Types: double | cell

    This property is read-only.

    Indices of the prepared categorical predictors, specified as a positive integer vector. Each index value in PreparedCategoricalPredictors indicates that the corresponding predictor listed in PreparedPredictorNames is categorical. If no prepared predictors are categorical predictors, then this property is empty ([]).

    Data Types: double

    This property is read-only.

    Names of the prepared predictors, specified as a cell array of character vectors. These prepared predictors include variables created from both the predictor variables in X and the response variable Y. Not every predictor is used at every horizon step. To see which predictors are used at a specific horizon step, consult the PreparedPredictorsPerHorizon table.

    Data Types: cell

    This property is read-only.

    Prepared predictors at each horizon step, specified as a table of logical values. Each row of the table corresponds to a horizon step, and each column of the table corresponds to a prepared predictor as listed in PreparedPredictorNames. The logical value in row i and column j indicates whether the software uses prepared predictor j at horizon step i. If the value is 1 (true), then the software uses the predictor. If the value is 0 (false), then the software does not use the predictor.

    Data Types: table

    This property is read-only.

    Names of the prepared responses at each horizon step, specified as a cell array of character vectors. That is, element i of PreparedResponseNames is the name of the response variable at horizon step i.

    For example, given a cross-validated direct forecasting model CVMdl, the name of the response variable at horizon step 1, CVMdl.PreparedResponseNames{1}, matches the response variable name used in the first regression model of each compact direct forecasting model in Learners (such as CVMdl.Learners{1}.Learners{1}.ResponseName).

    Data Types: cell

    This property is read-only.

    Response lags used for preparing predictors, specified as a positive integer vector. Each element in ResponseLags indicates the number of time steps by which to shift the response backward in time. The resulting feature is used as a predictor. If no response lags are used, then this property is empty ([]).

    Data Types: double

    Object Functions

    cvlossLoss for partitioned data at each horizon step
    cvpredictPredict response using cross-validated direct forecasting model

    Examples

    collapse all

    Create a cross-validated direct forecasting model using expanding window cross-validation. To evaluate the performance of the model:

    • Compute the mean squared error (MSE) on each test set using the cvloss object function.

    • For each test set, compare the true response values to the predicted response values using the cvpredict object function.

    Load the sample file TemperatureData.csv, which contains average daily temperature from January 2015 through July 2016. Read the file into a table. Observe the first eight observations in the table.

    Tbl = readtable("TemperatureData.csv");
    head(Tbl)
        Year       Month       Day    TemperatureF
        ____    ___________    ___    ____________

        2015    {'January'}     1          23
        2015    {'January'}     2          31
        2015    {'January'}     3          25
        2015    {'January'}     4          39
        2015    {'January'}     5          29
        2015    {'January'}     6          12
        2015    {'January'}     7          10
        2015    {'January'}     8           4


    Create a datetime variable t that contains the year, month, and day information for each observation in Tbl.

    numericMonth = month(datetime(Tbl.Month, ...
        InputFormat="MMMM",Locale="en_US"));
    t = datetime(Tbl.Year,numericMonth,Tbl.Day);

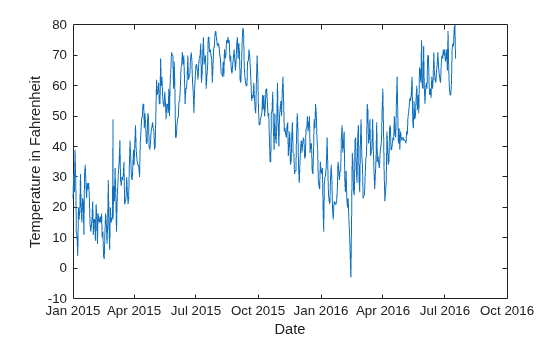

    Plot the temperature values in Tbl over time.

    plot(t,Tbl.TemperatureF)
    xlabel("Date")
    ylabel("Temperature in Fahrenheit")

    Figure contains an axes object. The axes object with xlabel Date, ylabel Temperature in Fahrenheit contains an object of type line.

    Create a direct forecasting model by using the data in Tbl. Train the model using a bagged ensemble of trees. All three of the predictors (Year, Month, and Day) are leading predictors because their future values are known. To create new predictors by shifting the leading predictor and response variables backward in time, specify the leading predictor lags and the response variable lags.

    Mdl = directforecaster(Tbl,"TemperatureF", ...
        Learner="bag", ...
        LeadingPredictors="all",LeadingPredictorLags={0:1,0:1,0:7}, ...
        ResponseLags=1:7)
    Mdl =
      DirectForecaster

                      Horizon: 1
                 ResponseLags: [1 2 3 4 5 6 7]
            LeadingPredictors: [1 2 3]
         LeadingPredictorLags: {[0 1]  [0 1]  [0 1 2 3 4 5 6 7]}
                 ResponseName: 'TemperatureF'
               PredictorNames: {'Year'  'Month'  'Day'}
        CategoricalPredictors: 2
                     Learners: {[1x1 classreg.learning.regr.CompactRegressionEnsemble]}
                       MaxLag: 7
              NumObservations: 565




    Mdl is a DirectForecaster model object. By default, the horizon is one step ahead. That is, Mdl predicts a value that is one step into the future.

    Partition the time series data in Tbl using an expanding window cross-validation scheme. Create three training sets and three test sets, where each test set has 100 observations. Note that each observation in Tbl is in at most one test set.

    CVPartition = tspartition(size(Mdl.X,1),"ExpandingWindow",3, ...
        TestSize=100)
    CVPartition =
      tspartition

                   Type: 'expanding-window'
        NumObservations: 565
            NumTestSets: 3
              TrainSize: [265 365 465]
               TestSize: [100 100 100]
               StepSize: 100




    The training sets increase in size from 265 observations in the first window to 465 observations in the third window.

    Create a cross-validated direct forecasting model using the partition specified in CVPartition. Inspect the Learners property of the resulting CVMdl object.

    CVMdl = crossval(Mdl,CVPartition)
    CVMdl =
      PartitionedDirectForecaster

                    Partition: [1x1 tspartition]
                      Horizon: 1
                 ResponseLags: [1 2 3 4 5 6 7]
            LeadingPredictors: [1 2 3]
         LeadingPredictorLags: {[0 1]  [0 1]  [0 1 2 3 4 5 6 7]}
                 ResponseName: 'TemperatureF'
               PredictorNames: {'Year'  'Month'  'Day'}
        CategoricalPredictors: 2
                     Learners: {3x1 cell}
                       MaxLag: 7
              NumObservations: 565



    CVMdl.Learners
    ans=3×1 cell array
        {1x1 timeseries.forecaster.CompactDirectForecaster}
        {1x1 timeseries.forecaster.CompactDirectForecaster}
        {1x1 timeseries.forecaster.CompactDirectForecaster}



    CVMdl is a PartitionedDirectForecaster model object. The crossval function trains CVMdl.Learners{1} using the observations in the first training set, CVMdl.Learner{2} using the observations in the second training set, and CVMdl.Learner{3} using the observations in the third training set.

    Compute the average test set MSE.

    averageMSE = cvloss(CVMdl)
    averageMSE =
    53.3480


    To obtain more information, compute the MSE for each test set.

    individualMSE = cvloss(CVMdl,Mode="individual")
    individualMSE = 3×1

       44.1352
       84.0695
       31.8393



    The models trained on the first and third training sets seem to perform better than the model trained on the second training set.

    For each test set observation, predict the temperature value using the corresponding model in CVMdl.Learners.

    predictedY = cvpredict(CVMdl);
    predictedY(260:end,:)
    ans=306×1 table
        TemperatureF_Step1
        __________________

                 NaN
                 NaN
                 NaN
                 NaN
                 NaN
                 NaN
              50.963
              57.363
               57.04
              60.705
              59.606
              58.302
              58.023
               61.39
              67.229
              61.083
          ⋮



    Only the last 300 observations appear in any test set. For observations that do not appear in a test set, the predicted response value is NaN.

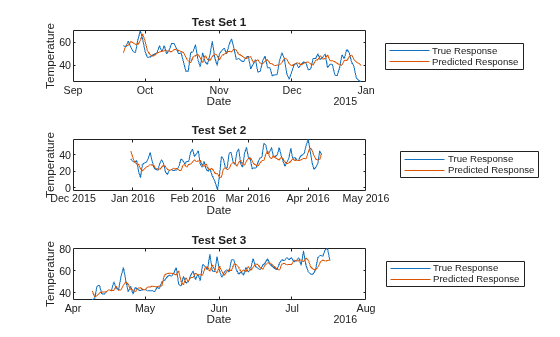

    For each test set, plot the true response values and the predicted response values.

    tiledlayout(3,1)

    nexttile
    idx1 = test(CVPartition,1);
    plot(t(idx1),Tbl.TemperatureF(idx1))
    hold on
    plot(t(idx1),predictedY.TemperatureF_Step1(idx1))
    legend("True Response","Predicted Response", ...
        Location="eastoutside")
    xlabel("Date")
    ylabel("Temperature")
    title("Test Set 1")
    hold off

    nexttile
    idx2 = test(CVPartition,2);
    plot(t(idx2),Tbl.TemperatureF(idx2))
    hold on
    plot(t(idx2),predictedY.TemperatureF_Step1(idx2))
    legend("True Response","Predicted Response", ...
        Location="eastoutside")
    xlabel("Date")
    ylabel("Temperature")
    title("Test Set 2")
    hold off

    nexttile
    idx3 = test(CVPartition,3);
    plot(t(idx3),Tbl.TemperatureF(idx3))
    hold on
    plot(t(idx3),predictedY.TemperatureF_Step1(idx3))
    legend("True Response","Predicted Response", ...
        Location="eastoutside")
    xlabel("Date")
    ylabel("Temperature")
    title("Test Set 3")
    hold off

    Figure contains 3 axes objects. Axes object 1 with title Test Set 1, xlabel Date, ylabel Temperature contains 2 objects of type line. These objects represent True Response, Predicted Response. Axes object 2 with title Test Set 2, xlabel Date, ylabel Temperature contains 2 objects of type line. These objects represent True Response, Predicted Response. Axes object 3 with title Test Set 3, xlabel Date, ylabel Temperature contains 2 objects of type line. These objects represent True Response, Predicted Response.

    Overall, the cross-validated direct forecasting model is able to predict the trend in temperatures. If you are satisfied with the performance of the cross-validated model, you can use the full DirectForecaster model Mdl for forecasting at time steps beyond the available data.

    Create a partitioned direct forecasting model using holdout validation. To evaluate the performance of the model:

    • At each horizon step, compute the root relative squared error (RRSE) on the test set using the cvloss object function.

    • At each horizon step, compare the true response values to the predicted response values using the cvpredict object function.

    Load the sample file TemperatureData.csv, which contains average daily temperature from January 2015 through July 2016. Read the file into a table. Observe the first eight observations in the table.

    Tbl = readtable("TemperatureData.csv");
    head(Tbl)
        Year       Month       Day    TemperatureF
        ____    ___________    ___    ____________

        2015    {'January'}     1          23
        2015    {'January'}     2          31
        2015    {'January'}     3          25
        2015    {'January'}     4          39
        2015    {'January'}     5          29
        2015    {'January'}     6          12
        2015    {'January'}     7          10
        2015    {'January'}     8           4


    Create a datetime variable t that contains the year, month, and day information for each observation in Tbl.

    numericMonth = month(datetime(Tbl.Month, ...
        InputFormat="MMMM",Locale="en_US"));
    t = datetime(Tbl.Year,numericMonth,Tbl.Day);

    Plot the temperature values in Tbl over time.

    plot(t,Tbl.TemperatureF)
    xlabel("Date")
    ylabel("Temperature in Fahrenheit")

    Figure contains an axes object. The axes object with xlabel Date, ylabel Temperature in Fahrenheit contains an object of type line.

    Create a direct forecasting model by using the data in Tbl. Specify the horizon steps as one, two, and three steps ahead. Train a model at each horizon using a bagged ensemble of trees. All three of the predictors (Year, Month, and Day) are leading predictors because their future values are known. To create new predictors by shifting the leading predictor and response variables backward in time, specify the leading predictor lags and the response variable lags.

    rng("default")
    Mdl = directforecaster(Tbl,"TemperatureF", ...
        Horizon=1:3,Learner="bag", ...
        LeadingPredictors="all",LeadingPredictorLags={0:1,0:1,0:7}, ...
        ResponseLags=1:7)
    Mdl =
      DirectForecaster

                      Horizon: [1 2 3]
                 ResponseLags: [1 2 3 4 5 6 7]
            LeadingPredictors: [1 2 3]
         LeadingPredictorLags: {[0 1]  [0 1]  [0 1 2 3 4 5 6 7]}
                 ResponseName: 'TemperatureF'
               PredictorNames: {'Year'  'Month'  'Day'}
        CategoricalPredictors: 2
                     Learners: {3x1 cell}
                       MaxLag: 7
              NumObservations: 565




    Mdl is a DirectForecaster model object. Mdl consists of three regression models: Mdl.Learners{1}, which predicts one step ahead; Mdl.Learners{2}, which predicts two steps ahead; and Mdl.Learners{3}, which predicts three steps ahead.

    Partition the time series data in Tbl using a holdout validation scheme. Reserve 20% of the observations for testing.

    holdoutPartition = tspartition(size(Mdl.X,1),"Holdout",0.20)
    holdoutPartition =
      tspartition

                   Type: 'holdout'
        NumObservations: 565
            NumTestSets: 1
              TrainSize: 452
               TestSize: 113




    The test set consists of the latest 113 observations.

    Create a partitioned direct forecasting model using the partition specified in holdoutPartition.

    holdoutMdl = crossval(Mdl,holdoutPartition)
    holdoutMdl =
      PartitionedDirectForecaster

                    Partition: [1x1 tspartition]
                      Horizon: [1 2 3]
                 ResponseLags: [1 2 3 4 5 6 7]
            LeadingPredictors: [1 2 3]
         LeadingPredictorLags: {[0 1]  [0 1]  [0 1 2 3 4 5 6 7]}
                 ResponseName: 'TemperatureF'
               PredictorNames: {'Year'  'Month'  'Day'}
        CategoricalPredictors: 2
                     Learners: {[1x1 timeseries.forecaster.CompactDirectForecaster]}
                       MaxLag: 7
              NumObservations: 565




    holdoutMdl is a PartitionedDirectForecaster model object. Because holdoutMdl uses holdout validation rather than a cross-validation scheme, the Learners property of the object contains one CompactDirectForecaster model only.

    Like Mdl, holdoutMdl contains three regression models. The crossval function trains holdoutMdl.Learners{1}.Learners{1}, holdoutMdl.Learners{1}.Learners{2}, and holdoutMdl.Learners{1}.Learners{3} using the same training data. However, the three models use different response variables because each model predicts values for a different horizon step.

    holdoutMdl.Learners{1}.Learners{1}.ResponseName
    ans =
    'TemperatureF_Step1'

    holdoutMdl.Learners{1}.Learners{2}.ResponseName
    ans =
    'TemperatureF_Step2'

    holdoutMdl.Learners{1}.Learners{3}.ResponseName
    ans =
    'TemperatureF_Step3'


    Compute the root relative squared error (RRSE) on the test data at each horizon step. Use the helper function computeRRSE (shown at the end of this example). The RRSE indicates how well a model performs relative to the simple model, which always predicts the average of the true values. In particular, when the RRSE is less than 1, the model performs better than the simple model.

    holdoutRRSE = cvloss(holdoutMdl,LossFun=@computeRRSE)
    holdoutRRSE = 1×3

        0.4797    0.5889    0.6103



    At each horizon, the direct forecasting model seems to perform better than the simple model.

    For each test set observation, predict the temperature value using the corresponding model in holdoutMdl.Learners.

    predictedY = cvpredict(holdoutMdl);
    predictedY(450:end,:)
    ans=116×3 table
        TemperatureF_Step1    TemperatureF_Step2    TemperatureF_Step3
        __________________    __________________    __________________

                 NaN                   NaN                   NaN
                 NaN                   NaN                   NaN
                 NaN                   NaN                   NaN
              41.063                39.758                41.234
              33.721                36.507                37.719
              36.987                35.133                37.719
              38.644                34.598                36.444
              38.917                34.576                36.275
              45.888                37.005                 38.34
              48.516                42.762                 41.05
              44.882                46.816                43.881
              35.057                45.301                47.048
                31.1                41.473                42.948
              31.817                37.314                42.946
              33.166                38.419                  41.3
              40.279                38.432                40.533
          ⋮



    Recall that only the latest 113 observations appear in the test set. For observations that do not appear in the test set, the predicted response value is NaN.

    For each test set, plot the true response values and the predicted response values.

    tiledlayout(3,1)

    idx = test(holdoutPartition);

    nexttile
    plot(t(idx),Tbl.TemperatureF(idx))
    hold on
    plot(t(idx),predictedY.TemperatureF_Step1(idx))
    legend("True Response","Predicted Response", ...
        Location="eastoutside")
    xlabel("Date")
    ylabel("Temperature")
    title("Horizon 1")
    hold off

    nexttile
    plot(t(idx),Tbl.TemperatureF(idx))
    hold on
    plot(t(idx),predictedY.TemperatureF_Step2(idx))
    legend("True Response","Predicted Response", ...
        Location="eastoutside")
    xlabel("Date")
    ylabel("Temperature")
    title("Horizon 2")
    hold off

    nexttile
    plot(t(idx),Tbl.TemperatureF(idx))
    hold on
    plot(t(idx),predictedY.TemperatureF_Step3(idx))
    legend("True Response","Predicted Response", ...
        Location="eastoutside")
    xlabel("Date")
    ylabel("Temperature")
    title("Horizon 3")
    hold off

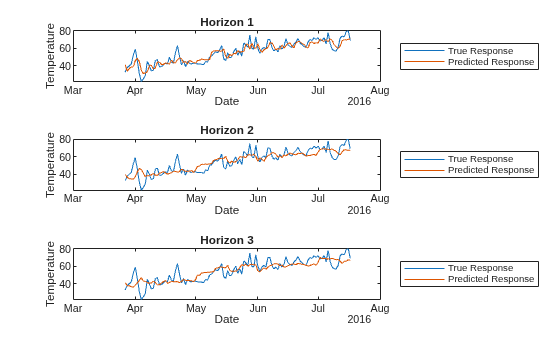

    Figure contains 3 axes objects. Axes object 1 with title Horizon 1, xlabel Date, ylabel Temperature contains 2 objects of type line. These objects represent True Response, Predicted Response. Axes object 2 with title Horizon 2, xlabel Date, ylabel Temperature contains 2 objects of type line. These objects represent True Response, Predicted Response. Axes object 3 with title Horizon 3, xlabel Date, ylabel Temperature contains 2 objects of type line. These objects represent True Response, Predicted Response.

    Overall, holdoutMdl is able to predict the trend in temperatures, although it seems to perform best when forecasting one step ahead. If you are satisfied with the performance of the partitioned model, you can use the full DirectForecaster model Mdl for forecasting at time steps beyond the available data.

    Helper Function

    The helper function computeRRSE computes the RRSE given the true response variable trueY and the predicted values predY. This code creates the computeRRSE helper function.

    function rrse = computeRRSE(trueY,predY)
        error = trueY(:) - predY(:);
        meanY = mean(trueY(:),"omitnan");
        rrse = sqrt(sum(error.^2,"omitnan")/sum((trueY(:) - meanY).^2,"omitnan"));
    end

    More About

    expand all

    Version History

    Introduced in R2023b
