dipoleCycloid

Create cycloid dipole antenna

expand all in page

Description

The default dipoleCycloid object is a half-wavelength cycloid dipole antenna resonating around 48 MHz. For the default cycloid dipole, the feed point is on the loop section.

The width of the dipole is related to the circular cross-section by the equation

w=2d=4r

, where:

  • d is the diameter of equivalent cylindrical pole

  • r is the radius of equivalent cylindrical pole

For a given cylinder radius, use the cylinder2strip utility function to calculate the equivalent width.

Creation

Syntax

dc = dipoleCycloid
dc = dipoleCycloid(Name=Value)

Description

dc = dipoleCycloid creates a half-wavelength cycloid dipole antenna oriented along the z-axis. The default dimensions are chosen for an operating frequency of around 48 MHz.

example

dc = dipoleCycloid(Name=Value) setsproperties using one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as Name1=Value1,...,NameN=ValueN. Properties that you do not specify, retain their default values.

For example, dc = dipoleCycloid(Length=2) creates a cycloid dipole antenna with a length of 2 m. and default values for other properties.

example

Properties

expand all

Dipole length along z-axis, specified as a scalar in meters.

Example: 0.9

Data Types: double

Dipole width, specified as a scalar in meters.

Example: 0.09

Data Types: double

Circular loop radius in xy- plane, specified as a scalar in meters.

Example: 0.500

Data Types: double

Gap of loop in xy- plane, specified as a scalar in meters.

Example: 0.006

Data Types: double

Type of the metal used as a conductor, specified as a metal object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Lumped elements added to the antenna feed, specified as a lumpedElement object. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed.

Example: Load=lumpedElement(Impedance=75)

Example: antenna.Load = lumpedElement(Impedance=75)

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

axialRatioCalculate and plot axial ratio of antenna or array
bandwidthCalculate and plot absolute bandwidth of antenna or array
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
efficiencyCalculate and plot radiation efficiency of antenna or array
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
feedCurrentCalculate current at feed for antenna or array
impedanceCalculate and plot input impedance of antenna or scan impedance of array
infoDisplay information about antenna, array, or platform
memoryEstimateEstimate memory required to solve antenna or array mesh
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
msiwriteWrite antenna or array analysis data to MSI planet file
optimizeOptimize antenna or array using SADEA optimizer
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
peakRadiationCalculate and mark maximum radiation points of antenna or array on radiation pattern
rcsCalculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
resonantFrequencyCalculate and plot resonant frequency of antenna
returnLossCalculate and plot return loss of antenna or scan return loss of array
showDisplay antenna, array structures, shapes, or platform
sparametersCalculate S-parameters for antenna or array
stlwriteWrite mesh information to STL file
vswrCalculate and plot voltage standing wave ratio (VSWR) of antenna or array element
wireStackCreate single or multi-feed wire antenna

Examples

collapse all

Open Live Script

Create a default cycloid dipole antenna using the dipoleCycloid object and view it.

dc = dipoleCycloid
dc =
  dipoleCycloid with properties:

        Length: 1.2200
         Width: 0.0508
    LoopRadius: 0.3100
           Gap: 0.0400
     Conductor: [1x1 metal]
          Tilt: 0
      TiltAxis: [1 0 0]
          Load: [1x1 lumpedElement]

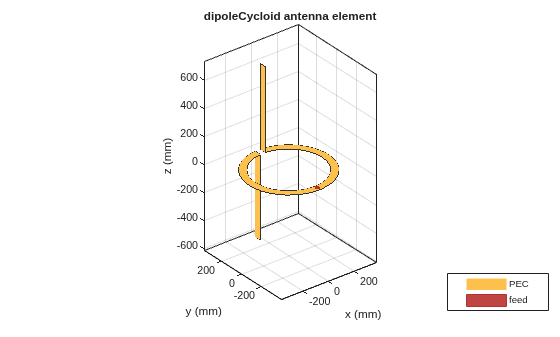

show(dc)

Figure contains an axes object. The axes object with title dipoleCycloid antenna element, xlabel x (mm), ylabel y (mm) contains 5 objects of type patch, surface. These objects represent PEC, feed.

Open Live Script

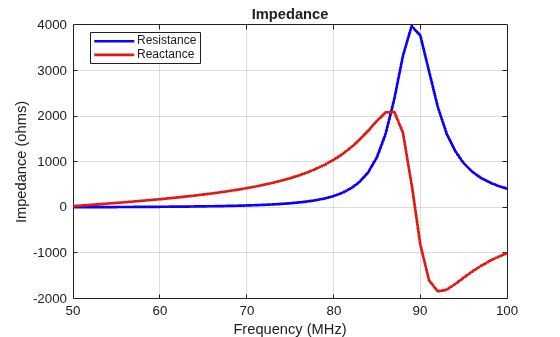

Calculate the impedance of a cycloid dipole of width, 0.05 m, over a frequency span of 50 MHz - 100 MHz.

d = dipoleCycloid(Width=0.05);
impedance(d,linspace(50e6,100e6,51))

Figure contains an axes object. The axes object with title Impedance, xlabel Frequency (MHz), ylabel Impedance (ohms) contains 2 objects of type line. These objects represent Resistance, Reactance.

Open Live Script

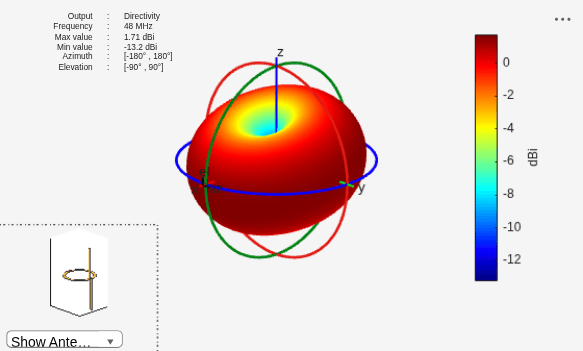

Plot the radiation pattern of a cycloid dipole of width,0.05 m, at a frequency of 48 MHz.

d = dipoleCycloid(Width=0.05)
d =
  dipoleCycloid with properties:

        Length: 1.2200
         Width: 0.0500
    LoopRadius: 0.3100
           Gap: 0.0400
     Conductor: [1x1 metal]
          Tilt: 0
      TiltAxis: [1 0 0]
          Load: [1x1 lumpedElement]


pattern(d,48e6)

Figure contains 2 axes objects and other objects of type uicontrol. Axes object 1 contains 5 objects of type patch, surface. Hidden axes object 2 contains 17 objects of type surface, line, text, patch.
