monopoleCylindrical

Create cylindrical monopole antenna over rectangular ground plane

Since R2021a

    Description

    The monopoleCylindrical object is a cylindrical monopole antenna mounted over a rectangular ground plane. This antenna is useful for designing thicker monopole antennas. These antennas are mostly used in wireless mobile communication due to their broadband characteristics and simple design.

    Cylindrical monopole antenna geometry, default radiation pattern, and impedance plot.

    Creation

    Description

    example

    ant = monopoleCylindrical creates a cylindrical monopole antenna object with default dimensions for an operating frequency of 70 MHz.

    example

    ant = monopoleCylindrical(Name,Value) sets Properties using one or more name-value pairs. For example, ant = monopoleCylindrical('Radius',0.04), creates a cylindrical monopole antenna with a radius of 0.04 meters.

    Properties

    expand all

    Height of the monopole along the z-axis, specified as a positive scalar in meters.

    Example: 'Height',3

    Data Types: double

    Radius of the monopole, specified as a positive scalar in meters.

    Example: 'Radius',0.05

    Data Types: double

    Ground plane length along x-axis, specified as a positive scalar in meters.

    Example: 'GroundPlaneLength',4

    Data Types: double

    Ground plane width along y-axis, specified as a positive scalar in meters.

    Example: 'GroundPlaneWidth',2.5

    Data Types: double

    Signed distance from the center along the length and the width of the ground plane, specified as a two-element vector in meters.

    Example: 'FeedOffset',[2 1]

    Data Types: double

    Determine if the monopole top is closed with a cap or left open, specified as 0 or 1. Specify 1 for a closed-top monopole, and 0 for an open-top monopole.

    Example: 'ClosedEnd',1

    Data Types: double

    Type of the metal used as a conductor, specified as a metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

    Example: m = metal('Copper'); 'Conductor',m

    Example: m = metal('Copper'); ant.Conductor = m

    Tilt angle of the antenna, specified as a scalar or vector with each element unit in degrees. For more information, see Rotate Antennas and Arrays.

    Example: 'Tilt',90

    Example: ant.Tilt = 90

    Example: 'Tilt',[90 90],'TiltAxis',[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

    Data Types: double

    Tilt axis of the antenna, specified as:

    • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the X-, Y-, and Z-axes.

    • Two points in space, each specified as three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points in space.

    • A string input describing simple rotations around one of the principal axes, 'X', 'Y', or 'Z'.

    For more information, see Rotate Antennas and Arrays.

    Example: 'TiltAxis',[0 1 0]

    Example: 'TiltAxis',[0 0 0;0 1 0]

    Example: ant.TiltAxis = 'Z'

    Data Types: double

    Lumped elements added to the antenna feed, specified as a lumpedElement object handle. You can add a load anywhere on the surface of the antenna. By default, the load is at the feed. For more information, see lumpedElement.

    Example: 'Load',lumpedelement, where lumpedelement is the load added to the antenna feed.

    Example: ant.Load = lumpedElement('Impedance',75)

    Object Functions

    axialRatioCalculate and/or plot axial ratio of antenna or array
    bandwidthCalculate and/or plot absolute bandwidth of antenna
    beamwidthBeamwidth of antenna
    chargeCharge distribution on antenna or array surface
    currentCurrent distribution on antenna or array surface
    cylinder2stripCylinder equivalent width approximation
    designDesign prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects
    efficiencyRadiation efficiency of antenna
    EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
    impedanceInput impedance of antenna or scan impedance of array
    infoDisplay information about antenna, array, or platform
    memoryEstimateEstimate memory required to solve antenna or array mesh
    meshMesh properties of metal, dielectric antenna, or array structure
    meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
    optimizeOptimize antenna or array using SADEA optimizer
    patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
    patternAzimuthAzimuth plane radiation pattern of antenna or array
    patternElevationElevation plane radiation pattern of antenna or array
    rcsCalculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
    resonantFrequencyCalculate and/or plot resonant frequency of antenna
    returnLossReturn loss of antenna or scan return loss of array
    showDisplay antenna, array structures, shapes, or platform
    sparametersCalculate S-parameters for antennas and antenna arrays
    strip2cylinderCalculate equivalent radius approximation for strip
    vswrVoltage standing wave ratio (VSWR) of antenna or array element

    Examples

    collapse all

    Create a cylindrical monopole antenna with default properties.

    ant = monopoleCylindrical
    ant =
      monopoleCylindrical with properties:

                   Height: 1
                   Radius: 0.0400
        GroundPlaneLength: 2
         GroundPlaneWidth: 2
               FeedOffset: [0 0]
                ClosedEnd: 0
                Conductor: [1x1 metal]
                     Tilt: 0
                 TiltAxis: [1 0 0]
                     Load: [1x1 lumpedElement]

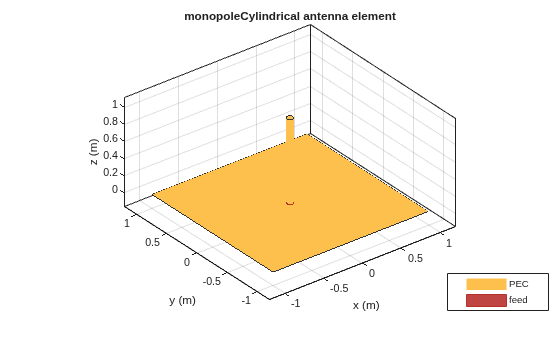

    View the antenna using the show function.

    show(ant)

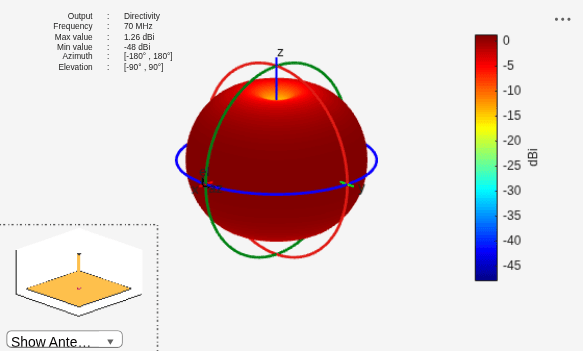

    Plot the radiation pattern of cylindrical monopole antenna at a frequency of 70 MHz.

    pattern(ant,70e6)

    Create a cylindrical monopole antenna with length and radius as 1 m and 50 mm respectively.

    ant = monopoleCylindrical;
    ant.Height = 1;
    ant.Radius = 50e-3
    ant =
      monopoleCylindrical with properties:

                   Height: 1
                   Radius: 0.0500
        GroundPlaneLength: 2
         GroundPlaneWidth: 2
               FeedOffset: [0 0]
                ClosedEnd: 0
                Conductor: [1x1 metal]
                     Tilt: 0
                 TiltAxis: [1 0 0]
                     Load: [1x1 lumpedElement]

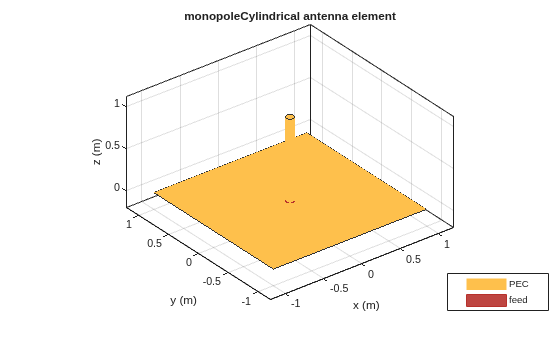

    Visualize the antenna using show function.

    show(ant)

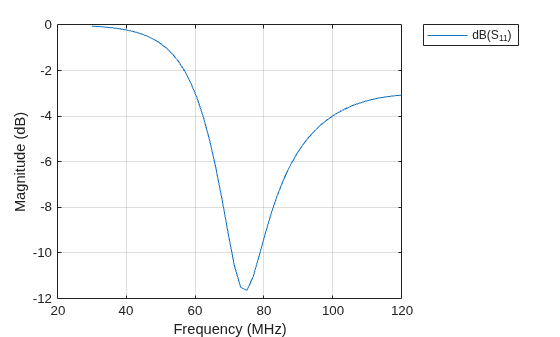

    Plot the S-parameters over a frequency range of 30 MHz to 120 MHz.

    s = sparameters(ant,linspace(30e6,120e6,51));
    rfplot(s)

    Create cylindrical monopole antennas with an open-ended top and a closed-ended top respectively.

    ant = monopoleCylindrical("Radius",0.1);
    ant_ClosedEnded = monopoleCylindrical("Radius",0.1,"ClosedEnd",1);

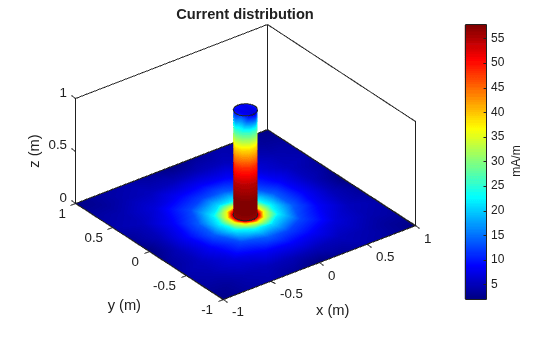

    Calculate and plot the current distribution for a cylindrical monopole antennas at 70 MHz frequency.

    I_OpenEnded = current(ant,70e6)
    I_OpenEnded = 3×334 complex

      -0.0003 - 0.0002i   0.0031 - 0.0014i   0.0000 - 0.0000i   0.0008 - 0.0004i   0.0586 - 0.0051i  -0.0015 + 0.0007i  -0.0021 + 0.0010i   0.0586 - 0.0050i  -0.0008 + 0.0004i   0.0311 - 0.0057i   0.0006 - 0.0002i   0.0128 - 0.0027i   0.0040 - 0.0016i   0.0027 - 0.0012i  -0.0038 + 0.0018i   0.0002 - 0.0001i  -0.0037 + 0.0017i   0.0042 - 0.0010i   0.0009 - 0.0005i   0.0023 - 0.0011i   0.0021 - 0.0010i   0.0033 - 0.0015i   0.0312 - 0.0067i   0.0023 - 0.0011i   0.0027 - 0.0012i   0.0006 - 0.0002i  -0.0027 + 0.0012i  -0.0045 + 0.0018i  -0.0023 + 0.0011i  -0.0048 + 0.0019i  -0.0038 + 0.0017i  -0.0032 + 0.0015i  -0.0118 + 0.0038i  -0.0359 + 0.0033i   0.0119 - 0.0020i  -0.0022 + 0.0011i  -0.0015 + 0.0007i  -0.0008 + 0.0003i  -0.0008 + 0.0004i   0.0014 - 0.0005i   0.0363 - 0.0028i   0.0049 - 0.0019i  -0.0586 + 0.0051i  -0.0026 + 0.0012i  -0.0009 + 0.0005i  -0.0026 + 0.0012i  -0.0014 + 0.0005i   0.0040 - 0.0016i  -0.0310 + 0.0057i   0.0046 - 0.0019i
      -0.0617 + 0.0054i  -0.0031 + 0.0014i   0.0047 - 0.0019i   0.0040 - 0.0019i  -0.0190 + 0.0015i  -0.0006 + 0.0002i   0.0034 - 0.0017i   0.0182 - 0.0018i  -0.0040 + 0.0019i   0.0222 - 0.0044i  -0.0015 + 0.0007i   0.0371 - 0.0079i  -0.0040 + 0.0016i   0.0027 - 0.0012i  -0.0032 + 0.0014i  -0.0052 + 0.0020i   0.0007 - 0.0003i   0.0235 - 0.0063i   0.0023 - 0.0011i   0.0009 - 0.0005i   0.0034 - 0.0017i   0.0038 - 0.0018i  -0.0218 + 0.0047i  -0.0009 + 0.0005i  -0.0043 + 0.0018i   0.0015 - 0.0007i  -0.0043 + 0.0017i   0.0026 - 0.0012i  -0.0009 + 0.0005i   0.0000 - 0.0000i  -0.0007 + 0.0003i  -0.0038 + 0.0018i  -0.0055 + 0.0019i   0.0500 - 0.0043i   0.0375 - 0.0072i   0.0009 - 0.0005i   0.0006 - 0.0002i   0.0037 - 0.0017i   0.0040 - 0.0019i   0.0082 - 0.0030i   0.0497 - 0.0045i   0.0027 - 0.0010i  -0.0182 + 0.0018i   0.0043 - 0.0018i   0.0023 - 0.0011i   0.0026 - 0.0012i  -0.0082 + 0.0029i  -0.0039 + 0.0016i  -0.0219 + 0.0044i  -0.0026 + 0.0012i
       0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i


    current(ant,70e6)

    I_ClosedEnded = current(ant_ClosedEnded,70e6)
    I_ClosedEnded = 3×342 complex

      -0.0003 - 0.0002i   0.0028 - 0.0015i   0.0000 - 0.0000i   0.0007 - 0.0004i   0.0532 - 0.0084i  -0.0014 + 0.0008i  -0.0019 + 0.0011i   0.0532 - 0.0083i  -0.0007 + 0.0004i   0.0283 - 0.0075i   0.0006 - 0.0003i   0.0117 - 0.0034i   0.0036 - 0.0019i   0.0024 - 0.0014i  -0.0035 + 0.0020i   0.0002 - 0.0001i  -0.0034 + 0.0019i   0.0038 - 0.0013i   0.0008 - 0.0005i   0.0020 - 0.0013i   0.0019 - 0.0011i   0.0030 - 0.0016i   0.0283 - 0.0084i   0.0020 - 0.0013i   0.0024 - 0.0014i   0.0006 - 0.0003i  -0.0024 + 0.0014i  -0.0041 + 0.0021i  -0.0020 + 0.0013i  -0.0043 + 0.0022i  -0.0034 + 0.0019i  -0.0029 + 0.0016i  -0.0107 + 0.0044i  -0.0326 + 0.0053i   0.0108 - 0.0027i  -0.0020 + 0.0013i  -0.0013 + 0.0007i  -0.0007 + 0.0003i  -0.0007 + 0.0004i   0.0012 - 0.0006i   0.0330 - 0.0049i   0.0044 - 0.0022i  -0.0532 + 0.0083i  -0.0024 + 0.0014i  -0.0008 + 0.0005i  -0.0024 + 0.0014i  -0.0012 + 0.0006i   0.0036 - 0.0018i  -0.0281 + 0.0075i   0.0042 - 0.0021i
      -0.0560 + 0.0088i  -0.0028 + 0.0015i   0.0043 - 0.0022i   0.0036 - 0.0021i  -0.0172 + 0.0025i  -0.0006 + 0.0003i   0.0031 - 0.0019i   0.0165 - 0.0028i  -0.0036 + 0.0021i   0.0201 - 0.0057i  -0.0014 + 0.0008i   0.0337 - 0.0099i  -0.0036 + 0.0019i   0.0024 - 0.0014i  -0.0029 + 0.0016i  -0.0047 + 0.0023i   0.0007 - 0.0003i   0.0214 - 0.0076i   0.0020 - 0.0013i   0.0008 - 0.0005i   0.0031 - 0.0019i   0.0034 - 0.0020i  -0.0198 + 0.0059i  -0.0008 + 0.0005i  -0.0039 + 0.0020i   0.0014 - 0.0008i  -0.0039 + 0.0020i   0.0023 - 0.0013i  -0.0008 + 0.0005i   0.0000 - 0.0000i  -0.0007 + 0.0003i  -0.0034 + 0.0020i  -0.0050 + 0.0022i   0.0454 - 0.0070i   0.0340 - 0.0093i   0.0008 - 0.0005i   0.0006 - 0.0003i   0.0034 - 0.0019i   0.0036 - 0.0021i   0.0075 - 0.0034i   0.0451 - 0.0072i   0.0024 - 0.0012i  -0.0165 + 0.0028i   0.0039 - 0.0020i   0.0020 - 0.0013i   0.0024 - 0.0014i  -0.0074 + 0.0034i  -0.0035 + 0.0018i  -0.0199 + 0.0056i  -0.0023 + 0.0013i
       0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i   0.0000 + 0.0000i


    figure;
    current(ant_ClosedEnded,70e6)

    More About

    expand all

    References

    [1] King, Ronald W.P. Characteristics of Cylindrical Dipoles and Monopoles. Boston, MA: Springer, 1971.
