estimateCustomObjectivePortfolio

Create Portfolio Object

Find the portfolio that solves the problem:

Create a Portfolio object and set the default constraints using setDefaultConstraints. In this case, the portfolio problem does not involve the mean or covariance of the assets returns. Therefore, you do not need to define the assets moments to create the Portfolio object. You need only to define the number of assets in the problem.

% Create a Portfolio object
p = Portfolio(NumAssets=6);
% Define the constraints of the portfolio methods
p = setDefaultConstraints(p); % Long-only, fully invested weights

Define Objective Function

Define a function handle for the objective function ${\mathit{x}}^{\mathit{T}}\mathit{x}$.

% Define the objective function
objFun = @(x) x'*x;

Solve Portfolio Problem

Use estimateCustomObjectivePortfolio to compute the solution to the problem.

% Solve portfolio problem
wMin = estimateCustomObjectivePortfolio(p,objFun)

wMin = 6×1

    0.1667
    0.1667
    0.1667
    0.1667
    0.1667
    0.1667

The estimateCustomObjectivePortfolio function automatically assumes that the objective sense is to minimize. You can change that default behavior by using the estimateCustomObjectivePortfolio name-value argument ObjectiveSense='maximize'.

Create Portfolio Object

Find the portfolio that solves the problem:

Create a Portfolio object and set the default constraints using setDefaultConstraints.

% Create a Portfolio object
load('SixStocks.mat')
p = Portfolio(AssetMean=AssetMean,AssetCovar=AssetCovar);
% Define the constraints of the portfolio methods
p = setDefaultConstraints(p); % Long-only, fully invested weights

Define Objective Function

Define a function handle for the objective function ${\mathit{x}}^{\mathit{T}}\mathit{x}$.

% Define the objective function
objFun = @(x) x'*x;

Add Return Constraints

When using the Portfolio object, you can use estimateFrontierByReturn to add a return constraint to the portfolio. However, when using the estimateCustomObjectivePortfolio function with a Portfolio object, you must add return constraints by using the TargetReturn name-value argument with a return target value.

The Portfolio object supports two types of return constraints: gross return and net return. The type of return constraint that is added to the portfolio problem is implicitly defined by whether you provide buy or sell costs to the Portfolio object using setCosts. If no buy or sell costs are present, the added return constraint is a gross return constraint. Otherwise, a net return constraint is added.

Gross Return Constraint

The gross portfolio return constraint for a portfolio is

where ${\mathit{r}}_0$ is the risk-free rate (with 0 as default), $\mu$ is the mean of assets returns, and ${\mu }_0$ is the target return.

Since buy or sell costs are not needed to add a gross return constraint, the Portfolio object does not need to be modified before using estimateCustomObjectivePortfolio.

% Set a return target
ret0 = 0.03;
% Solve portfolio problem with a gross return constraint
wGross = estimateCustomObjectivePortfolio(p,objFun, ...
    TargetReturn=ret0)

wGross = 6×1

    0.1377
    0.1106
    0.1691
    0.1829
    0.1179
    0.2818

The return constraint is not added to the Portfolio object. In other words, the Portfolio properties are not modified by adding a gross return constraint in estimateCustomObjectivePortfolio.

Net Return Constraint

The net portfolio return constraint for a portfolio is

where ${\mathit{r}}_0$ is the risk-free rate (with 0 as default), $\mu$ is the mean of assets returns, ${\mathit{c}}_{\mathit{B}}$ is the proportional buy cost, ${\mathit{c}}_{\mathit{S}}$ is the proportional sell cost, ${\mathit{x}}_0$ is the initial portfolio, and ${\mu }_0$ is the target return.

To add net return constraints to the portfolio problem, you must use setCosts with the Portfolio object. If the Portfolio object has either of these costs, estimateCustomObjectivePortfolio automatically assumes that any added return constraint is a net return constraint.

% Add buy and sell costs to the Portfolio object
buyCost = 0.002;
sellCost = 0.001;
initPort = zeros(p.NumAssets,1);
p = setCosts(p,buyCost,sellCost,initPort);
% Solve portfolio problem with a net return constraint
% wNet = estimateCustomObjectivePortfolio(p,objFun, ...
%    TargetReturn=ret0)

As with the gross return constraint, the net return constraint is not added to the Portfolio object properties, however the Portfolio object is modified by the addition of buy or sell costs. Adding buy or sell costs to the Portfolio object does not affect any constraints besides the return constraint, but these costs do affect the solution of maximum return problems because the solution is the maximum net return instead of the maximum gross return.

Create Portfolio Object

Find a long-only, fully weighted portfolio with half the assets that minimizes the tracking error to the equally weighted portfolio. Furthermore, if an asset is present in the portfolio, at least 10% should be invested in that asset. The portfolio problem is as follows:

Create a Portfolio object and set the assets moments.

load('SixStocks.mat')
p = Portfolio(AssetMean=AssetMean,AssetCovar=AssetCovar);
nAssets = size(AssetMean,1);

Define the Portfolio constraints.

% Fully invested portfolio
p = setBudget(p,1,1);
% Cardinality constraint
p = setMinMaxNumAssets(p,3,3);
% Conditional bounds
p = setBounds(p,0.1,[],BoundType="conditional");

Define Objective Function

Define a function handle for the objective function.

% Define the objective function
EWP = 1/nAssets*ones(nAssets,1);
trackingError = @(x) (x-EWP)'*p.AssetCovar*(x-EWP);

Solve Portfolio Problem

Use estimateCustomObjectivePortfolio to compute the solution to the problem.

% Solve portfolio problem
wMinTE = estimateCustomObjectivePortfolio(p,trackingError)

wMinTE = 6×1

    0.1795
    0.3507
         0
    0.4698
         0
         0

Using ObjectiveBound

Use the ObjectiveBound name-value argument to provide an initial bound for the objective function. Providing an initial bound saves computation time because the solver does not have to solve an initial NLP relaxation to obtain the initial bound. Set up the MINLP solver, then test its performance when you do not provide an initial bound.

% Minimize tracking error without a lower bound
wTE = 1/p.NumAssets*ones(p.NumAssets,1);
trackingError = @(w) (w-wTE)'*p.AssetCovar*(w-wTE);
pInt2 = setSolverMINLP(pInt,'OuterApproximation',...
    ExtendedFormulation=true);
s = tic;
wTE_NoBound = estimateCustomObjectivePortfolio(pInt2,trackingError);
timeTE_NoBound = toc(s)

timeTE_NoBound =
11.7675

Since the lowest value that can be achieved by the tracking error is 0, you can use that as the lower bound with the ObjectiveBound name-value argument. Test the solver's performance when you do provide this lower bound. The solver is much faster when you provide one.

% Minimize tracking error with a lower bound
s = tic;
wTE_WithBound = estimateCustomObjectivePortfolio(pInt2,trackingError,ObjectiveBound=0);
timeTE_WithBound = toc(s)

timeTE_WithBound =
1.0613

Because you are minimizing the objective function, the bound that you provide to estimateCustomObjectivePortfolio must be a lower bound.

If you want to maximize the objective, then when you set ObjectiveSense to 'maximize', the ObjectiveBound is the upper bound of the objective function. Maximize the Sharpe ratio using ObjectiveBound.

% Maximize Sharpe ratio with upper bound
sharpeRatio = @(x) (p.AssetMean'*x)/sqrt(x'*p.AssetCovar*x);
wSR = estimateCustomObjectivePortfolio(pInt,sharpeRatio,...
    ObjectiveSense='maximize',ObjectiveBound=1);

Note that the ObjectiveBound name-value argument is ignored in continuous problems.

Using InitialPoint

Use the InitialPoint name-value argument to provide an initial point to the Portfolio solvers at the beginning of the iterations. You can use this name-value argument in continuous problems with nonconvex objectives to search the feasible region to find different local minima.

Set up a risk parity portfolio with constraints, group the constraints, then estimate the portfolio without and with specifying an initial point. Compare the risk parities of these portfolios.

% Risk parity portfolio with constraints
sigma = [5;5;7;10;15;15;15;18]/100;
rho = [ 1    0.8  0.6 -0.2 -0.1 -0.2 -0.2 -0.2;
        0.8  1    0.4 -0.2 -0.2 -0.1 -0.2 -0.2;
        0.6  0.4  1    0.5  0.3  0.2  0.2  0.3;
       -0.2 -0.2  0.5  1    0.6  0.6  0.5  0.6;
       -0.1 -0.2  0.3  0.6  1    0.9  0.7  0.7;
       -0.2 -0.1  0.2  0.6  0.9  1    0.6  0.7;
       -0.2 -0.2  0.2  0.5  0.7  0.6  1    0.7;
       -0.2 -0.2  0.3  0.6  0.7  0.7  0.7  1];
covariance = corr2cov(sigma,rho);
riskParity = @(x) sum((x.*(covariance*x)/(x'*covariance*x)-1).^2);

% Group the contraints
p = Portfolio(NumAssets=8);
p = setDefaultConstraints(p);
G = [0 0 0 0 1 1 1 1];
p = setGroups(p,G,0.3,[]);

% Solve the problem
w = estimateCustomObjectivePortfolio(p,riskParity);
riskParity(w)

ans =
6.1365

% Use the InitialPoint name-value argument
x0 = [0.7; zeros(3,1); 0.3; zeros(3,1)];
w2 = estimateCustomObjectivePortfolio(p,riskParity,InitialPoint=x0);
riskParity(w2)

ans =
6.1667

The objective function is different for different initial portfolios, because the objective function used to compute the risk parity portfolios is nonconvex.

Using different initial points in mixed-integer problems should not return different values of the objective function because the objective function should always be convex. That is, there is only one value for the minimum of the objective function.

Create Portfolio Object

Create a Portfolio object and set the bounds and budget using setBounds and setBudget.

% Define initial data
m = [ 0.05; 0.1; 0.12; 0.18 ];
C = [ 0.0064 0.00408 0.00192 0;
    0.00408 0.0289 0.0204 0.0119;
    0.00192 0.0204 0.0576 0.0336;
    0 0.0119 0.0336 0.1225 ];

% Create Portfolio object
p = Portfolio(AssetMean=m,AssetCovar=C);

% Weight bounds
p1 = setBounds(p,0.15,1,BoundType='conditional');
% Weights must sum to one
p1 = setBudget(p1,1,1);

Add a tracking error constraint using setTrackingError to bound deviations from the max Sharpe ratio portfolio to 3%.

% Compute max Sharpe ratio portfolio
wSR = estimateMaxSharpeRatio(p1,Method='iterative');

% Set tracking error constraint
p1 = setTrackingError(p1,0.03,wSR);

Solve and compare the minimum risk portfolio and the constrained equally weighted portfolio.

% Compute max return portfolio
wMin = estimateFrontierLimits(p1,'min');

% Compute equally weighted portfolio by minimizing the
% Herfindahl-Hirshman index
HH = @(w) w'*w;
wHH = estimateCustomObjectivePortfolio(p1,HH);

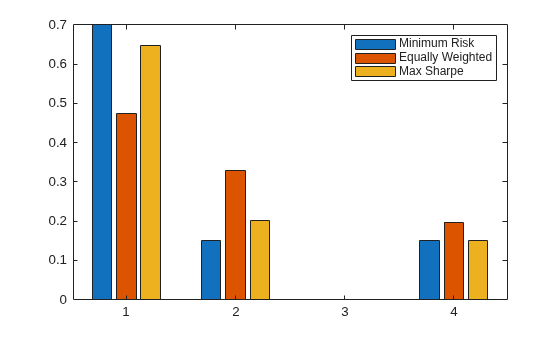

Use a bar plot to observe the difference between the portfolios.

figure
bar([wMin wHH wSR])
legend('Minimum Risk','Equally Weighted','Max Sharpe')

Notice that the weights of the minimum risk portfolio are closer to the weights of the max Sharpe ratio than the weights of the constrained equally weighted portfolio (EWP). This happens because the priority of the constrained EWP is to make the weights as even as possible while still satisfying the constraints. Thus, the weights of the EWP are closer to each other than the rest of the portfolios.

Create Portfolio Object

Create a Portfolio object using the default constraints and then define the targetRisk.

% Define initial data
m = [ 0.05; 0.1; 0.12; 0.18 ];
C = [ 0.0064 0.00408 0.00192 0;
    0.00408 0.0289 0.0204 0.0119;
    0.00192 0.0204 0.0576 0.0336;
    0 0.0119 0.0336 0.1225 ];

% Create Portfolio object
p = Portfolio(AssetMean=m,AssetCovar=C);

% Set long-only, fully-invested constraints
p2 = setDefaultConstraints(p);

% Define maximum risk of the portfolio
targetRisk = 0.1;

To compute the maximum return portfolio subject to a risk constraint, use estimateFrontierByRisk.

% Compute the max return risk constrained portfolio
wMax = estimateFrontierByRisk(p2,targetRisk);

Compute the minimum tracking error portfolio subject to a risk constraint using estimateCustomObjectivePortfolio, where the tracking portfolio is the equally weighted portfolio.

% Compute the min tracking error portfolio with a risk constraint
x0 = 1/4*ones(4,1);
TE = @(w) (w-x0)'*p2.AssetCovar*(w-x0);
wTE = estimateCustomObjectivePortfolio(p2,TE,...
    TargetVolatility=targetRisk);

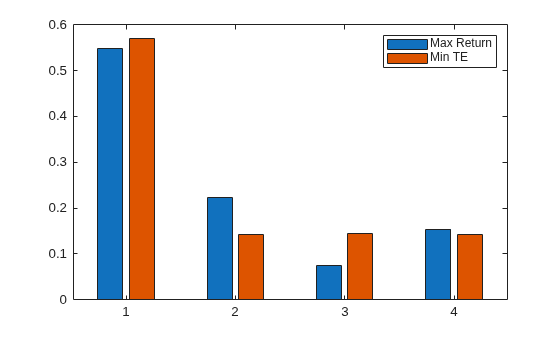

Use a bar plot to observe the difference between the portfolios.

figure
bar([wMax wTE])
legend('Max Return','Min TE')

Notice that the weights of the minimum tracking portfolio tries to keep the weights of the assets more evenly weighted. However, in order to satisfy the risk constraint, the minimum tracking error portfolio still allocates a larger weight to the less risky asset.
