GPU Code Generation for a Fog Rectification Simulink Model

This example demonstrates how to generate CUDA® code from the Simulink® model that takes a foggy image as input and produces a defogged image as output. This example is a typical implementation of fog rectification algorithm. The example uses conv2, im2gray, and imhist (Image Processing Toolbox) functions. This example closely follows Fog Rectification example. This example illustrates the following concepts:

  • Verification of GPU Environment.

  • Model fog rectification application in Simulink by using image processing functions.

  • Configure the model for GPU code generation.

  • Generate a CUDA executable for the Simulink model.

Third-Party Prerequisites

Required

This example generates CUDA MEX and has the following third-party requirements.

  • CUDA enabled NVIDIA® GPU and compatible driver.

Optional

For non-MEX builds such as static, dynamic libraries or executables, this example has the following additional requirements.

Verify GPU Environment

To verify that the compilers and libraries necessary for running this example are set up correctly, use the coder.checkGpuInstall function.

envCfg = coder.gpuEnvConfig('host');
envCfg.BasicCodegen = 1;
envCfg.Quiet = 1;
coder.checkGpuInstall(envCfg);

Fog Rectification Simulink Model

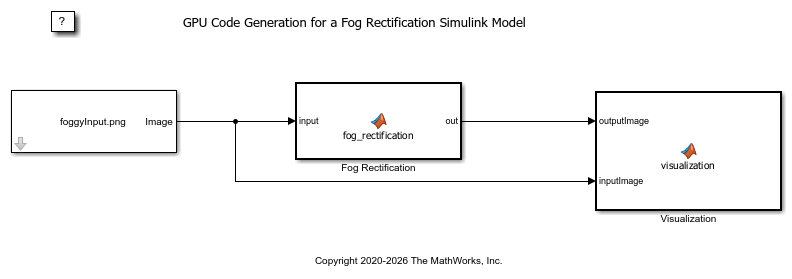

The Simulink model for fog rectification consists of Fog Rectification subsystem that contains a MATLAB Function block which takes a foggy image as input and returns a defogged image as output. It uses fog_rectification algorithm described in Fog Rectification example. When the model runs, the Visualization block displays the foggy input image and defogged output image.

mdl = 'fog_rectification_model';
open_system(mdl);

Configure Model for GPU Acceleration

Model configuration parameters determine the acceleration method used during simulation.

set_param(mdl,'Solver','FixedStepAuto');
set_param(mdl,'GPUAcceleration','on');
set_param(mdl, 'SimulationMode','Normal');

Build GPU Accelerated Model

To build and simulate the GPU accelerated model, select Run on the Simulation tab or use the following MATLAB command:

out = sim(mdl);

Configure Model for Code Generation

Set the following parameters for code generation.

set_param(mdl,'TargetLang','C++');
set_param(mdl,'GenerateGPUCode','CUDA');
set_param(mdl,'GPUcuBLAS','on');
set_param(mdl,'GPUcuSOLVER','on');
set_param(mdl,'GPUcuFFT','on');
set_param(mdl,'ProdLongLongMode','on');

Generate CUDA Code for the Model

Generate and build the Simulink model on the host GPU by using the slbuild command. The code generator places the files in a build folder, a subfolder named fog_rectification_model_ert_rtw under your current working folder.

status = evalc("slbuild('fog_rectification_model')");

Cleanup

Close the Simulink model.

close_system('fog_rectification_model');
