nlhw

Estimate Hammerstein-Wiener model

collapse all in page

Syntax

sys = nlhw(data,Orders)
sys = nlhw(data,Orders,InputNonlinearity,OutputNonlinearity)
sys = nlhw(data,LinModel)
sys = nlhw(data,LinModel,InputNonlinearity,OutputNonlinearity)
sys = nlhw(data,sys0)
sys = nlhw(___,Options)

Description

Estimate Hammerstein-Wiener Model

sys = nlhw(data,Orders) creates and estimates a Hammerstein-Wiener model using the estimation data, model orders and delays, and default piecewise linear functions as input and output nonlinearity estimators. data can be in the form of a timetable, a comma-separated pair of numeric matrices, or a data object.

example

sys = nlhw(data,Orders,InputNonlinearity,OutputNonlinearity) specifies InputNL and OutputNL as the input and output nonlinearity estimators, respectively.

example

Specify Linear Model

sys = nlhw(data,LinModel) uses a linear model to specify the linear block coefficients, and default piecewise linear functions for the input and output nonlinearity estimators.

example

sys = nlhw(data,LinModel,InputNonlinearity,OutputNonlinearity) specifies InputNonlinearity and OutputNonlinearity as the input and output nonlinearity estimators, respectively.

example

Refine Existing Model

sys = nlhw(data,sys0) refines or estimates the parameters of a Hammerstein-Wiener model, sys0, using the estimation data.

Use this syntax to:

  • Update the parameters of a previously estimated model to improve the fit to the estimation data. In this case, the estimation algorithm uses the parameters of sys0 as initial guesses.

  • Estimate the parameters of a model previously created using the idnlhw constructor. Prior to estimation, you can configure the model properties using dot notation.

example

Specify Options

sys = nlhw(___,Options) specifies additional model estimation options using the option set Options that you create using nlhwOptions. Use Options with any of the previous syntaxes.

example

Examples

collapse all

Open Live Script
load iddata3
m1 = nlhw(z3,[4 2 1]);
Open Live Script

Load data.

load twotankdata;
z = iddata(y,u,0.2,'Name','Two tank system');
z1 = z(1:1000);

Create a saturation object with lower limit of 0 and upper limit of 5.

InputNL = idSaturation('LinearInterval',[0 5]);

Estimate model with no output nonlinearity.

m = nlhw(z1,[2 3 0],InputNL,[]);
Open Script

Generating a custom network nonlinearity requires the definition of a user-defined unit function.

Define the unit function and save it as gaussunit.m.

function [f,g,a] = gaussunit(x)
% Custom unit function nonlinearity.
%
% Copyright 2015 The MathWorks, Inc.
f = exp(-x.*x);
if nargout>1
  g = -2*x.*f;
  a = 0.2;
end

Create a custom network nonlinearity using the gaussunit function.

H = @gaussunit;
CNet = idCustomNetwork(H);

Load the estimation data.

load twotankdata;
z = iddata(y,u,0.2,'Name','Two tank system');
z1 = z(1:1000);

Estimate a Hammerstein-Wiener model using the custom network.

m = nlhw(z1,[5 1 3],CNet,[]);
Open Live Script

Estimate linear OE model.

load throttledata.mat
Tr = getTrend(ThrottleData);
Tr.OutputOffset = 15;
DetrendedData = detrend(ThrottleData, Tr);
opt = oeOptions('Focus','simulation');
LinearModel = oe(DetrendedData,[1 2 1],opt);

Estimate Hammerstein-Wiener model using OE model as its linear component and saturation as its output nonlinearity.

sys = nlhw(ThrottleData,LinearModel,[],idSaturation);
Open Live Script

Load the estimation data.

load iddata1

Construct a Hammerstein-Wiener model using idnlhw to define the model properties B and F.

sys0 = idnlhw([2,2,0],[],'idWaveletNetwork');
sys0.B{1} = [0.8,1];
sys0.F{1} = [1,-1.2,0.5];

Estimate the model.

sys = nlhw(z1,sys0);

Estimate a Hammerstein-Wiener model using nlhw to define the model properties B and F.

sys2 = nlhw(z1,[2,2,0],[],'idWaveletNetwork','B',{[0.8,1]},'F',{[1,-1.2,0.5]});

Compare the two estimated models to see that they are equivalent.

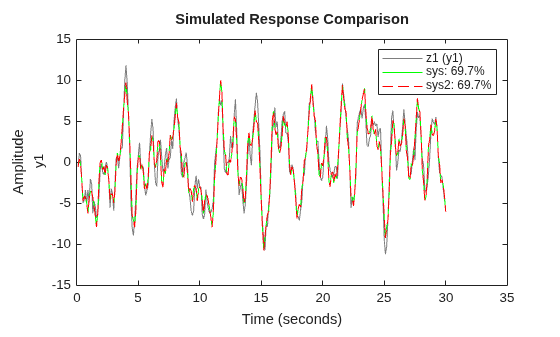

compare(z1,sys,'g',sys2,'r--');

Figure contains an axes object. The axes object with ylabel y1 contains 3 objects of type line. These objects represent Validation data (y1), sys: 69.69%, sys2: 69.69%.

Open Live Script

Estimate a Hammerstein-Wiener Model.

load iddata3
sys = nlhw(z3,[4 2 1],'idSigmoidNetwork','idWaveletNetwork');

Refine the model, sys.

sys = nlhw(z3,sys);
Open Live Script

Create estimation option set for nlhw to view estimation progress, use the Levenberg-Marquardt search method, and set the maximum iteration steps to 50.

opt = nlhwOptions;
opt.Display = 'on';
opt.SearchMethod = 'lm';
opt.SearchOptions.MaxIterations = 50;

Load data and estimate the model.

load iddata3
sys = nlhw(z3,[4 2 1],idSigmoidNetwork,idPiecewiseLinear,opt);

Input Arguments

collapse all

Uniformly sampled estimation data, specified as described in the following sections.

Timetable

Specify data as a timetable that uses a regularly spaced time vector. tt contains variables representing input and output channels. For multiexperiment data, tt is a cell array of timetables of length Ne, where Ne is the number of experiments

The software determines the number of input and output channels to use for estimation from the dimensions of the order in Orders. The input/output channel selection depends on whether the 'InputName' and 'OutputName' name-value arguments are specified.

  • If 'InputName' and 'OutputName' are not specified, then the software uses the first Nu variables of tt as inputs and the next Ny variables of tt as outputs.

  • If 'InputName' and 'OutputName' are specified, then the software uses the specified variables. The number of specified input and output names must be consistent with Nu and Ny.

  • For functions that can estimate a time series model, where there are no inputs, 'InputName' does not need to be specified.

Comma-Separated Matrix pair

Specify data as a comma-separated pair of real-valued matrices that contain uniformly sampled input and output time-domain signal values. For multiexperiment data, use a cell array of matrices. When you specify matrix-based data, the software assumes a sample time of 1 second. You can change the sample time after estimation by setting the property sys.Ts.

  • For SISO systems, specify data as a pair of Ns-by-1 real-valued matrices that contain uniformly sampled input and output time-domain signal values. Here, Ns is the number of samples.

  • For MIMO systems, specify u,y as an input/output matrix pair with the following dimensions:

    • u — Ns-by-Nu, where Nu is the number of inputs.

    • y — Ns-by-Ny, where Ny is the number of outputs.

  • For multiexperiment data, specify u,y as a pair of 1-by-Ne cell arrays, where Ne is the number of experiments. The sample times of all the experiments must match.

Data Object

An estimation data object, specified as a time-domain iddata object that contains uniformly sampled input and output values. By default, the software sets the sample time of the model to the sample time of the estimation data.

For multiexperiment data, the sample times and intersample behavior of all the experiments must match.

For more information about working with estimation data types, see Data Domains and Data Types in System Identification Toolbox.

Order and delays of the linear subsystem transfer function, specified as a [nb nf nk] vector.

Dimensions of Orders:

  • For a SISO transfer function, Orders is a vector with 3 positive integers.

    nb is the number of zeros plus 1, nf is the number of poles, and nk is the input delay.

  • For a MIMO transfer function with nu inputs and ny outputs, Orders is a vector of matrices.

    nb, nf, and nk are ny-by-nu matrices whose i-jth entry specifies the orders and delay of the transfer function from the jth input to the ith output.

Input nonlinearity estimator, specified as a column array containing one or more of the following strings or mapping objects. Note that idGaussianProcess, which can be used as an output nonlinearity estimator, cannot be used as an input nonlinearity estimator.

'idPiecewiseLinear' or idPiecewiseLinear objectPiecewise linear function
'idPiecewiseConstant' or idPiecewiseConstant objectPiecewise constant function
'idSigmoidNetwork' or idSigmoidNetwork objectSigmoid network
'idWaveletNetwork' or idWaveletNetwork objectWavelet network
'idSaturation' or idSaturation objectSaturation
'idDeadZone' or idDeadZone objectDead zone
'idPolynomial1D' or idPolynomial1D objectOne-dimensional polynomial
idCustomNetwork objectCustom network — Similar to idSigmoidNetwork, but with a user-defined replacement for the sigmoid function.
'idNeuralNetwork' or idNeuralNetwork objectMultilayer neural network (requires Statistics and Machine Learning Toolbox™ or Deep Learning Toolbox™)
'idUnitGain' or [] or idUnitGain objectUnit gain. Effectively eliminates nonlinearity block.

Specifying a character vector, for example 'idSigmoidNetwork', creates a mapping object with default settings. Alternatively, you can specify nonlinearity estimator properties in two other ways:

  • Create the nonlinearity function using arguments to modify default properties.

    InputNL = idSigmoidNetwork(15)

  • Create a default nonlinearity function first and then use dot notation to modify properties.

    InputNL = idSigmoidNetwork;
InputNL.NumberOfUnits = 15

For nu input channels, you can specify nonlinear estimators individually for each input channel by setting InputNL to an nu-by-1 array of nonlinearity estimators. To specify the same nonlinearity for all inputs, specify a single input nonlinearity estimator.

Output nonlinearity estimator, specified as a column array containing one or more of the following strings or mapping objects.

'idPiecewiseLinear' or idPiecewiseLinear objectPiecewise linear function
'idPiecewiseConstant' or idPiecewiseConstant objectPiecewise constant function
'idSigmoidNetwork' or idSigmoidNetwork objectSigmoid network
'idWaveletNetwork' or idWaveletNetwork objectWavelet network
'idSaturation' or idSaturation objectSaturation
'idDeadZone' or idDeadZone objectDead zone
'idPolynomial1D' or idPolynomial1D objectOne-dimensional polynomial
'idGaussianProcess' or idGaussianProcess objectGaussian process regression model (requires Statistics and Machine Learning Toolbox)
idCustomNetwork objectCustom network — Similar to idSigmoidNetwork, but with a user-defined replacement for the sigmoid function.
'idNeuralNetwork' or idNeuralNetwork objectMultilayer neural network (requires Statistics and Machine Learning Toolbox or Deep Learning Toolbox)
'idUnitGain' or [] or idUnitGain objectUnit gain. Effectively eliminates nonlinearity block.

Specifying a character vector, for example 'idSigmoidNetwork', creates a mapping object with default settings. Alternatively, you can specify nonlinearity estimator properties in two other ways:

  • Create the nonlinearity function using arguments to modify default properties.

    NL = idSigmoidNetwork(15)

  • Create a default nonlinearity function first and then use dot notation to modify properties.

    outputNL = idSigmoidNetwork;
OutputNL.NumberOfUnits = 15

For ny output channels, you can specify nonlinear estimators individually for each output channel by setting OutputNL to an ny-by-1 array of nonlinearity estimators. To specify the same nonlinearity for all outputs, specify a single output nonlinearity estimator.

Discrete-time linear model used to specify the linear subsystem, specified as one of the following:

  • Input-output polynomial model of Output-Error (OE) structure (idpoly) with nonnegative input delay

  • State-space model (idss)

  • Transfer function model (idtf)

Typically, you estimate the model using oe, n4sid, or tfest.

Hammerstein-Wiener model, specified as an idnlhw object. sys0 can be:

  • A model previously created using idnlhw to specify model properties.

  • A model previously estimated using nlhw, that you want to update using a new estimation data set.

    You can also refine sys0 using the original estimation data set. If the previous estimation stopped when the numerical search was stuck at a local minima of the cost function, use init to first randomize the parameters of sys0. See sys0.Report.Termination for search stopping conditions. Using init does not guarantee a better solution on further refinement.

Estimation options for Hammerstein-Wiener model identification, specified as an nlhwOptions option set. Available options include:

  • Search options

  • Normalization options

  • Regularization options

Output Arguments

collapse all

Estimated Hammerstein-Wiener model, returned as an idnlhw object. The model is estimated using the specified model orders, input and output nonlinearity estimators, and estimation options.

Information about the estimation results and options used is stored in the Report property of the model. Report has the following fields:

Report FieldDescription
Status

Summary of the model status, which indicates whether the model was created by construction or obtained by estimation

Method

Estimation command used

Fit

Quantitative assessment of the estimation, returned as a structure. See Loss Function and Model Quality Metrics for more information on these quality metrics. The structure has these fields.

  • FitPercent — Normalized root mean squared error (NRMSE) measure of how well the response of the model fits the estimation data, expressed as the percentage fitpercent = 100(1-NRMSE)

  • LossFcn — Value of the loss function when the estimation completes

  • MSE — Mean squared error (MSE) measure of how well the response of the model fits the estimation data

  • FPE — Final prediction error for the model

  • AIC — Raw Akaike Information Criteria (AIC) measure of model quality

  • AICc — Small-sample-size corrected AIC

  • nAIC — Normalized AIC

  • BIC — Bayesian Information Criteria (BIC)

Parameters

Estimated values of model parameters

OptionsUsed

Option set used for estimation. If no custom options were configured, this is a set of default options. See nlhwOptions for more information.

RandState

State of the random number stream at the start of estimation. Empty, [], if randomization was not used during estimation. For more information, see rng.

DataUsed

Attributes of the data used for estimation, returned as a structure with the following fields.

  • Name — Name of the data set

  • Type — Data type

  • Length — Number of data samples

  • Ts — Sample time

  • InterSample — Input intersample behavior, returned as one of the following values:

    • 'zoh' — A zero-order hold maintains a piecewise-constant input signal between samples.

    • 'foh' — A first-order hold maintains a piecewise-linear input signal between samples.

    • 'bl' — Band-limited behavior specifies that the continuous-time input signal has zero power above the Nyquist frequency.

  • InputOffset — Offset removed from time-domain input data during estimation. For nonlinear models, it is [].

  • OutputOffset — Offset removed from time-domain output data during estimation. For nonlinear models, it is [].

Termination

Termination conditions for the iterative search used for prediction error minimization, returned as a structure with these fields.

  • WhyStop — Reason for terminating the numerical search

  • Iterations — Number of search iterations performed by the estimation algorithm

  • FirstOrderOptimality — ∞-norm of the gradient search vector when the search algorithm terminates

  • FcnCount — Number of times the objective function was called

  • UpdateNorm — Norm of the gradient search vector in the last iteration. Omitted when the search method is 'lsqnonlin' or 'fmincon'.

  • LastImprovement — Criterion improvement in the last iteration, expressed as a percentage. Omitted when the search method is 'lsqnonlin' or 'fmincon'.

  • Algorithm — Algorithm used by 'lsqnonlin' or 'fmincon' search method. Omitted when other search methods are used.

For estimation methods that do not require numerical search optimization, the Termination field is omitted.

For more information, see Estimation Report.
