imageshow

Display image in 2-D viewer

Since R2024b. Recommended over bigimageshow.

collapse all in page

Syntax

im = imageshow(I)

im = imageshow(filename)

im = imageshow(___,Name=Value)

Description

Note

The imageshow function displays 2-D images and large or blocked images in a Viewer object. Use imageshow to efficiently display large images, especially those that may be too large to fit in memory. To display images in an axes, use imshow.

im = imageshow(I) creates an Image object and displays the 2-D grayscale, RGB, or binary image I.

example

im = imageshow(filename) displays the image stored in the graphics file specified by filename.

im = imageshow(___,Name=Value) modifies the appearance of the image using one or more name-value arguments, in addition to the input arguments from previous syntaxes. For example, DisplayRangeMode="data-range" scales the DisplayRange using the range of pixel values in the input image.

Examples

collapse all

Display Grayscale, RGB, and Binary Images

Open Live Script

Display a grayscale, RGB, and binary image using the imageshow function.

Display Grayscale Image

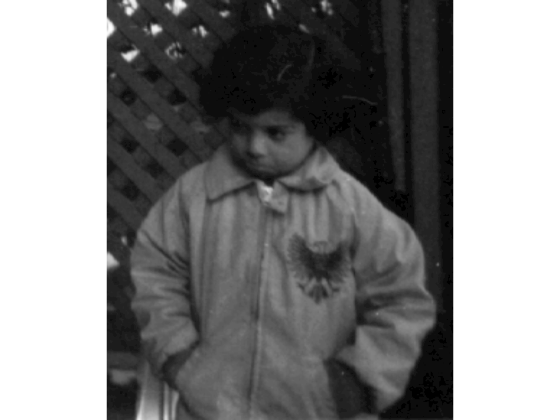

Read a sample grayscale image into the workspace and display it.

I = imread("pout.tif");
im = imageshow(I);

Display RGB Image

Read a sample RGB image into the workspace and display it.

RGB = imread("baby.jpg");
imRGB = imageshow(RGB);

Display Binary Image

Read a sample binary image into the workspace and display it.

BW = imread("testpat1.png");
imBW = imageshow(BW);

Adjust Image Contrast Using Display Range Mode

Open Live Script

The display range defines which pixel intensity values map to the range of colors in the colormap. The display range defines the brightness and contrast, with a smaller display range resulting in higher contrast.

Specify Display Range as Image Data Range

Display a grayscale image. By default, the display range is equal to the full range of the data type of the image. For example, this image is data type uint8, so the display range is [0 255].

imageshow("pout.tif");

You can increase the contrast by specifying DisplayRangeMode as "data-range", which changes the DisplayRange value to the range of pixel values in the image.

imageshow("pout.tif",DisplayRangeMode="data-range");

Specify Display Range for 10-Bit and 12-Bit Images

Medical images often have values in the 10-bit or 12-bit range, but stored as data type int16. As a result, the pixel values occupy a small portion of the default display range, and the image displays with poor contrast. The viewer displays a yellow warning icon.

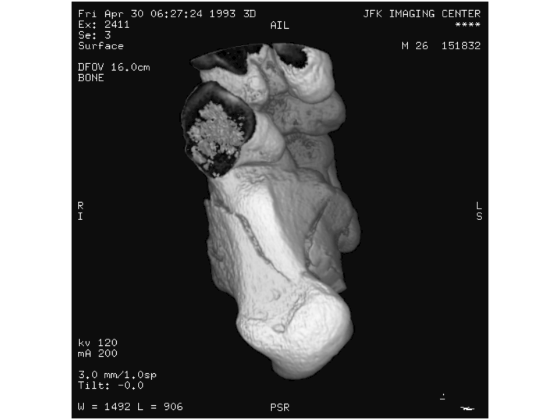

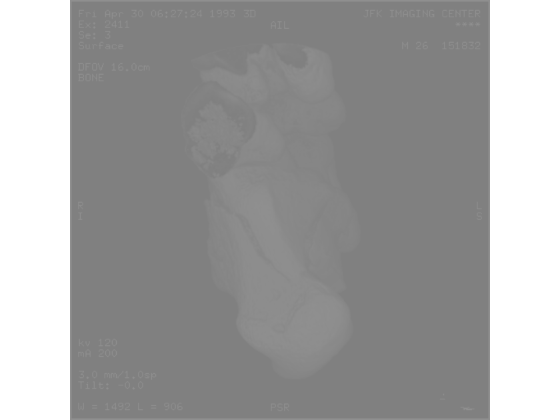

I = imageshow("CT-MONO2-16-ankle.dcm");

To improve the contrast, change the DisplayRangeMode. If you know the image has been acquired as a 10-bit or 12-bit image, specify the display range mode as "10-bit" or "12-bit", respectively. These options enable a more direct comparison across other 10-bit or 12-bit images versus specifying the display range as the data range of the individual image.

imageshow("CT-MONO2-16-ankle.dcm",DisplayRangeMode="12-bit");

Specify Display Range for RGB Images

For RGB images, you can adjust the display range uniformly across all channels, or specify per-channel display ranges to focus on a certain color. Display an RGB image of fabric.

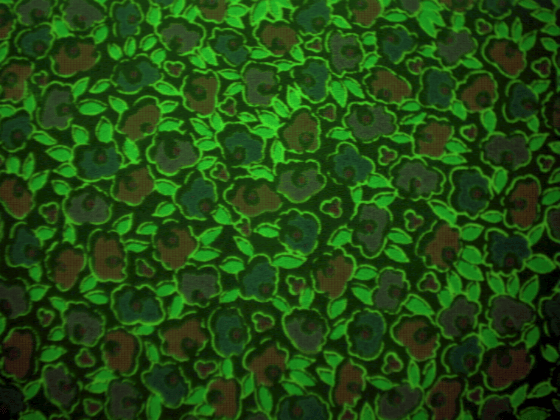

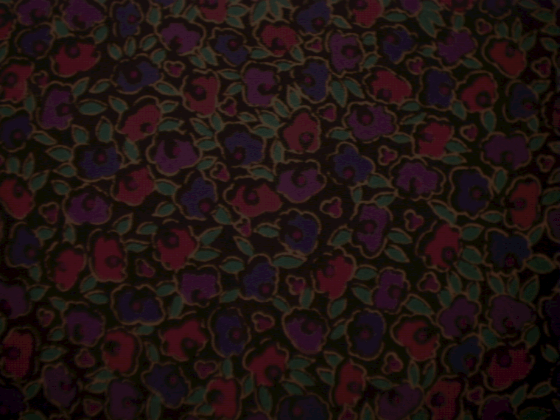

imageshow("fabric.png");

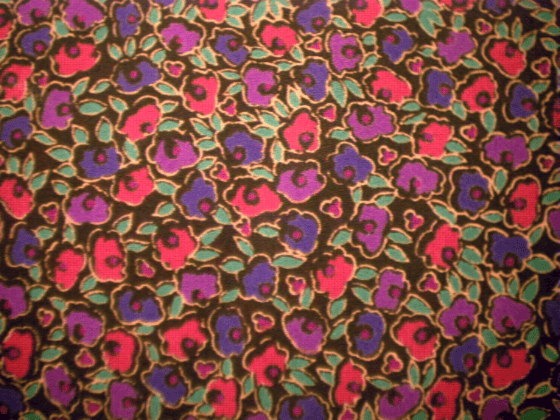

To change the display range uniformly for all channels, specify DisplayRange as a 2-element vector. Increasing the display range decreases the contrast of the color channels.

imageshow("fabric.png",DisplayRange=[0 1000]);

To change the display range for each channel, specify a 3-by-2 matrix where each row corresponds to the display range of the R, G, and B channels, respectively. Specify the display range to emphasize the green pixels.

imageshow("fabric.png",DisplayRange=[0 1000; 0 255; 0 1000]);

Display 2-D Blocked Image Using `imageshow`

Open Live Script

Display a modified version of a training image of a lymph node containing tumor tissue (tumor_091.tif) from the CAMELYON16 data set. The modified image has three coarse resolution levels, and has been adjusted to enforce a consistent aspect ratio and to register features at each level.

Create a blocked image from the sample image. The blockedImage object points to the large image in the file without loading the full image into memory.

bim = blockedImage("tumor_091R.tif");

Display the blocked image using imageshow. The function displays the image at the best resolution size based on the size of the viewer and the available screen size.

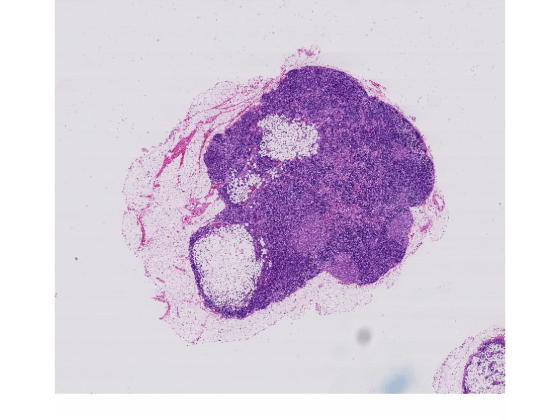

imageshow(bim);

Figure contains an object of type viewer.

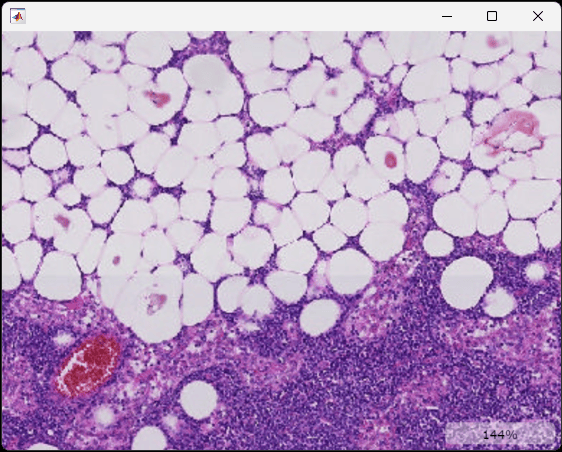

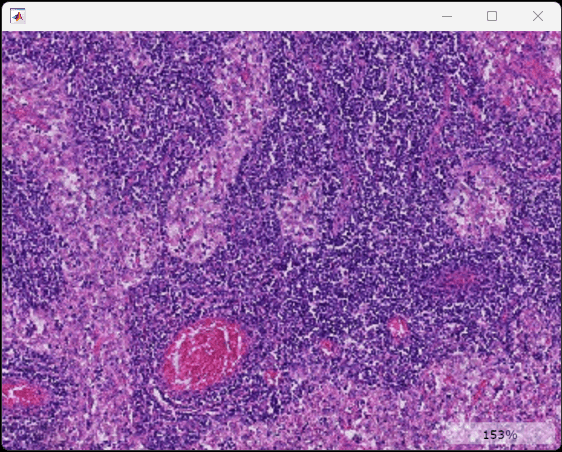

You can zoom in on the image using the mouse scroll wheel. As you zoom in, the resolution level automatically adjusts to a finer resolution based on the current field of view and screen size.

Blocked image display after zooming in to view a finer resolution level.

Pan the image by dragging inside the viewer.

Display Labels as Overlay Using `imageshow`

Open Live Script

Read a grayscale image of coins into the workspace.

I = imread("coins.png");

Segment the coins from the background.

BW = imbinarize(I);

Identify each coin as a separate connected component.

CC = bwconncomp(BW);

Create a label matrix that labels background pixels 0 and assigns an integer value to each label region.

L = labelmatrix(CC);

Display the original grayscale image with the labels as an overlay. By default, imageshow displays background labels as fully transparent, and displays all other label values with a constant 50% transparency.

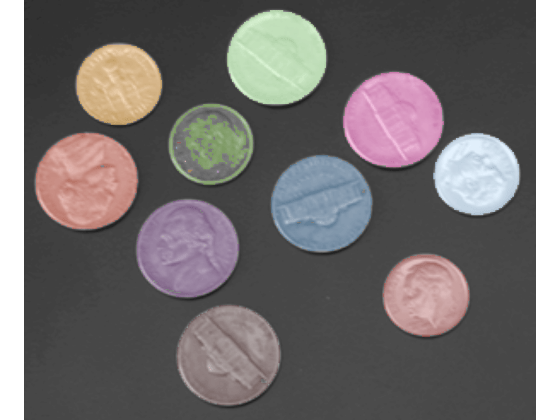

imageshow(I,OverlayData=L);

To change the transparency of the labels, specify the OverlayAlpha name-value argument. Display the labels as fully opaque.

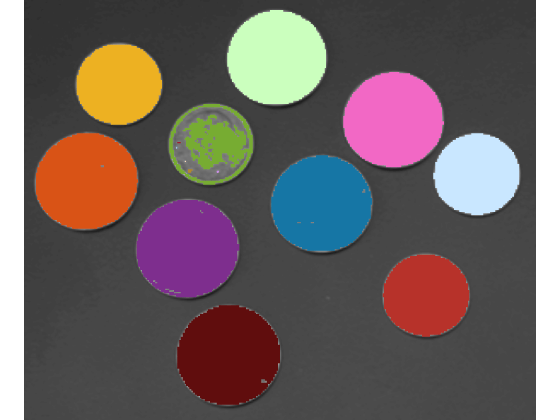

imageshow(I,OverlayData=L,OverlayAlpha=1);

Display Continuous Overlay Data Using `imageshow`

Open Live Script

Use deformable image registration to estimate the displacement between two images of a hand, and display the displacement field as an overlay on the registered image.

Read two images of the same hand in different poses.

fixed  = imread("hands1.jpg");
moving = imread("hands2.jpg");

Convert the images from RGB to grayscale, and then perform histogram matching to correct for intensity differences between the images.

fixed  = im2gray(fixed);
moving = im2gray(moving);
moving = imhistmatch(moving,fixed);

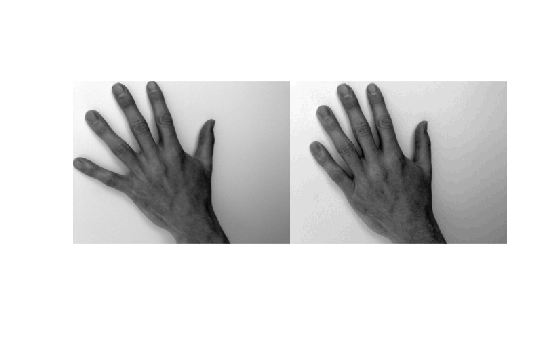

Display the images side-by-side. The largest difference is in the position of the left-most finger.

imshowpair(fixed,moving,"montage")

Calculate the displacement field needed to align the images.

[dispField,movingReg] = imregdemons(moving,fixed,[500 400 200], ...
    AccumulatedFieldSmoothing=1.3);

Calculate the magnitude of the displacement at each pixel.

dispMag = hypot(dispField(:,:,1),dispField(:,:,2));

Display the registered image with the displacement magnitude as a heatmap overlay. Specify these name-value arguments to set properties of the output Image object.

Specify the OverlayDisplayRangeMode to limit the display range to the data range of the displacement field.
Specify the OverlayColormap as a continuous colormap such as turbo or jet, which are suitable for displaying heatmap overlays. The default colormap is suitable for displaying discrete label regions.
Specify the OverlayAlphamap to specify a custom 50% transparency map that includes zero-valued overlay values. The default alphamap, defined by OverlaAlpha, displays zero-valued background pixels as fully transparent and is suitable for displaying discrete labels.

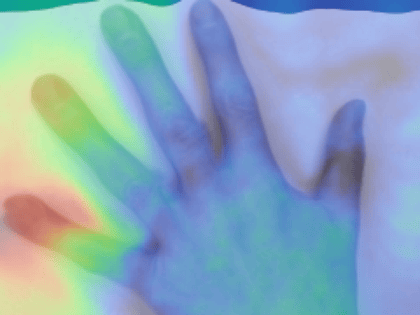

I = imageshow(movingReg,OverlayData=dispMag, ...
    OverlayDisplayRangeMode="data-range",OverlayColormap=turbo,OverlayAlphamap=0.5);

Alternatively, specify OverlayAlphamap as "linear" to apply an overlay alphamap that linearly maps increasing displacement values from fully transparent to fully opaque. The non-uniform alphamap emphasizes larger displacements by making them more opaque than smaller displacement values.

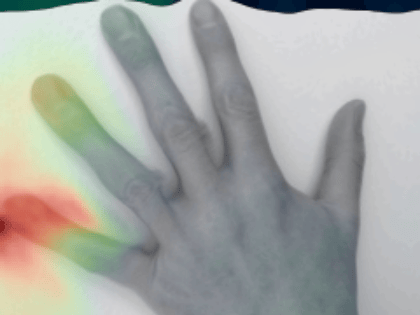

I = imageshow(movingReg,OverlayData=dispMag, ...
    OverlayDisplayRangeMode="data-range",OverlayColormap=turbo,OverlayAlphamap="linear");

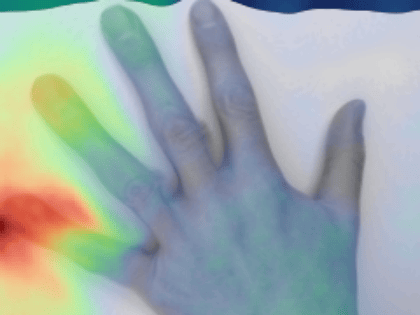

Specify OverlayAlphamap as "quadratic" to apply a quadratic overlay alphamap, which emphasizes larger displacement values more than the linear map.

I = imageshow(movingReg,OverlayData=dispMag, ...
    OverlayDisplayRangeMode="data-range",OverlayColormap=turbo,OverlayAlphamap="quadratic");

Input Arguments

collapse all

`I` — 2-D image
m-by-n numeric matrix | m-by-n-by-3 numeric array | 2-D `blockedImage` object

Image data, specified as one of the options in this table.

Image Type	Description
Grayscale	Specify as an m-by-n numeric matrix.
Binary	Specify as an m-by-n matrix of data type `logical`.
RGB	Specify as an m-by-n-by-3 numeric array.
Blocked image	Specify as a `blockedImage` object that reads 2-D blocks of grayscale, RGB, or binary image data.

`filename` — Filename
string scalar | character vector

Filename, specified as a string scalar or character vector. If the file contains multiple images, then the function displays the first image in the file. The file must be readable by the imread function, or be in the DICOM, NITF, DPX, EXR, HDR, or RAW file format.

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: imageshow(I,DisplayRangeMode="data-range") displays the image I and sets the display range equal to the data range of I.

Note

The properties listed here are only a subset. For a full list, see Image Properties.

`Parent` — Parent
`Viewer` object

Parent of the Image object, specified as a Viewer object. You can create a Viewer object optimized for 2-D image display by using the viewer2d function. When you call imageshow without specifying a parent, the function creates a new Viewer object and sets that object as the parent. You cannot reparent an Image object.

`Interpolation` — Image interpolation method
`"auto"` (default) | `"bilinear"` | `"nearest"`

Image interpolation method, specified as one of the values in this table.

Value Description

"auto" The interpolation method depends on the current zoom level. If one data pixel spans fewer than 10 screen pixels, the image displays using bilinear interpolation. If one data pixel spans more than 10 screen pixels, the image displays using nearest neighbor interpolation.

"bilinear" The image displays using bilinear interpolation. The value of a pixel located at (x, y) is the weighted average of the surrounding pixels in the original image.

Value	Description
`"auto"`	The interpolation method depends on the current zoom level. If one data pixel spans fewer than 10 screen pixels, the image displays using bilinear interpolation. If one data pixel spans more than 10 screen pixels, the image displays using nearest neighbor interpolation.
`"bilinear"`	The image displays using bilinear interpolation. The value of a pixel located at (x, y) is the weighted average of the surrounding pixels in the original image.
`"nearest"`	The image displays using nearest neighbor interpolation. The value of a pixel located at (x, y) is the value of the pixel closest to (x, y) in the original image. This option provides the fastest performance, and is recommended for workflows, such as the playback of multiframe image series, where rendering speed is more important than image quality.

"nearest"

The image displays using nearest neighbor interpolation. The value of a pixel located at (x, y) is the value of the pixel closest to (x, y) in the original image.

This option provides the fastest performance, and is recommended for workflows, such as the playback of multiframe image series, where rendering speed is more important than image quality.

`Colormap` — Colormap
`gray(256)` (default) | n-by-3 numeric matrix

Colormap of the image content, specified as an n-by-3 numeric matrix with values in the range [0, 1]. The maximum number of colors n is 256. This value has no effect when viewing RGB images. You can specify a different colormap for each Image object in a scene.

Values less than or equal to the minimum value of DisplayRange map to the first color in Colormap, and all values greater than or equal to the maximum value of DisplayRange map to the last color in Colormap. Intermediate values map linearly to the intermediate colors in the colormap.

`DisplayRange` — Display range
`[0 1]` (default) | 2-element numeric vector | 3-by-2 numeric matrix

Display range of the image content, specified as one of these options:

2-element row vector of the form [min max] — Scale data according to the values min and max. For RGB images, specifying a 2-element row vector applies the same data limits to all color channels.
3-by-2 numeric matrix with rows of the form [min max]— Scale each RGB channel according to the values min and max. The first, second, and third rows specify the data limits for the red, green, and blue color channels, respectively.

When the DisplayRangeMode value is "data-range" or "type-range", the DisplayRange updates automatically to reflect the range of the data type or data of the current image, respectively. If you specify DisplayRange, the DisplayRangeMode value changes to "manual".

`DisplayRangeMode` — Display range mode
`"type-range"` (default) | `"data-range"` | `"10-bit"` | `"12-bit"` | `"manual"`

Display range mode, specified as one of the options in this table.

Value	Description
`"type-range"`	Set the display range equal to the data type range. For example, for `uint8` images, the display range is `[0 255]`.
`"data-range"`	Set the display range equal to the data range of the image. For RGB images, the data range is the overall minimum and maximum across channels.
`"10-bit"`	Set the display range to `[0 1023]`. This value is useful for displaying medical images with 10-bit data ranges.
`"12-bit"`	Set the display range to `[0 4095]`. This value is useful for displaying medical images with 12-bit data ranges.
`"manual"`	Manually set a fixed display range using `DisplayRange`. Specifying `DisplayRange` automatically sets `DisplayRangeMode` to `"manual"`.

`AlphaData` — Transparency channel for image data
`1` (default) | numeric scalar | m-by-n numeric matrix | 2-D `blockedImage` object

Transparency channel for the image data, specified as one of the options in this table.

Value	Description
Numeric scalar	Display the image with a constant transparency for all pixels.
m-by-n numeric matrix	Specify the transparency value for each pixel directly. m and n are the lengths of the first and second dimensions of the input image, respectively.
2-D `blockedImage` object	Specify the transparency for each pixel of the blocked image directly. Use this option when you specify `I` as a `blockedImage` object. The blocked images for `I` and `AlphaData` must have the same `Size`, `BlockSize`, `SizeInBlocks`, `NumLevels`, `WorldStart`, and `WorldEnd` values.

`OverlayData` — Overlay data
`[]` (default) | numeric array | categorical array | `blockedImage` object

Overlay data to blend with the image data, specified as a numeric array, categorical array, or a blockedImage object. If you specify I as a blockedImage, specify OverlayData as a single-resolution blockedImage or as a multilevel blockedImage with the same Size, BlockSize, SizeInBlocks, NumLevels, WorldStart, and WorldEnd values.

You can modify the appearance of the overlay by changing the OverlayDisplayRange, OverlayColormap, OverlayAlpha, and OverlayAlphamap properties.

Output Arguments

collapse all

`im` — Image
`Image` object

Image, returned as an Image object. For more information about modifying the aspects of the image, see Image Properties.

Extended Capabilities

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

This function accepts GPU arrays for the input image I and the AlphaData and OverlayData name-value arguments. All rendering is performed using hardware-accelerated graphics if a suitable GPU is available. There is no additional performance benefit of specifying inputs as a gpuArray.

For more information, see Image Processing on a GPU.

Version History

Introduced in R2024b

expand all

R2024b: Recommended over `bigimageshow`

imageshow is recommended over bigimageshow in most cases because it provides faster performance and a simpler interface that supports displaying 2-D images of all sizes. For advanced display tasks that combine or customize properties of MATLAB^® Graphics Objects, such as creating a tiledlayout or adding ROI annotation objects like images.roi.Polygon, continue using bigimageshow.

This table shows common uses of bigimageshow, and how you can update your code to use imageshow instead.

Old Code Recommended Replacement

Old Code	Recommended Replacement
This example uses the `bigimageshow` function to display a blocked image. bim = blockedImage("tumor_091R.tif"); h = bigimageshow(bim);	Here is equivalent code, creating an `Image` by using the `imageshow` function. bim = blockedImage("tumor_091R.tif"); im = imageshow(bim);
This example uses the `bigimageshow` function to display a blocked image and a binary mask. Load the blocked image and create the binary mask. bim = blockedImage("tumor_091R.tif"); bmask = apply(bim,@(im)im2gray(im.Data)<120,Level=3); Display the mask. h = bigimageshow(bmask); Display the blocked image with the mask as a colored overlay. h = bigimageshow(bim); showlabels(h,bmask, ... AlphaData=bmask, ... Alphamap=[0.8 0]);	Here is code that displays the binary mask and a similar colored overlay by using the `imageshow` function. Load the blocked image and create the binary mask. bim = blockedImage("tumor_091R.tif"); bmask = apply(bim,@(im)im2gray(im.Data)<120,Level=3); Display the mask. im = imageshow(bmask); Display the blocked image with the mask as a colored overlay. im = imageshow(bim, ... OverlayData=bmask, ... OverlayAlphamap=[0.8 0], ... OverlayDisplayRangeMode="data-range", ... OverlayColormap=[0.5 1 0.5]);
This example uses the `bigimageshow` function to display a blocked image and a label image with multiple labels as an overlay. Load the blocked image and create the label image. bim = blockedImage("tumor_091R.tif"); cim = gather(bim); cgim = im2gray(cim); numClasses = 4; thresh = multithresh(cgim,numClasses-1); labels = imquantize(cgim,thresh); blabels = blockedImage(labels,WorldStart=bim.WorldStart(3,1:2), ... WorldEnd=bim.WorldEnd(3,1:2)); Display the blocked image with the label overlay. h = bigimageshow(bim); showlabels(h,blabels)	Here is code that displays the blocked image and a similar label overlay by using the `imageshow` function. Load the blocked image and create the label image. bim = blockedImage("tumor_091R.tif"); cim = gather(bim); cgim = im2gray(cim); numClasses = 4; thresh = multithresh(cgim,numClasses-1); labels = imquantize(cgim,thresh); blabels = blockedImage(labels,WorldStart=bim.WorldStart(3,1:2), ... WorldEnd=bim.WorldEnd(3,1:2)); Display the blocked image with the label overlay. imageshow(bim,OverlayData=blabels);

This example uses the bigimageshow function to display a blocked image.

bim = blockedImage("tumor_091R.tif");
h = bigimageshow(bim);

Here is equivalent code, creating an Image by using the imageshow function.

bim = blockedImage("tumor_091R.tif");
im = imageshow(bim);

This example uses the bigimageshow function to display a blocked image and a binary mask.

Load the blocked image and create the binary mask.

bim = blockedImage("tumor_091R.tif");
bmask = apply(bim,@(im)im2gray(im.Data)<120,Level=3);

Display the mask.

h = bigimageshow(bmask);

Display the blocked image with the mask as a colored overlay.

h = bigimageshow(bim);

showlabels(h,bmask, ...
    AlphaData=bmask, ...
    Alphamap=[0.8 0]);

Here is code that displays the binary mask and a similar colored overlay by using the imageshow function.

Load the blocked image and create the binary mask.

bim = blockedImage("tumor_091R.tif");
bmask = apply(bim,@(im)im2gray(im.Data)<120,Level=3);

Display the mask.

im = imageshow(bmask);

Display the blocked image with the mask as a colored overlay.

im = imageshow(bim, ...
    OverlayData=bmask, ...
    OverlayAlphamap=[0.8 0], ...
    OverlayDisplayRangeMode="data-range", ...
    OverlayColormap=[0.5 1 0.5]);

This example uses the bigimageshow function to display a blocked image and a label image with multiple labels as an overlay.

Load the blocked image and create the label image.

bim = blockedImage("tumor_091R.tif");

cim = gather(bim);
cgim = im2gray(cim);
numClasses = 4;
thresh = multithresh(cgim,numClasses-1);

labels = imquantize(cgim,thresh);
blabels = blockedImage(labels,WorldStart=bim.WorldStart(3,1:2), ...
    WorldEnd=bim.WorldEnd(3,1:2));

Display the blocked image with the label overlay.

h = bigimageshow(bim);
showlabels(h,blabels)

Here is code that displays the blocked image and a similar label overlay by using the imageshow function.

Load the blocked image and create the label image.

bim = blockedImage("tumor_091R.tif");

cim = gather(bim);
cgim = im2gray(cim);
numClasses = 4;
thresh = multithresh(cgim,numClasses-1);

labels = imquantize(cgim,thresh);
blabels = blockedImage(labels,WorldStart=bim.WorldStart(3,1:2), ...
    WorldEnd=bim.WorldEnd(3,1:2));

Display the blocked image with the label overlay.

imageshow(bim,OverlayData=blabels);

imageshow

Syntax

Description

Examples

Display Grayscale, RGB, and Binary Images

Adjust Image Contrast Using Display Range Mode

Display 2-D Blocked Image Using `imageshow`

Display Labels as Overlay Using `imageshow`

Display Continuous Overlay Data Using `imageshow`

Input Arguments

`I` — 2-D image
m-by-n numeric matrix | m-by-n-by-3 numeric array | 2-D `blockedImage` object

`filename` — Filename
string scalar | character vector

Name-Value Arguments

`Parent` — Parent
`Viewer` object

`Interpolation` — Image interpolation method
`"auto"` (default) | `"bilinear"` | `"nearest"`

`Colormap` — Colormap
`gray(256)` (default) | n-by-3 numeric matrix

`DisplayRange` — Display range
`[0 1]` (default) | 2-element numeric vector | 3-by-2 numeric matrix

`DisplayRangeMode` — Display range mode
`"type-range"` (default) | `"data-range"` | `"10-bit"` | `"12-bit"` | `"manual"`

`AlphaData` — Transparency channel for image data
`1` (default) | numeric scalar | m-by-n numeric matrix | 2-D `blockedImage` object

`OverlayData` — Overlay data
`[]` (default) | numeric array | categorical array | `blockedImage` object

Output Arguments

`im` — Image
`Image` object

Extended Capabilities

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

R2024b: Recommended over `bigimageshow`

See Also

Apps

Properties

Functions

Topics

imageshow

Syntax

Description

Examples

Display Grayscale, RGB, and Binary Images

Adjust Image Contrast Using Display Range Mode

Display 2-D Blocked Image Using imageshow

Display Labels as Overlay Using imageshow

Display Continuous Overlay Data Using imageshow

Input Arguments

I — 2-D image m-by-n numeric matrix | m-by-n-by-3 numeric array | 2-D blockedImage object

filename — Filename string scalar | character vector

Name-Value Arguments

Parent — Parent Viewer object

Interpolation — Image interpolation method "auto" (default) | "bilinear" | "nearest"

Colormap — Colormap gray(256) (default) | n-by-3 numeric matrix

DisplayRange — Display range [0 1] (default) | 2-element numeric vector | 3-by-2 numeric matrix

DisplayRangeMode — Display range mode "type-range" (default) | "data-range" | "10-bit" | "12-bit" | "manual"

AlphaData — Transparency channel for image data 1 (default) | numeric scalar | m-by-n numeric matrix | 2-D blockedImage object

OverlayData — Overlay data [] (default) | numeric array | categorical array | blockedImage object

Output Arguments

im — Image Image object

Extended Capabilities

GPU Arrays Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

R2024b: Recommended over bigimageshow

See Also

Apps

Properties

Functions

Topics

Display 2-D Blocked Image Using `imageshow`

Display Labels as Overlay Using `imageshow`

Display Continuous Overlay Data Using `imageshow`

`I` — 2-D image
m-by-n numeric matrix | m-by-n-by-3 numeric array | 2-D `blockedImage` object

`filename` — Filename
string scalar | character vector

`Parent` — Parent
`Viewer` object

`Interpolation` — Image interpolation method
`"auto"` (default) | `"bilinear"` | `"nearest"`

`Colormap` — Colormap
`gray(256)` (default) | n-by-3 numeric matrix

`DisplayRange` — Display range
`[0 1]` (default) | 2-element numeric vector | 3-by-2 numeric matrix

`DisplayRangeMode` — Display range mode
`"type-range"` (default) | `"data-range"` | `"10-bit"` | `"12-bit"` | `"manual"`

`AlphaData` — Transparency channel for image data
`1` (default) | numeric scalar | m-by-n numeric matrix | 2-D `blockedImage` object

`OverlayData` — Overlay data
`[]` (default) | numeric array | categorical array | `blockedImage` object

`im` — Image
`Image` object

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

R2024b: Recommended over `bigimageshow`
