checkCollision

Check if robot is in collision

Since R2020b

Description

[isSelfColliding,selfSeparationDist,selfWitnessPts] = checkCollision(robot,config) checks if the specified rigid body tree robot model robot is in self-collision at the specified configuration config. Add collision objects to the rigid body tree robot model using the addCollision function. The checkCollision function also returns the closest separation distance selfSeparationDist and the witness points selfWitnessPts as points on each body.

The function ignores adjacent bodies when checking for self-collisions.

example

[isColliding,separationDist,witnessPts] = checkCollision(robot,config,worldObjects) checks if the specified rigid body tree robot model is in collision with itself or a specified set of collision objects in the world worldObjects.

[___] = checkCollision(___,Name,Value) specifies additional options using one or more name-value pair arguments in addition to any of argument combinations from previous syntaxes.

example

Examples

collapse all

Load a robot model and modify the collision meshes. Clear existing collision meshes, add simple collision object primitives, and check whether certain configurations are in collision.

Load Robot Model

Load a preconfigured robot model into the workspace using the loadrobot function. This model already has collision meshes specified for each body. Iterate through all the rigid body elements and clear the existing collision meshes. Confirm that the existing meshes are gone.

robot = loadrobot("kukaIiwa7",DataFormat="column");

for i = 1:robot.NumBodies
    clearCollision(robot.Bodies{i})
end

show(robot,Collisions="on",Visuals="off");

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 21 objects of type patch, line. These objects represent world, iiwa_link_0, iiwa_link_1, iiwa_link_2, iiwa_link_3, iiwa_link_4, iiwa_link_5, iiwa_link_6, iiwa_link_7, iiwa_link_ee, iiwa_link_ee_kuka, iiwa_link_0_mesh, iiwa_link_1_mesh, iiwa_link_2_mesh, iiwa_link_3_mesh, iiwa_link_4_mesh, iiwa_link_5_mesh, iiwa_link_6_mesh, iiwa_link_7_mesh.

Add Collision Cylinders

Iteratively add a collision cylinder to each body. Skip some bodies for this specific model, as they overlap and always collide with the end effector (body 10).

collisionObj = collisionCylinder(0.05,0.25);

for i = 1:robot.NumBodies
    if i > 6 && i < 10
        % Skip these bodies.
    else
        addCollision(robot.Bodies{i},collisionObj)
    end
end

show(robot,Collisions="on",Visuals="off");

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 28 objects of type patch, line. These objects represent world, iiwa_link_0, iiwa_link_1, iiwa_link_2, iiwa_link_3, iiwa_link_4, iiwa_link_5, iiwa_link_6, iiwa_link_7, iiwa_link_ee, iiwa_link_ee_kuka, iiwa_link_0_mesh, iiwa_link_1_mesh, iiwa_link_2_mesh, iiwa_link_3_mesh, iiwa_link_4_mesh, iiwa_link_5_mesh, iiwa_link_6_mesh, iiwa_link_7_mesh, iiwa_link_0_coll_mesh, iiwa_link_1_coll_mesh, iiwa_link_2_coll_mesh, iiwa_link_3_coll_mesh, iiwa_link_4_coll_mesh, iiwa_link_5_coll_mesh, iiwa_link_ee_kuka_coll_mesh.

Check for Collisions

Generate a series of random configurations. Check whether the robot is in collision at each configuration. Visualize each configuration that has a collision.

figure
rng(0) % Set random seed for repeatability.
for i = 1:20
    config = randomConfiguration(robot);
    isColliding = checkCollision(robot,config,SkippedSelfCollisions="parent");
    if isColliding
        show(robot,config,Collisions="on",Visuals="off");
        title("Collision Detected")
    else
        % Skip non-collisions.
    end
end

Figure contains an axes object. The axes object with title Collision Detected, xlabel X, ylabel Y contains 28 objects of type patch, line. These objects represent world, iiwa_link_0, iiwa_link_1, iiwa_link_2, iiwa_link_3, iiwa_link_4, iiwa_link_5, iiwa_link_6, iiwa_link_7, iiwa_link_ee, iiwa_link_ee_kuka, iiwa_link_0_mesh, iiwa_link_1_mesh, iiwa_link_2_mesh, iiwa_link_3_mesh, iiwa_link_4_mesh, iiwa_link_5_mesh, iiwa_link_6_mesh, iiwa_link_7_mesh, iiwa_link_0_coll_mesh, iiwa_link_1_coll_mesh, iiwa_link_2_coll_mesh, iiwa_link_3_coll_mesh, iiwa_link_4_coll_mesh, iiwa_link_5_coll_mesh, iiwa_link_ee_kuka_coll_mesh.

This example shows how to change which rigid body pairs are skipped during self-collision checking in rigid body trees using the SkippedSelfCollisions name-value argument for checkCollision.

Serial Manipulator Robot

Load a serial manipulator robot represented as a two joint rigid body tree. Since this robot does not have collision geometries, add some primitive collision geometries.

rbt2j = twoJointRigidBodyTree;
P = [0.05 0.45]; % Geometry parameters for capsules
T = trvec2tform([0.2 0 0]) * eul2tform([0 pi/2 0],"XYZ"); % Transformation parameters for capsules
addCollision(rbt2j.Base,"cylinder",[0.075 0.1],trvec2tform([0 0 0.05]))
addCollision(rbt2j.Bodies{1},"capsule",P,T)
addCollision(rbt2j.Bodies{2},"capsule",P,T)
addCollision(rbt2j.Bodies{3},"box",[0.2 0.05 0.2])

Visualize the robot with collisions on.

show(rbt2j,homeConfiguration(rbt2j),Collisions="on");

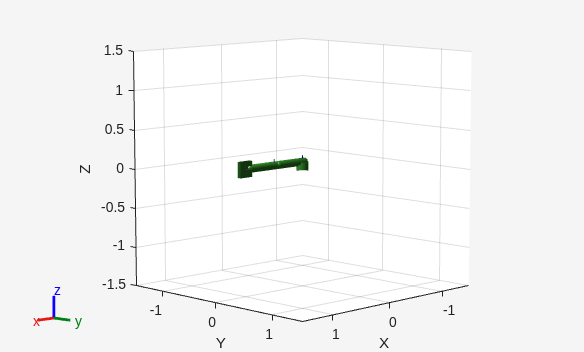

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 11 objects of type patch, line. These objects represent base, body1, body2, tool, body1_coll_mesh, body2_coll_mesh, tool_coll_mesh, base_coll_mesh.

By default, SkippedSelfCollisions is "parent", so self-collision checking skips collisions between parent and child bodies. Check the parent and child bodies of body2.

body2 = rbt2j.Bodies{2};
rbt2j.BodyNames
ans = 1x3 cell
    {'body1'}    {'body2'}    {'tool'}

body2.Parent.Name
ans =
'body1'
body2.Children{1}.Name
ans =
'tool'

This means that "body2" is not checked for collisions against "body1" or "tool".

List the body names of the robot. This shows that in the cell array, "body2", which is stored at index 2, is adjacent to both "body1" at index 1 and "tool" at index 3. Because the skipped collision pairs have not changed, the SkippedSelfCollisions name-value argument has no effect on the self-collision checking result for this robot.

rbt2j.BodyNames
ans = 1x3 cell
    {'body1'}    {'body2'}    {'tool'}

Run collision checking with both SkippedSelfCollisions options to verify that the SkippedSelfCollisions name-value argument returns the same result for this robot.

checkCollision(rbt2j,homeConfiguration(rbt2j),SkippedSelfCollisions="parent")
ans = logical
   0

checkCollision(rbt2j,homeConfiguration(rbt2j),SkippedSelfCollisions="adjacent")
ans = logical
   0

Parallel Manipulator Robot

Use the exampleHelperCreate2ArmRBT example helper to create a parallel robot comprised of two one-joint arms.

rbt2arm = exampleHelperCreate2ArmRBT;
show(rbt2arm,homeConfiguration(rbt2arm),Collisions="on");
axis padded

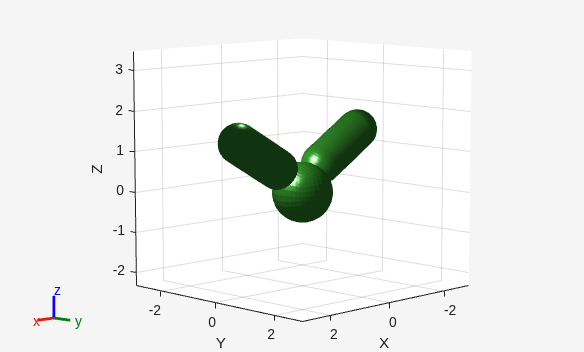

Figure contains an axes object. The axes object with xlabel X, ylabel Y contains 8 objects of type patch, line. These objects represent base, body1, body2, body1_coll_mesh, body2_coll_mesh, base_coll_mesh.

List the body names of the robot. The skipped body pairs formed by bodies of adjacent indices is similar to the serial manipulator but without body, "tool".

rbt2arm.BodyNames
ans = 1x2 cell
    {'body1'}    {'body2'}

Check the parent of body1 and the parent of body2. Each body forms a parent-child relationship with the base, even though they are at adjacent indices.

rbt2arm.Bodies{1}.Parent.Name
ans =
'base'
rbt2arm.Bodies{2}.Parent.Name
ans =
'base'

Run collision checking with both SkippedSelfCollisions options.

checkCollision(rbt2arm,homeConfiguration(rbt2arm),SkippedSelfCollisions="parent")
ans = logical
   0

checkCollision(rbt2arm,homeConfiguration(rbt2arm),SkippedSelfCollisions="adjacent")
ans = logical
   1

As expected, when skipping parent-child body pairs during self collision checks, checkCollision finds no self collisions, but does find a self collision between the "base" and "body2" when skipping body pairs of adjacent indices.

When you want to resolve all self-collisions in a robot model without checking them between bodies with a parent-child relationship or at adjacent indices, you can use the SkippedSelfCollisions name-value argument with the "parent" and "adjacent" values, respectively. However, if your robot model has one or more self-collisions that you can not resolve when using either "parent" or "adjacent", you can specify additional body pairs between which to skip collision checking.

Load an ABB IRB 1600 robot model into the workspace, with a data format of "row". This is an example of a robot model that contains an additional self-collision when you specify the SkippedSelfCollision name-value argument as "adjacent".

rbt = loadrobot("abbIrb1600",DataFormat="row");
config = homeConfiguration(rbt)
config = 1×6

     0     0     0     0     0     0

Perform an exhaustive self-collision check, and skip self-collisions between bodies at adjacent indices

[isSelfColl1,sepDist1] = checkCollision(rbt,config,SkippedSelfCollisions="adjacent",Exhaustive="on");

You can determine which pairs of bodies are in collision by checking the separation distance matrix sepDist1 for NaN values. To make the separation distance matrix easier to read, convert the separation distance matrix to a table. Use the body names and base link name to label the rows and columns. The NaN values indicate that the self-collision is between link_4 and link_6..

bodynames = [rbt.BodyNames rbt.Base.Name];
collTable = array2table(sepDist1,VariableNames=bodynames,RowNames=bodynames)
collTable=8×8 table
                 link_1     link_2     link_3     link_4     link_5     link_6     tool0    base_link
                 _______    _______    _______    _______    _______    _______    _____    _________

    link_1           Inf        Inf      0.176    0.36201    0.55837    0.59557     Inf          Inf
    link_2           Inf        Inf        Inf    0.25321    0.49887    0.54104     Inf      0.25599
    link_3         0.176        Inf        Inf        Inf      0.244      0.286     Inf      0.65488
    link_4       0.36201    0.25321        Inf        Inf        Inf        NaN     Inf       0.7801
    link_5       0.55837    0.49887      0.244        Inf        Inf        Inf     Inf      0.91534
    link_6       0.59557    0.54104      0.286        NaN        Inf        Inf     Inf      0.95033
    tool0            Inf        Inf        Inf        Inf        Inf        Inf     Inf          Inf
    base_link        Inf    0.25599    0.65488     0.7801    0.91534    0.95033     Inf          Inf

Check the value of isSelfColl1. The output argument returns 1 (true), indicating that the robot model has a self-collision between a pair of bodies that are not adjacent.

isSelfColl1
isSelfColl1 = logical
   1

To skip checking for self-collision between link_4 and link_6, you must manually specify all of the body pairs for which to skip checking for self-collision. First, create a list of all the body names in the model, in order from the base link to the tool. Then, by combining the ordered list of rigid body names with an offset version of itself, create a two-column cell array that specifies each adjacent rigid body pair. Then add link_4 and link_6 as an additional skipped body pair.

adjbodynames = [rbt.Base.Name rbt.BodyNames]
adjbodynames = 1x8 cell
    {'base_link'}    {'link_1'}    {'link_2'}    {'link_3'}    {'link_4'}    {'link_5'}    {'link_6'}    {'tool0'}

skiplist = cell(rbt.NumBodies,2);
for i = 1:rbt.NumBodies
    skiplist(i,:) = {adjbodynames{i}, adjbodynames{i+1}};
end
skiplist = [skiplist; {'link_4','link_6'}]
skiplist = 8x2 cell
    {'base_link'}    {'link_1'}
    {'link_1'   }    {'link_2'}
    {'link_2'   }    {'link_3'}
    {'link_3'   }    {'link_4'}
    {'link_4'   }    {'link_5'}
    {'link_5'   }    {'link_6'}
    {'link_6'   }    {'tool0' }
    {'link_4'   }    {'link_6'}

Perform self-collision checking, and note that checkCollision no longer indicates self-collision between link_4 and link_6.

[isSelfColl2,sepDist2] = checkCollision(rbt,config,SkippedSelfCollisions=skiplist,Exhaustive="on");
isSelfColl2
isSelfColl2 = logical
   0

array2table(sepDist2,VariableNames=bodynames,RowNames=bodynames)
ans=8×8 table
                 link_1     link_2     link_3     link_4     link_5     link_6     tool0    base_link
                 _______    _______    _______    _______    _______    _______    _____    _________

    link_1           Inf        Inf      0.176    0.36201    0.55837    0.59557     Inf          Inf
    link_2           Inf        Inf        Inf    0.25321    0.49887    0.54104     Inf      0.25599
    link_3         0.176        Inf        Inf        Inf      0.244      0.286     Inf      0.65488
    link_4       0.36201    0.25321        Inf        Inf        Inf        Inf     Inf       0.7801
    link_5       0.55837    0.49887      0.244        Inf        Inf        Inf     Inf      0.91534
    link_6       0.59557    0.54104      0.286        Inf        Inf        Inf     Inf      0.95033
    tool0            Inf        Inf        Inf        Inf        Inf        Inf     Inf          Inf
    base_link        Inf    0.25599    0.65488     0.7801    0.91534    0.95033     Inf          Inf

Input Arguments

collapse all

Rigid body tree robot model, specified as a rigidBodyTree object. To use the checkCollision function, the DataFormat property of the rigidBodyTree object must be either 'row' or 'column'.

Joint configuration of the rigid body tree, specified as an n-element numeric vector, where n is the number of nonfixed joints in the robot model. Each element of the vector is a specific joint position for a joint in the robot model.

Data Types: single | double

List of collision objects in the world, specified as a cell array of collision objects with any combination of collisionBox, collisionCylinder, collisionSphere, and collisionMesh objects. The function assumes that the Pose property of each object is relative to the base of the rigid body tree robot model.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: Exhaustive="on" enables exhaustive checking for collisions and causes the function to calculate all separation distances and witness points.

Exhaustively check for all collisions, specified as the comma-separated pair consisting of "Exhaustive" and "on" or "off". By default, the function finds the first collision and stops, returning the separation distances and witness points for incomplete checks as Inf.

If this name-value pair argument is specified as "on", the function instead continues checking for collisions until it has exhausted all possibilities.

Data Types: char | string

Skip checking for robot self-collisions, specified as the comma-separated pair consisting of "IgnoreSelfCollision" and "on" or "off". When this argument is enabled, the function ignores collisions between the collision objects of the rigid body tree robot model bodies and other collision objects of the same model or its base.

This name-value pair argument affects the size of the separationDist and witnessPts output arguments.

Data Types: char | string

Body pairs skipped for checking self-collisions, specified as "parent", "adjacent", or a p-by-2 cell array of character vectors:

Data Types: char | string

Output Arguments

collapse all

Self Collisions

Robot configuration is in self-collision returned as a logical 0 (false) or 1 (true). If the function returns a value of true for this argument, that means that one of the rigid body collision objects is touching another collision object in the robot model. Add collision objects to your rigid body tree robot model using the addCollision function.

Data Types: logical

Minimum separation distance between the bodies of the robot, returned as an (m+1) -by-(m+1) matrix, where m is the number of bodies. The final row and column correspond to the robot base. Units are in meters.

If a pair is in collision, the function returns the separation distance for the associated element as NaN.

Data Types: double

Witness points between the robot bodies including the base, returned as an 3(m+1)-by-2(m+1) matrix, where m is the number of bodies. Witness points are the points on any two bodies that are closest to one another for a given configuration. The matrix takes the form:

The matrix is divided into 3-by-2 sections that represent the xyz-coordinates of witness point pairs in the form:

[x1x2y1y2z1z2]

Each section corresponds to a separation distance in the selfSeparationDist output matrix. Use these equations to determine where the section of the selfWitnessPts matrix that corresponds to a specific separation distance begins:

Wr=3Sr2

Wc=2Sc1

Where (Sr,Sc) is the index of a separation distance in the separation distance matrix and (Wr,Wc) is the index in the witness point matrix at which the corresponding witness points begin.

If a pair is in collision, the function returns each coordinate of the witness points for that element as NaN.

Data Types: double

World Collisions

Robot configuration is in collision, returned as a two-element logical vector. The first element indicates whether the robot is in self-collision. The second element indicates whether the robot model is in collision with any world objects.

Data Types: logical

Minimum separation distance between the collision objected, returned as an (m+1)-by-(m+w+1) matrix, where m is the number of bodies and w is the number of world objects. The first m rows correspond to the robot bodies, where the (m+1)th row or column index corresponds to the base. The remaining w columns correspond to the world objects.

The matrix is divided into 3-by-2 sections that represent the xyz-coordinates of witness point pairs in the form:

[x1x2y1y2z1z2]

Each section corresponds to a separation distance in the separationDist output matrix. Use these equations to determine where the section of the witnessPts matrix that corresponds to a specific separation distance begins:

Wr=3Sr2

Wc=2Sc1

Where (Sr,Sc) is the index of a separation distance in the separation distance matrix and (Wr,Wc) is the index in the witness point matrix at which the corresponding witness points begin.

If a pair is in collision, the function returns each coordinate of the witness points for that element as NaN.

If a pair is in collision, the function returns the separation distance as NaN.

Dependencies

If you specify the "IgnoreSelfCollision" name-value pair argument as "on", then the matrix does not contain values for the distances between any given body and other bodies in the robot model.

Data Types: double

Witness points between collision objects, specified as a 3(m+1)-by-2(m+w+1) matrix, where m is the number of bodies and w is the number of world objects. Witness points are the points on any two bodies that are closest to one another for a given configuration. The matrix takes the form:

[Wr1_1       Wr1_2     ...    Wr1_(N+1)     Wo1_1     Wo1_2      ... W1_M;
 Wr2_1       Wr2_2     ...    Wr2_(N+1)     Wo2_1     Wo2_2      ... W2_M;
 .           .         .      .             .         .          .   .
 .           .         .      .             .         .          .   .
 .           .         .      .             .         .          .   .
 Wr(N+1)_1   Wr(N+1)_2 ...    Wr(N+1)_(N+1) Wo(N+1)_1 Wo(N+1)_2  ... W(N+1)_M]

Each element in the above matrix is a 3-by-2 matrix that gives the nearest [x y z]' points on the two corresponding bodies or world objects. The final row and column correspond to the robot base.

Wr elements represent the witness points between the robot bodies, selfWitnessPts. Woi_j elements represent the witness points between the robot bodies and base, and the world objects. The i indices correspond to the robot bodies, and the j indices correspond to collision objects from the world object list worldObjects.

If a pair is in collision, witness points for that element are returned as NaN(3,2).

Dependencies

If the "IgnoreSelfCollision" name-value pair is set to "on", then the matrix contains no Wr elements.

Data Types: double
